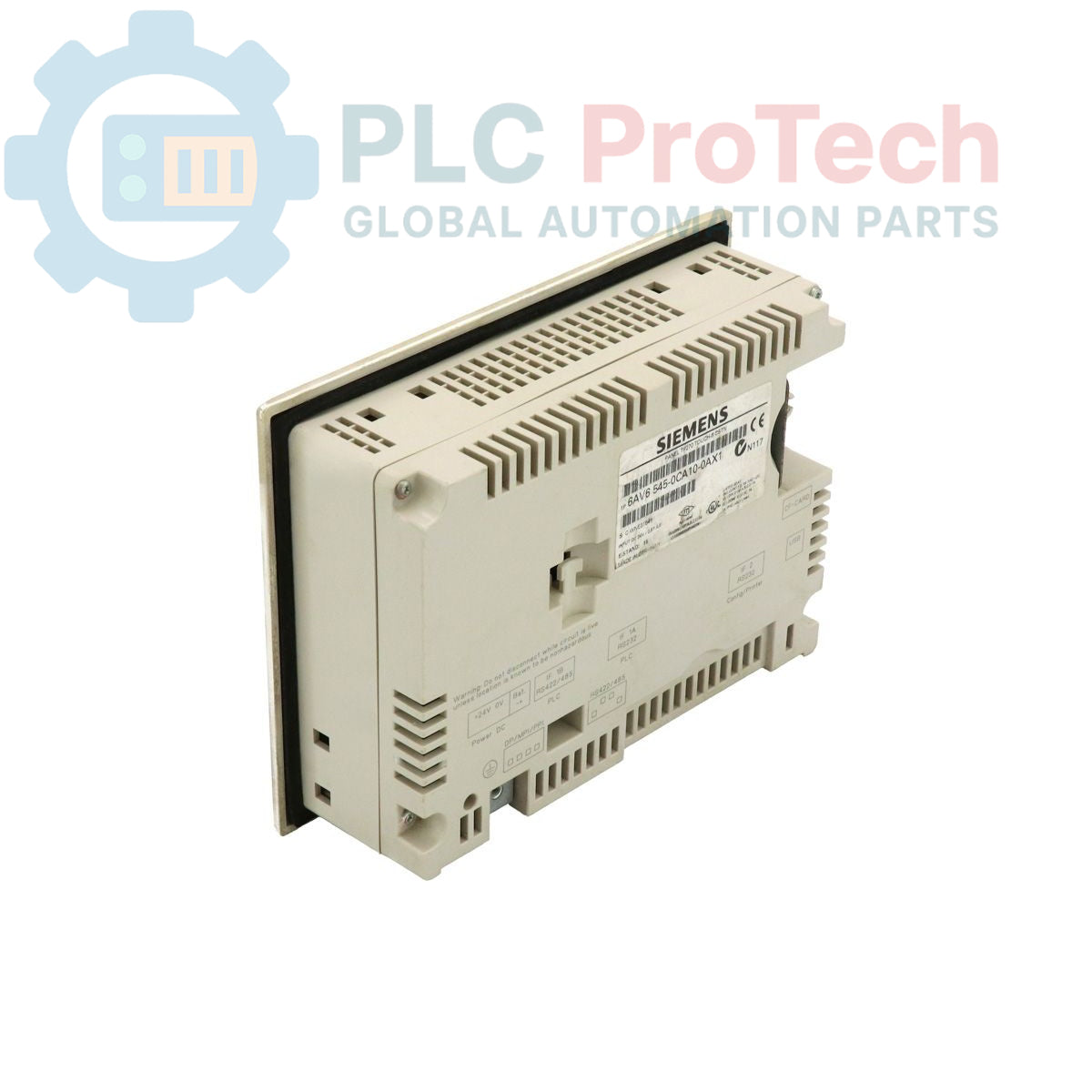

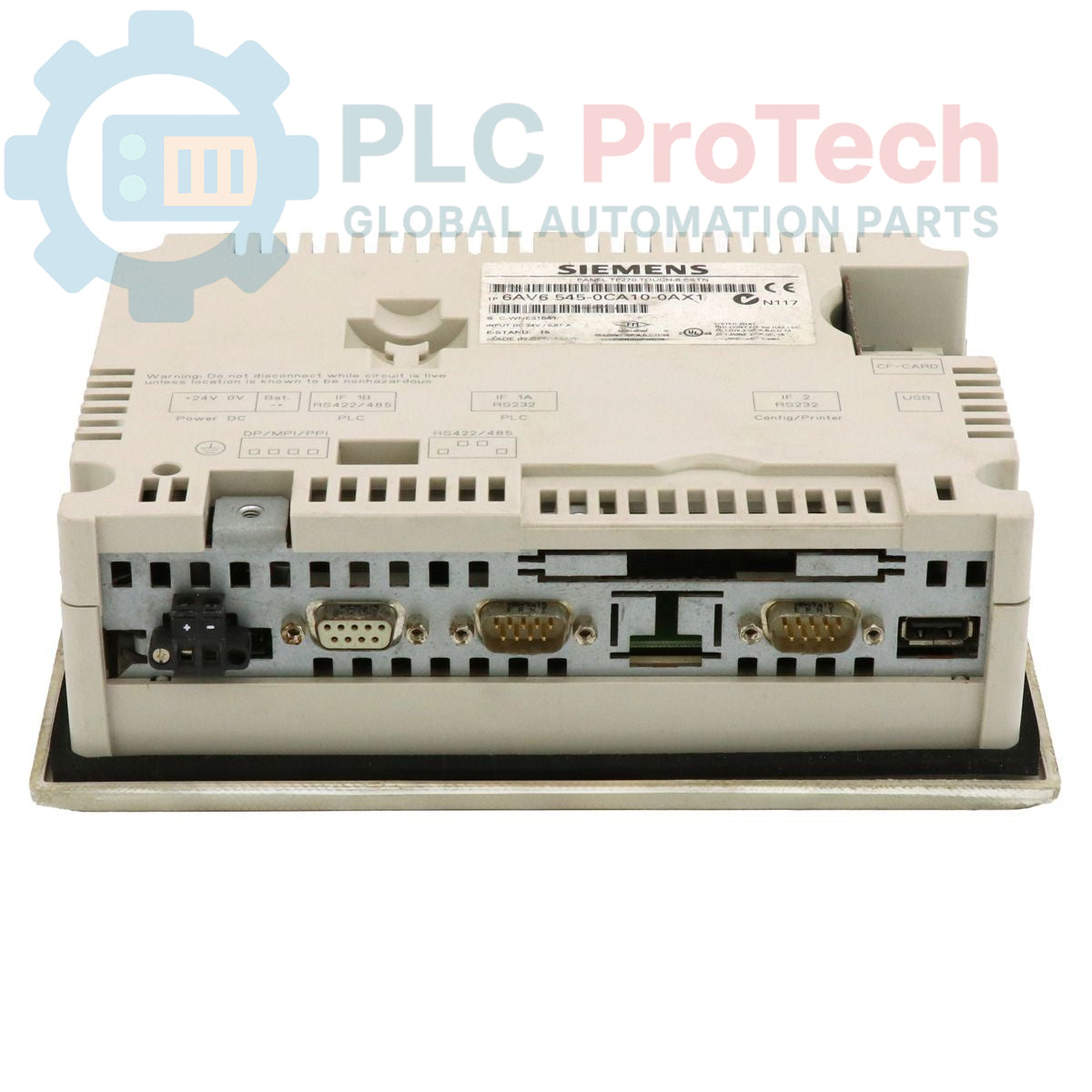

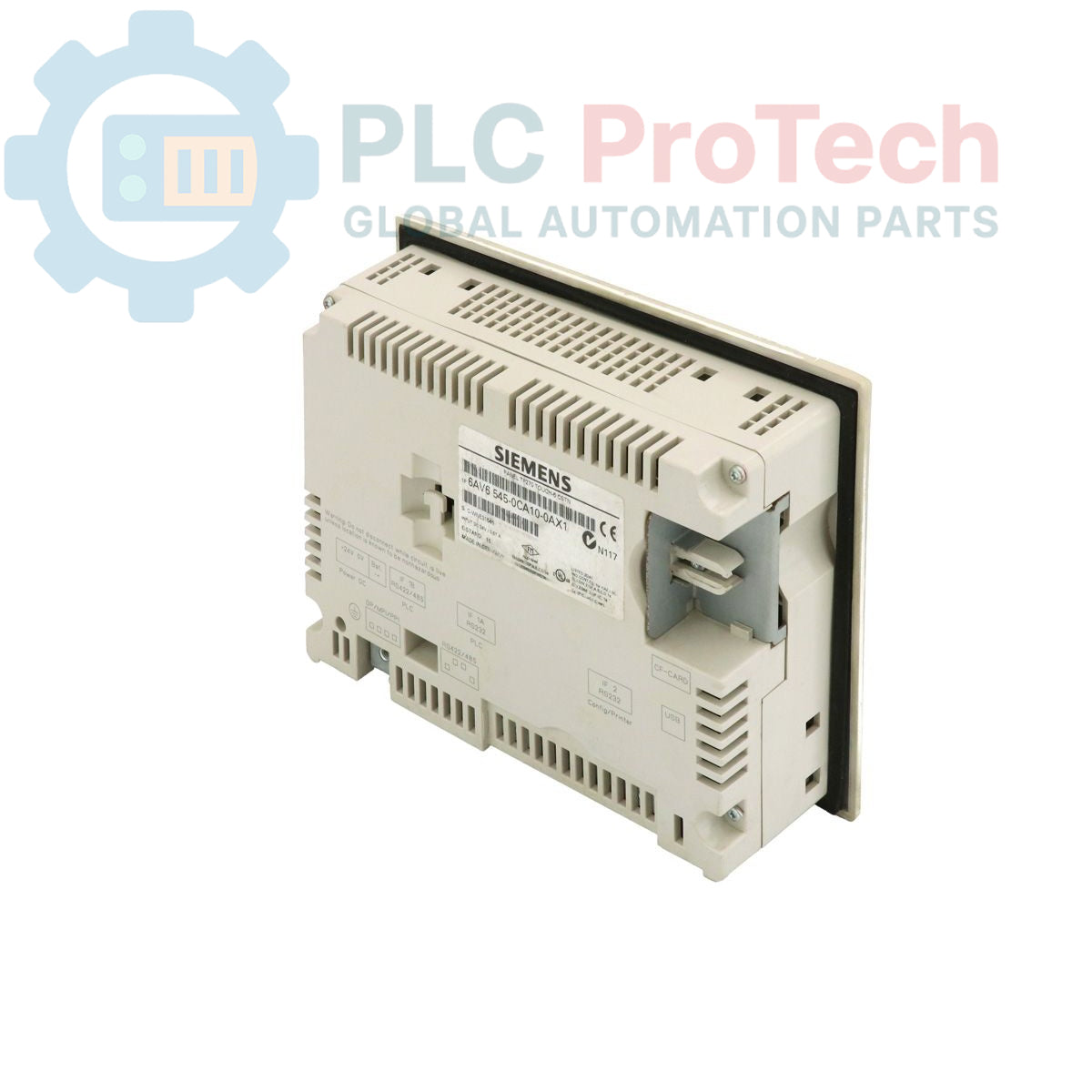

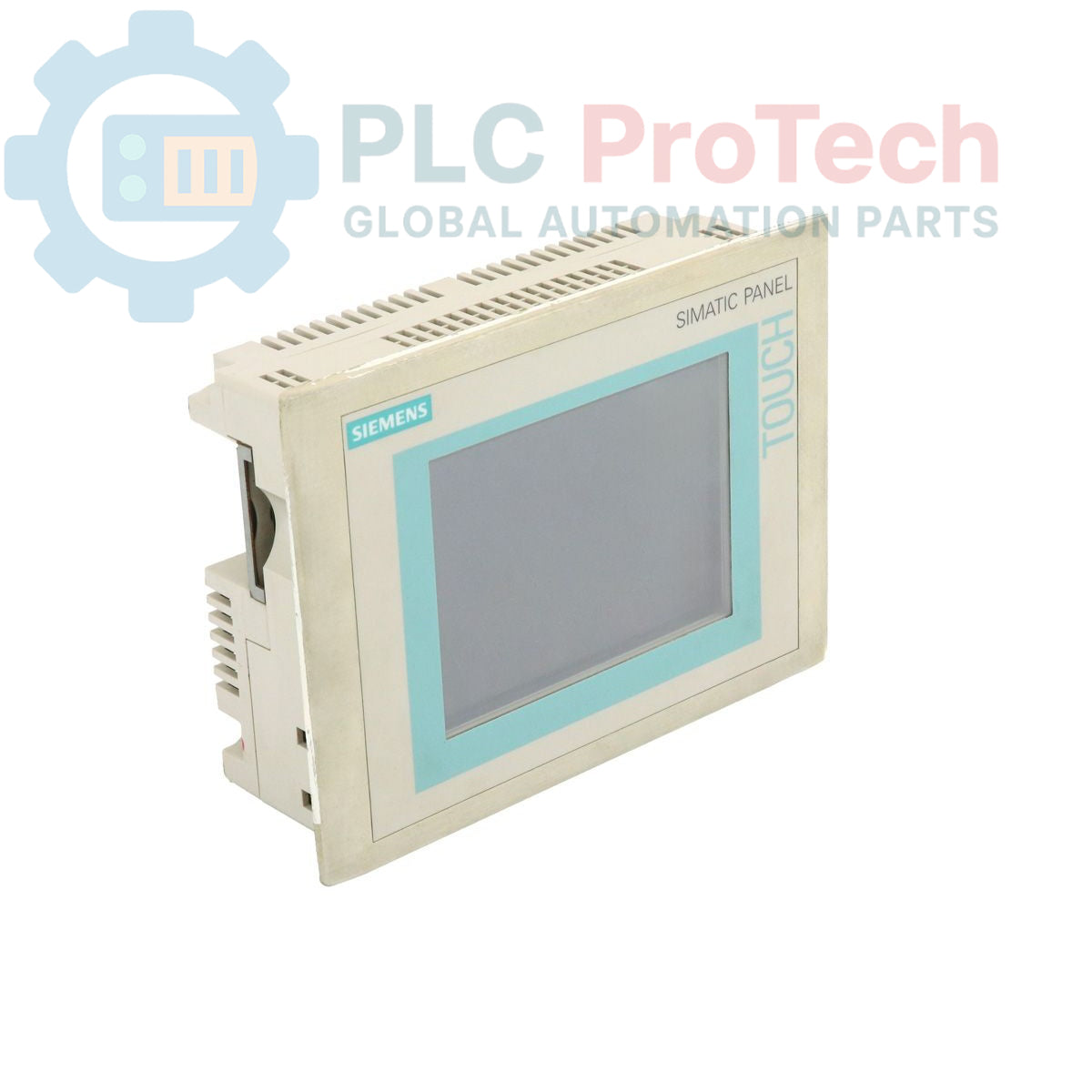

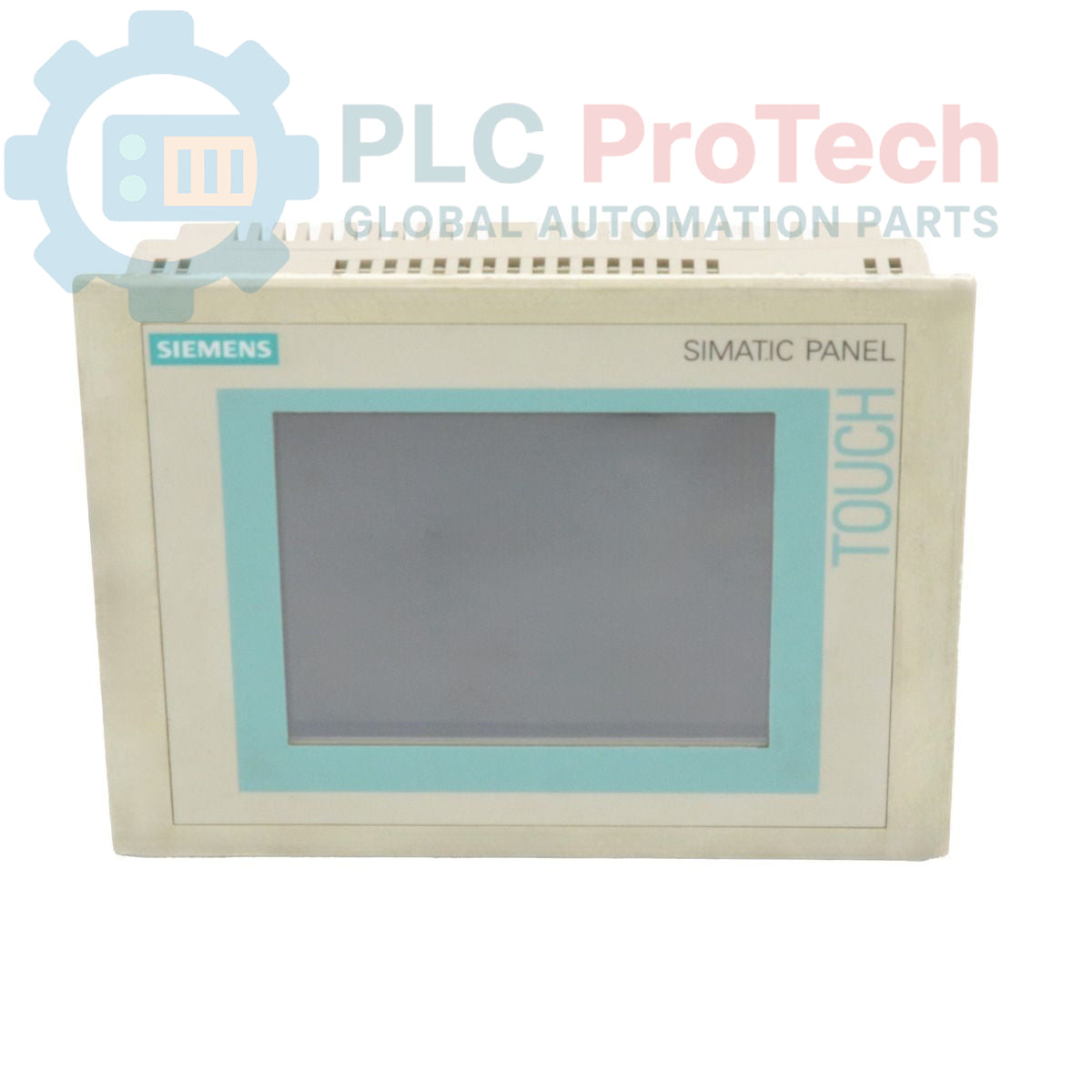

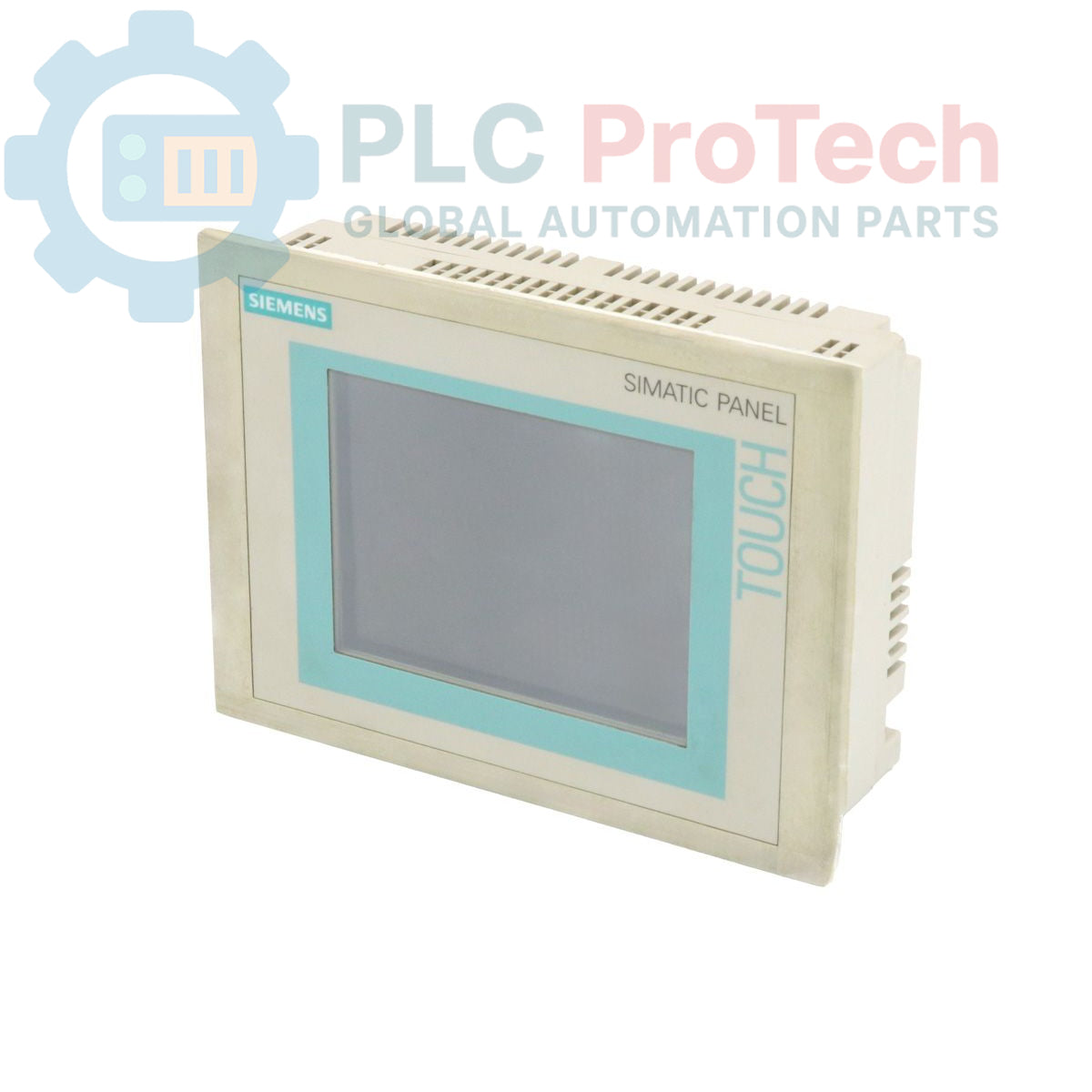

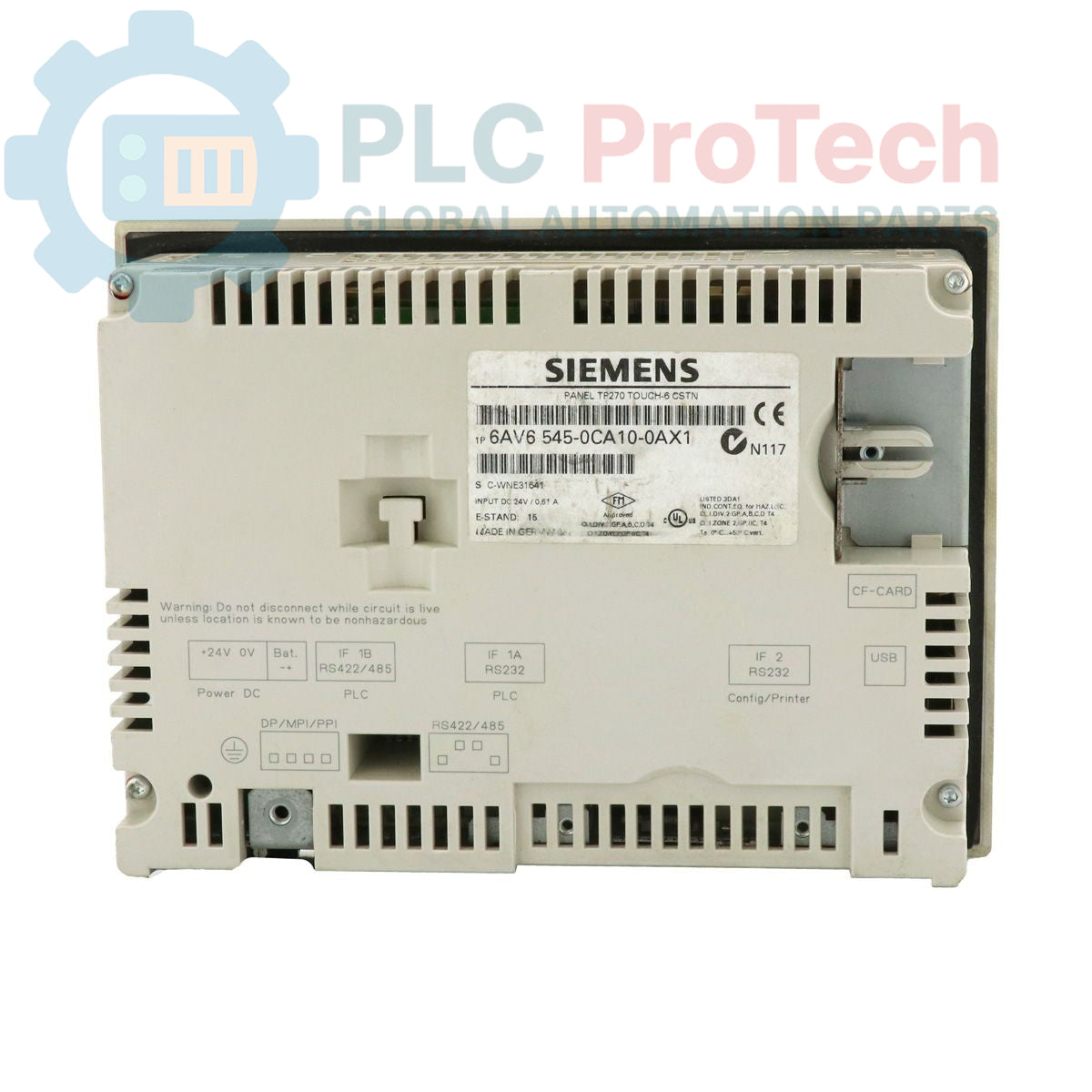

Siemens 6AV6545-0CA10-0AX1 SIMATIC TP 270 Touch Panel

SKU 6AV6545-0CA10-0AX1

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV6545-0CA10-0AX1
Country of origin:Germany
Product Type: HMI Touch Panel
Barcode: 85371091
Payment: T/T, Western Union
Weight: 1260g
Dimensions: 17.80 x 7.60 x 25.40 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV6545-0CA10-0AX1 is a SIMATIC TP 270 Human-Machine Interface (HMI) Touch Panel designed for industrial automation applications. This unit features a 5.7-inch STN color display, providing clear visualization and intuitive touch control for various production processes. Equipped with 2 MB (2048 kbyte) of configuration memory, the 6AV6545-0CA10-0AX1 supports efficient project management and is configurable using ProTool software from Version V6.0 onwards. Its robust construction ensures reliable performance in demanding industrial environments, making it suitable for integration into diverse automation systems.

Features

5.7-inch STN Color Display
Touch Operation
320 x 240 Pixel Display Resolution
256 Display Colors
2 MB (2048 kbyte) Configuration Memory
Configurable with ProTool from Version V6.0
24V DC Supply Voltage

Applications

The Siemens 6AV6545-0CA10-0AX1 SIMATIC TP 270 Touch Panel is suitable for a wide range of industrial applications requiring local operator control and monitoring, including:

Machine control and visualization
Process monitoring in manufacturing plants
Building automation systems
Control of material handling equipment
Integration into distributed control systems (DCS) and supervisory control and data acquisition (SCADA) systems

Technical Specifications

Parameter	Value
Brand	Siemens
Manufacturer	Siemens
Product Range	SIMATIC HMI
Product Subrange	Touch Panels 270 series
Product Type	Touch panel
Supply Voltage	24V DC
Product Phase	Obsolete
Predecessor	6AV6545-0CA10-0AX0
Screen Diagonal	5.7 inch
Display Type	STN
Display Resolution	320 x 240 pixels
Type of Operation	Touch
Color Display	Yes
Display Colors	256
Configuration Memory	2048 kbyte (2 MB)
Package Dimensions (L x W x H)	17.80 x 7.60 x 25.40 cm
Shipping Weight	1.26 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	5D002

Installation Guidelines

De-energize System: Before beginning installation, ensure that all power to the control cabinet and associated equipment is de-energized and locked out according to safety procedures.
Mounting: Mount the touch panel securely into a prepared panel cutout. Ensure proper sealing to maintain the enclosure's IP rating, if applicable.
Power Connection: Connect the 24V DC supply voltage to the designated terminals, observing correct polarity. Ensure the power supply is stable and within the specified voltage range.
Grounding: Connect the panel's protective earth (PE) terminal to the system's ground potential to ensure proper grounding and electromagnetic compatibility (EMC).
Cable Routing: Route all cables, including power and communication, away from sources of electrical noise and high-voltage lines to prevent interference.
Configuration: After physical installation, power up the unit and use ProTool software (Version V6.0 or higher) to load the application project and configure the HMI.
Verification: Test all HMI functions, including touch response, display, and communication with the connected automation system, before returning the system to operation.

FAQ

What software is required to configure the 6AV6545-0CA10-0AX1?

The Siemens 6AV6545-0CA10-0AX1 requires ProTool software, Version V6.0 or higher, for configuration and project management.

What are the key display specifications of this touch panel?

It features a 5.7-inch STN color display with a resolution of 320 x 240 pixels and supports 256 display colors.

What is the power supply requirement for the SIMATIC TP 270?

The SIMATIC TP 270 operates on a 24V DC supply voltage.

How much configuration memory does the 6AV6545-0CA10-0AX1 have?

The unit is equipped with 2 MB (2048 kbyte) of configuration memory.
