Siemens 6AV6545-5EB00-0BJ0 SIMATIC HMI Multi Panel

SKU 6AV6545-5EB00-0BJ0

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: Siemens

  • Product No.: 6AV6545-5EB00-0BJ0

  • Country of origin:Germany

  • Product Type: Multi Panel

  • Barcode: 85371091

  • Payment: T/T, Western Union

  • Weight: 5g

  • Dimensions: 41.00 x 61.00 x 18.00 cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

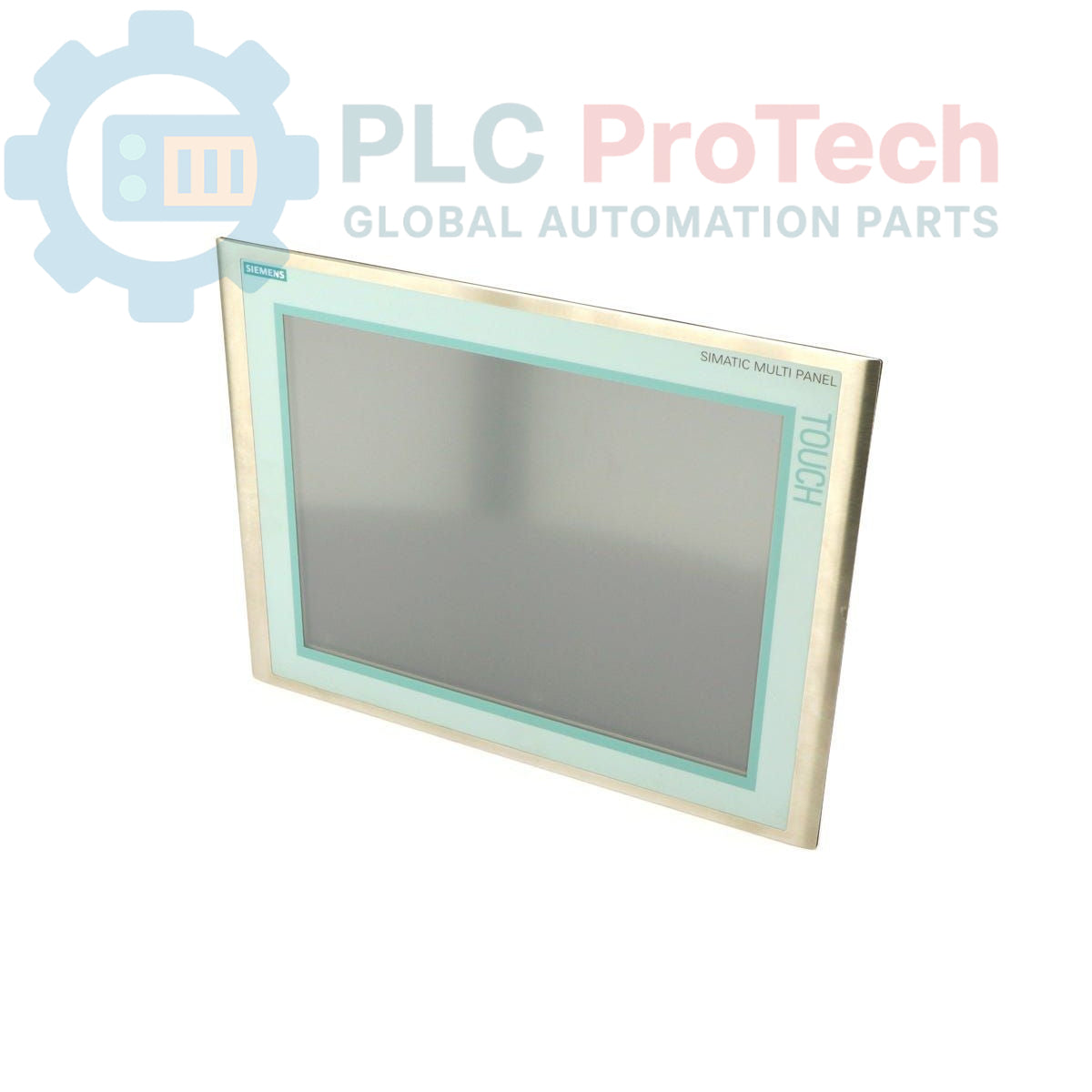

The Siemens 6AV6545-5EB00-0BJ0 is a SIMATIC HMI Multi Panel 370 series 15-inch Touch device, identified as a customer-specific design version A, customized variant BHS. This unit is delivered with a standard front for the MP 370 15" Touch, model 6AV6545-0DB10-0AX0, indicating its role as a human-machine interface within industrial automation environments. It belongs to the SIMATIC HMI range and is currently in an obsolete product phase.

Features

  • 15-inch Touch display
  • Customer-specific design version A
  • Customized variant BHS
  • Delivered with standard front
  • Obsolete product phase

Applications

The Siemens 6AV6545-5EB00-0BJ0 Multi Panel is suitable for various industrial automation applications requiring human-machine interaction, including:

  • Operator control and monitoring in process and discrete manufacturing.
  • Visualization of process parameters and system status.
  • Data entry and recipe management in automated systems.

Technical Specifications

Parameter Value
Manufacturer Siemens
Range SIMATIC HMI
Subrange Multi Panels 370 series
Product Type Multi Panel
Display Type 15-inch Touch
Product Phase Obsolete
Package Dimensions (Calculated) 41.00 x 61.00 x 18.00 cm
Shipping Weight 5.00 kg
Commodity Code 85371091
Export Control Regulations (ECCN) 5D002

Installation Guidelines

Proper installation ensures reliable operation and safety for the Multi Panel. Adhere to general industrial best practices:

  1. De-energization: Before any installation or wiring, ensure all power to the control cabinet or system is completely de-energized and locked out.
  2. Mounting: Mount the Multi Panel securely into a prepared panel cutout or enclosure, ensuring adequate clearance for ventilation and cable routing.
  3. Grounding: Establish a robust protective earth (PE) connection to the panel's chassis ground terminal to minimize electrical noise and ensure safety.
  4. Power Connection: Connect the power supply cables according to the specified voltage and polarity. Use appropriate wire gauges and ensure secure terminations.
  5. Communication Wiring: Route communication cables (e.g., Ethernet, PROFIBUS) separately from power cables to prevent interference. Ensure proper shielding and grounding of communication lines if required by the system.
  6. Environmental Considerations: Verify that the operating environment (temperature, humidity, vibration) is within the panel's specified limits to ensure long-term performance.

FAQ

What is the primary function of the Siemens 6AV6545-5EB00-0BJ0?
It serves as a Human-Machine Interface (HMI) within industrial automation systems, providing a touch-enabled display for operator control, monitoring, and visualization of processes.

What is the display size of this Multi Panel?
The 6AV6545-5EB00-0BJ0 features a 15-inch touch display.

Is the 6AV6545-5EB00-0BJ0 still actively manufactured?
No, this specific Multi Panel is currently in an obsolete product phase.

What are the package dimensions and weight for shipping?
The package dimensions are 41.00 x 61.00 x 18.00 cm, with a shipping weight of 5.00 kg.
