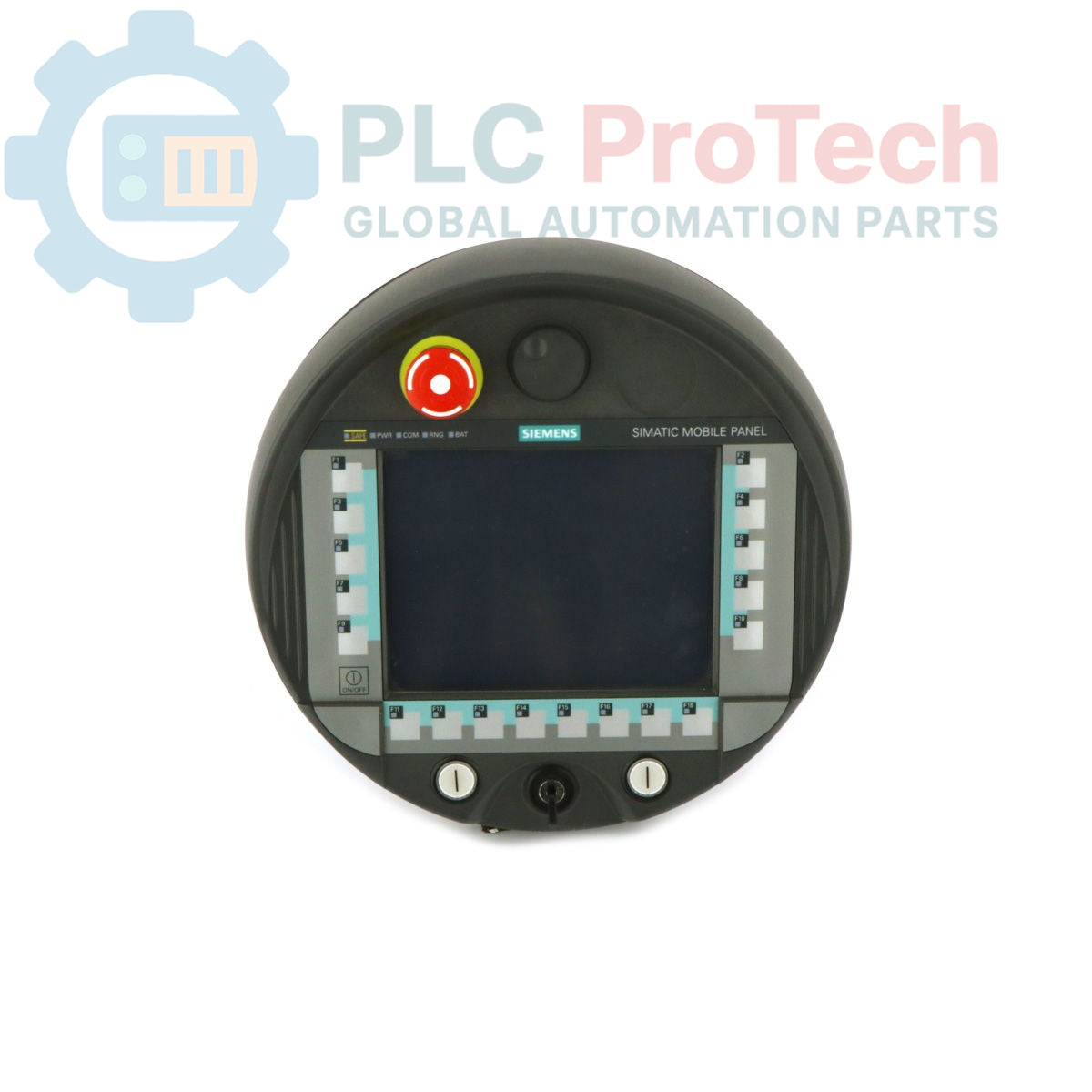

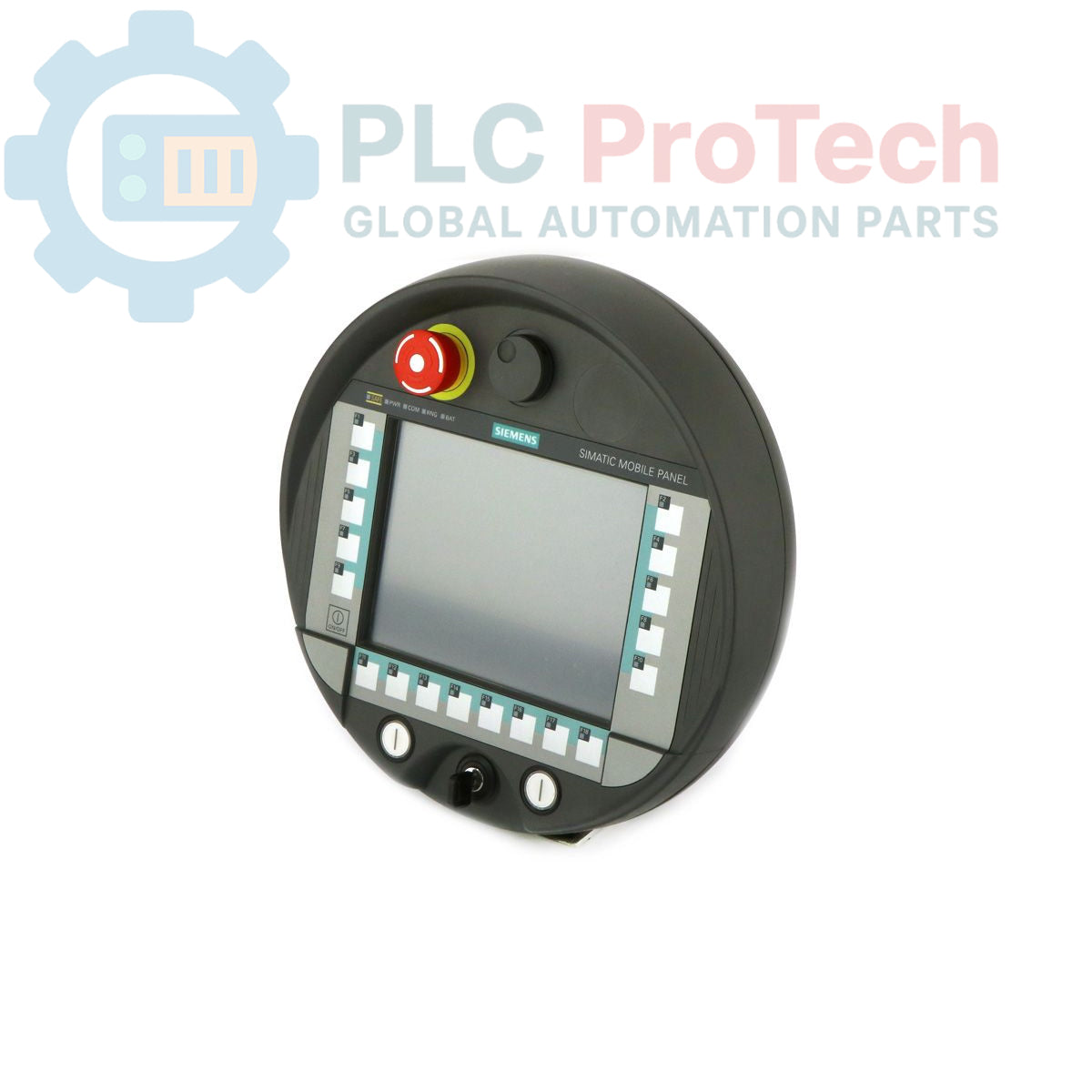

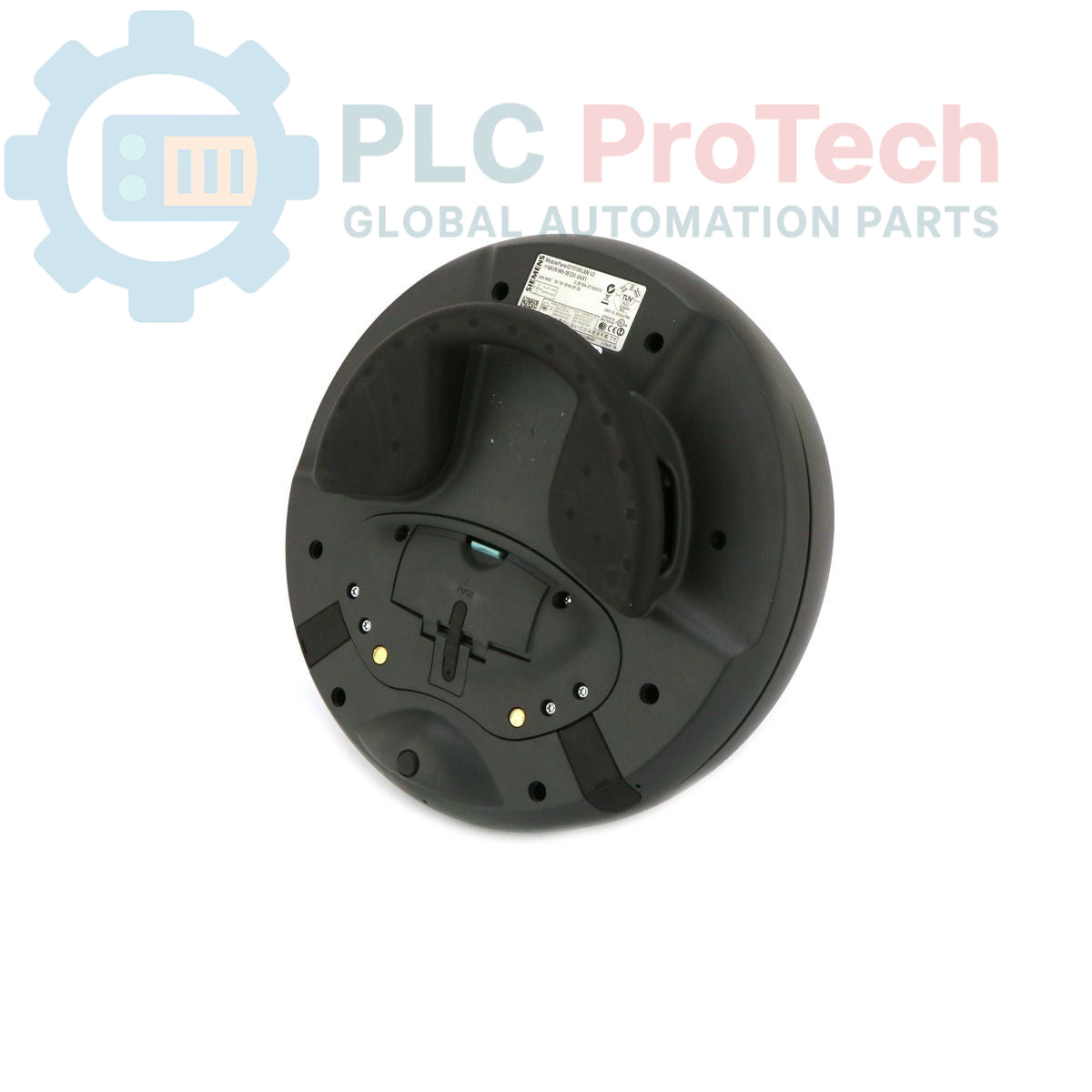

Siemens 6AV6645-0GC01-0AX1 SIMATIC Mobile Panel 277F IWLAN V2

SKU 6AV6645-0GC01-0AX1

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV6645-0GC01-0AX1
Country of origin:Germany
Product Type: Mobile HMI Panel
Barcode: 85371091
Payment: T/T, Western Union
Weight: 3480g
Dimensions: 35.5 x 34.1 x 18.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV6645-0GC01-0AX1 is a SIMATIC Mobile Panel 277F IWLAN V2 designed for flexible and safe operator control in industrial automation environments. This mobile HMI features a 7.5-inch TFT color display and integrated safety controls, including an emergency stop button and an acknowledgment button. It provides untethered machine interaction through Industrial Wireless LAN (IWLAN) with support for IPCF rapid roaming, ensuring stable connectivity. Operator inputs are managed via a handwheel, a key-operated switch, and two illuminated pushbuttons. Configuration of the panel is performed using WinCC flexible Standard Version 2008 or higher, or TIA Portal V11 SP2 or higher. Please note, the main battery and power supply components are not included and must be ordered separately.

Features

7.5-inch TFT display with 640 x 480 pixel resolution and 65,536 colors.
Integrated safety functions: emergency stop button and acknowledgment button.
Comprehensive operator controls including a handwheel, key-operated switch, and two illuminated pushbuttons.
Supports Industrial Wireless LAN (IWLAN) with IPCF rapid roaming for seamless network transitions.
Configuration via Siemens WinCC flexible (2008 or higher) or TIA Portal (V11 SP2 or higher).
PROFINET protocol support for communication with control systems.
Equipped with 6144 kbytes of user memory.

Applications

Mobile machine operation and monitoring
Commissioning and setup of automated production lines
Maintenance and diagnostic tasks requiring operator mobility
Robotics and material handling systems
Complex machinery with multiple access points

Required Accessories

For full operation, the following components must be ordered separately:

Main Battery: 6AV6671-5CL00-0AX0
Charging Station: 6AV6671-5CE00-0AX1
Tabletop Power Supply Unit: 6AV6671-5CN00-0AX2 (EU/US/UK/JP)

Technical Specifications

Specification	Value
Brand	Siemens
Model	6AV6645-0GC01-0AX1
Product Type	Mobile HMI Panel
Series	SIMATIC HMI Mobile Panel 277F IWLAN V2
PLM Status	Phase-Out
Display Type	TFT
Screen Diagonal	7.5 inch
Display Resolution	640 x 480 pixels
Display Colors	65536
User Memory	6144 kbyte
Supported Protocol	PROFINET
IO-Link Master	No
Shipping Weight	3.48 kg
Commodity Code	85371091
ECCN	5D992
Country of Origin	USA (Estimated)
Manufacturer	Siemens
Package Dimensions (Calculated)	35.5 x 34.1 x 18.0 cm

Installation Guidelines

CRITICAL WARNING: This device includes safety-related functions (Emergency Stop). Installation, configuration, and commissioning must be performed by qualified personnel in strict accordance with local safety regulations and the machine's overall safety concept. Failure to properly integrate and test safety functions can result in serious injury or death.

1
De-energize Equipment: Before any physical connection, ensure the target machine and related control panels are completely de-energized and locked out/tagged out (LOTO) to prevent accidental startup.
2
Prepare Power Source: Fully charge the main battery (6AV6671-5CL00-0AX0) using the specified charging station (6AV6671-5CE00-0AX1) or tabletop power supply (6AV6671-5CN00-0AX2) before first use.
3
Establish Wireless Connection: Configure the IWLAN settings on the panel to securely connect to the facility's industrial wireless network. Ensure signal strength is adequate in all intended areas of operation.
4
Download HMI Project: Connect the panel to the engineering station and download the configured HMI application developed in WinCC flexible or TIA Portal.
5
Perform Safety Function Test: After project download and before placing the machine into service, conduct a thorough functional test of all safety features, including the Emergency Stop button and Acknowledgment button, to verify correct operation within the machine's safety circuit.

FAQ

What software is required to configure the 6AV6645-0GC01-0AX1?

This mobile panel can be configured using Siemens WinCC flexible Standard Version 2008 or higher, or with TIA Portal Version 11 SP2 or higher.

Does this HMI panel come with a battery and power supply?

No, the main battery (6AV6671-5CL00-0AX0) and the power supply/charging station (e.g., 6AV6671-5CE00-0AX1) must be ordered separately.

What safety features are integrated into this device?

The panel includes an integrated emergency stop button, an acknowledgment button, and a key-operated switch for enhanced operator and machine safety.

What wireless technology does this panel use?

It utilizes Industrial Wireless LAN (IWLAN) and supports IPCF (Industrial Point Coordination Function) rapid roaming to ensure a stable and seamless wireless connection as the operator moves throughout the facility.

What is the screen size and resolution of this mobile panel?

The device features a 7.5-inch TFT color display with a resolution of 640 x 480 pixels.
