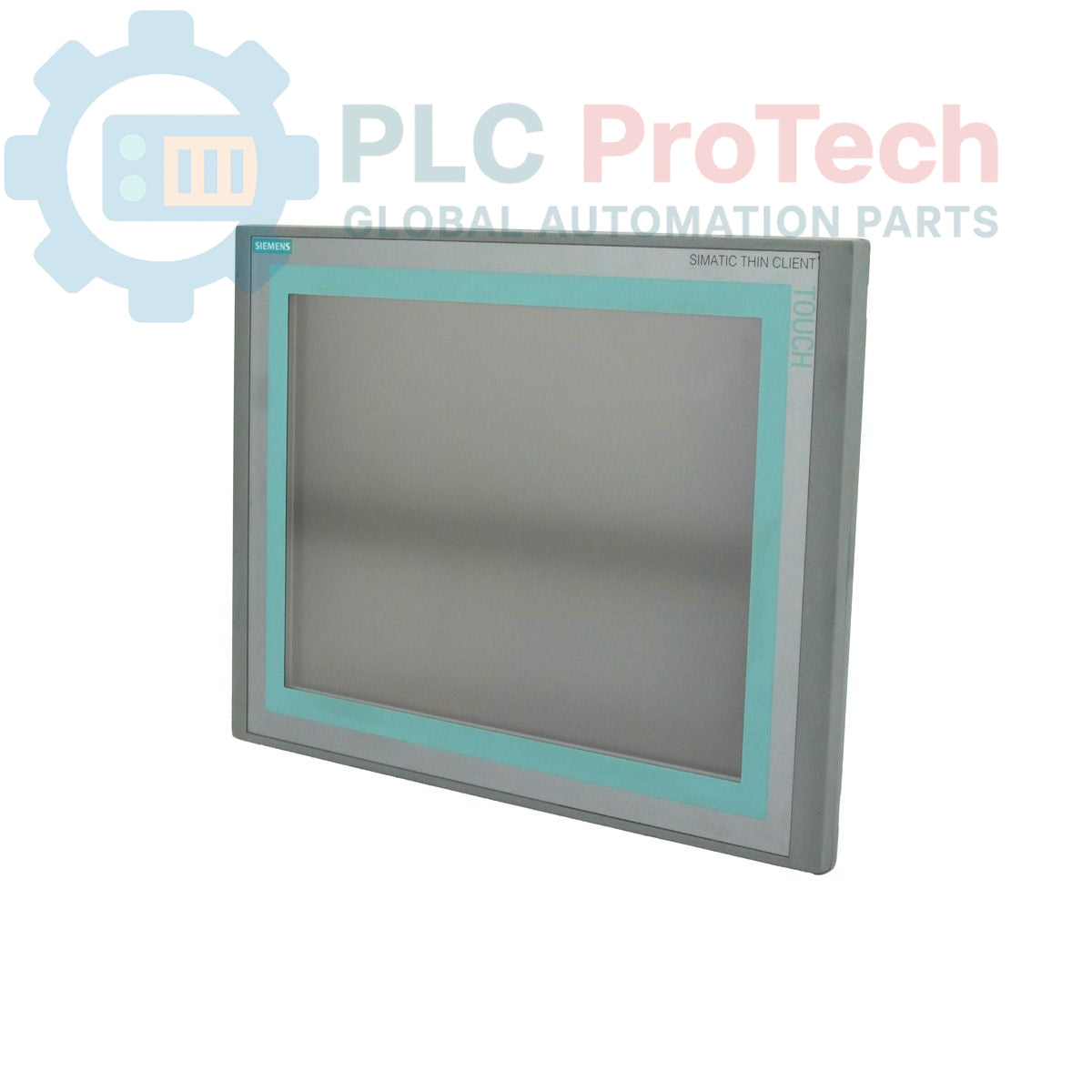

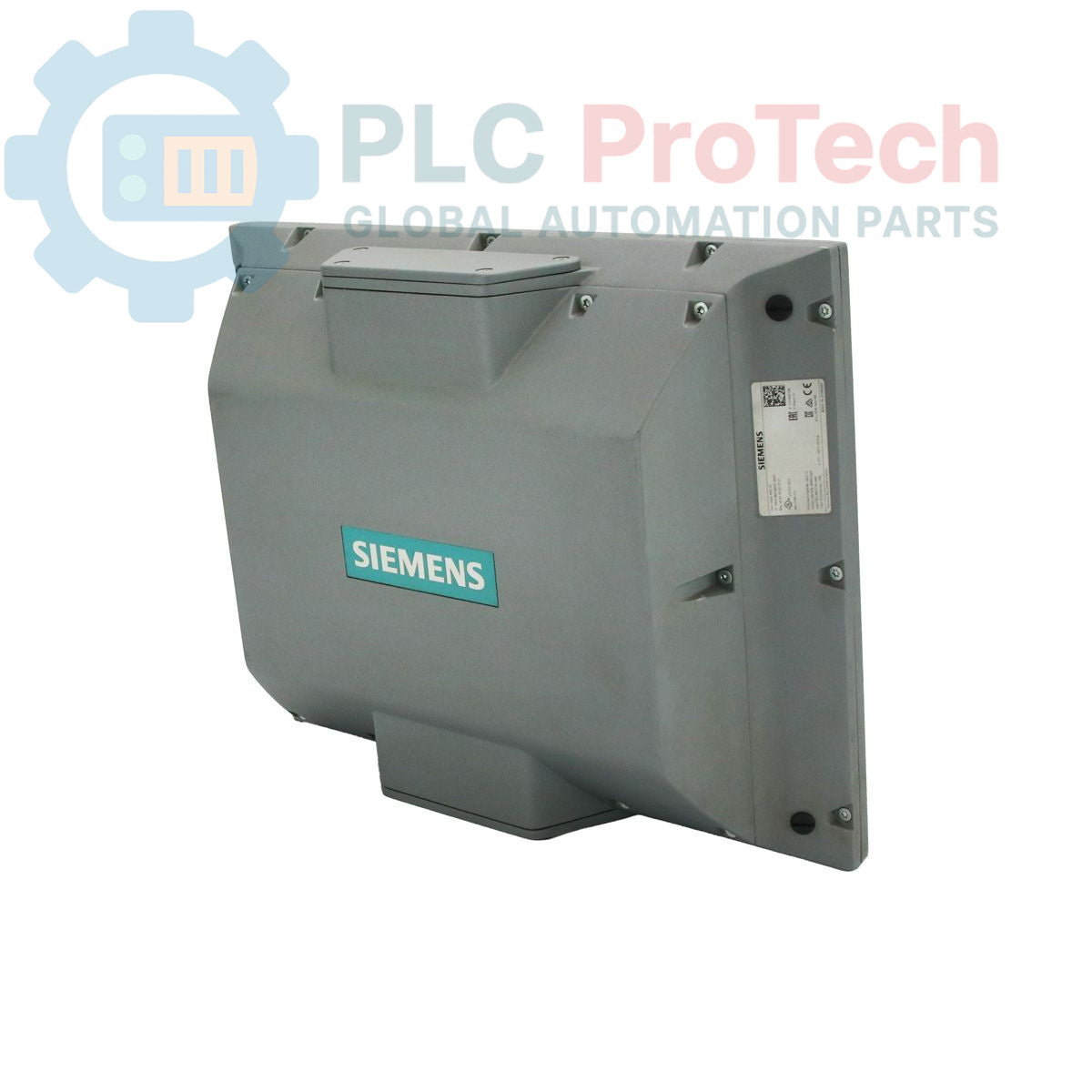

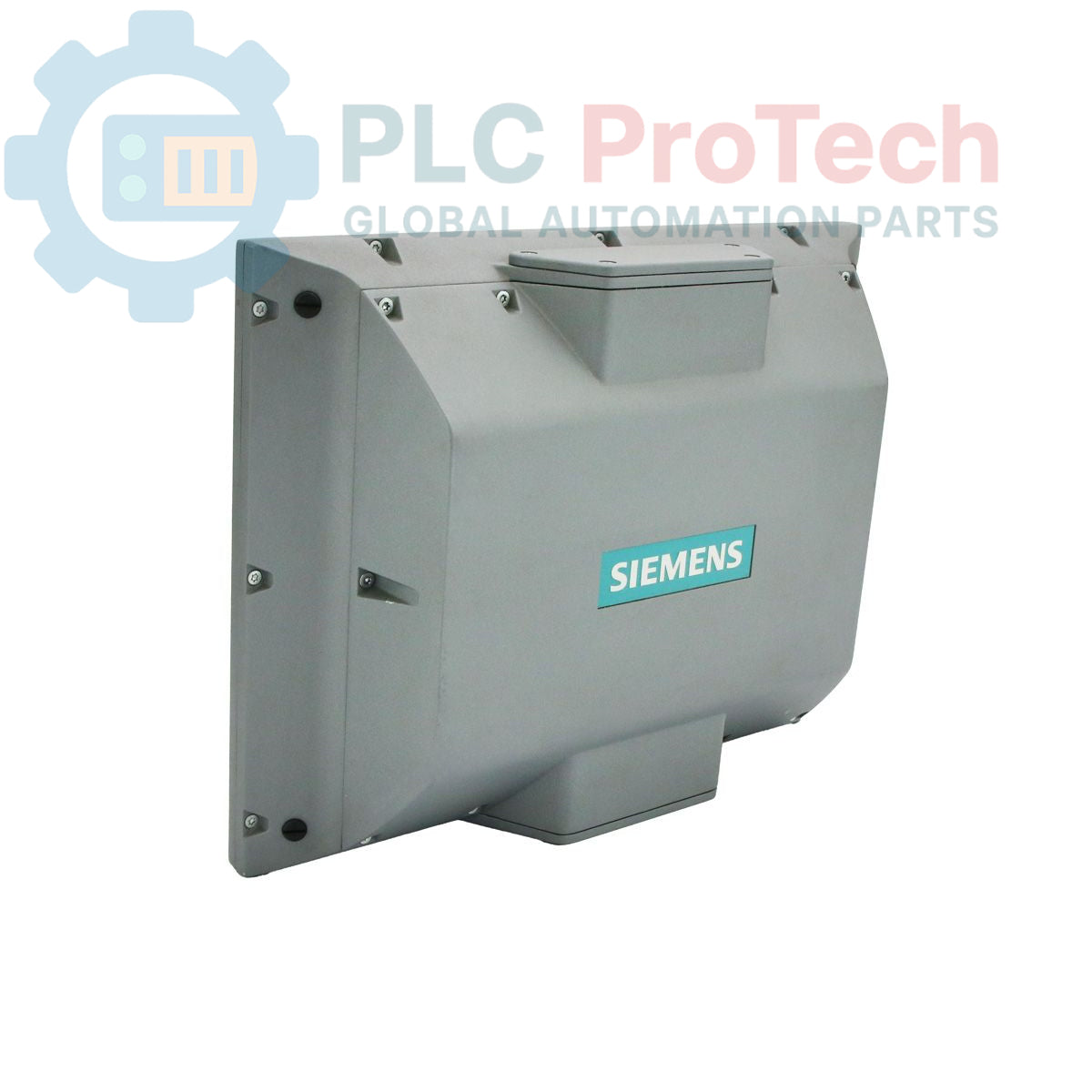

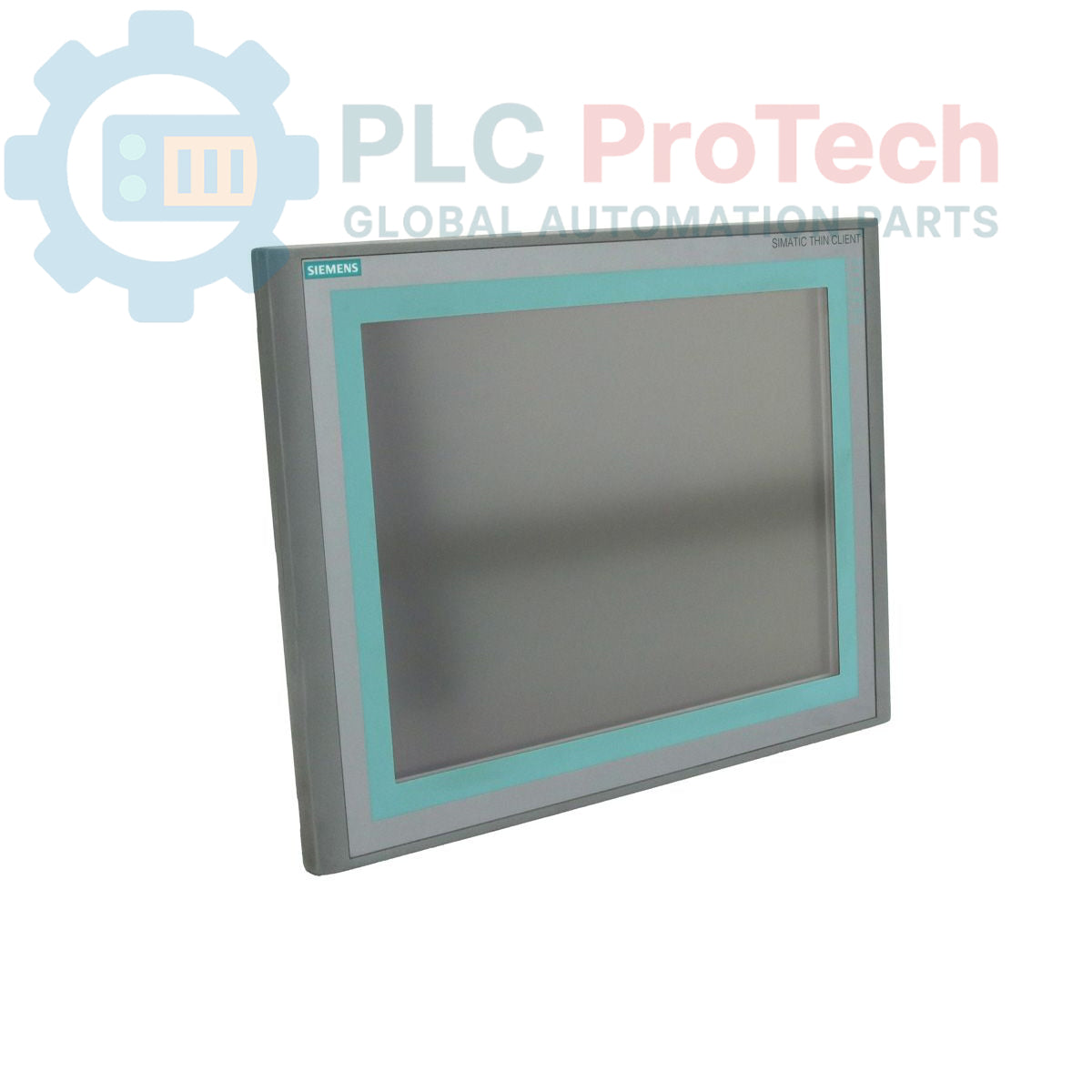

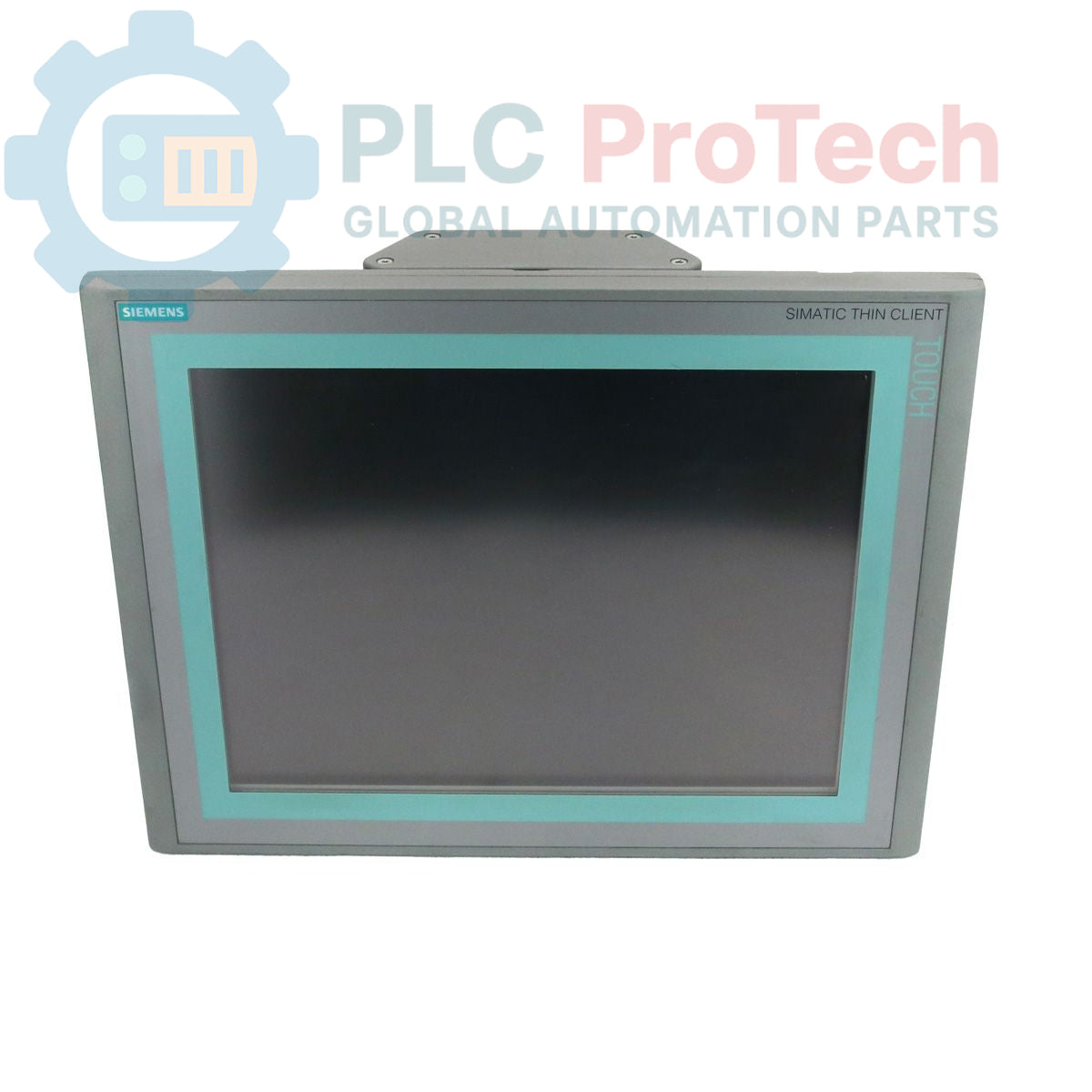

Siemens 6AV6646-2AB21-2AX0 SIMATIC Thin Client 15-inch Touch

The 6AV6646-2AB21-2AX0 is a SIMATIC Thin Client designed for industrial visualization and remote operator station applications. This device features a 15-inch TFT touch display capable of rendering 64K colors with a resolution of 1024 x 768 pixels. Engineered for external mounting, the unit is housed in an IP65-rated enclosure, providing protection against dust and water ingress in harsh production environments. As a thin client solution, it supports SmartAccess, RDP (Remote Desktop Protocol), and web-based client connectivity, allowing for seamless integration into distributed control systems without the necessity of an integrated computing unit.

Features

• High-Quality Display: 15-inch TFT touch screen with 64K color support for clear process visualization.
• Robust Housing: IP65-rated design specifically for external mounting.
• Connectivity: Supports diverse protocols including SmartAccess, RDP, and web browsers.
• Profinet Support: Integrated support for Profinet communication protocols.
• Operational Reliability: Designed for demanding industrial operator interface requirements.

Applications

• Remote operator stations in manufacturing lines.
• Visualization for distributed control systems.
• HMI interface for machinery requiring external mount displays.
• Networked production monitoring stations.

Technical Specifications

Installation Guidelines

• Mounting: Designed for external mounting. Ensure the mounting surface provides adequate structural support for the 7.96 kg weight of the unit.
• Sealing: Ensure the IP65 seal is properly seated during installation to maintain protection against dust and water spray.
• Power Supply: Connect to a stable 24V DC power source. Ensure cable routing follows industrial best practices to minimize electromagnetic interference.
• Ventilation: Although designed for external mounting, ensure the area around the display allows for natural heat dissipation.
• Network Integration: Connect via the appropriate Ethernet interface to utilize the RDP or web-client functionalities for remote access to host systems.
