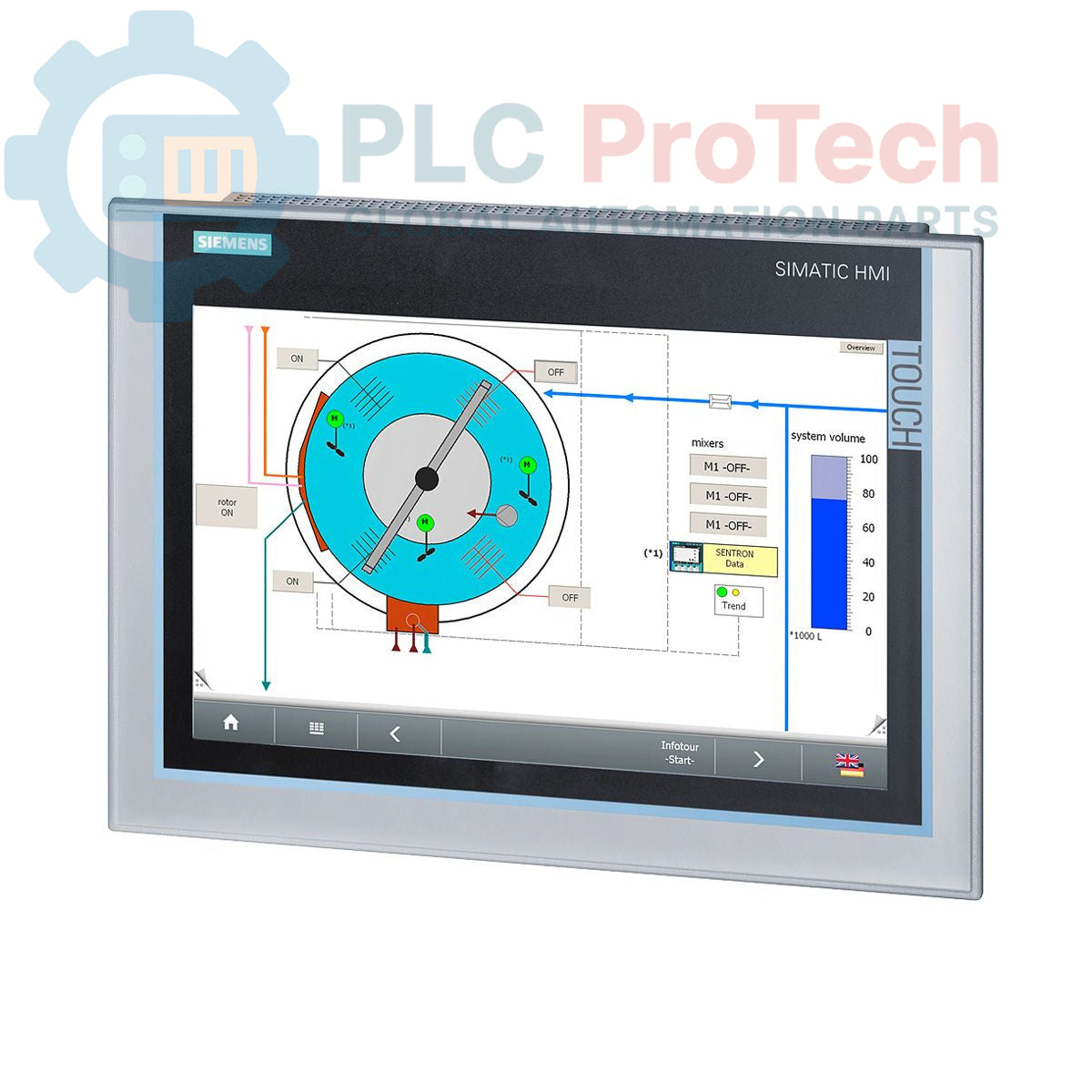

Siemens 6AV7240-0AB04-0HA0 SIMATIC IPC 477D Panel PC

Description

The Siemens 6AV7240-0AB04-0HA0 is a SIMATIC IPC 477D Panel PC designed for robust industrial control and visualization tasks. This unit features a 12-inch touch display, an Intel Celeron U827E processor, 2 GB of RAM, and an 80 GB MLC SSD for reliable data storage. It is equipped with dual Gigabit Ethernet ports for PROFINET (PN) and Industrial Ethernet (IE) connectivity, along with multiple USB and serial interfaces. The system operates on a standard 24 V DC industrial power supply and comes with Windows Embedded Standard 7 (32-bit) pre-installed. Note that this model is supplied without any additional SIMATIC software packages.

Features

• 12-inch resistive touch display for operator interface
• Intel Celeron U827E processor
• 2 GB of installed system memory
• 80 GB Multi-Level Cell (MLC) Solid-State Drive (SSD)
• Pre-installed Windows Embedded Standard 7 (32-bit)
• Dual Gigabit Ethernet ports for IE/PN communication
• Operates on a 24 V DC industrial power supply

Applications

• Human-Machine Interface (HMI) for process control systems
• Data acquisition and logging on the factory floor
• Manufacturing Execution System (MES) terminals
• Machine-level visualization and control

Technical Specifications

Installation Guidelines

1. Ensure the control cabinet or panel is fully de-energized and locked out. Verify the absence of voltage before proceeding.
2. Verify the panel cutout dimensions match the IPC 477D installation requirements. Ensure the mounting surface is clean, flat, and rigid.
3. Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the IPC chassis. This is critical for safety and noise immunity.
5. Connect the 24 V DC power supply to the power input connector, ensuring correct polarity. Use appropriately sized conductors and a dedicated, regulated power source.
6. Connect Ethernet, USB, and serial cables as required. Ensure all cables are properly secured and routed to prevent strain and interference.
7. After verifying all connections, remove the lockout/tagout devices and re-energize the cabinet. Power on the Panel PC and verify correct operation.
