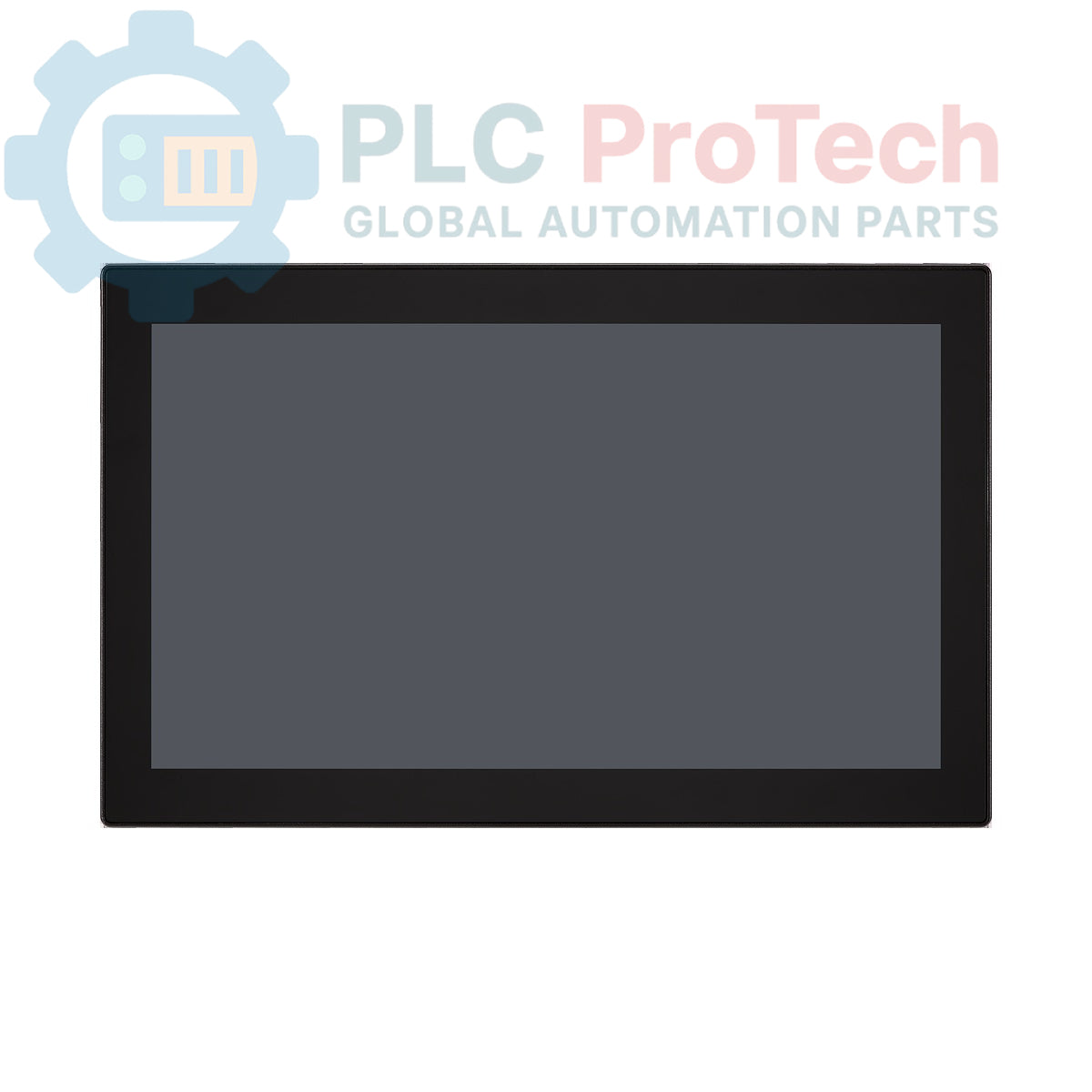

Siemens 6AV7241-3YA07-0FA0 SIMATIC IPC 477E 22-inch Multitouch Panel PC

Description

The Siemens 6AV7241-3YA07-0FA0 is a SIMATIC IPC 477E series industrial panel PC designed for demanding visualization and control tasks. This unit features a 22-inch multitouch display with a resolution of 1920 x 1080 pixels, providing a clear and responsive human-machine interface. It is powered by an Intel Core i3-6102E processor and is configured with 4 GB of RAM and a 240 GB SATA Solid-State Drive (SSD) for fast and reliable performance. Connectivity is provided by three Gigabit Ethernet ports for Industrial Ethernet/PROFINET (IE/PN) applications and four rear USB ports. The system operates on a 24 V DC industrial power supply and comes with Windows 10 IoT Enterprise 2016 LTSB (64-bit) pre-installed.

Features

• 22-inch widescreen multitouch display with 1920 x 1080 resolution.
• Equipped with an Intel Core i3-6102E processor.
• Includes 4 GB of system memory (RAM).
• Features a 240 GB internal SATA Solid-State Drive (SSD).
• Three Gigabit Ethernet ports for Industrial Ethernet/PROFINET (IE/PN) communication.
• One standard 10/100/1000 Mbps Ethernet port.
• Pre-installed with Windows 10 IoT Enterprise 2016 LTSB (64-bit).
• Requires a 24 V DC industrial power supply for operation.

Applications

• Human-Machine Interface (HMI) for process visualization.
• Supervisory Control and Data Acquisition (SCADA) systems.
• Manufacturing Execution Systems (MES) terminals.
• Industrial data logging and analysis.
• Control room operator stations.

Technical Specifications

Installation Guidelines

1. 1 Verify the panel cutout dimensions match the IPC 477E installation requirements. Ensure the mounting surface is clean, flat, and can support the weight of the unit.
2. 2 De-energize the main control cabinet and apply appropriate LOTO procedures before beginning installation. Verify the absence of voltage.
3. 3 Carefully insert the Panel PC into the prepared cutout from the front. Secure it from the rear using the provided mounting clips, tightening them evenly to ensure a proper seal.
4. 4 Connect the 24 V DC power supply to the designated power terminal. Ensure correct polarity is observed (+ to +, - to -). Connect the functional earth (FE) terminal to the cabinet's ground reference.
5. 5 Connect Ethernet cables to the appropriate IE/PN or standard LAN ports. Connect any required USB peripherals to the rear ports.
6. 6 After verifying all connections are secure, remove LOTO devices and re-energize the cabinet. Power on the Panel PC and proceed with system configuration.
