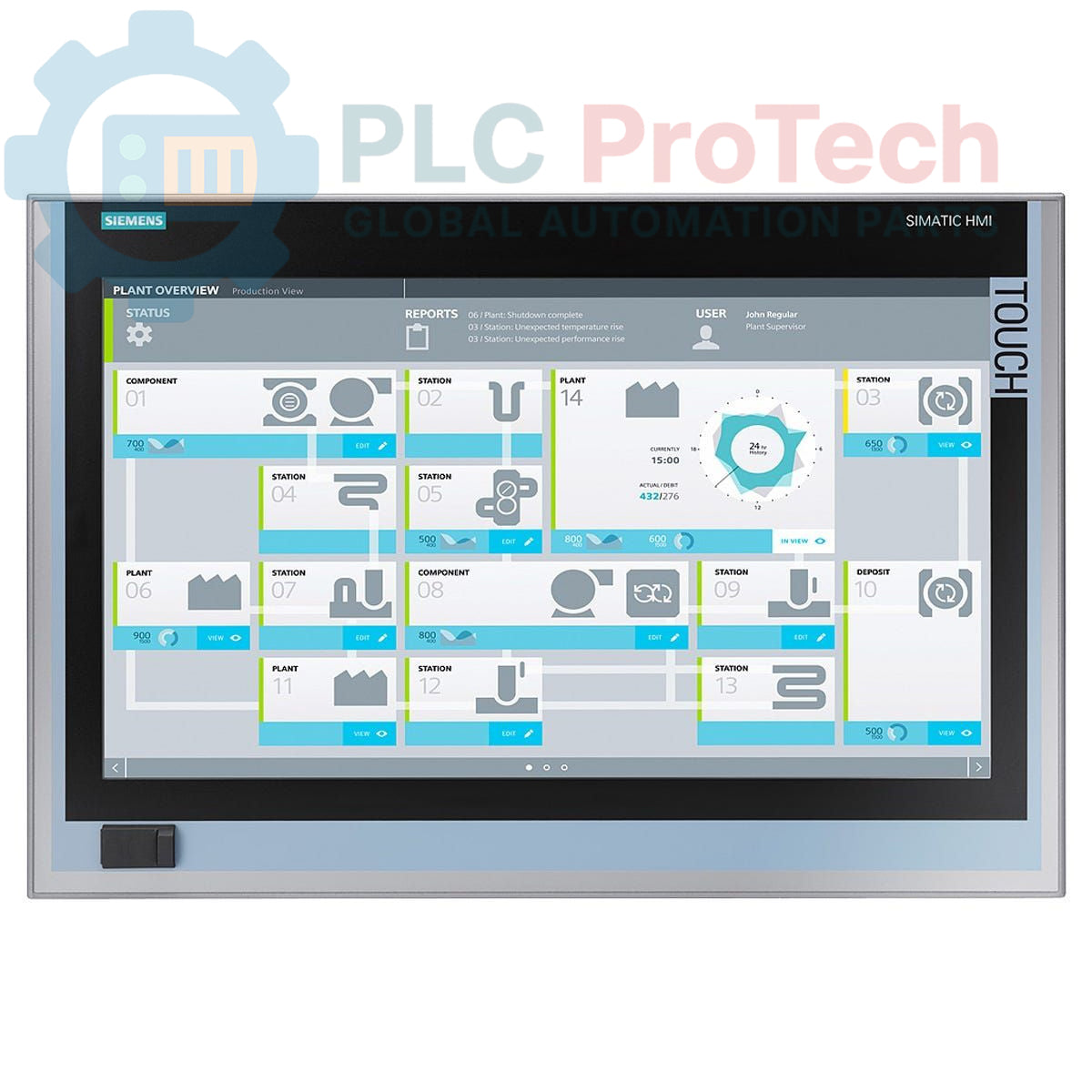

Siemens 6AV7260-0EA30-0BX6 SIMATIC IPC677D Panel PC

Description

The Siemens 6AV7260-0EA30-0BX6 is a SIMATIC IPC677D Panel PC designed for demanding industrial control and visualization applications. This unit integrates a 15-inch touchscreen display with a resolution of 1280x800, powered by an Intel Core i3-4330TE processor. It is configured with 8 GB of DDR3 RAM and a 250 GByte SATA HDD for robust performance and data storage. Connectivity is comprehensive, featuring dual Gigabit Ethernet ports, four USB 3.0 ports, a serial port, and an integrated PROFIBUS/MPI interface. The system includes an onboard RAID controller and monitoring functions for watchdog, temperature, and fan control, ensuring high reliability in industrial environments.

Features

• 15-inch touchscreen display (1280x800 resolution)
• Intel Core i3-4330TE Processor (2.4 GHz, 4MB Cache)
• 8 GB DDR3 1600 DIMM Memory
• 250 GByte SATA Hard Disk Drive
• Integrated PROFIBUS/MPI interface (CP5622-compatible)
• Dual 10/100/1000 Mbit/s Ethernet ports
• Four rear USB 3.0 ports and one front USB port
• Onboard RAID controller for data redundancy
• Pre-installed with Windows 7 Ultimate 32-bit SP1
• Includes SIMATIC IPC DiagMonitor V4.5 software

Applications

• Human-Machine Interface (HMI) for process control
• SCADA client for plant-wide visualization
• Machine-level data acquisition and logging
• Industrial control and automation platforms
• Manufacturing Execution Systems (MES) terminals

Technical Specifications

Installation Guidelines

1. 1 Prepare Enclosure: Verify that the panel cutout dimensions match the IPC677D installation requirements. Ensure the mounting surface is clean, flat, and can support the weight of the unit.
2. 2 Mount the Unit: Carefully insert the Panel PC into the prepared cutout from the front. Ensure the front bezel gasket is properly seated against the panel surface to maintain the intended ingress protection rating.
3. 3 Secure Mounting Clamps: From the rear of the panel, install all provided mounting clamps into their designated slots. Tighten the clamp screws evenly in a cross-pattern sequence until the unit is firmly secured. Do not overtighten.
4. 4 Connect Protective Earth (PE): Connect a low-impedance protective earth conductor to the designated PE terminal on the IPC chassis. This connection is critical for electrical safety and EMC performance.
5. 5 Connect Power and I/O: Connect the AC power supply cable. Connect all required communication cables (Ethernet, PROFIBUS, USB, Serial) to their respective ports. Ensure proper cable strain relief and routing.
6. 6 Final Checks: Before re-energizing the cabinet, double-check all connections for tightness and correctness. Ensure no tools or debris are left inside the enclosure. Close and secure the cabinet door.
