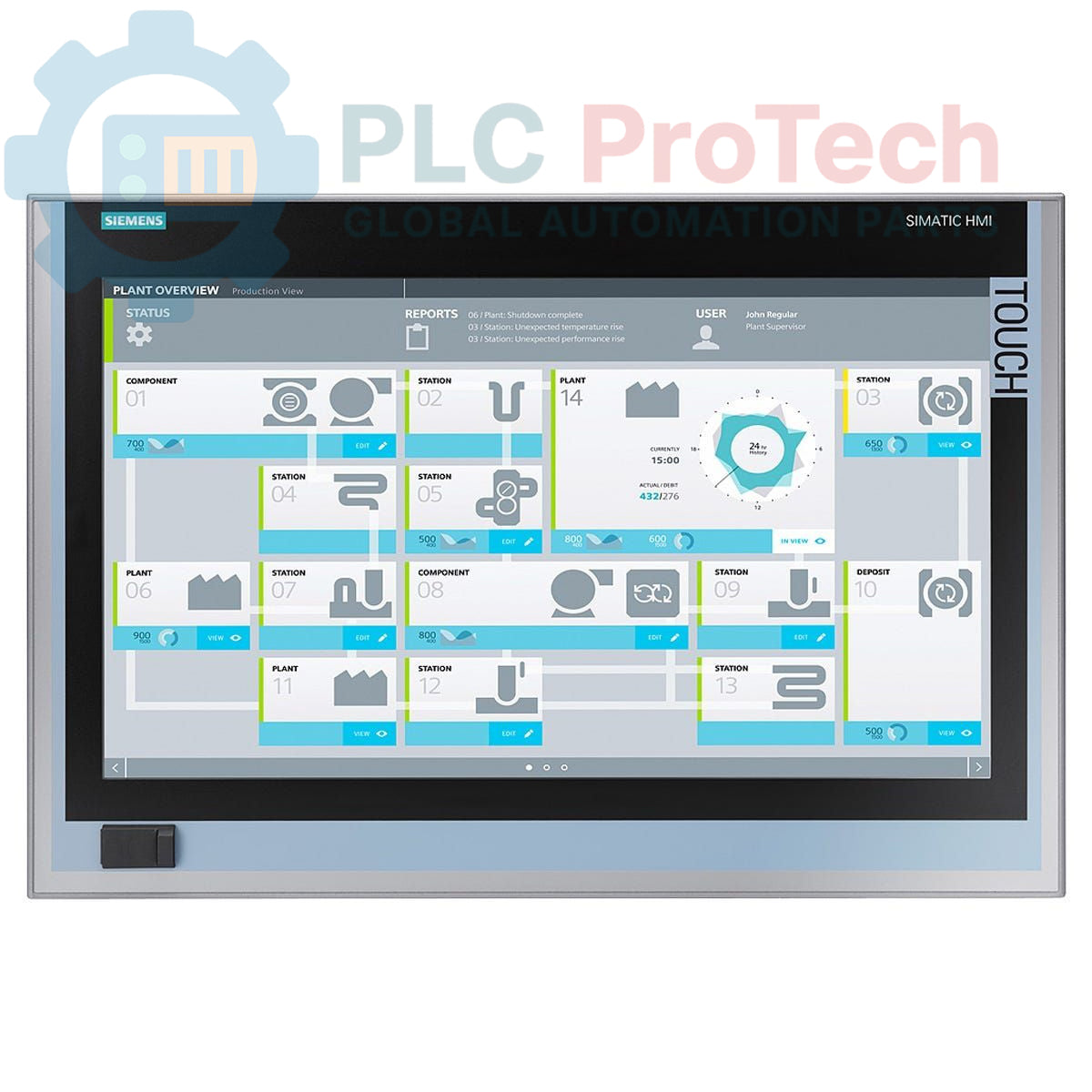

Siemens 6AV7260-0EQ10-0AX6 SIMATIC IPC677D Panel PC

Description

The Siemens 6AV7260-0EQ10-0AX6 is a SIMATIC IPC677D Panel PC designed for demanding industrial visualization and control tasks. This unit integrates a 15-inch touchscreen display with a resolution of 1280x800, an Intel Core i3-4330TE processor, and an 80 GB solid-state drive for reliable performance. It features extensive connectivity options, including dual Gigabit Ethernet, USB 3.0, and a PROFIBUS/MPI interface, all powered by a standard 24 V DC industrial supply. Integrated system monitoring for temperature, fan, and watchdog functions ensures operational stability in industrial environments.

Features

• 15-inch color touchscreen display with 1280x800 resolution.
• Intel Core i3-4330TE processor (2.4 GHz, 2 Cores/4 Threads, 4 MB Cache).
• 80 GB Solid-State Drive (SSD) for fast boot and data access.
• 2 GB of DDR3 1600 DIMM system memory.
• Integrated PROFIBUS/MPI connectivity (CP 5622-compatible).
• Dual 10/100/1000 Mbit/s Ethernet ports for network redundancy or separation.
• Onboard RAID controller for data integrity.
• Built-in monitoring for watchdog, temperature, and fan status.
• Pre-installed with Windows 7 Ultimate 32-bit SP1 (MUI).

Applications

• Human-Machine Interface (HMI) stations for process visualization.
• SCADA nodes in manufacturing and utility control systems.
• Machine-level control and data acquisition terminals.
• Industrial data logging and reporting applications.
• Production line monitoring and management.

Technical Specifications

Installation Guidelines

1. 1 Prepare the panel cutout according to the device's mechanical drawings, ensuring sufficient clearance for ventilation and cable routing. Deburr all cut edges.
2. 2 Mount the Panel PC into the cutout and secure it evenly using all provided mounting clamps. Do not overtighten the clamps, as this can warp the bezel and damage the touchscreen.
3. 3 Connect a low-impedance protective earth (PE) conductor to the designated chassis ground terminal. This is critical for operator safety and noise immunity.
4. 4 Connect the 24 V DC power supply, ensuring correct polarity. Use appropriately sized conductors and provide overcurrent protection as required by local electrical codes.
5. 5 Connect all communication and I/O cables (Ethernet, USB, PROFIBUS). Ensure cable shields are properly terminated to the designated ground points to minimize electromagnetic interference. Secure cables to prevent strain on the connectors.
