Siemens 6AV7260-1BA31-0BX0 SIMATIC IPC677D Panel PC

Description

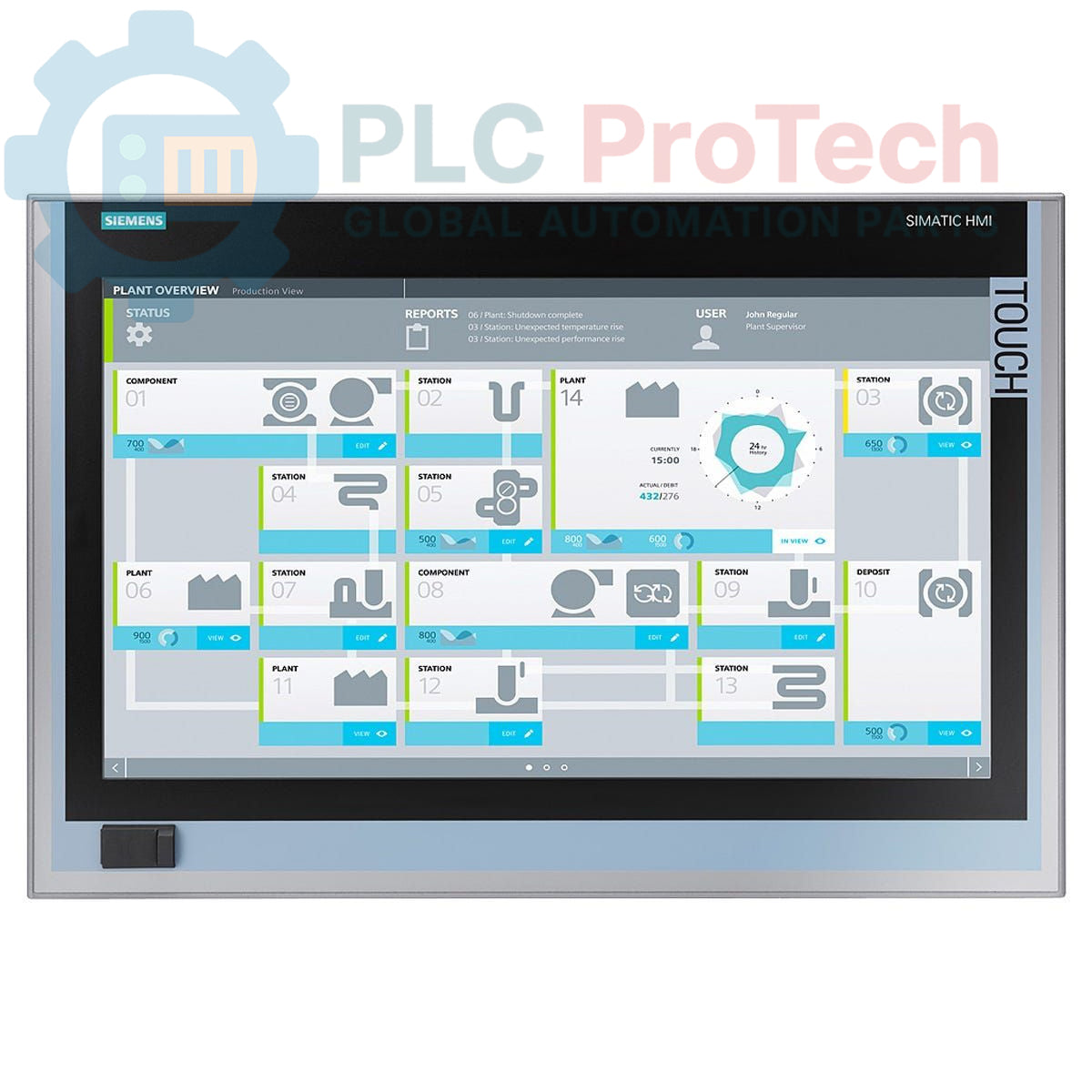

The Siemens 6AV7260-1BA31-0BX0 is a SIMATIC IPC677D Panel PC, an integrated industrial computing solution designed for demanding automation environments. This unit features a 19-inch touch display with a resolution of 1366x768, providing an intuitive human-machine interface. It is equipped with a Celeron G1820TE processor, 8 GB of DDR3 RAM, and a 500 GB SATA HDD for robust performance and storage. Connectivity options include dual 10/100/1000 Mbit/s Ethernet ports, multiple USB V3.0 ports (including a front USB), and a serial COM1 port. The IPC677D also integrates a PROFIBUS/MPI interface (CP 5622-compatible) for seamless integration into Siemens automation systems. Monitoring functions for watchdog, temperature, and fan status, along with an onboard RAID controller, enhance system reliability. It operates on an AC 110/230V industrial power supply unit with NAMUR compatibility and comes pre-installed with Windows 7 Ultimate 64-bit SP1.

Features

• Integrated 19-inch touch display (1366x768 resolution)
• Celeron G1820TE processor (2C/2T, 2.2 GHz, 2 MB cache)
• 8 GB DDR3 1600 DIMM RAM
• 500 GB SATA Hard Disk Drive
• Dual 10/100/1000 Mbit/s Ethernet interfaces
• Four USB V3.0 ports and one serial (COM1) port
• Front-accessible USB port
• PROFIBUS/MPI interface (CP 5622-compatible)
• 2 MB buffered SRAM
• Onboard RAID controller
• Watchdog, temperature, and fan monitoring
• 1x PCIE (X16) and 1x PCI expansion slots
• Pre-installed Windows 7 Ultimate 64-bit SP1 (MUI: de, en, fr, es, it)
• AC 110/230V industrial power supply unit with NAMUR

Applications

• Machine control and visualization
• Process monitoring and data acquisition
• Operator control stations in manufacturing
• Industrial data processing and communication gateways
• Supervisory control and data acquisition (SCADA) systems
• Building automation and infrastructure management

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energize System: Ensure all power to the installation area and the Panel PC is disconnected before beginning installation.
2. Mounting: Securely mount the Panel PC in a suitable industrial enclosure or panel cutout, ensuring adequate space for ventilation and cable routing.
3. Power Connection: Connect the AC 110/230V industrial power supply unit to a stable and protected power source. Verify correct voltage and polarity.
4. Grounding: Establish a proper protective earth (PE) connection for the Panel PC chassis to minimize electrical noise and ensure safety.
5. Network Connections: Connect Ethernet cables to the 10/100/1000 Mbit/s ports for network communication.
6. Peripheral Connections: Connect USB devices, serial devices, and PROFIBUS/MPI cables as required by the application.
7. Cable Management: Route all cables neatly and securely, separating power and signal cables to prevent interference. Use appropriate strain relief.
8. Environmental Considerations: Ensure the operating environment meets the specified temperature, humidity, and vibration ratings for industrial Panel PCs.
9. Power On: After all connections are verified, re-energize the system and power on the Panel PC. Monitor initial boot-up for any error indicators.
