Siemens 6AV7822-0AA00-2AC0 SIMATIC Panel PC 577

SKU 6AV7822-0AA00-2AC0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7822-0AA00-2AC0
Country of origin:Germany
Product Type: PC Panel
Barcode: 85371091
Payment: T/T, Western Union
Weight: 15g
Dimensions: 64.0 x 64.0 x 42.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

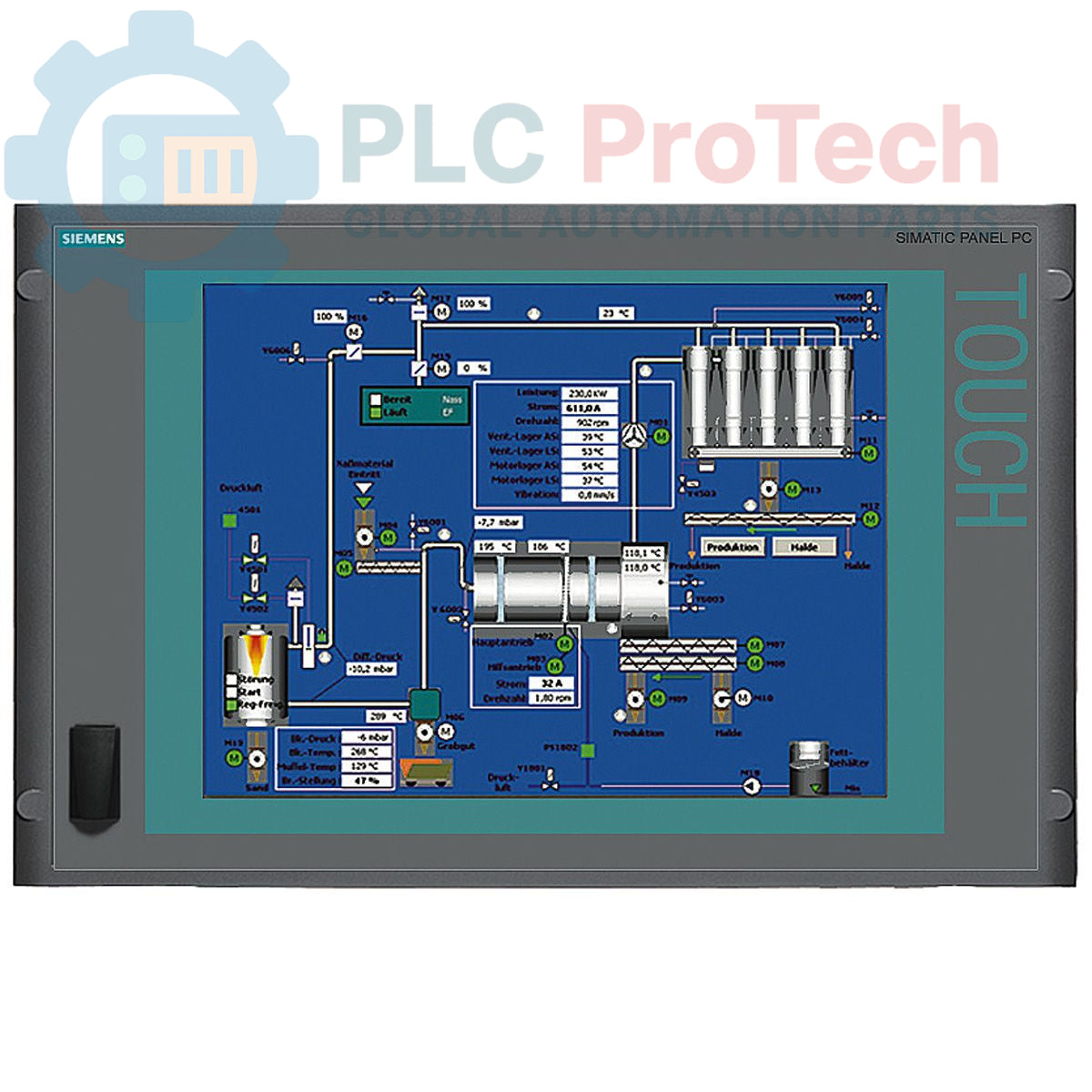

This is a Siemens 6AV7822-0AA00-2AC0 SIMATIC Panel PC 577, an integrated industrial computer and human-machine interface (HMI). It is equipped with a 15-inch touch display, a Celeron P4 2.0 GHz processor, and 256 MB of DDR400 SDRAM. This unit includes a DVD+-R/RW optical drive for data transfer and software installation and comes pre-loaded with a multi-language version of Windows XP Professional SP1. Please note this model is considered an obsolete part in the product lifecycle.

Features

15-inch color touch-screen display for operator control and visualization.
Powered by an Intel Celeron P4 processor running at 2.0 GHz.
Includes 256 MB of DDR400 SDRAM system memory.
Features an integrated DVD+-R/RW optical drive.
Pre-installed with Windows XP Professional SP1 (MUI).

Applications

Process visualization and control systems.
Machine-level data acquisition and logging.
Factory automation and assembly line monitoring.
Legacy system integration requiring a Windows XP environment.

Technical Specifications

Specification	Value
Brand	Siemens
Product Series	SIMATIC Panel PC 577
Model Number	6AV7822-0AA00-2AC0
Display	15-inch Touch Display
Processor (CPU)	Celeron P4 2.0 GHz
Memory (RAM)	256 MB DDR400 SDRAM
Optical Drive	DVD+-R/RW Burner
Operating System	Windows XP Professional SP1 MUI (EN, DE, FR, IT, SP, JP, CHN, KOR)
Product Lifecycle Status	Obsolete
Shipping Weight	15.00 kg
Commodity Code	85371091
Export Control (ECCN)	N
Country of Origin	Germany (Estimate)
Manufacturer	Siemens AG
Package Dimensions (Calculated)	64.0 x 64.0 x 42.0 cm

Installation Guidelines

CRITICAL WARNING

This equipment must be installed, operated, and maintained by qualified personnel only. Disconnect all power sources before installation or servicing to prevent electric shock and equipment damage. The panel's weight requires adequate structural support; verify the enclosure or mounting surface can safely bear the load.

1 Prepare Mounting Location: Ensure the panel cutout in the enclosure is precise and free of burrs. Verify that minimum clearance requirements for ventilation around the unit are met to prevent overheating.
2 Mount the Unit: Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal against the enclosure gasket.
3 Connect Protective Earth (PE): Connect the chassis to the main protective earth conductor of the cabinet using a low-impedance connection. This is critical for operator safety and noise immunity.
4 Connect Power and Interfaces: Connect the DC or AC power supply as specified for the unit. Connect all communication and I/O cables, ensuring proper shielding and grounding practices are followed to minimize electromagnetic interference (EMI).
5 Power-Up and Commission: After verifying all connections, re-apply power to the system. The Panel PC should boot into the pre-installed operating system. Proceed with application software installation and system configuration.

FAQ

What operating system is installed on the 6AV7822-0AA00-2AC0?

This Panel PC comes pre-installed with Windows XP Professional SP1. It is a Multi-User Interface (MUI) version supporting English, German, French, Italian, Spanish, Japanese, Chinese, and Korean.

What are the core hardware specifications of this unit?

The unit features a 15-inch touch display, an Intel Celeron P4 2.0 GHz processor, 256 MB of DDR400 SDRAM, and a DVD+-R/RW optical drive.

Is the Siemens 6AV7822-0AA00-2AC0 a current product?

No, this model is classified as an obsolete product within the Siemens product lifecycle. It is suitable for replacing existing units or for systems specifically requiring its hardware and software configuration.

What is the shipping weight of this Panel PC?

The shipping weight for this unit is 15.00 kg.
