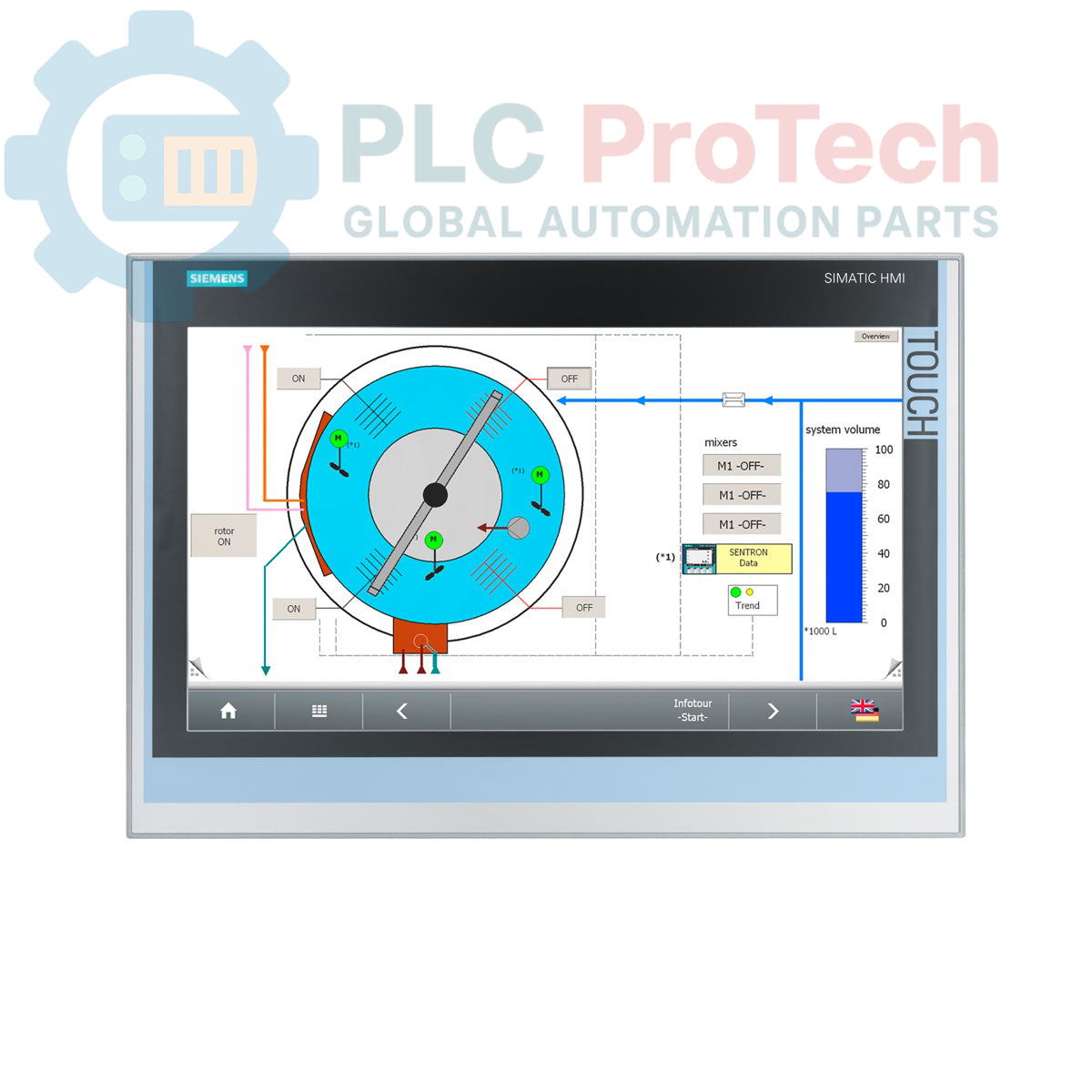

Siemens 6AV7863-3AA00-0AA0 SIMATIC IFP1900 Flat Panel Display

Description

The Siemens 6AV7863-3AA00-0AA0 SIMATIC IFP1900 Flat Panel Display is a 19-inch industrial display unit engineered for clear visualization in demanding operational environments. This SIMATIC IFP1900 model features a widescreen 16:9 aspect ratio with a resolution of 1366 x 768 pixels, providing sharp image quality for monitoring and control applications. It operates on a 24 V DC power supply and offers flexible connectivity through DisplayPort and DVI interfaces. This specific version functions purely as a display, without touch functionality, and includes a 1.8-meter DVI cable. It supports cable runs up to 5 meters, enabling versatile installation in various industrial setups such as control cabinets or operator stations.

Features

• 19-inch widescreen display (16:9 aspect ratio)
• Resolution of 1366 x 768 pixels
• Operates on 24 V DC power supply
• DisplayPort and DVI interface options
• Non-touch display functionality
• Includes 1.8 m DVI cable
• Supports video cable runs up to 5 meters

Applications

• Industrial process visualization and monitoring
• Operator stations in manufacturing and automation facilities
• Control cabinet integration for system overview
• Human Machine Interface (HMI) systems requiring dedicated display output
• Supervisory Control and Data Acquisition (SCADA) systems

Technical Specifications

Installation Guidelines

1. De-energize System: Before commencing installation, ensure all power to the control cabinet or operator station is de-energized and locked out according to established safety procedures.
2. Mounting: Securely mount the flat panel display into the designated panel cutout or enclosure. Ensure adequate ventilation space around the unit to prevent overheating.
3. Power Connection: Connect the 24 V DC power supply to the appropriate terminals on the display unit. Observe correct polarity to prevent damage to the device.
4. Video Signal Connection: Connect the video source (e.g., industrial PC, controller) to the display using either the DVI or DisplayPort interface. Utilize the included 1.8 m DVI cable or a suitable DisplayPort cable.
5. Cable Management: Route all cables (power, video) securely to prevent strain, interference, and accidental disconnection. Ensure cable lengths do not exceed the recommended 5 meters for optimal signal integrity.
6. Grounding: Ensure the display unit and all associated equipment are properly grounded to the system's protective earth for safety and electromagnetic interference (EMI) reduction.
7. Re-energize and Test: After all connections are verified and secured, re-energize the system and test the display functionality, including image quality and resolution.
