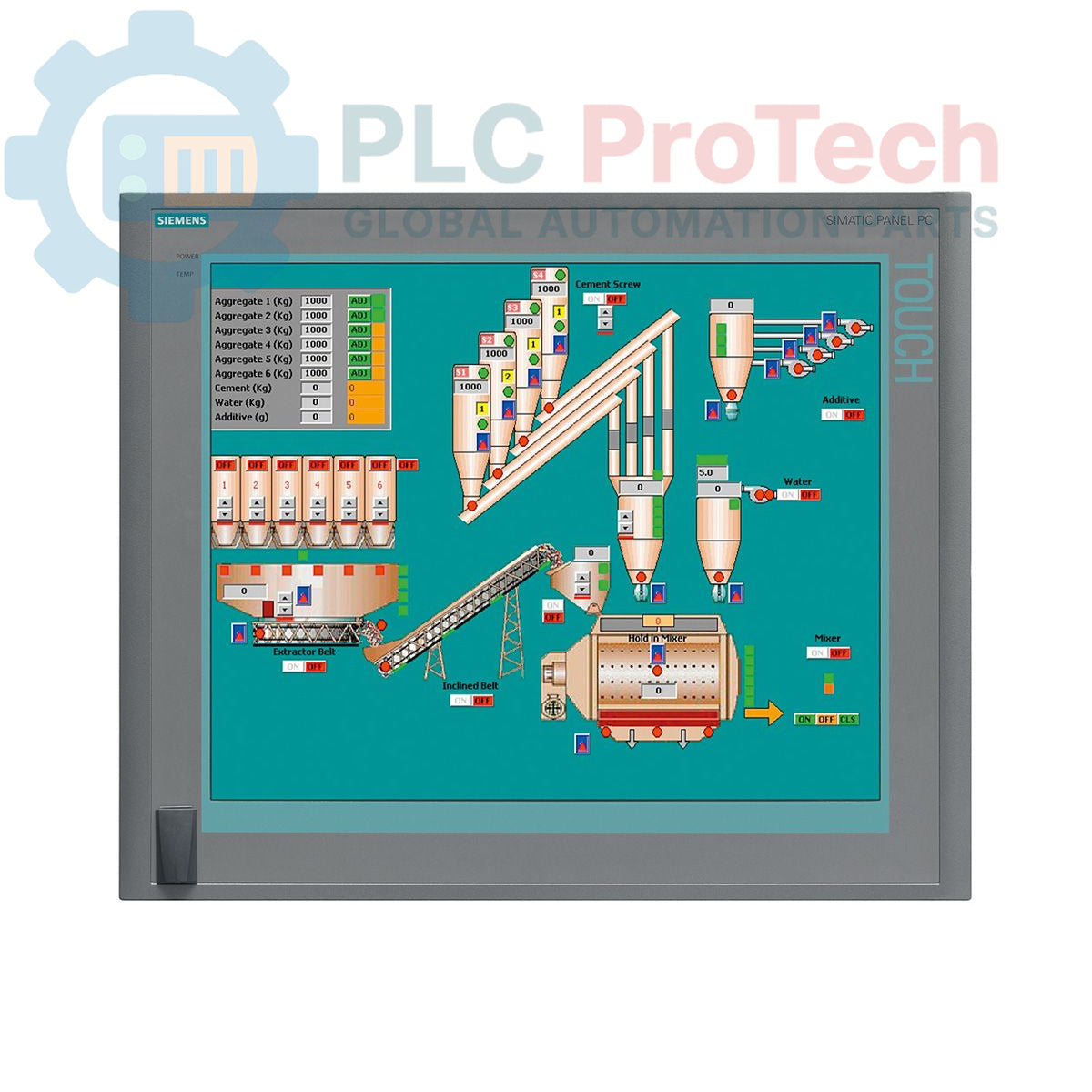

Siemens 6AV7875-0AC22-0AC0 SIMATIC Panel PC 677B 19" Touch Panel PC

Description

The Siemens 6AV7875-0AC22-0AC0 is a SIMATIC Panel PC 677B designed for demanding HMI applications in industrial environments. This unit features a 19-inch touch display with a 1280x1024 resolution, powered by an Intel Core 2 Duo T5500 1.66 GHz processor. It is configured with 1 GB of DDR2 RAM and a redundant storage system using a RAID1 controller with two 250 GB SATA hard drives. Connectivity is provided through dual Gigabit Ethernet ports, a PROFIBUS/MP interface, and multiple USB 2.0 ports, including a convenient front-side interface. The system operates on a 24 V DC power supply and comes pre-installed with the Windows XP Professional Multi-Language User Interface (MUI) operating system.

Features

• 19-inch color touch display with 1280 x 1024 pixel resolution.
• Intel Core 2 Duo T5500 processor operating at 1.66 GHz.
• RAID1 controller with two 250 GB 2.5-inch SATA hard drives for data redundancy.
• Integrated PROFIBUS/MP interface for field-level communication.
• Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity.
• Two PCI slots available for hardware expansion.
• Front-side USB 2.0 port for easy access and data transfer.

Applications

• Machine control and visualization (HMI).
• Process data acquisition and logging.
• Factory automation and plant floor management systems.
• Integration into control cabinets and operator consoles.

Technical Specifications

Installation Guidelines

1. 1 Ensure all power sources to the control cabinet are de-energized and locked out. Verify the absence of voltage with a properly rated meter.
2. 2 Prepare the panel cutout according to the manufacturer's dimensional drawings. Ensure the mounting surface is clean, flat, and rigid to maintain the specified environmental protection rating.
3. 3 Insert the Panel PC into the cutout and secure it from the rear using the provided mounting clamps. Tighten the clamps evenly in a cross-pattern to the specified torque to ensure a uniform seal.
4. 4 Connect a low-impedance protective earth (PE) conductor to the designated chassis grounding terminal. This is critical for safety and noise immunity.
5. 5 Connect the 24 V DC power supply wiring to the power input terminals, strictly observing correct polarity (+/-). Use appropriately sized conductors for the load and distance.
6. 6 Connect Ethernet, PROFIBUS, USB, and serial cables as required. Ensure all communication cables are routed separately from high-voltage power lines to prevent electromagnetic interference.
7. 7 After verifying all connections are secure and correct, remove the lockout/tagout devices and re-energize the main power supply. Power on the Panel PC and confirm successful system boot.
