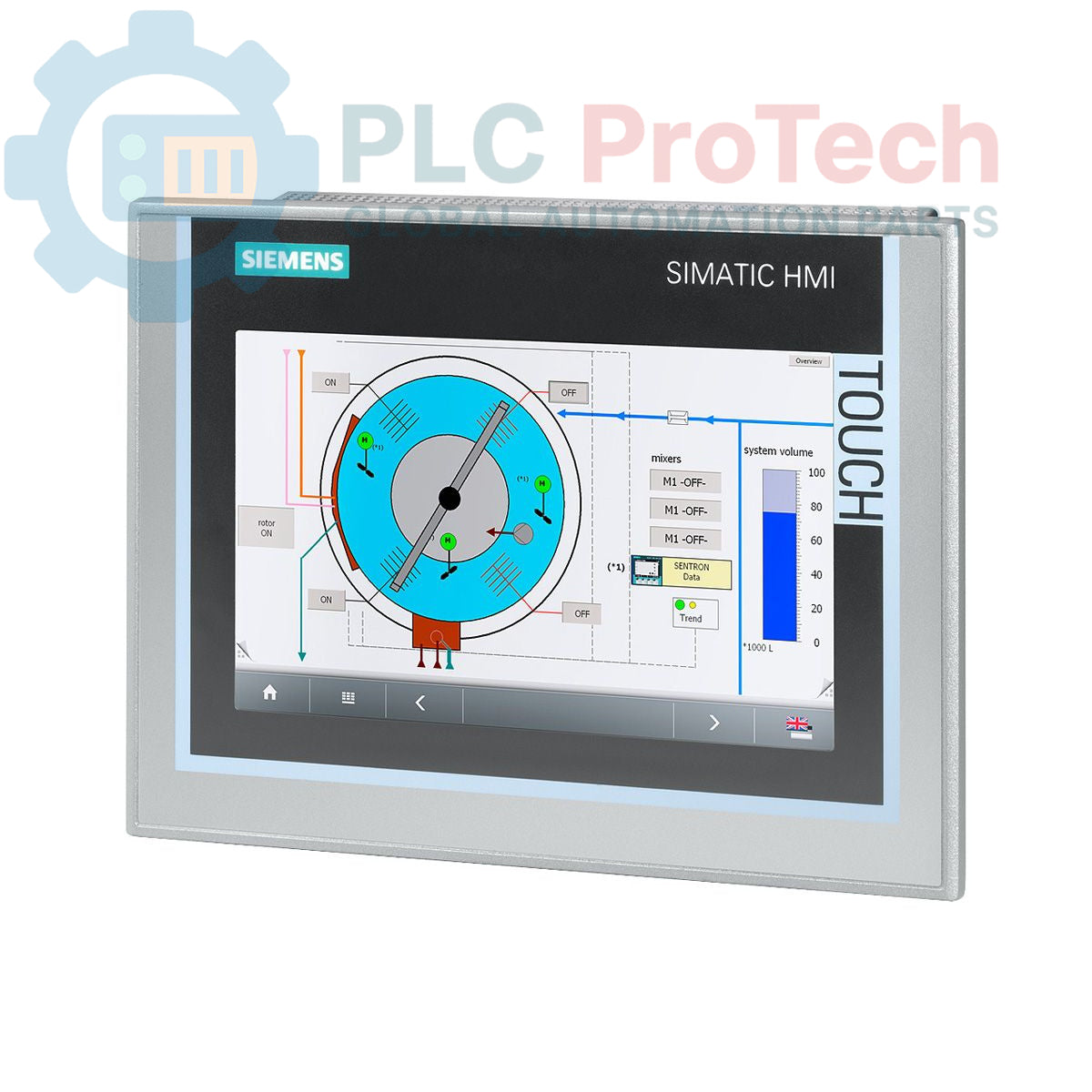

Siemens 6AV7881-1AA00-2BA0 SIMATIC IPC277D Panel PC

Only 4 item(s) left in stock

Manufacturer: Siemens
Product No.: 6AV7881-1AA00-2BA0
Country of origin:Germany
Product Type: Panel PC
Barcode: 84714100
Payment: T/T, Western Union
Weight: 2150g
Dimensions: 32.60 x 24.60 x 22.20 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV7881-1AA00-2BA0 is a SIMATIC IPC277D Nanopanel PC, a compact and robust human-machine interface designed for industrial control and visualization tasks. This unit features a 7-inch TFT touch display and is powered by an Intel ATOM E640 1.0 GHz processor with 1 GB of RAM. It provides extensive connectivity with dual Gigabit Ethernet ports, high-current USB 2.0, and a serial interface. The system operates on a 24 V DC power supply and comes with a 4 GB CompactFlash card pre-installed with the Windows Embedded Standard 2009 (WES 2009 SP3) operating system, ready for deployment in demanding automation environments.

Features

7-inch TFT touch-sensitive display for operator control and monitoring.
Powered by an Intel ATOM E640 processor at 1.0 GHz.
Equipped with 1 GB of system memory (RAM).
Includes a 4 GB SIMATIC PC CompactFlash card for storage.
Dual 10/100/1000 Mbps Ethernet ports for network integration.
Three high-current USB 2.0 ports for peripheral devices.
One serial (COM 1) interface for legacy device communication.
Operates on a standard 24 V DC industrial power supply.

Applications

Machine-level data visualization and control
Process monitoring in manufacturing and production lines
Building automation systems
Data logging and acquisition gateways
Compact control panels with limited installation space

Technical Specifications

Specification	Value
Product Type	SIMATIC IPC277D (Nanopanel PC)
Display	7-inch Touch TFT
Processor	Intel ATOM E640 (1.0 GHz)
Memory (RAM)	1 GB
Storage	4 GB SIMATIC PC CompactFlash
Operating System	WES 2009 SP3
Power Supply	24 V DC
Ethernet Ports	2 x 10/100/1000 Mbps RJ45
USB Ports	3 x USB V2.0 (High Current)
Serial Port	1 x COM 1
Expansion Slot	1 x Compact Flash Slot
PLM Product Phase	Phase-Out
Commodity Code	84714100
ECCN	5A992
Shipping Weight	2.15 kg
Package Dimensions (Calculated)	32.60 x 24.60 x 22.20 cm
Manufacturer	Siemens
Country of Origin	Germany (Estimate)

Installation Guidelines

CRITICAL WARNING: Always de-energize the control panel and follow all local Lockout/Tagout (LOTO) procedures before installation, wiring, or maintenance. Failure to disconnect power can result in electric shock, equipment damage, or serious injury.

1 Prepare the panel cutout according to the device's mechanical drawings. Ensure the mounting surface is clean, flat, and free of debris to guarantee a proper seal.
2 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the manufacturer's specified torque to ensure IP rating integrity.
3 Connect the 24 V DC power supply to the designated terminals. Use appropriately sized wiring and ensure correct polarity. Connect the functional earth (FE) terminal to the panel's ground bus to minimize electromagnetic interference.
4 Connect Ethernet, USB, and serial communication cables as required. Route cables away from high-voltage lines and use shielded cables for all data communication to maintain signal integrity.
5 After all connections are secure, remove LOTO devices and re-apply power to the control cabinet to commission the Panel PC.

Key Features:

#Panel PC #SIMATIC IPC277D

What are the communication interfaces on the 6AV7881-1AA00-2BA0?

This Panel PC is equipped with two 10/100/1000 Mbps Ethernet RJ45 ports, three high-current USB 2.0 ports, and one serial (COM 1) port.

What processor and memory are included in this SIMATIC Panel PC?

The unit includes an Intel ATOM E640 processor running at 1.0 GHz and is configured with 1 GB of RAM.

What is the required input power for this device?

The Siemens IPC277D requires a 24 V DC power supply, which is standard for industrial automation environments.

Does this Panel PC come with an operating system?

Yes, it is pre-installed with Windows Embedded Standard 2009 (WES 2009 SP3) on a 4 GB CompactFlash card.

What is the product lifecycle status of this model?

The 6AV7881-1AA00-2BA0 is in the 'Phase-Out' stage of its product lifecycle, indicating it is being discontinued by the manufacturer.
