Siemens 6AV7881-4AE00-6EA0 SIMATIC IPC277D Nanopanel PC

Description

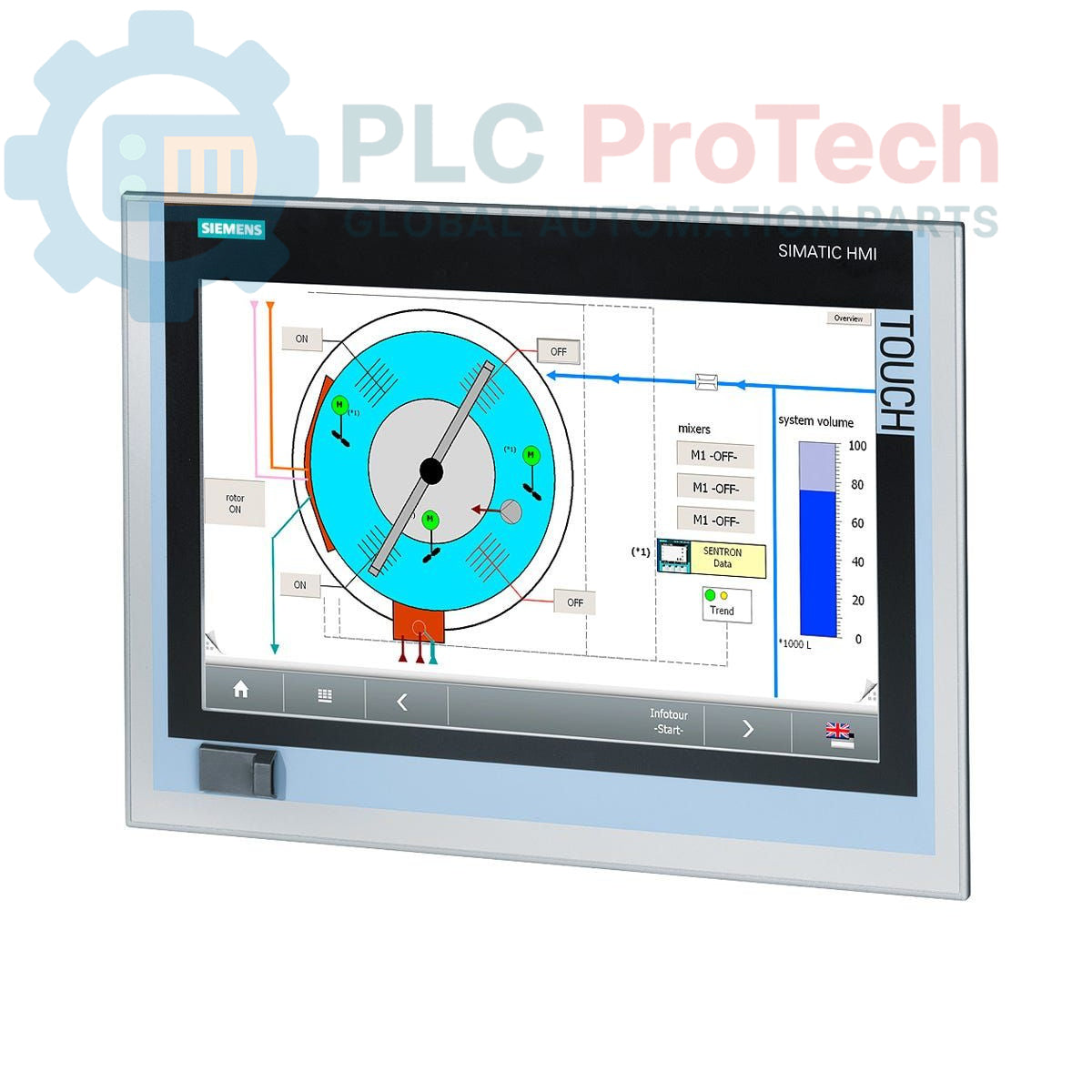

The Siemens 6AV7881-4AE00-6EA0 is a SIMATIC IPC277D Nanopanel PC designed for machine-level visualization and control tasks. This unit features a 15-inch TFT touch display and is powered by an Intel Atom E660 processor. It is configured with 2 GB of RAM and a 240 GB SATA Solid-State Drive for reliable, fast-booting performance. Connectivity is provided through dual Gigabit Ethernet ports, multiple high-current USB 2.0 ports, and a serial interface. The system operates on a standard 24 V DC industrial power supply and comes pre-installed with Windows 7 SP1 (MUI).

Features

• 15-inch TFT resistive touch display
• Intel Atom E660 processor operating at 1.3 GHz
• 2 GB of installed system RAM
• 240 GB SATA Solid-State Drive (SSD)
• Pre-installed Windows 7 SP1 (MUI) operating system
• Dual 10/100/1000 Mbps Ethernet RJ45 ports
• Front-accessible USB port for convenient access
• CompactFlash slot for storage expansion or data transfer

Applications

• Human-Machine Interface (HMI) for process control systems
• Machine-level data acquisition and logging
• Industrial automation and plant floor visualization
• Small-scale SCADA and control nodes

Technical Specifications

Installation Guidelines

1. 1 Ensure the control cabinet is de-energized and locked out. Verify the absence of voltage before proceeding.
2. 2 Prepare the panel cutout according to the manufacturer's dimensional drawings. Ensure the mounting surface is clean, flat, and provides adequate support.
3. 3 Insert the Panel PC into the cutout from the front. Secure it from the rear using all provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
4. 4 Connect the 24 V DC power supply to the designated terminals. Double-check for correct polarity (+/-) before connecting. Use appropriately sized conductors for the load.
5. 5 Connect the chassis to a dedicated protective earth (PE) or functional ground point using a low-impedance conductor to minimize electrical noise and ensure safety.
6. 6 Connect Ethernet, USB, and serial communication cables as required. Ensure proper cable routing and strain relief to prevent damage to connectors.
7. 7 After verifying all connections, remove the lockout/tagout and re-energize the cabinet. Power on the Panel PC and confirm that the operating system boots correctly.
