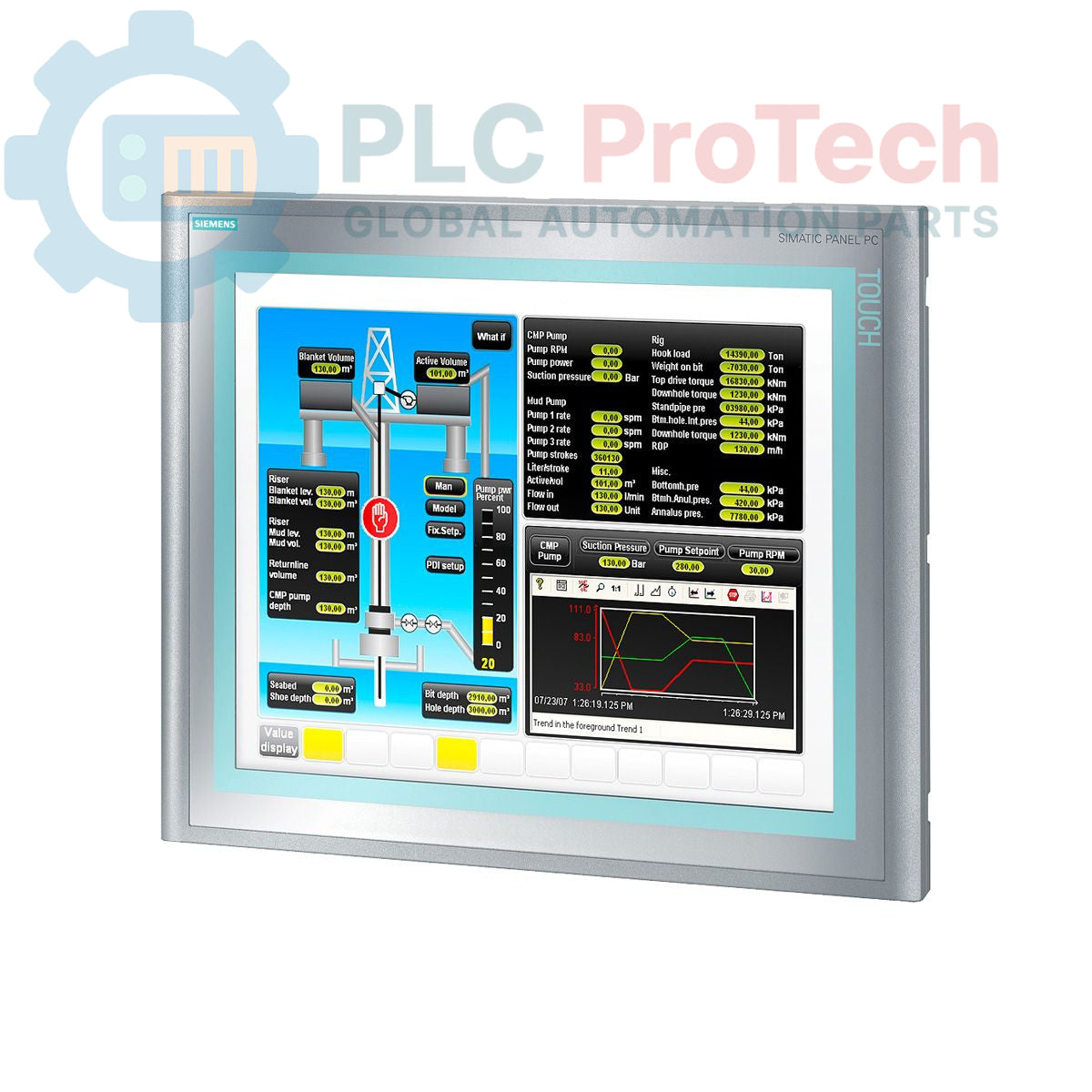

Siemens 6AV7883-7AA20-3ER0 SIMATIC Panel PC HMI IPC

Description

The Siemens 6AV7883-7AA20-3ER0 is a SIMATIC HMI IPC 477C pro optional bundle, featuring a 19" Touch Display. This industrial panel PC is fully protected to IP65 standards, making it suitable for demanding environments. It is equipped with a Celeron M 1.2 GHz processor, 2 GB of DDR3 RAM, and a 4 GB CF card with Windows Embedded Standard 7 pre-installed. The unit supports PROFINET (IE) communication via two 1 Gbit Ethernet ports and includes four USB ports located at the back. The bundle integrates WinCC flexible RT 128 PT, which includes archiving and recipe management functionalities, along with WinAC RTX F for real-time control applications.

Features

• 19" Touch Display
• Fully enclosed IP65 protection
• Celeron M 1.2 GHz processor
• 2 GB DDR3 RAM
• 4 GB CF card for storage
• Windows Embedded Standard 7 pre-installed
• Includes WinCC flexible RT 128 PT (with archives and recipes)
• Includes WinAC RTX F
• PROFINET (IE) interface
• 2x 1 Gbit Ethernet ports
• 4x USB ports (rear)

Applications

The Siemens 6AV7883-7AA20-3ER0 SIMATIC Panel PC is typically deployed in industrial automation settings requiring robust human-machine interface (HMI) and integrated control capabilities. Common applications include:

• Machine operation and visualization
• Process control and monitoring
• Data acquisition and logging
• Distributed control systems
• Industrial workstations in harsh environments

Technical Specifications

Connections / Interfaces

The SIMATIC HMI IPC 477C pro provides the following interfaces:

• Ethernet: 2x 1 Gbit ports, supporting PROFINET (IE)
• USB: 4x USB ports (located at the back of the unit)

Installation Guidelines

Proper installation is crucial for the reliable operation and longevity of the industrial panel PC.

1. De-energization: Ensure all power to the installation area is disconnected and secured before beginning any work.
2. Mounting: Mount the panel PC securely into a panel cutout. Given its IP65 rating, ensure the front panel seal is correctly seated to maintain environmental protection.
3. Power Connection: Connect the power supply according to the specified voltage and current requirements. Ensure proper polarity and secure terminal connections.
4. Grounding: Establish a robust protective earth (PE) connection to the designated grounding terminal on the device. This is essential for safety and electromagnetic compatibility.
5. Ethernet Connections: Connect PROFINET and other Ethernet cables to the 1 Gbit ports. Use shielded cables in industrial environments to minimize interference.
6. USB Connections: Connect peripheral devices to the four USB ports located at the rear.
7. Environmental Considerations: Ensure the operating environment adheres to the specified temperature and humidity ranges. While the front is IP65, ensure the rear connections are protected as appropriate for the installation.
8. Cable Management: Route cables neatly and securely, separating power and signal cables to prevent interference. Avoid sharp bends or excessive tension on cables.
9. Power-Up: After all connections are verified, re-energize the system and observe for proper boot-up and operation.
