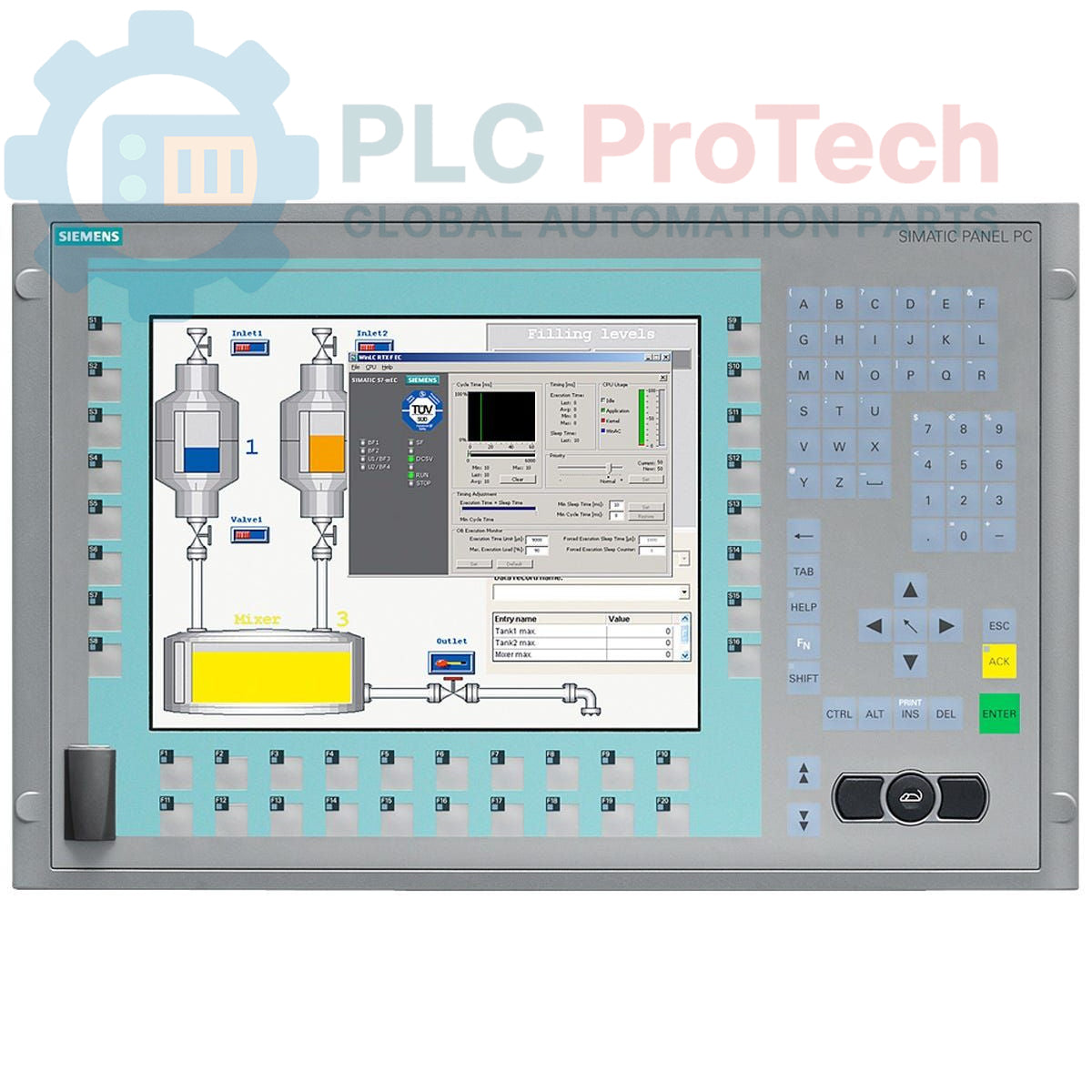

Siemens 6AV7884-1AH20-4BA0 SIMATIC HMI IPC 477C Panel PC

Description

The Siemens 6AV7884-1AH20-4BA0 is a SIMATIC HMI IPC 477C Industrial Panel PC, featuring a 12-inch key display with an 800x600 resolution. This unit is equipped with a Core 2 Duo 1.2 GHz processor, 2 GB of DDR3 RAM, and an 8 GB CF card for storage, with a second CF slot unequipped. It comes with Windows Embedded Standard 2009 pre-installed, but without SIMATIC software. The device supports various industrial communication protocols including PROFINET (IE) and PROFIBUS DP 12, alongside 2x 1 Gbit Ethernet ports and multiple USB interfaces (four at the back, one at the front). It is available as an optional bundle with WinCC Flexible 2008/WINAC.

Features

• SIMATIC HMI IPC 477C series
• 12-inch key display with 800x600 resolution
• Core 2 Duo 1.2 GHz processor
• 2 GB DDR3 RAM
• 8 GB CF card (second slot unequipped)
• Windows Embedded Standard 2009 pre-installed (without SIMATIC software)
• Integrated PROFINET (IE) and PROFIBUS DP 12 communication
• 2x 1 Gbit Ethernet ports
• 5x USB interfaces (4 rear, 1 front)
• Optional bundle with WinCC Flexible 2008/WINAC

Applications

The Siemens 6AV7884-1AH20-4BA0 SIMATIC HMI IPC 477C is suitable for a wide range of industrial applications requiring robust human-machine interface and PC functionality. Typical deployments include:

• Machine control and visualization
• Process monitoring and data acquisition
• Operator control stations in manufacturing environments
• Distributed control systems (DCS) integration
• Factory automation and production line management

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety First: Ensure all power is disconnected from the system before beginning installation or maintenance. Follow all local and national electrical safety codes.
2. Mounting: Securely mount the Panel PC in a suitable industrial enclosure or panel cutout, ensuring adequate ventilation and clearance for cable routing and maintenance.
3. Grounding: Establish a proper ground connection for the Panel PC to minimize electrical noise and ensure safety. Use the designated grounding terminal.
4. Power Connection: Connect the power supply according to the specified voltage and current ratings. Verify correct polarity before applying power.
5. Communication Cabling: Route PROFINET, PROFIBUS, and Ethernet cables away from high-voltage or high-current lines to prevent interference. Use shielded cables where appropriate and ensure proper termination.
6. USB Device Connection: Connect USB peripherals to the front or rear USB ports as needed.
7. Initial Power-Up: After all connections are secure, apply power and observe the system for proper boot-up and display functionality.
