Siemens 6AV7892-0AD30-1AB0 SIMATIC IPC677C Panel PC

Description

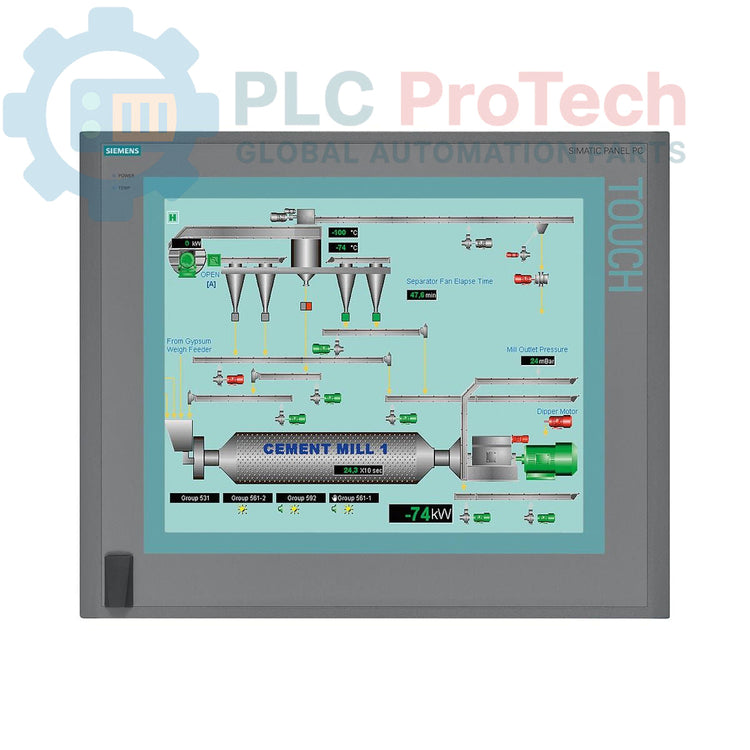

The Siemens 6AV7892-0AD30-1AB0 is a SIMATIC HMI IPC677C Panel PC designed for industrial human-machine interface (HMI) applications. This unit features a 15-inch touch display with a resolution of 1024x768 pixels, providing a clear and interactive operator interface. It is equipped with a Core i3-330E processor, 4 GB of DDR3 1066 DIMM RAM, and a 250 GB SATA hard disk drive. Connectivity options include two 10/100/1000 Mbit/s Ethernet ports, four USB V2.0 ports, and one serial (COM1) interface, with an additional front-side USB port for convenience. The system also integrates a RAID controller, watchdog functionality, and monitoring for temperature and fan status, ensuring reliable operation in demanding industrial environments. It operates on a 24 V DC power supply and comes pre-installed with Windows XP Professional SP3 MUI (Multi-User Interface) supporting German, English, French, Spanish, and Italian languages. An integrated DVD+-R+-RW drive and two free PCI slots offer further expansion possibilities.

Features

• SIMATIC HMI IPC677C Panel PC
• 15-inch Touch Display with 1024x768 Resolution
• Core i3-330E Processor (2C/4T, 2.13 GHz, HT, VT, 3 MB Cache)
• 4 GB DDR3 1066 DIMM RAM
• 250 GB SATA Hard Disk Drive
• Integrated DVD+-R+-RW Drive
• 2x 10/100/1000 Mbit/s Ethernet Ports
• 4x USB V2.0 Ports, plus 1x Front-Side USB Interface
• 1x Serial (COM1) Port
• Watchdog, Temperature, and Fan Monitoring
• Onboard RAID Controller
• 24 V DC Power Supply
• 2x Free PCI Expansion Slots
• Pre-installed Windows XP Professional SP3 MUI (DE, EN, FR, ES, IT)

Applications

• Industrial Human-Machine Interface (HMI) systems
• Process visualization and control in manufacturing
• Machine operation and monitoring
• Data acquisition and processing in automation systems
• Supervisory control and data acquisition (SCADA) systems
• Embedded control applications requiring a robust PC platform

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energization: Before commencing any installation or maintenance, ensure that the 24 V DC power supply to the Panel PC is completely de-energized and secured against accidental re-energization.
2. Mounting: Mount the Panel PC securely into a control cabinet or panel cutout, ensuring adequate space for ventilation around the unit. Follow the manufacturer's guidelines for proper panel cutout dimensions and mounting hardware.
3. Power Connection: Connect the 24 V DC power supply to the designated terminals, observing correct polarity. Use appropriate cable cross-sections to prevent voltage drops.
4. Grounding: Ensure proper grounding of the Panel PC chassis to the control cabinet's protective earth (PE) busbar to minimize electromagnetic interference and ensure operational safety.
5. Ethernet Connections: Connect Ethernet cables to the 10/100/1000 Mbit/s ports for network communication. Use shielded cables if operating in environments with high electromagnetic noise.
6. USB and Serial Connections: Connect peripheral devices to the USB V2.0 ports and serial devices to the COM1 port as required.
7. Environmental Considerations: Install the Panel PC in an environment that complies with its specified operating temperature and humidity ranges. Avoid direct sunlight, excessive vibration, and corrosive atmospheres.
8. Ventilation: Ensure that the cooling fans are not obstructed and that there is sufficient airflow to prevent overheating, especially given the integrated temperature monitoring.
