Siemens 6AV7892-0AH00-0AC0 SIMATIC HMI IPC677C Panel PC

Description

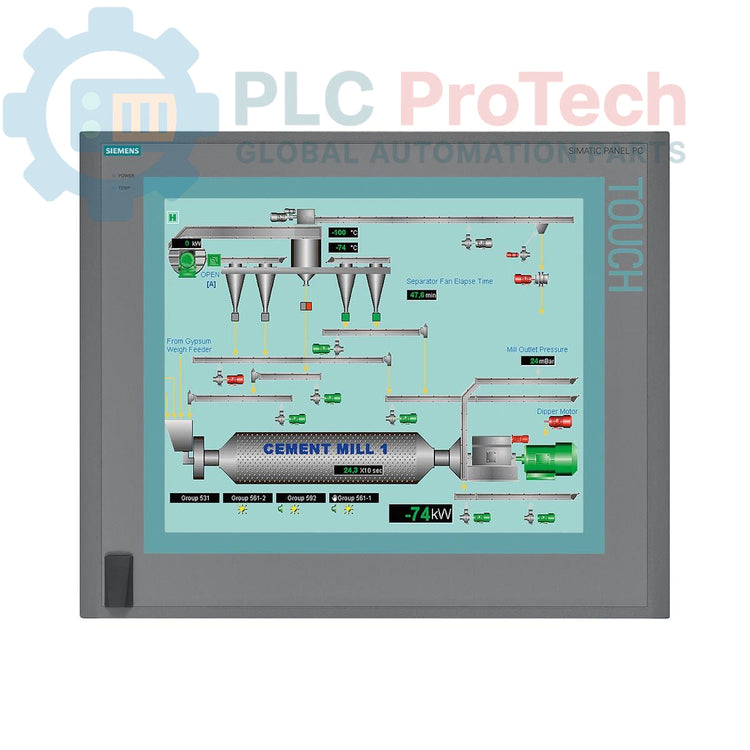

The Siemens 6AV7892-0AH00-0AC0 is a SIMATIC HMI IPC677C Panel PC designed for industrial human-machine interface (HMI) and control applications. This robust industrial computer integrates a 15-inch touch display with a resolution of 1024 x 768 pixels, making it suitable for visualization and operator control tasks in various automation environments. It features a Core I7-610E processor, comprehensive connectivity including Gigabit Ethernet, USB, and serial ports, and an onboard RAID controller for data integrity. The unit is powered by a 24 V DC supply and comes pre-installed with Windows 7 Ultimate 32-bit SP1.

Features

• Integrated 15-inch Touch Display with 1024 x 768 resolution
• Core I7-610E Processor (2C/4T, 2.53GHz, TB, HT, VT, 4 MB cache)
• Dual 10/100/1000 Mbit/s Ethernet interfaces
• Four USB V2.0 ports (with front-side USB interface)
• One serial (COM1) interface
• PROFIBUS/MPI (CP 5611-A2-compatible) support
• 2 MB buffered SRAM
• 1 GB DDR3 1066 DIMM RAM
• 250 GB SATA Hard Disk Drive (HDD)
• Onboard RAID controller for data redundancy
• Watchdog, temperature, and fan monitoring functions
• Two free PCI expansion slots
• Pre-installed Windows 7 Ultimate 32-bit SP1, MUI (de, en, fr, es, it)
• 24 V DC power supply

Applications

The Siemens SIMATIC HMI IPC677C Panel PC is suitable for a wide range of industrial automation applications, including:

• Machine and plant visualization
• Operator control and monitoring systems
• Data acquisition and processing
• Process control in manufacturing and production lines
• Building automation and infrastructure management
• Embedded control systems requiring HMI functionality

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected and locked out before beginning any work.
2. Mounting: Securely mount the Panel PC in a suitable industrial enclosure or panel cutout, ensuring adequate clearance for ventilation and cable routing.
3. Power Connection: Connect the 24 V DC power supply to the designated terminals, observing correct polarity. Verify the power source meets the specified voltage and current requirements.
4. Grounding: Establish a proper protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Interface Cabling: Connect Ethernet, USB, serial, and PROFIBUS/MPI cables as required for the application. Use shielded cables for communication interfaces in electrically noisy environments.
6. Ventilation: Ensure that the Panel PC's cooling vents are not obstructed to maintain proper operating temperature and prevent overheating.
7. Initial Power-Up: After all connections are verified, apply power to the unit. Observe for proper boot-up and system status indicators.
