Siemens

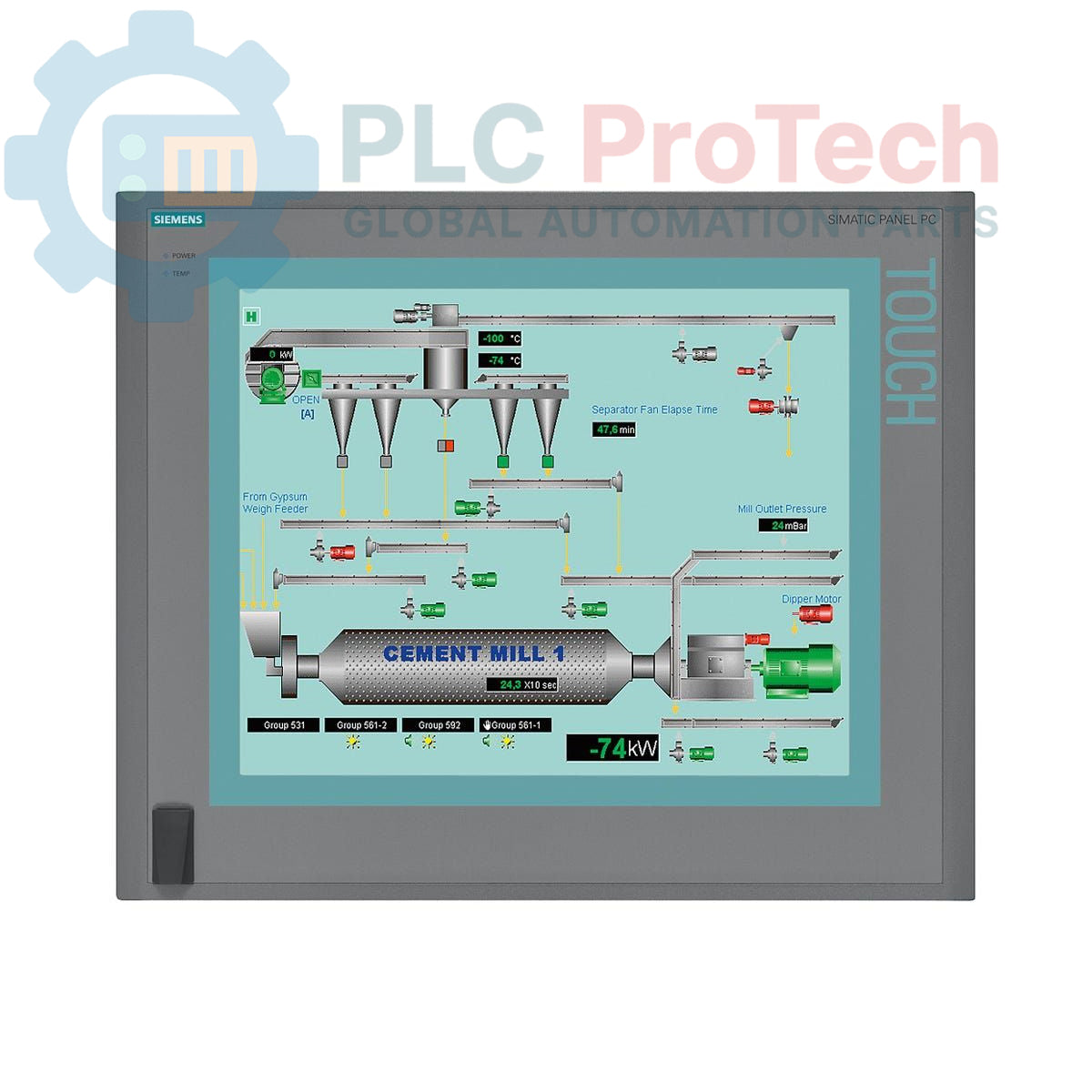

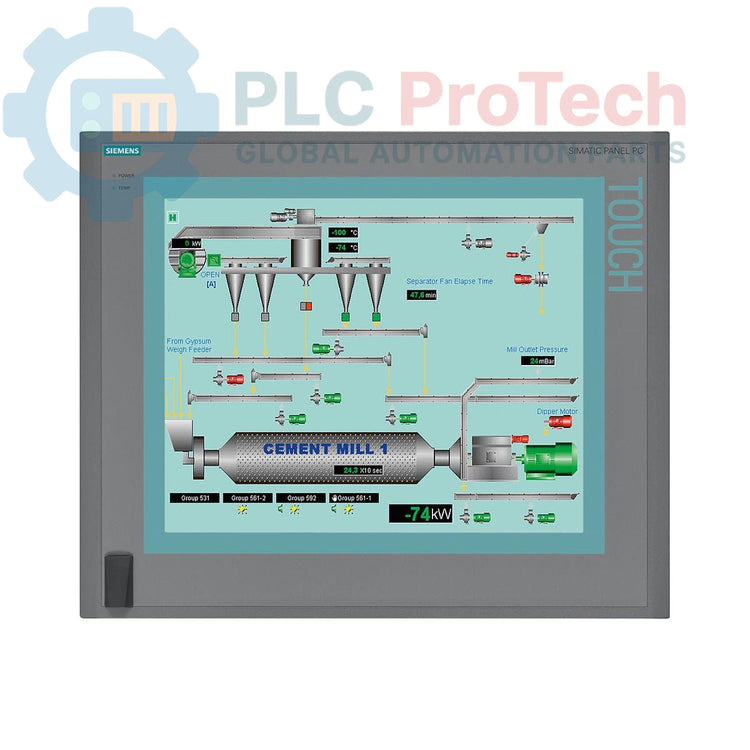

Siemens 6AV7892-0BE00-0AE0 SIMATIC IPC677C Panel PC

SKU 6AV7892-0BE00-0AE0

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: Siemens

  • Product No.: 6AV7892-0BE00-0AE0

  • Country of origin:Germany

  • Product Type: Panel PC

  • Barcode: 85371098

  • Payment: T/T, Western Union

  • Weight: 17450g

  • Dimensions: 67.00 x 55.00 x 28.00 cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

This is a Siemens SIMATIC HMI IPC677C Panel PC, model 6AV7892-0BE00-0AE0, designed for demanding human-machine interface and control applications. It integrates a 15-inch touchscreen display with a resolution of 1024 x 768 pixels and is powered by an Intel Core i3-330E processor. The unit provides extensive connectivity, including dual Gigabit Ethernet, USB 2.0, serial, and a built-in PROFIBUS/MPI interface. System reliability is enhanced through an onboard RAID controller and integrated monitoring for watchdog, temperature, and fan status. This configuration is delivered with 1 GB of DDR3 RAM, a 250 GB SATA hard drive, and a pre-installed Windows 7 Ultimate 64-bit operating system.

Features

  • 15-inch touchscreen display with 1024 x 768 resolution
  • Intel Core i3-330E processor (2.13 GHz, 2 Cores, 4 Threads)
  • 1 GB DDR3 1066 DIMM system memory
  • 250 GB SATA Hard Disk Drive (HDD) for application and data storage
  • Integrated PROFIBUS/MPI interface (CP 5611-A2 compatible)
  • Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity
  • Onboard RAID controller for data redundancy
  • System health monitoring for watchdog, temperature, and fan
  • Pre-installed Windows 7 Ultimate (64-bit) Multi-Language User Interface
  • Front-panel USB port for convenient access

Applications

  • Machine-level control and visualization (HMI)
  • Process control and data acquisition systems
  • Manufacturing Execution Systems (MES)
  • Industrial data logging and analysis
  • Factory automation and plant floor integration

Technical Specifications

Specification Value
Product Type SIMATIC HMI Panel PC
Model 6AV7892-0BE00-0AE0
Series SIMATIC IPC677C
Processor Intel Core i3-330E (2C/4T, 2.13 GHz, HT, VT, 3 MB cache)
Memory (RAM) 1 GB DDR3 1066 DIMM
Buffered SRAM 2 MB
Storage 250 GB HDD SATA
Display 15-inch Touchscreen
Resolution 1024 x 768 pixels
Operating System Windows 7 Ultimate 64-bit SP1, MUI (de, en, fr, es, it)
Ethernet Ports 2 x 10/100/1000 Mbit/s
USB Ports 4 x USB 2.0 (rear), 1 x USB (front)
Serial Port 1 x COM1
Fieldbus Interface PROFIBUS/MPI (CP 5611-A2 compatible)
Expansion Slots 2 x PCI (free)
Power Supply 110/230 V AC with NAMUR
Product Lifecycle Status Phase-Out
Manufacturer Siemens
Country of Origin (Estimated) Germany
Package Dimensions 67.00 x 55.00 x 28.00 cm
Shipping Weight 17.45 kg
Commodity Code 85371098
ECCN N

Installation Guidelines

CRITICAL WARNING: RISK OF ELECTRIC SHOCK

Installation, wiring, and maintenance must be performed exclusively by qualified electrical personnel. Failure to de-energize all power sources before servicing can result in severe injury or death. Always adhere to local electrical codes and Lockout/Tagout (LOTO) procedures.

  1. 1 Ensure the control cabinet or panel is completely de-energized and locked out before beginning installation. Verify the absence of voltage.
  2. 2 Verify the panel cutout dimensions match the IPC677C chassis specifications. Ensure the mounting surface is clean, flat, and rigid.
  3. 3 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly in a cross-pattern to ensure a proper seal.
  4. 4 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the chassis. This connection is critical for safety and noise immunity.
  5. 5 Connect the 110/230 V AC power supply cable to the unit's power input. Ensure the source voltage matches the device rating.
  6. 6 Connect Ethernet, PROFIBUS/MPI, USB, and serial cables as required. Route communication cables separately from high-voltage power lines to prevent interference.
  7. 7 Verify that ventilation clearances around the rear of the unit are maintained to ensure proper heat dissipation. Do not block fan openings.

FAQ

What operating system is pre-installed on this Panel PC?
The 6AV7892-0BE00-0AE0 comes with Windows 7 Ultimate 64-bit Service Pack 1 pre-installed. It includes a Multi-Language User Interface (MUI) supporting German, English, French, Spanish, and Italian.

What processor is included in this model?
This unit is equipped with an Intel Core i3-330E processor, which features 2 cores, 4 threads, a 2.13 GHz clock speed, and a 3 MB cache.

Does this Panel PC support PROFIBUS communication?
Yes, it includes an integrated PROFIBUS/MPI interface that is hardware-compatible with the Siemens CP 5611-A2 communications processor.

What are the primary communication ports available?
The device features two 10/100/1000 Mbit/s Ethernet ports, four rear-mounted USB 2.0 ports, one front-accessible USB port, and one serial (COM1) interface.

What is the display size and resolution?
It has a 15-inch color touchscreen display with a native resolution of 1024 x 768 pixels, suitable for industrial HMI applications.
