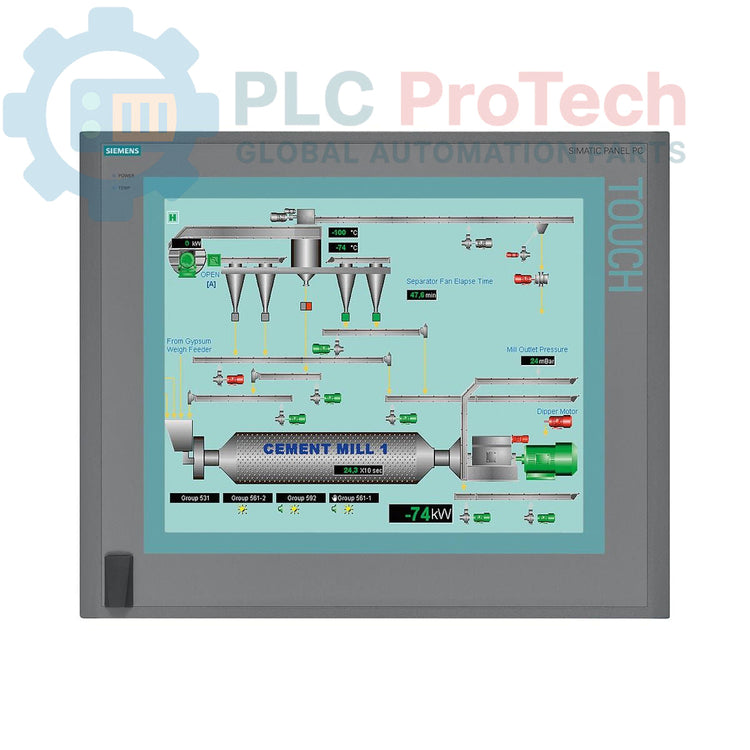

Siemens 6AV7892-0BJ10-1AA0 SIMATIC IPC677C Panel PC

Description

The Siemens 6AV7892-0BJ10-1AA0 is a SIMATIC HMI IPC677C Panel PC designed for demanding visualization and control tasks in industrial environments. This unit integrates a high-performance computer with a responsive operator interface, featuring an Intel Core i7-610E processor, 2 GB of DDR3 RAM, and a 250 GB SATA hard drive. It is equipped with a 15-inch touchscreen display with a resolution of 1024x768 pixels. For robust system monitoring, it includes an integrated watchdog timer, as well as temperature and fan monitoring. Connectivity is comprehensive, with dual Gigabit Ethernet ports, a dedicated 3-port PROFINET interface, and multiple USB 2.0 ports, including one on the front panel for convenient access.

Features

• 15-inch color touchscreen display
• Intel Core i7-610E dual-core processor (2.53 GHz)
• Integrated PROFINET interface with 3 RJ45 ports (CP 1616-compatible)
• Onboard RAID controller for data redundancy
• System diagnostics including watchdog, temperature, and fan monitoring
• Front-panel USB 2.0 port for easy data transfer and peripheral connection
• Two free PCI slots for hardware expansion
• Built-in DVD±R/±RW optical drive

Applications

• Human Machine Interface (HMI) for process control
• Supervisory Control and Data Acquisition (SCADA) systems
• Machine-level data acquisition and processing
• Industrial automation control rooms
• Manufacturing Execution Systems (MES)

Technical Specifications

Installation Guidelines

1. 1 Verify the panel cutout dimensions against the device specifications. Ensure the mounting surface is flat, clean, and capable of supporting the unit's weight.
2. 2 Insert the Panel PC into the prepared cutout. Secure it evenly using all provided mounting clamps, tightening them to the manufacturer's specified torque to ensure a proper seal and prevent chassis distortion.
3. 3 Connect a low-impedance functional earth (FE) or protective earth (PE) conductor to the designated grounding terminal on the chassis. This is critical for noise immunity and safety.
4. 4 Connect the AC power supply cable to the unit's power inlet. Ensure the source voltage matches the 110/230 V AC rating. Route power cables separately from signal and communication cables.
5. 5 Connect Ethernet, PROFINET, USB, and serial communication cables as required. Use shielded cables for all data communication to minimize electromagnetic interference.
6. 6 After verifying all connections, remove LOTO devices and apply power to the unit. Proceed with operating system and application software installation.
