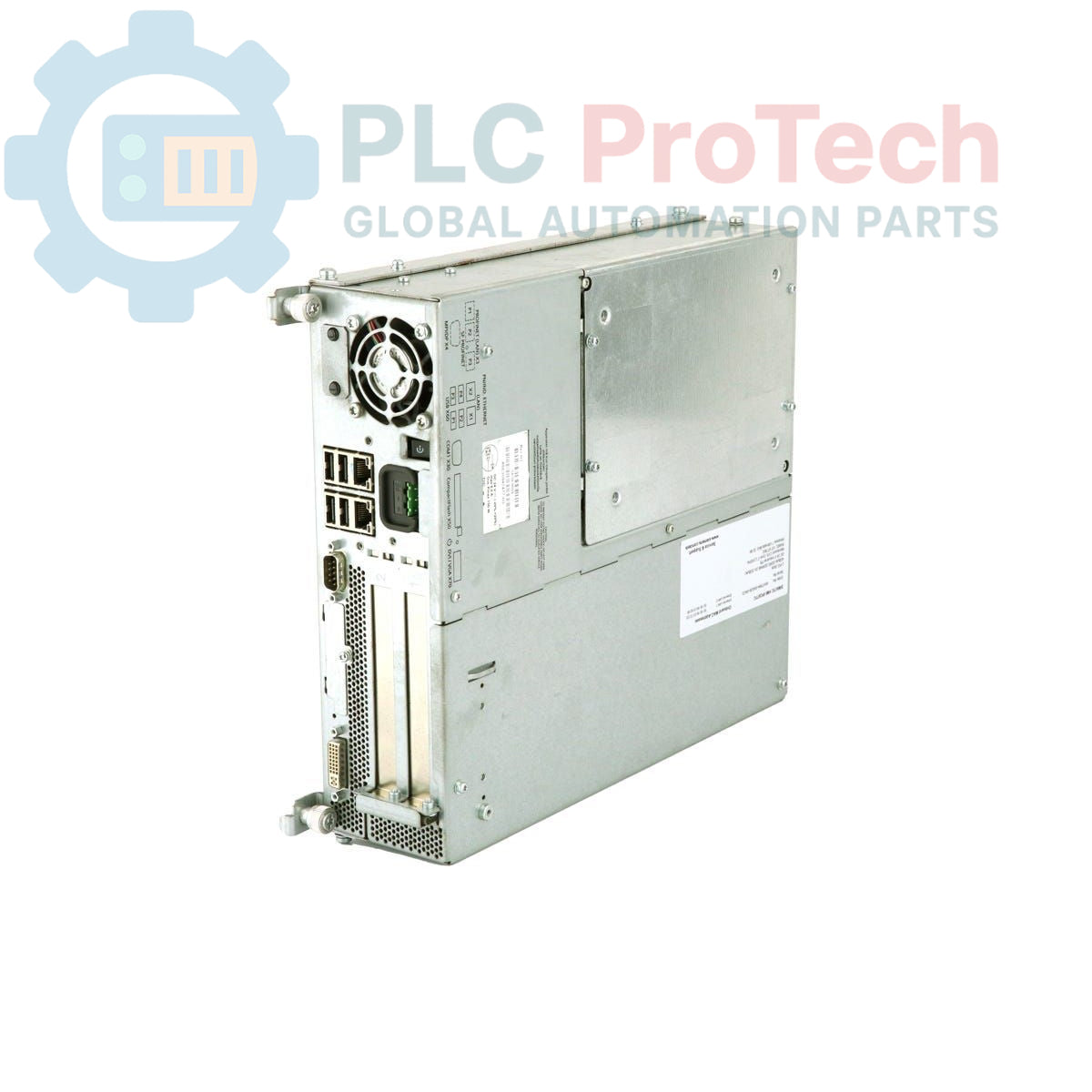

Siemens 6AV7892-0DG10-0AC0 SIMATIC IPC677C Panel PC

SKU 6AV7892-0DG10-0AC0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6AV7892-0DG10-0AC0
Country of origin:Germany
Product Type: Panel PC
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17450g
Dimensions: 67.0 x 55.0 x 28.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

This Siemens 6AV7892-0DG10-0AC0 is a SIMATIC HMI IPC677C Panel PC, engineered for demanding visualization and control tasks in industrial environments. It integrates a high-performance computer with a responsive operator interface, featuring a 15-inch touch display with 1024x768 resolution. The system is powered by an Intel Core i7-610E processor and is equipped with 2 GB of DDR3 RAM and a 250 GB SATA HDD for application and data storage. Integrated system monitoring for watchdog, temperature, and fan functions ensures operational reliability, while an onboard RAID controller provides options for data redundancy.

Features

Processor: Intel Core i7-610E (2C/4T, 2.53 GHz, 4 MB Cache)
Memory: 2 GB DDR3 1066 DIMM
Storage: 250 GB SATA Hard Disk Drive (HDD)
Display: 15-inch touch screen with 1024 x 768 resolution
Operating System: Windows 7 Ultimate 32-bit SP1 (MUI)
Connectivity: 2x 10/100/1000 Mbit/s Ethernet, 4x USB 2.0, 1x Serial (COM1)
Expansion: Two free PCI slots
System Integrity: Onboard watchdog, temperature, and fan monitoring

Applications

Human-Machine Interface (HMI) for process control and visualization
Data acquisition and logging in manufacturing environments
Machine-level control and monitoring stations
Supervisory control nodes in smaller SCADA systems

Technical Specifications

Specification	Value
General Information
Brand	Siemens
Model Number	6AV7892-0DG10-0AC0
Series	SIMATIC HMI IPC677C
Product Type	Panel PC
Product Lifecycle Status	Phase-Out
Processing Unit
Processor	Intel Core i7-610E
Processor Details	2 Cores / 4 Threads, 2.53 GHz, Turbo Boost, Hyper-Threading, VT, 4 MB Cache
Memory	2 GB DDR3 1066 DIMM
Storage	250 GB HDD SATA
Optical Drive	Not included
Display & Interface
Display Size	15 inch
Display Type	Touch Screen
Resolution	1024 x 768 pixels
Connectivity
Ethernet	2 x 10/100/1000 Mbit/s
USB Ports	4 x USB 2.0 (rear), 1 x USB (front-side)
Serial Port	1 x COM1
Expansion Slots	2 x PCI (free)
System & Software
Operating System	Windows 7 Ultimate 32-bit SP1, MUI (de, en, fr, es, it)
System Monitoring	Watchdog, temperature, and fan monitoring
RAID Controller	Onboard
Electrical
Power Supply	110/230 V AC with NAMUR
Power Cable	UK
Logistics
Package Dimensions	67.0 x 55.0 x 28.0 cm
Shipping Weight	17.45 kg
Commodity Code	85371098
ECCN	N
Country of Origin (Estimated)	Germany

Installation Guidelines

CRITICAL WARNING: Electrical Hazard

Disconnect all power sources and follow Lockout/Tagout (LOTO) procedures before installation, wiring, or maintenance. This equipment is intended for use by qualified personnel only. Failure to de-energize the system can result in severe injury or death.

1 Prepare the panel cutout according to the manufacturer's dimensional drawings. Ensure the mounting surface is clean, flat, and rigid enough to support the unit's weight.
2 Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps, tightening them evenly to the specified torque to ensure a proper seal.
3 Connect a low-impedance protective earth (PE) ground to the designated chassis terminal. This is critical for both safety and noise immunity.
4 Connect the AC power supply cable to a stable, correctly rated power source. Route power cables separately from signal and communication cables to prevent electromagnetic interference.
5 Connect Ethernet, USB, and serial communication cables as required by the application. Ensure all connectors are fully seated and secured.

FAQ

What operating system is pre-installed on the 6AV7892-0DG10-0AC0?

This Panel PC comes with Windows 7 Ultimate 32-bit Service Pack 1, which includes a Multi-language User Interface (MUI) for German, English, French, Spanish, and Italian.

What are the primary communication interfaces available on this unit?

The device is equipped with two 10/100/1000 Mbit/s Ethernet ports, four rear USB 2.0 ports, one front-side USB port, and one serial (COM1) port.

What processor is installed in this SIMATIC Panel PC?

It is equipped with an Intel Core i7-610E processor, which features 2 cores, 4 threads, a 2.53 GHz clock speed, and 4 MB of cache.

Does this unit support RAID configurations for storage?

Yes, the SIMATIC IPC677C features an onboard RAID controller, allowing for redundant storage configurations to improve data reliability.

What are the power supply requirements for this Panel PC?

The unit operates on a 110/230 V AC power supply with a NAMUR interface and is supplied with a UK power cable.
