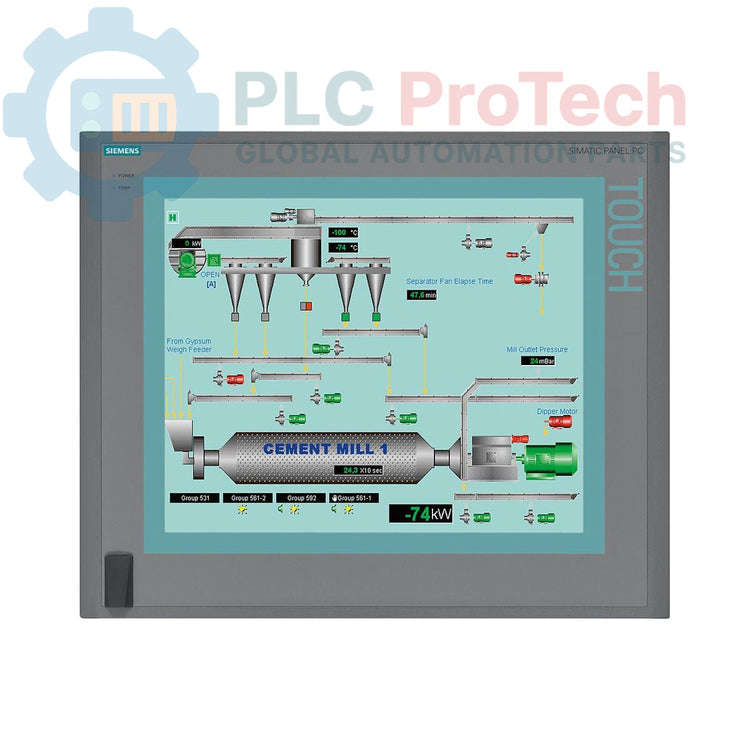

Siemens 6AV7894-0BD10-0AA0 SIMATIC IPC677C Panel PC

Description

The Siemens 6AV7894-0BD10-0AA0 is a SIMATIC IPC677C series Panel PC designed for demanding Human-Machine Interface (HMI) applications in industrial environments. This unit integrates a 19-inch touchscreen display with a resolution of 1280 x 1024 pixels and is powered by an Intel Core i3-330E processor. It is equipped with 2 GB of DDR3 memory, a 250 GB SATA hard drive, and a comprehensive set of interfaces including dual Gigabit Ethernet and multiple USB ports. The system includes onboard monitoring for watchdog, temperature, and fan status, as well as an integrated RAID controller for data integrity.

Features

• 19-inch color touchscreen display with 1280 x 1024 resolution
• Intel Core i3-330E processor (2.13 GHz, 2 Cores / 4 Threads)
• 2 GB DDR3 1066 DIMM system memory
• 250 GB SATA Hard Disk Drive for application and data storage
• Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity
• Onboard RAID controller for enhanced storage reliability
• Integrated system monitoring for watchdog, temperature, and fan status
• Front-panel USB port for convenient access
• Two free PCI slots for hardware expansion

Applications

• Human-Machine Interface (HMI) and SCADA systems
• Process visualization and control stations
• Data acquisition and logging terminals
• Manufacturing Execution System (MES) client terminals
• Industrial automation control rooms and operator panels

Technical Specifications

Installation Guidelines

1. 1 Prepare Panel Cutout: Verify the enclosure cutout dimensions against the device's mechanical drawings. Ensure the mounting surface is clean, flat, and rigid enough to support the unit's weight.
2. 2 Mount the Unit: Insert the Panel PC into the cutout from the front. Secure it from the rear using all provided mounting clamps, tightening them evenly to the manufacturer's specified torque to ensure a proper seal.
3. 3 Connect Protective Earth: Connect a low-impedance protective earth (PE) conductor to the designated chassis grounding terminal. This is a critical safety connection and must be established first.
4. 4 Connect Power Supply: Connect the 110/230 V AC power supply cable to the unit's power input terminal. Ensure the source voltage matches the device's rating.
5. 5 Connect Peripherals: Connect Ethernet, USB, and serial cables as required by the application. Use shielded cables for all data communication and route them separately from high-voltage power lines to minimize interference.
6. 6 Final Checks: Before applying power, double-check all connections for security and correctness. Ensure adequate ventilation clearance is maintained around the unit's chassis for proper heat dissipation.
