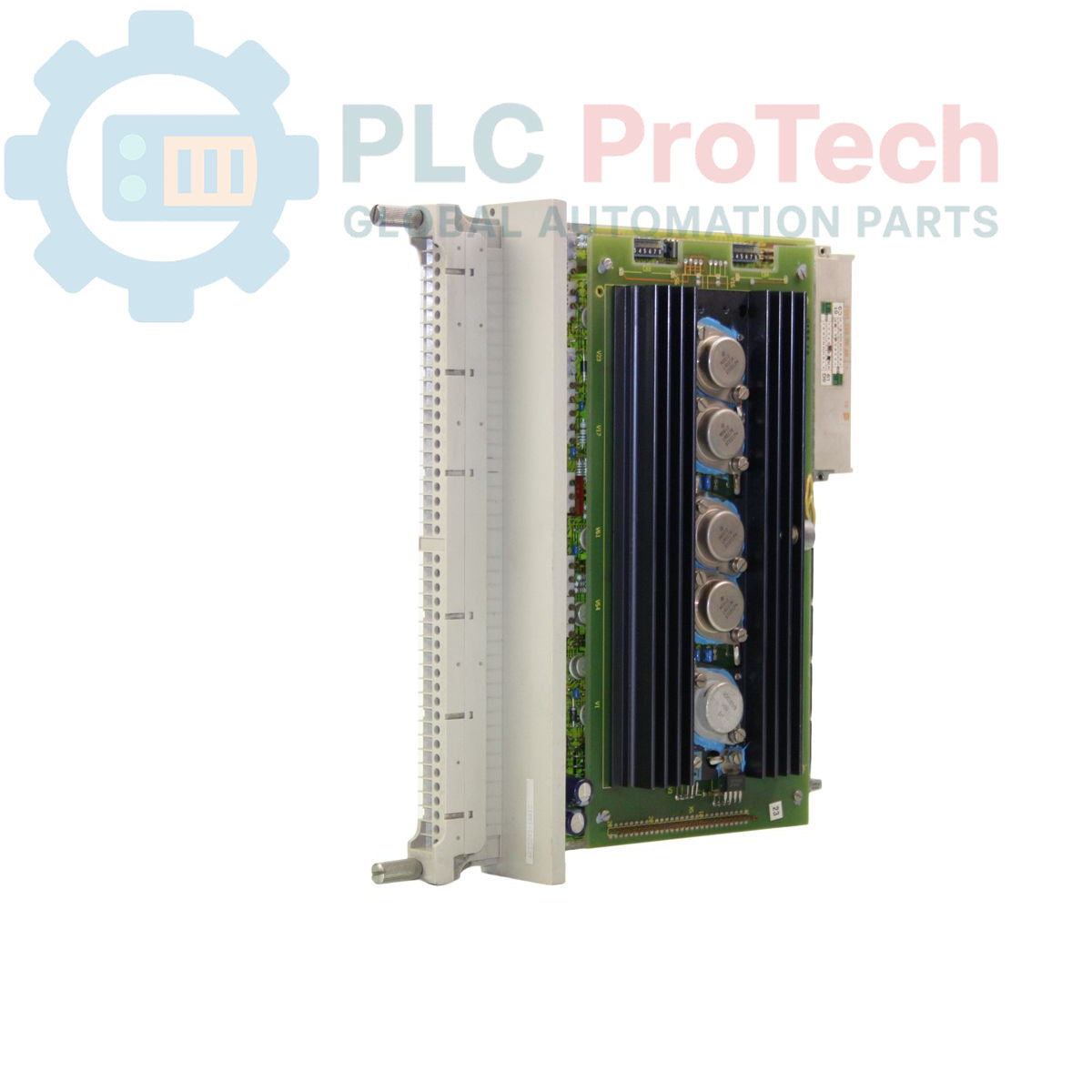

Siemens 6ES5245-1AA12 SIMATIC S5 IP 245 Valve Control Module

Description

The Siemens 6ES5245-1AA12 is a SIMATIC S5 IP 245 valve control module engineered for the precise operation of proportional valves within industrial automation environments. This module facilitates reliable control and seamless integration into production lines, supporting high-performance processes. Constructed from durable materials, the 6ES5245-1AA12 is designed to withstand demanding factory conditions and ensures compatibility with existing SIMATIC S5 systems. It serves as a critical component for project managers and production leaders aiming for efficient and rapid integration into established control architectures, offering robust design and proven reliability for continuous production workflows.

Features

• Designed for precise control of proportional valves.
• Seamless integration within SIMATIC S5 automation systems.
• Robust construction for industrial durability.
• Supports high-performance industrial processes.

Applications

The 6ES5245-1AA12 is typically deployed in industrial automation settings requiring accurate and reliable control of proportional valves. Common applications include:

• Process control systems utilizing proportional valves for fluid or gas regulation.
• Manufacturing lines requiring precise positioning or flow control.
• Integration into existing SIMATIC S5 control architectures for enhanced valve management.

Technical Specifications

Installation Guidelines

Proper installation ensures the reliable operation and longevity of the SIMATIC S5 IP 245 Valve Control Module. Adhere to the following general guidelines:

1. System De-energization: Before commencing installation, ensure that the SIMATIC S5 rack and associated power supplies are completely de-energized and secured against accidental power-up.
2. Module Insertion: Carefully align the 6ES5245-1AA12 module with the designated slot in the SIMATIC S5 rack. Apply even pressure to fully seat the module into its backplane connector.
3. Secure Fastening: Utilize the module's integrated fastening mechanisms (e.g., screws or latches) to secure it firmly within the rack, preventing vibration-induced disconnections.
4. Wiring: Connect proportional valve control signals and any necessary power or communication wiring to the module's terminals according to the SIMATIC S5 system documentation. Ensure correct polarity and secure terminations.
5. Grounding and Shielding: Implement proper grounding practices for the module and its associated wiring to minimize electrical noise and interference. Shielded cables should be used for sensitive signals and correctly terminated at both ends.
6. Power-Up Sequence: After all connections are verified, re-energize the SIMATIC S5 system following the recommended power-up sequence.
7. Functional Test: Perform a functional test to confirm correct operation of the proportional valves under control of the module.
