Siemens 6ES5581-0EC12 SIMATIC S5 CP581 Communication Processor

Description

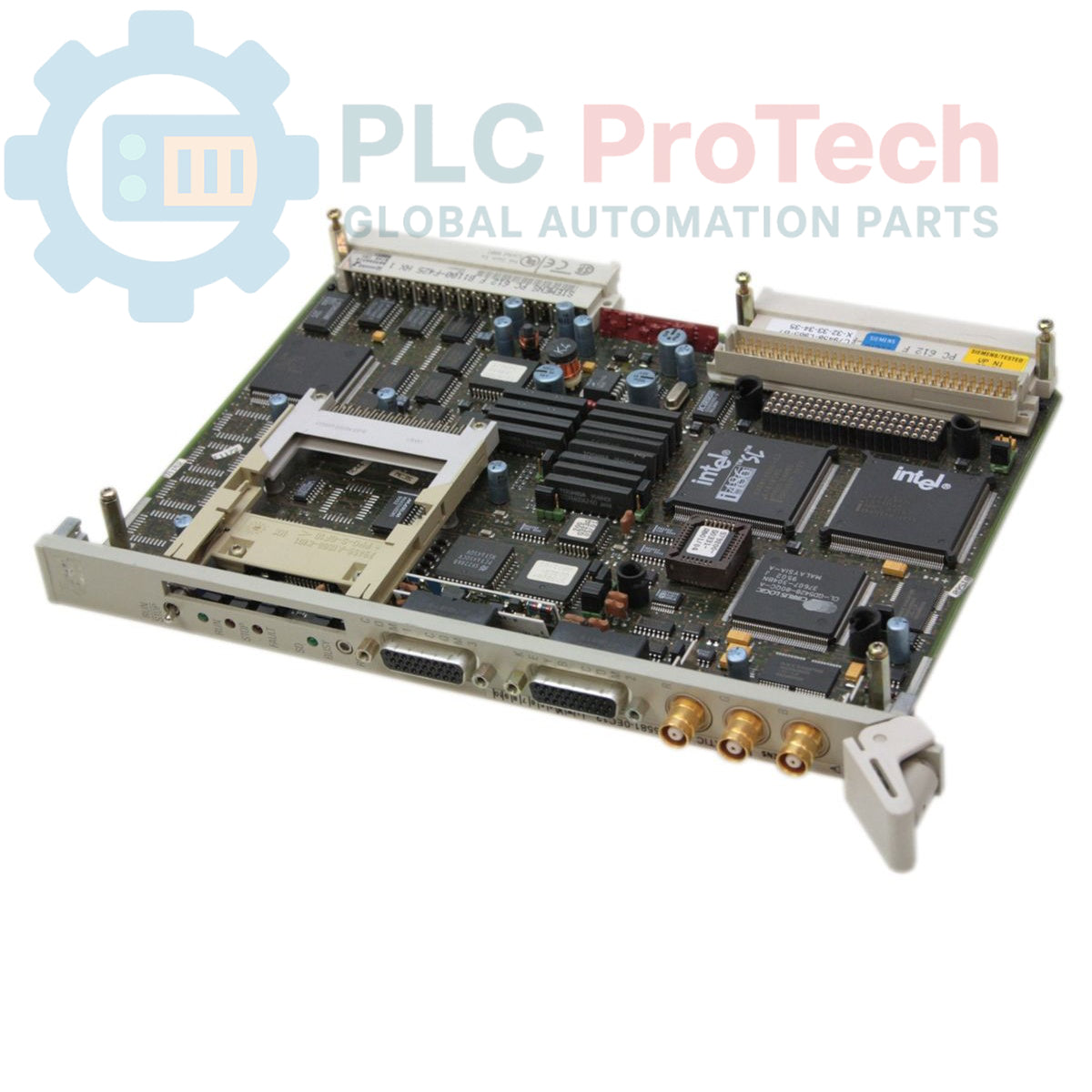

The Siemens 6ES5581-0EC12 is a CP 581 (Communication Processor) module designed specifically for the legacy SIMATIC S5 programmable logic controller family. This "Basic Module" serves as an industrial PC/co-processor interface, featuring a 33 MHz clock speed and 4 MB of working memory. It is natively configured with MS-DOS 6.2 (German) and is engineered for seamless integration with S5-115U, S5-135U, and S5-155U/H systems. It effectively bridges the gap between traditional PLC logic and PC-based data processing or visualization tasks.

Features

• Compatibility: Designed for S5-115U, -135U, and -155U/H series controllers.
• Processing: Integrated 33 MHz processor for local data handling and communication tasks.
• Memory: 4 MB of installed working memory for application data and buffering.
• Operating System: Pre-configured with MS-DOS 6.2 (German version).
• Industrial Utility: Enables advanced communication, diagnostics, and PC-based control functionality within the S5 ecosystem.

Applications

• Legacy automation system upgrades and diagnostics.
• Integration of PC-based functionality into S5 PLC racks.
• Data acquisition and protocol handling in older manufacturing environments.
• Maintenance and operation of legacy Siemens control architectures.

Technical Specifications

Installation & Usage Guidelines

• Module Placement: The CP 581 must be inserted into a compatible slot within the S5 rack backplane. Ensure the rack is powered down before installation to prevent electrical shorts.
• Configuration: As this module runs MS-DOS, users may require specific SIMATIC programming software versions or terminal emulation tools to configure its internal communication parameters.
• Memory Management: Given the 4 MB memory limit, ensure that any loaded applications or driver files are optimized for the MS-DOS environment.
• Obsolete Status: As this is an obsolete component, sourcing replacements may be limited to the secondary market or refurbished stock. Always verify the condition of the internal battery and backup components if storing or commissioning long-term.
