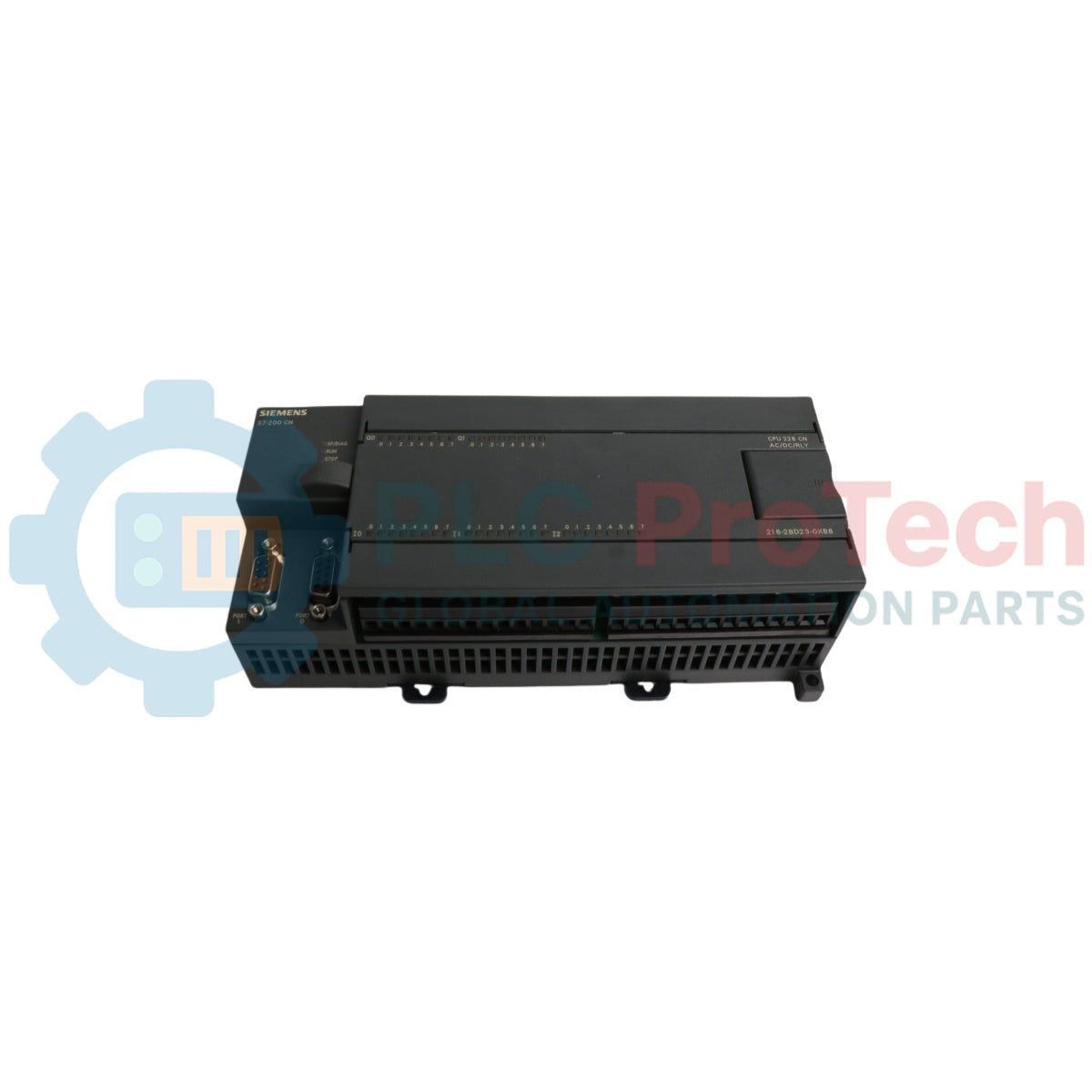

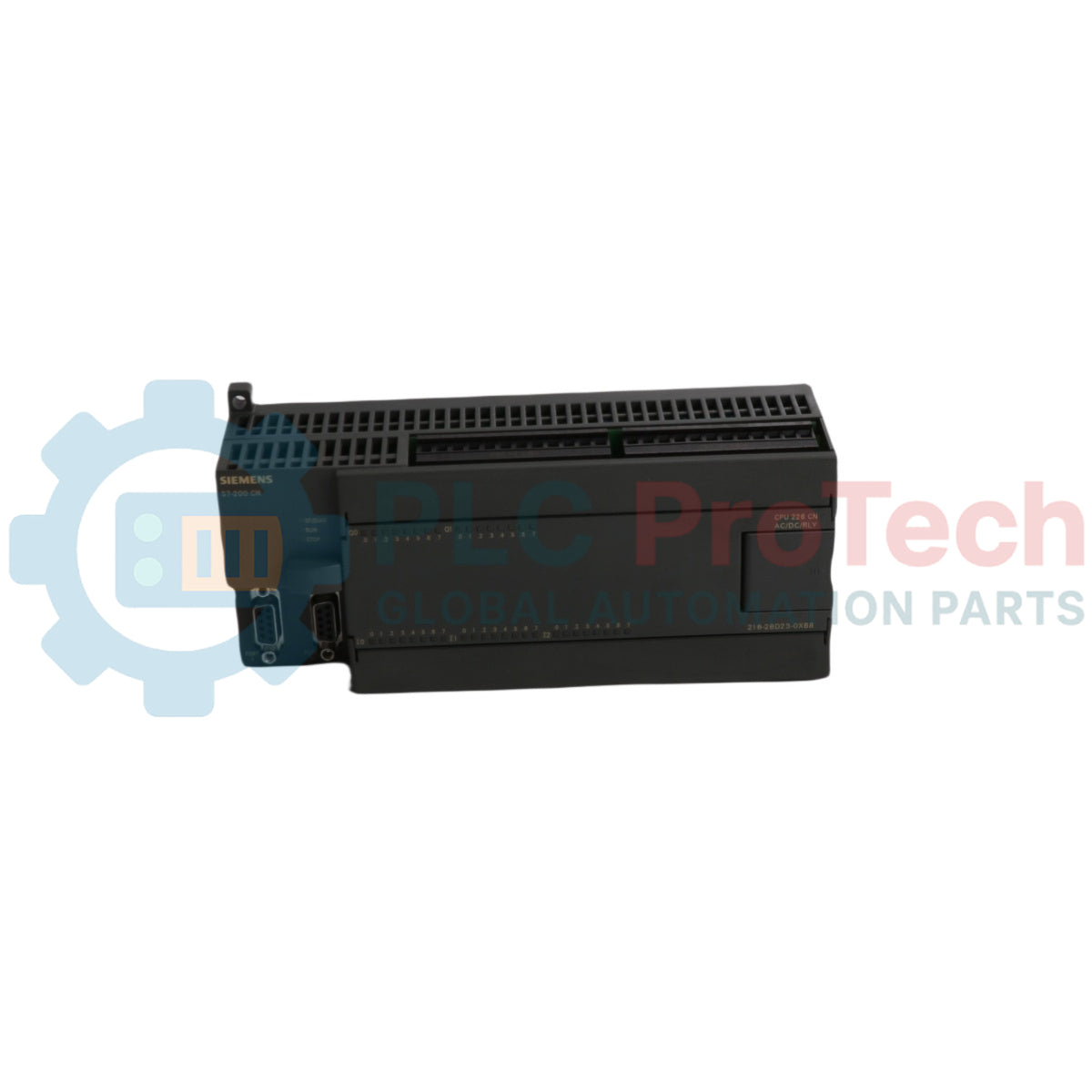

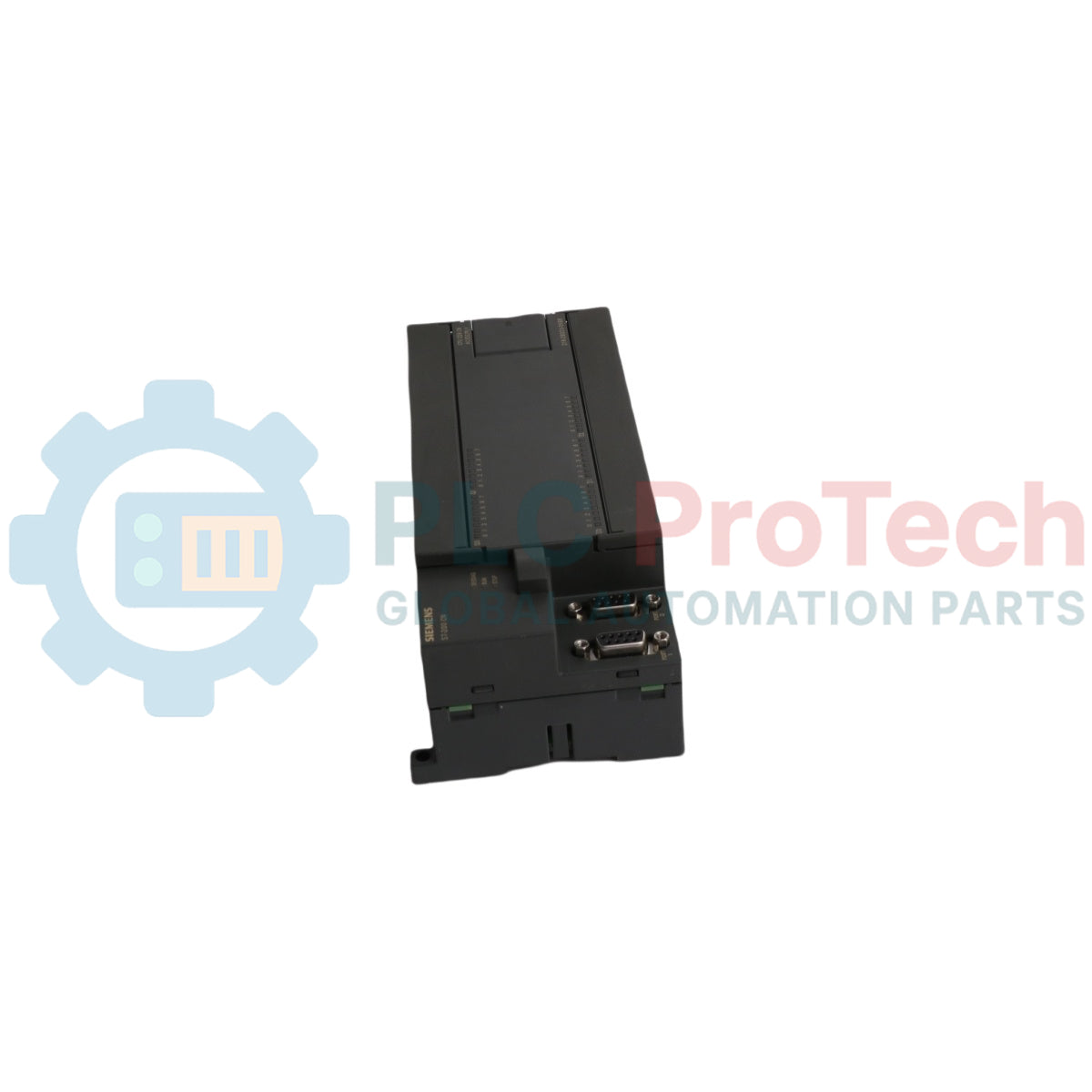

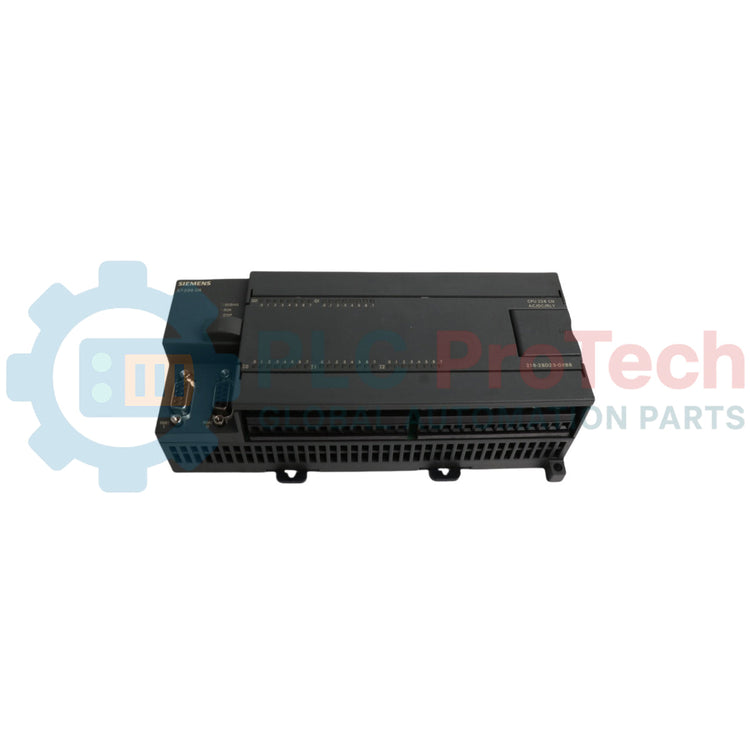

Siemens 6ES7216-2BD23-0XB8 SIMATIC S7-200 SMART CPU 226 Compact Unit

Description

The Siemens 6ES7216-2BD23-0XB8 CPU 226 Compact Unit is a versatile CPU module from the SIMATIC S7-200 SMART series, designed for space-constrained control applications. This compact unit combines 16 digital inputs and 16 relay outputs in a single device, making it suitable for small to medium automation tasks. Its integrated RS485 interface supports both PPI communication and user-programmable protocols, offering flexibility in system integration.

With 24KB program memory and 10KB data storage, the 6ES7216-2BD23-0XB8 module handles basic control logic efficiently. It operates on 24V DC power and delivers relay outputs for direct actuator control. Unlike the S7-200 CN version, this unit features enhanced connectivity options and broader international certifications beyond basic CE approval. The module maintains reliable operation in typical industrial environments, though it is designed for less demanding applications than premium PLCs. Its compact footprint (90x80x62mm) allows installation in tight control panels while providing complete automation functionality. It supports standard SIMATIC programming tools and maintains compatibility with various expansion modules. While not suited for complex motion control, it delivers cost-effective automation for standalone equipment and distributed control applications requiring moderate I/O counts.

Features

• Integrated 16 Digital Inputs
• Integrated 16 Relay Outputs
• Built-in RS485 Interface for PPI and user-programmable protocols
• 24KB Program Memory
• 10KB Data Storage
• Operates on 24V DC Power
• Compact Footprint (90x80x62mm)
• Compatibility with SIMATIC S7-200 SMART series expansion modules
• Supports standard SIMATIC programming tools

Applications

• Small conveyor systems
• Packaging machines
• Basic process control
• Standalone equipment automation
• Distributed control applications requiring moderate I/O counts

Technical Specifications

Installation Guidelines

1. De-energize System: Before installation, ensure all power to the control panel and associated equipment is disconnected and locked out.
2. Mounting: Securely mount the CPU 226 Compact Unit onto a standard DIN rail within the control cabinet. Ensure adequate clearance for ventilation and cable routing.
3. Power Connection: Connect the 24V DC power supply to the designated terminals on the module, observing correct polarity (positive to +24V, negative to M).
4. Input/Output Wiring: Wire the 16 digital inputs and 16 relay outputs according to your application's electrical diagrams. Ensure proper termination and shielding for signal integrity.
5. Communication Wiring: Connect the RS485 communication cable to the integrated interface for PPI or other serial protocols as required. If Ethernet is used, connect the appropriate cable.
6. Grounding: Ensure proper grounding of the module and the control panel to minimize electrical noise and ensure operational safety.
7. Configuration: Use standard SIMATIC programming tools to configure the module, develop control logic, and set up communication parameters.
8. Power Up and Test: After verifying all connections and wiring, re-energize the system and perform functional tests to confirm correct operation.

Compliance and Certifications

The Siemens 6ES7216-2BD23-0XB8 CPU 226 Compact Unit holds CE approval and features broader international certifications, ensuring suitability for various global industrial applications.
