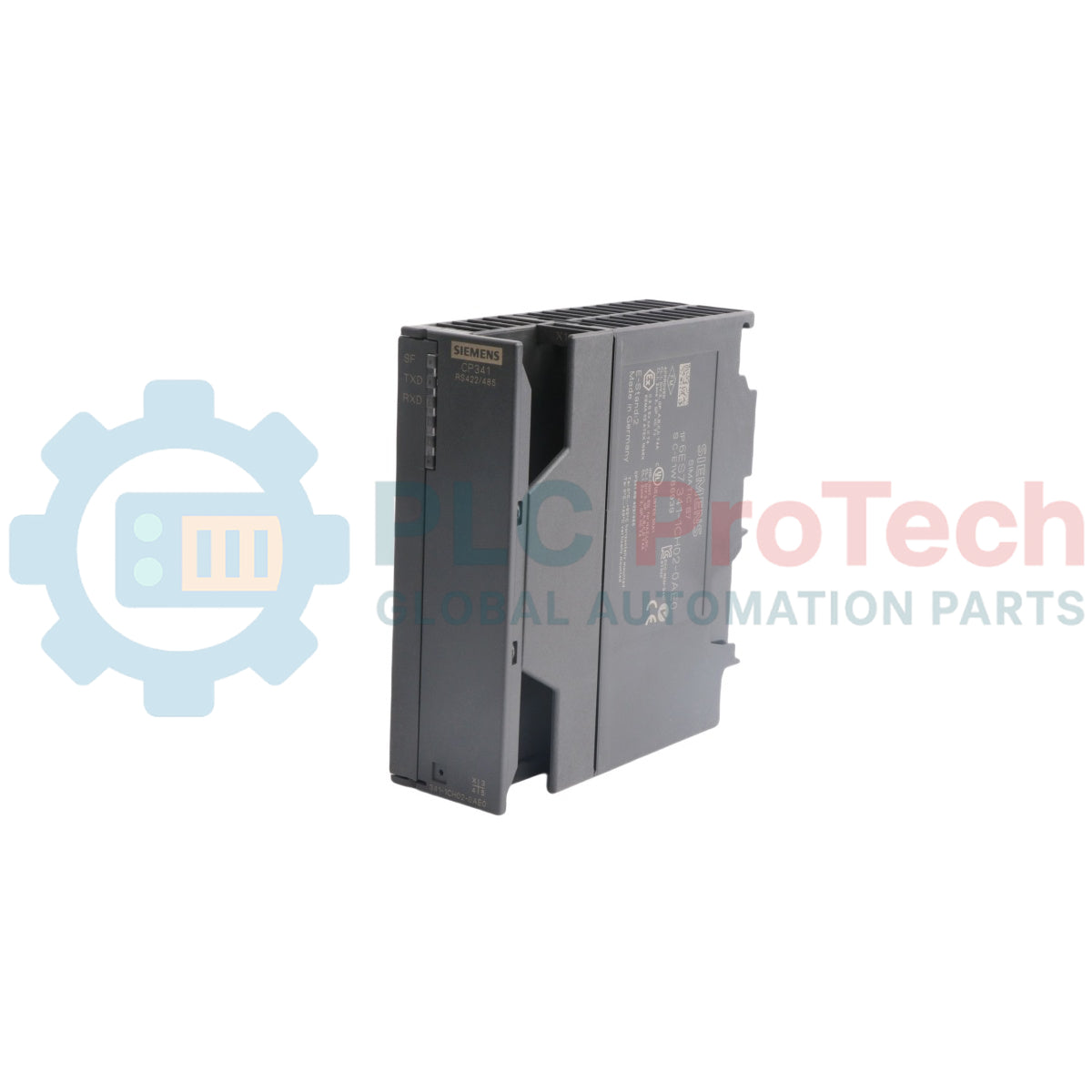

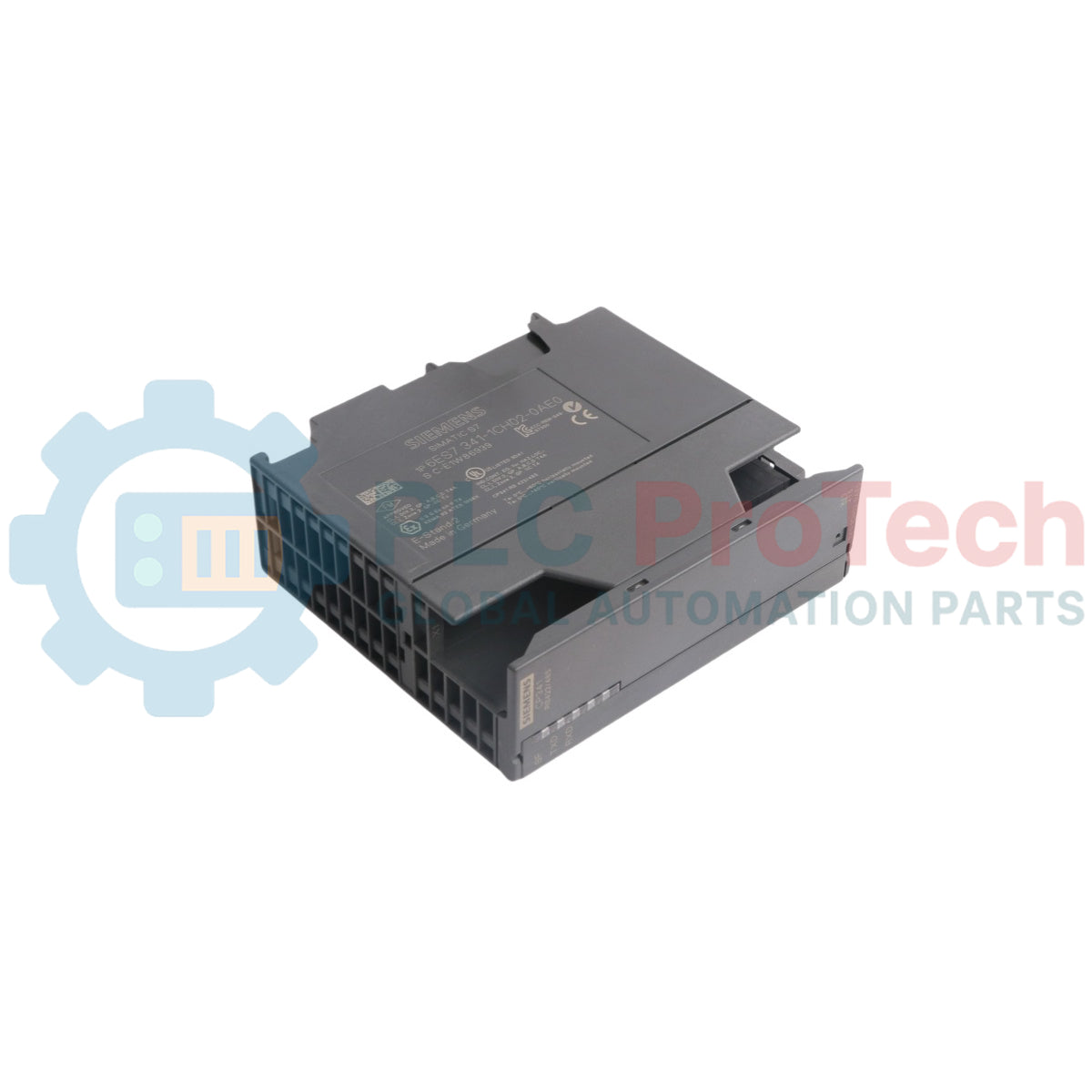

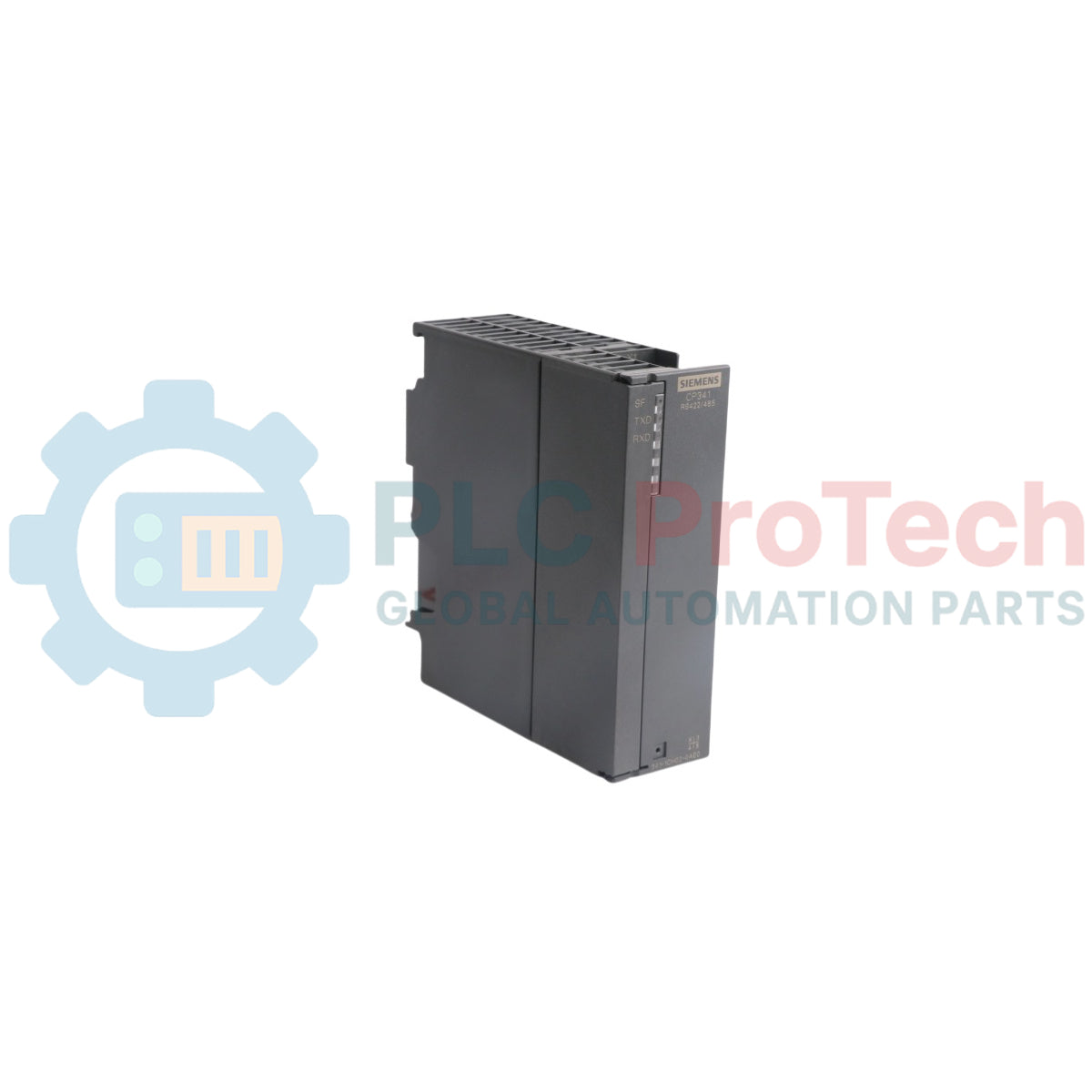

Siemens 6ES7341-1CH02-0AE0 SIMATIC S7-300 Communications Processor

Description

The Siemens 6ES7341-1CH02-0AE0 is a Communications Processor (CP) module designed for the SIMATIC S7-300 PLC system. This module facilitates point-to-point serial communication, enabling the S7-300 controller to connect with a wide range of external devices. It features an electrically isolated RS485/PROFIBUS interface to ensure signal integrity and protect against electrical interference in demanding industrial environments. The module supports multiple protocols, including ASCII, Modbus RTU, and 3964(R), offering versatile integration with equipment such as barcode scanners, HMIs, drives, and other third-party systems. Configuration is managed within the STEP 7 engineering software, streamlining setup and integration into the automation project.

Features

• Provides point-to-point serial communication for SIMATIC S7-300 PLCs.
• Electrically isolated RS485/PROFIBUS physical interface.
• Supports ASCII, Modbus RTU, and 3964(R) communication protocols.
• Achieves data transmission rates up to 19.2 kbps.
• Integrated diagnostic LEDs for quick visual status of communication activity.
• Compact S7-300 form factor for seamless integration into existing racks.

Applications

• Manufacturing and assembly lines
• Energy monitoring and management systems
• Process automation and control
• Data logging and acquisition from serial-based instruments

Technical Specifications

Installation Guidelines

1. 1 Ensure the S7-300 rack is de-energized and verified to be at zero potential.
2. 2 Align the module with an available slot on the S7-300 DIN rail and securely snap it into place.
3. 3 Slide the bus connector from the adjacent module on the left into the corresponding receptacle on the CP 341 to establish the backplane connection.
4. 4 Prepare the RS485 communication cable. Use a shielded, twisted-pair cable. Terminate the conductors at the module's front connector according to the pinout for your specific protocol. Ground the cable shield at one end of the segment only to prevent ground loops.
5. 5 After all connections are secure, remove LOTO devices and re-apply power to the S7-300 rack. Observe the module's diagnostic LEDs to confirm correct initialization and communication status.
