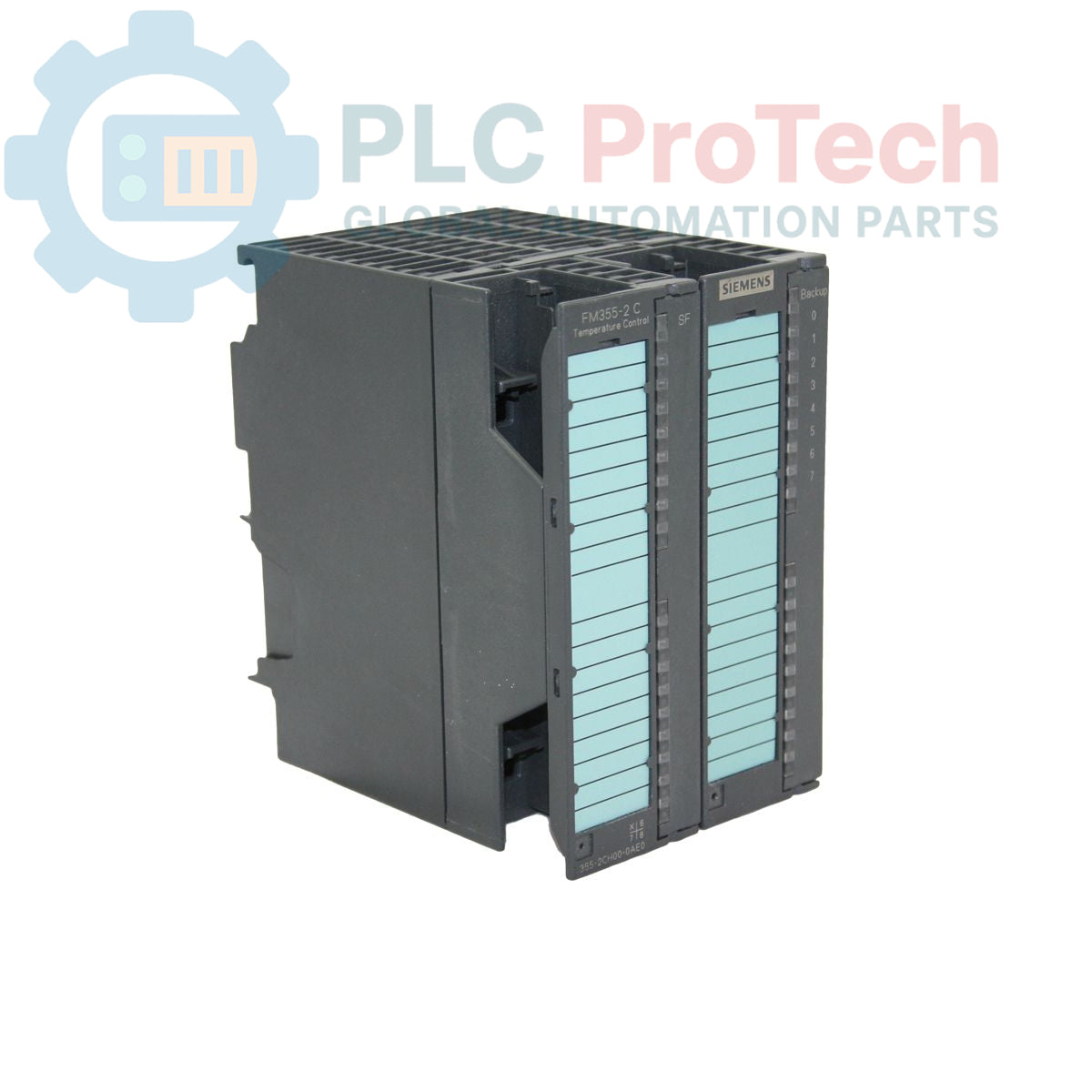

Siemens 6ES7355-2CH00-0AE0 SIMATIC S7-300 Temperature Control Unit

SKU 6ES7355-2CH00-0AE0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7355-2CH00-0AE0
Country of origin:Germany
Product Type: PLC Temperature Control Module
Barcode: 85389091
Payment: T/T, Western Union
Weight: 500g
Dimensions: 8.0 x 12.0 x 12.5 cm
Shipping port: Xiamen
Warranty: 12 months

Description

This module is a Siemens 6ES7355-2CH00-0AE0 temperature control unit, designated as model FM 355-2 C, for the SIMATIC S7-300 PLC system. It is engineered for precise, continuous temperature regulation in demanding industrial processes. The unit provides a compact I/O configuration with 4 independent control channels, 4 analog inputs (AI), 8 digital inputs (DI), and 4 analog outputs (AO). This function module includes a multi-language configuration package on CD-ROM, which contains the necessary software, manual, and a "Getting Started" guide for streamlined integration.

Features

Designed for the SIMATIC S7-300 automation platform.
Provides four channels for continuous temperature control.
Integrated I/O: 4 analog inputs, 8 digital inputs, and 4 analog outputs.
Supplied with a configuration package on CD-ROM.
Includes multi-language documentation (German, English, French, Italian).
Active product status within the Siemens PLM lifecycle.

Applications

Process heating and cooling systems
Furnace and oven temperature management
Plastics extrusion and injection molding
Packaging and sealing machinery
Food and beverage processing
Chemical and pharmaceutical reactor control

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC S7-300
Module Type	Function Module, Temperature Control Unit (FM 355-2 C)
Control Channels	4
Analog Inputs	4
Digital Inputs	8
Analog Outputs	4
PLM Product Phase	Active
Export Control (ECCN)	EAR99
Commodity Code	85389091
Shipping Weight	0.50 kg
Package Dimensions (Calculated)	8.0 x 12.0 x 12.5 cm
Country of Origin	Germany (Estimate)

Installation Guidelines

CRITICAL WARNING: RISK OF ELECTRIC SHOCK

Disconnect all power sources and follow Lockout/Tagout (LOTO) procedures before installation, removal, or wiring. All work must be performed by qualified personnel familiar with industrial control equipment standards and safety practices.

1 Pre-Installation Check: Verify the module part number 6ES7355-2CH00-0AE0 matches the project requirements. Inspect the module for any signs of shipping damage before proceeding.
2 Mounting: Securely mount the module onto the S7-300 backplane bus or DIN rail assembly. Ensure the module is properly seated and the locking mechanism is engaged to guarantee a reliable connection to the bus interface.
3 Grounding: Connect the chassis ground terminal to the main panel ground bus using a low-impedance conductor. A proper ground connection is essential for noise immunity and safety.
4 Wiring: Connect sensor (AI) and control (AO/DI) wiring to the front connector. Use shielded, twisted-pair cabling for all analog signals to minimize electromagnetic interference. Land shield drains at the module end only to prevent ground loops.
5 Power-Up and Commissioning: After verifying all connections, remove the LOTO device and apply power to the system. Use the provided configuration software to set up control loops, scale I/O, and commission the module according to process requirements.

FAQ

What are the I/O counts for the 6ES7355-2CH00-0AE0 module?

This module is equipped with 4 analog inputs (AI), 8 digital inputs (DI), and 4 analog outputs (AO).

How many independent control channels does the FM 355-2 C support?

The FM 355-2 C temperature control unit supports four independent, continuous control channels.

What is included with the 6ES7355-2CH00-0AE0 package?

The package includes the function module itself and a CD-ROM containing a multi-language configuration package, a detailed manual, and a 'Getting Started' guide.

Is this module compatible with PLC systems other than the SIMATIC S7-300?

No, this function module is specifically designed for integration with the Siemens SIMATIC S7-300 automation system and its backplane bus.

Is this module considered an active or obsolete part?

According to the provided information, the 6ES7355-2CH00-0AE0 has an 'Active' Product Lifecycle Management (PLM) phase, indicating it is a current production item from Siemens.
