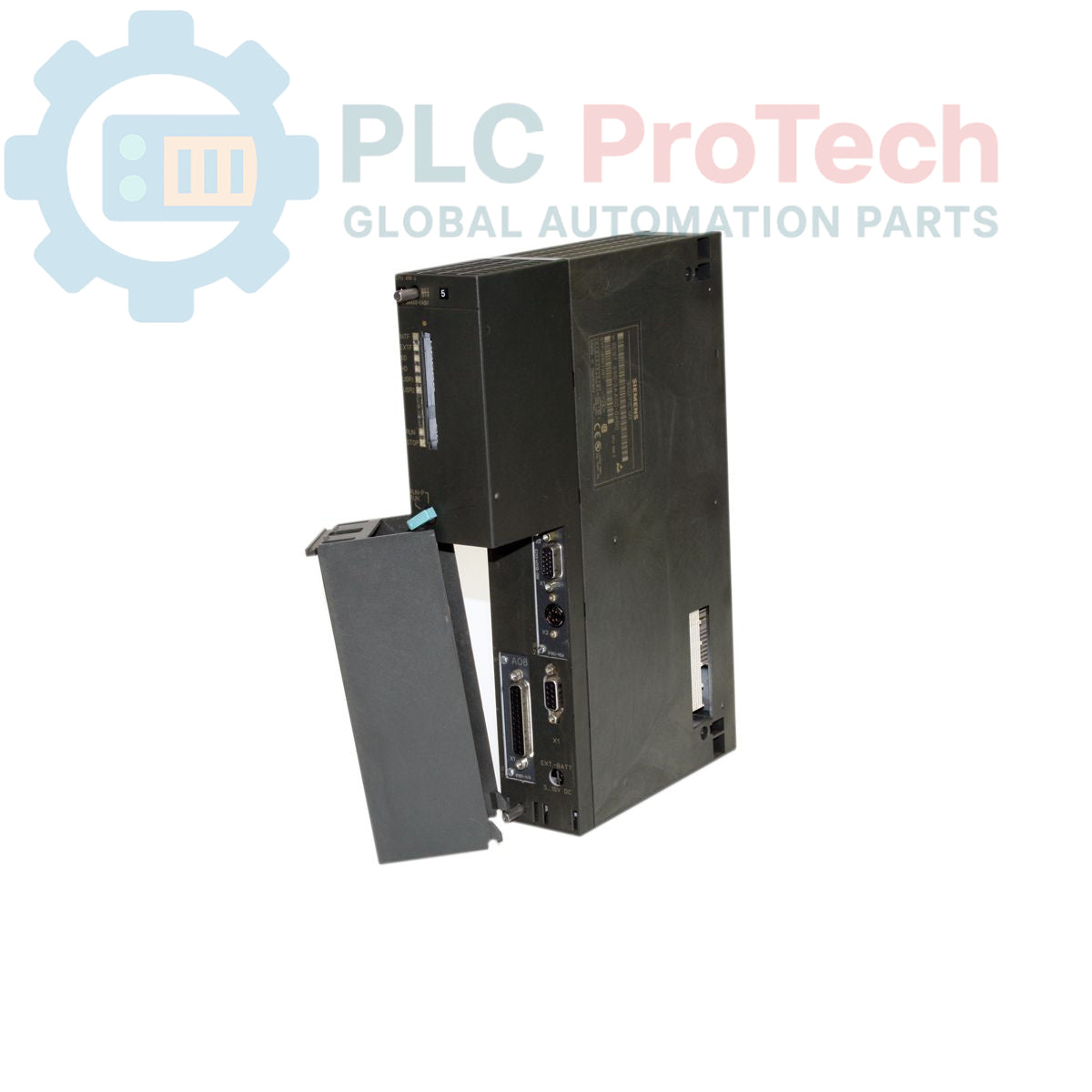

Siemens 6ES7486-3AA00-0AB0 SIMATIC M7-400 CPU Module

Description

The Siemens 6ES7486-3AA00-0AB0 is a SIMATIC M7-400 CPU486-3 central processing unit, designed for complex automation tasks in industrial environments. This CPU is equipped with a Pentium 75 MHz processor and features an integrated MPI interface, along with support for two IF module positions. Engineered for reliable performance and seamless integration, the 6ES7486-3AA00-0AB0 provides consistent control and communication within existing production lines. It supports scalable expansion, offering flexibility for future process modifications or system upgrades in professional industrial applications.

Features

• Central Processing Unit (CPU) with Pentium 75 MHz processor
• Integrated Multi-Point Interface (MPI)
• Supports two IF module positions for expansion
• Industrial-grade design for demanding environments
• Engineered for reliable performance and seamless integration
• Supports scalable expansion for future modifications

Applications

• Complex industrial automation systems
• Demanding production environments requiring consistent control
• Integration into existing SIMATIC M7-400 production lines
• Systems requiring robust communication via MPI interface
• Applications benefiting from scalable processing capabilities

Technical Specifications

Installation Guidelines

1. De-energize System: Before installation, ensure all power to the automation system and associated components is completely disconnected and locked out.
2. Mounting: Securely mount the CPU module into the designated slot or rack within the SIMATIC M7-400 system. Ensure proper mechanical seating and engagement of all connectors.
3. Grounding: Establish a robust ground connection for the module and the rack to minimize electrical noise and ensure safety.
4. MPI Connection: Connect the MPI communication cable to the integrated MPI interface on the CPU. Ensure the cable is properly terminated and routed away from high-voltage or noisy power cables.
5. IF Module Installation: If utilizing, install IF modules into the two available positions, ensuring correct orientation and secure connection.
6. Cable Routing: Route all communication and power cables neatly, ensuring they are secured and do not interfere with other components or moving parts. Maintain appropriate bending radii for cables.
7. Power-Up: After verifying all connections, re-energize the system according to standard operating procedures. Observe status indicators for proper operation.
