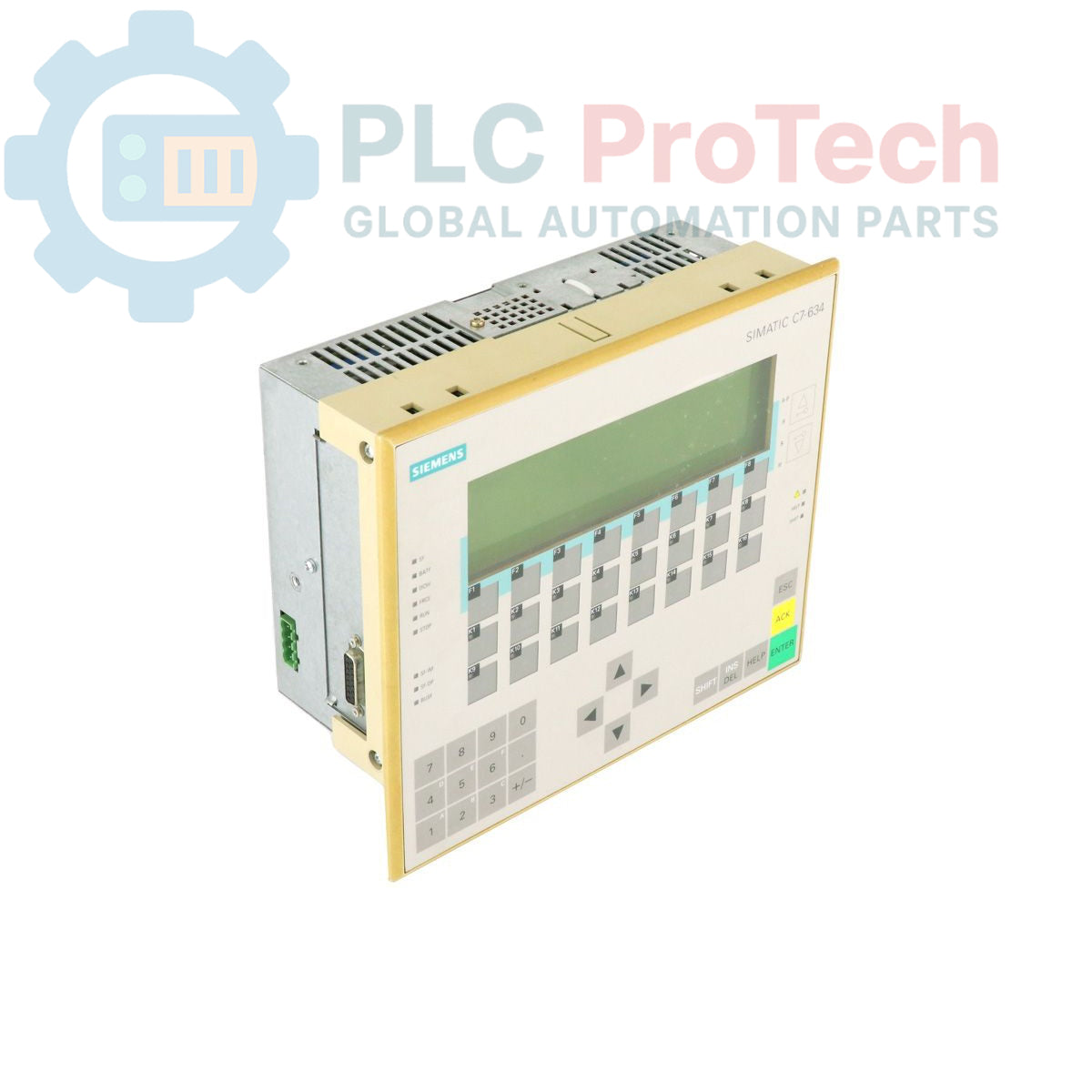

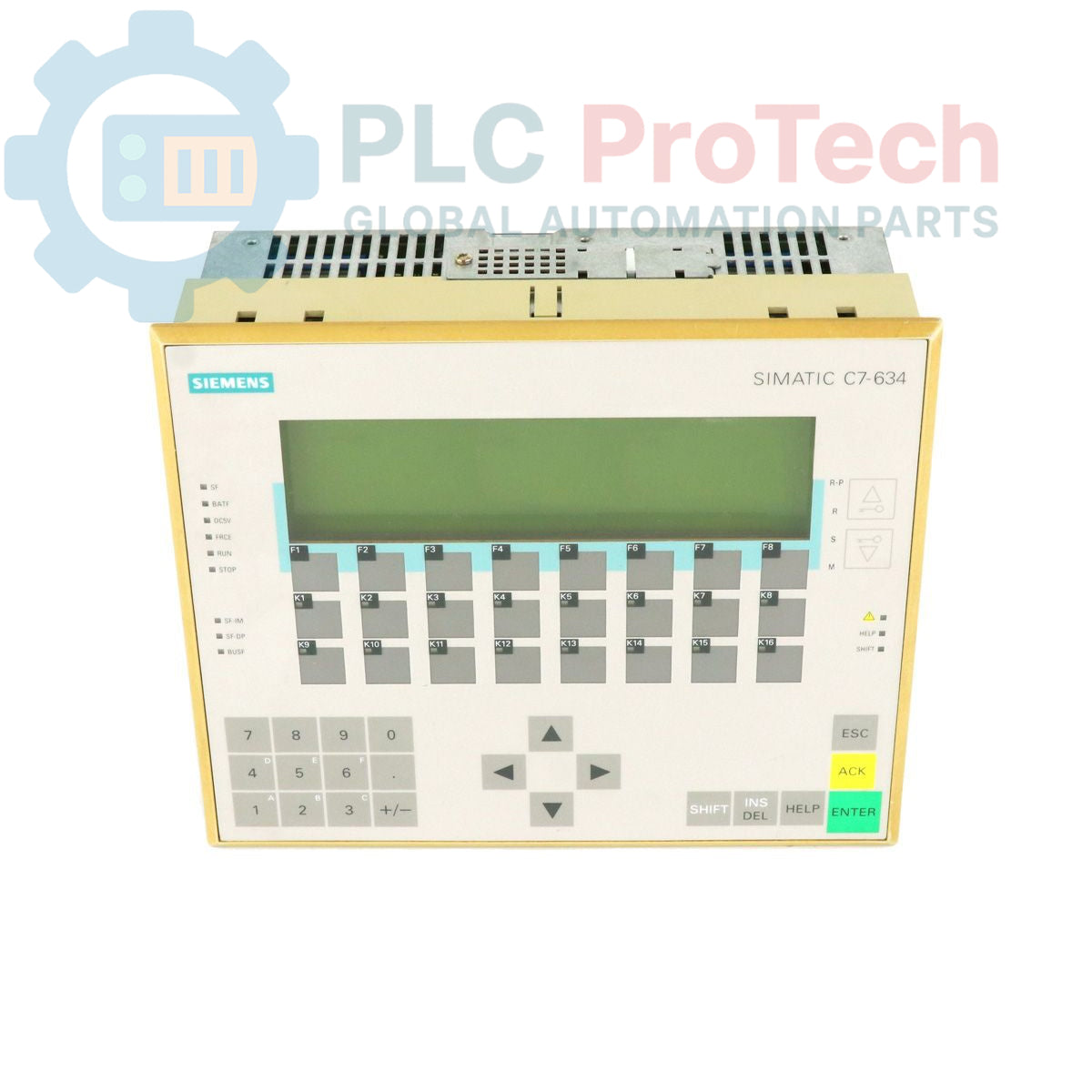

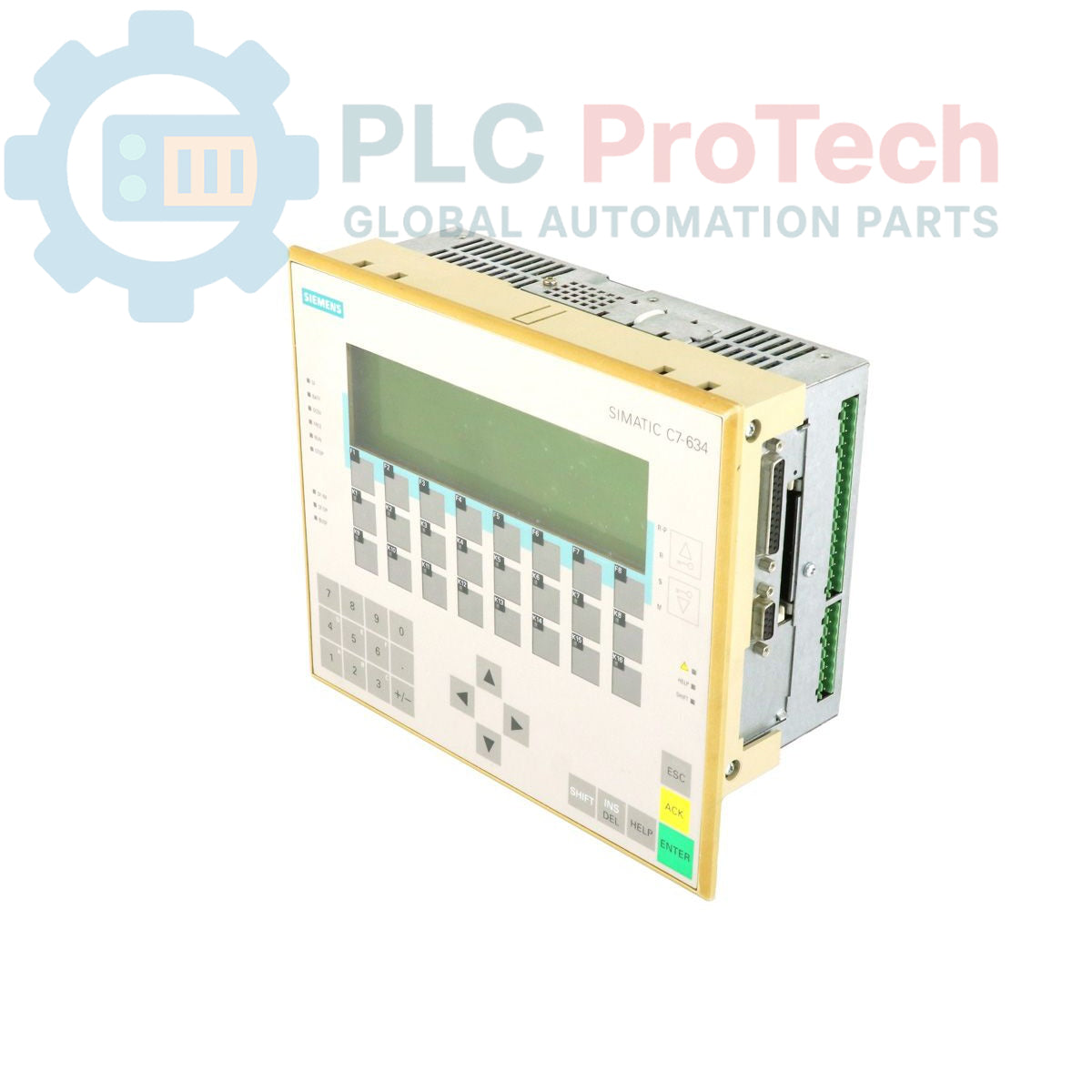

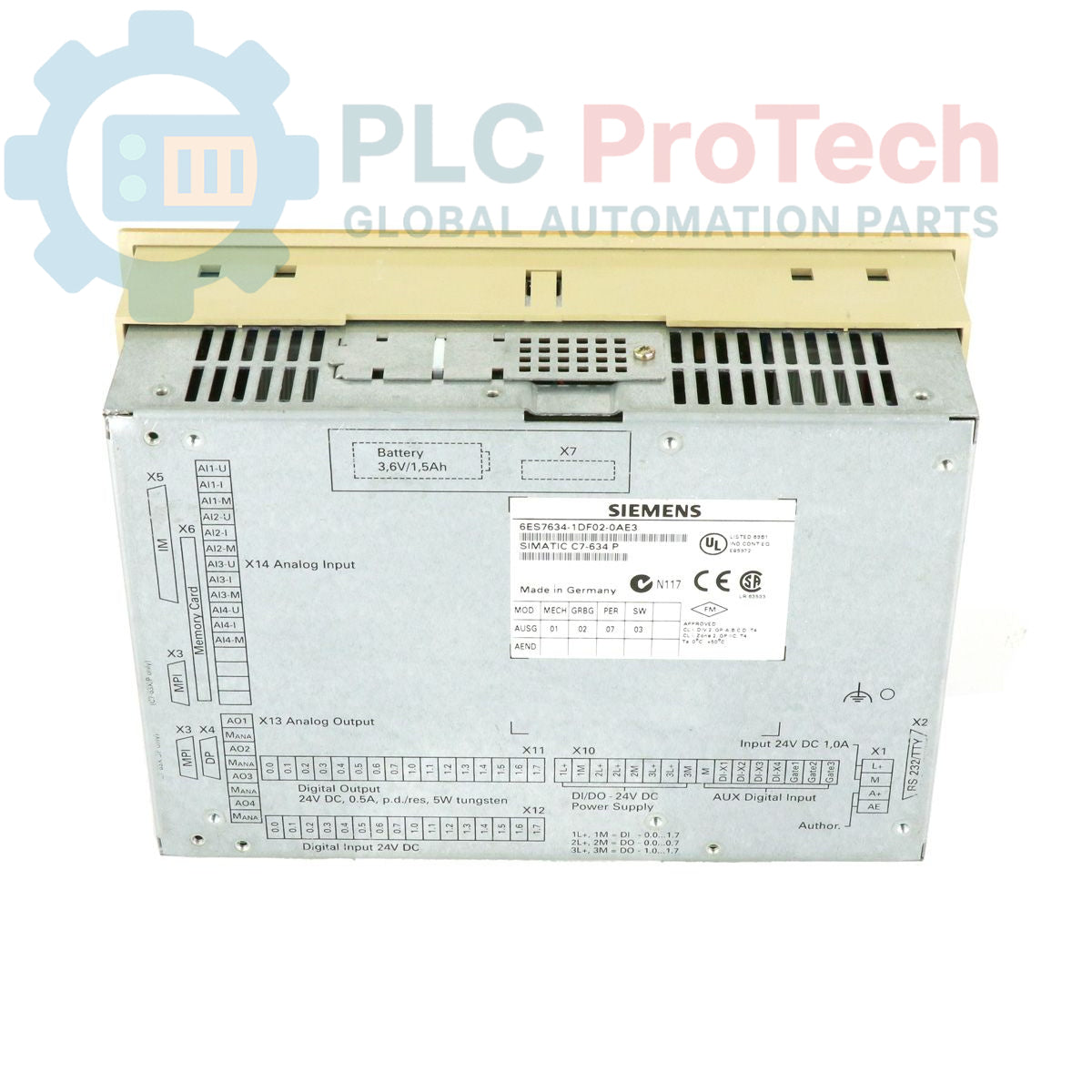

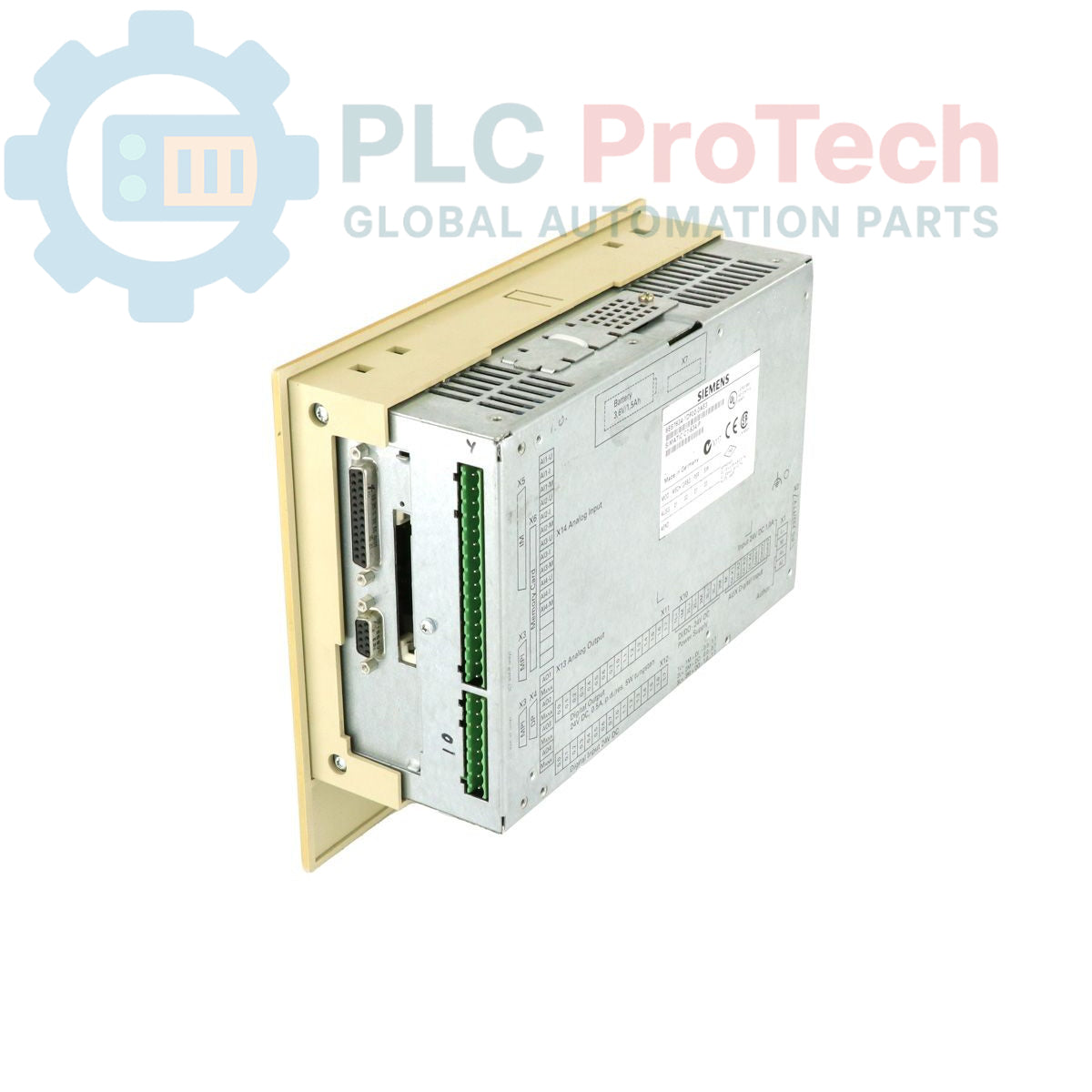

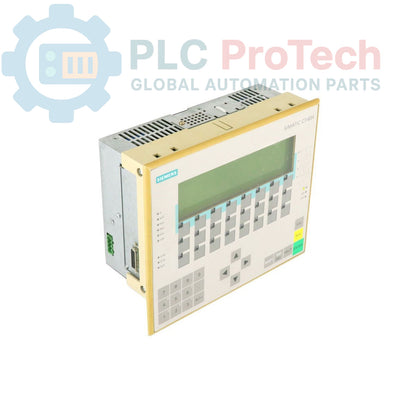

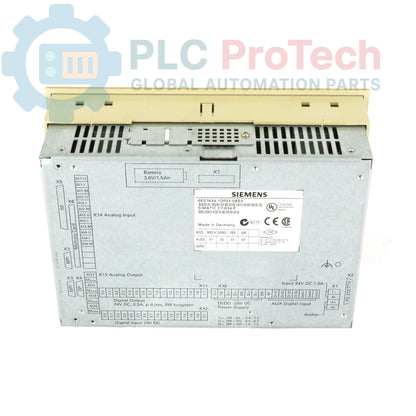

Siemens 6ES7634-1DF02-0AE3 SIMATIC C7 Compact Unit

Only 3 item(s) left in stock

Manufacturer: Siemens
Product No.: 6ES7634-1DF02-0AE3
Country of origin:Germany
Product Type: Compact Unit
Barcode: 85371091
Payment: T/T, Western Union
Weight: 2380g
Dimensions: 29.90 x 34.20 x 18.80 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6ES7634-1DF02-0AE3 is a SIMATIC C7-634/P compact unit designed for efficient control and monitoring within industrial automation environments. This robust unit integrates essential components, including an S7-300 CPU 315, an OP17 operator panel, and an IM 360 interface module. The 6ES7634-1DF02-0AE3 features a comprehensive set of integrated I/O, comprising 16 digital inputs, 16 digital outputs, 4 analog inputs, 4 analog outputs, and 4 universal inputs. Its modular construction facilitates seamless installation and easy integration into existing production systems, making it suitable for a wide range of process and machine control applications.

Features

Integrated S7-300 CPU 315 processor
Integrated OP17 operator panel for HMI functionality
Integrated IM 360 interface module
16 Digital Inputs (DI)
16 Digital Outputs (DO)
4 Analog Inputs (AI)
4 Analog Outputs (AO)
4 Universal Inputs (UI)
Modular construction for easy integration

Applications

Process control systems
Machine control applications
Industrial automation environments requiring integrated control and monitoring
Systems where a combined PLC and HMI solution is beneficial

Technical Specifications

Manufacturer	Siemens
Brand	Siemens
Range	SIMATIC
Subrange	C7
Product Type	Compact Unit
Product Phase	Obsolete
Predecessor	6ES7624-1AE00-0AE3
Package Dimensions (Calculated)	29.90 x 34.20 x 18.80 cm
Shipping Weight	2.38 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	N

Installation Guidelines

De-energize System: Ensure all power to the control cabinet and associated equipment is disconnected and locked out before beginning installation.
Mounting: Securely mount the compact unit to a DIN rail or panel using appropriate fasteners. Ensure adequate clearance for ventilation and cable routing.
Power Supply Connection: Connect the unit to a stable and filtered industrial power supply according to the specified voltage and current requirements. Observe correct polarity.
Grounding: Establish a proper protective earth (PE) connection to the unit's grounding terminal to ensure safety and minimize electromagnetic interference.
I/O Wiring: Connect digital and analog input/output signals to their respective terminals. Use shielded cables for analog signals and ensure proper cable routing to avoid interference.
Operator Panel Integration: If external HMI devices are used, connect them to the appropriate communication interfaces. The integrated OP17 is ready for local operation.
Communication Setup: If the unit is part of a larger network, connect communication cables (e.g., MPI, PROFIBUS) to the designated ports and configure network parameters.
Final Checks: Before re-energizing, verify all connections for correctness, tightness, and absence of short circuits.

Key Features:

#Compact Unit #SIMATIC C7

What components are integrated into the Siemens 6ES7634-1DF02-0AE3?

The unit integrates an S7-300 CPU 315, an OP17 operator panel, and an IM 360 interface module, alongside various I/O.

What types of I/O does this compact unit support?

It features 16 digital inputs, 16 digital outputs, 4 analog inputs, 4 analog outputs, and 4 universal inputs.

Is the 6ES7634-1DF02-0AE3 still actively manufactured?

No, the product phase for this unit is listed as Obsolete.

What is the primary application of this SIMATIC C7 unit?

It is designed for efficient control and monitoring in industrial automation, suitable for process and machine control applications.
