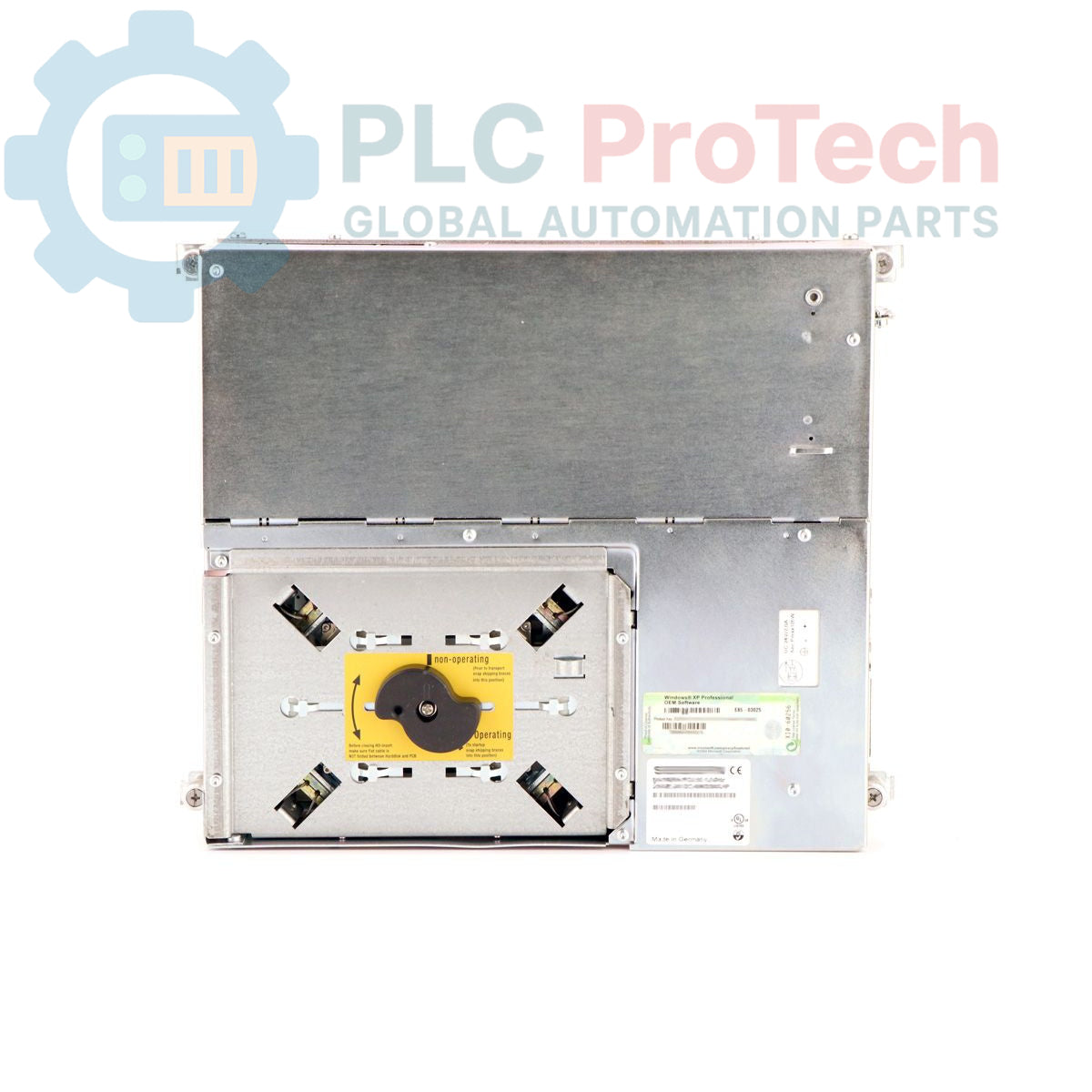

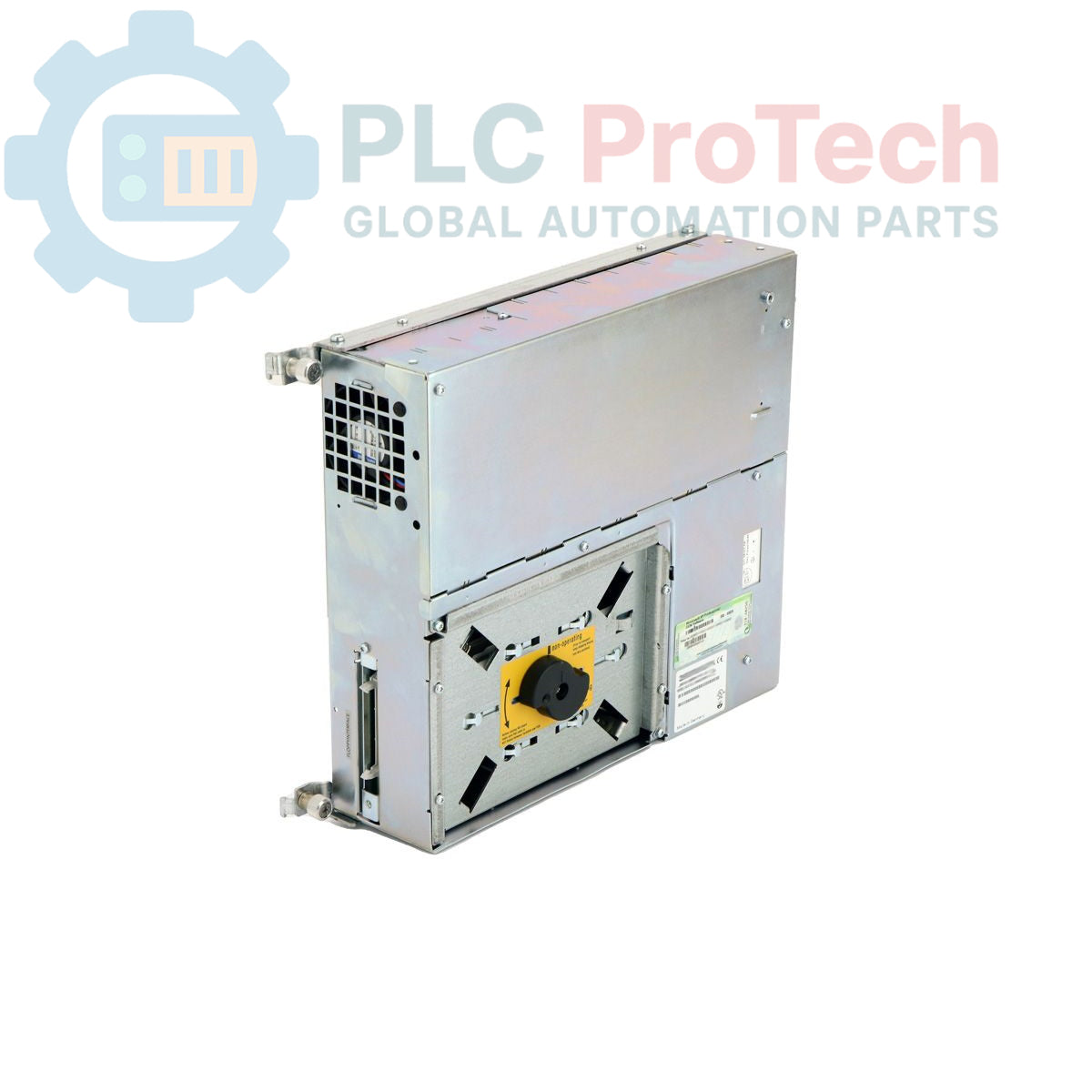

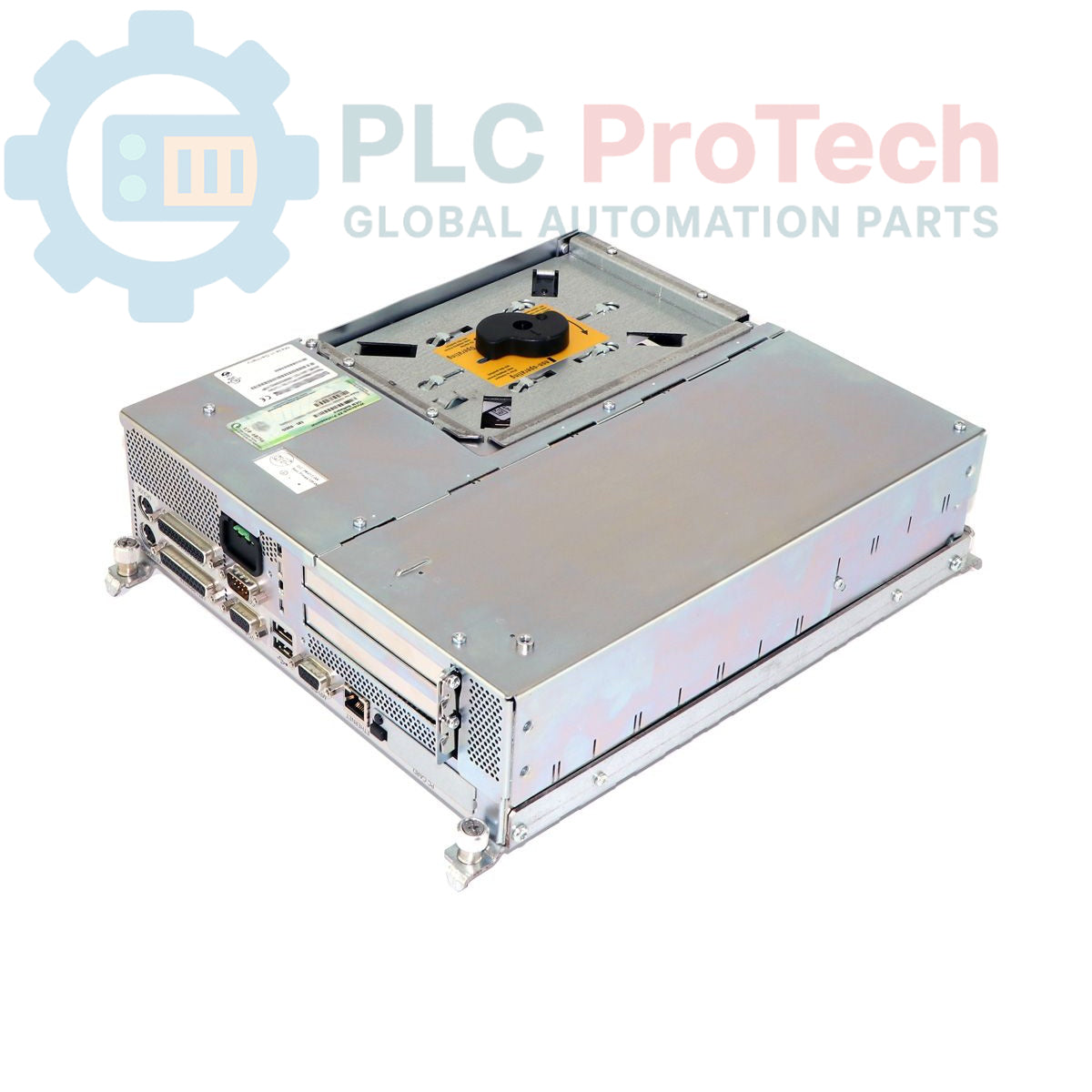

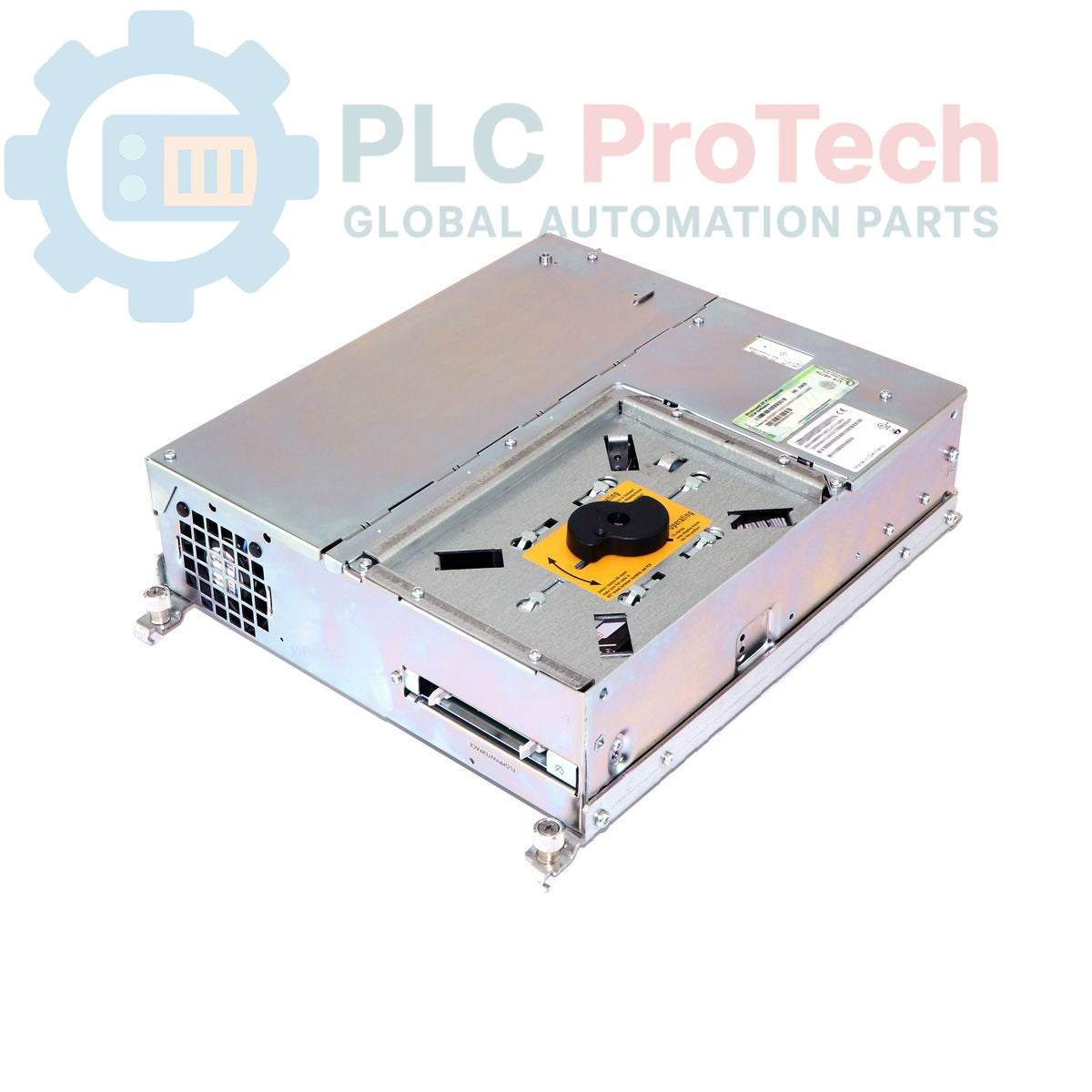

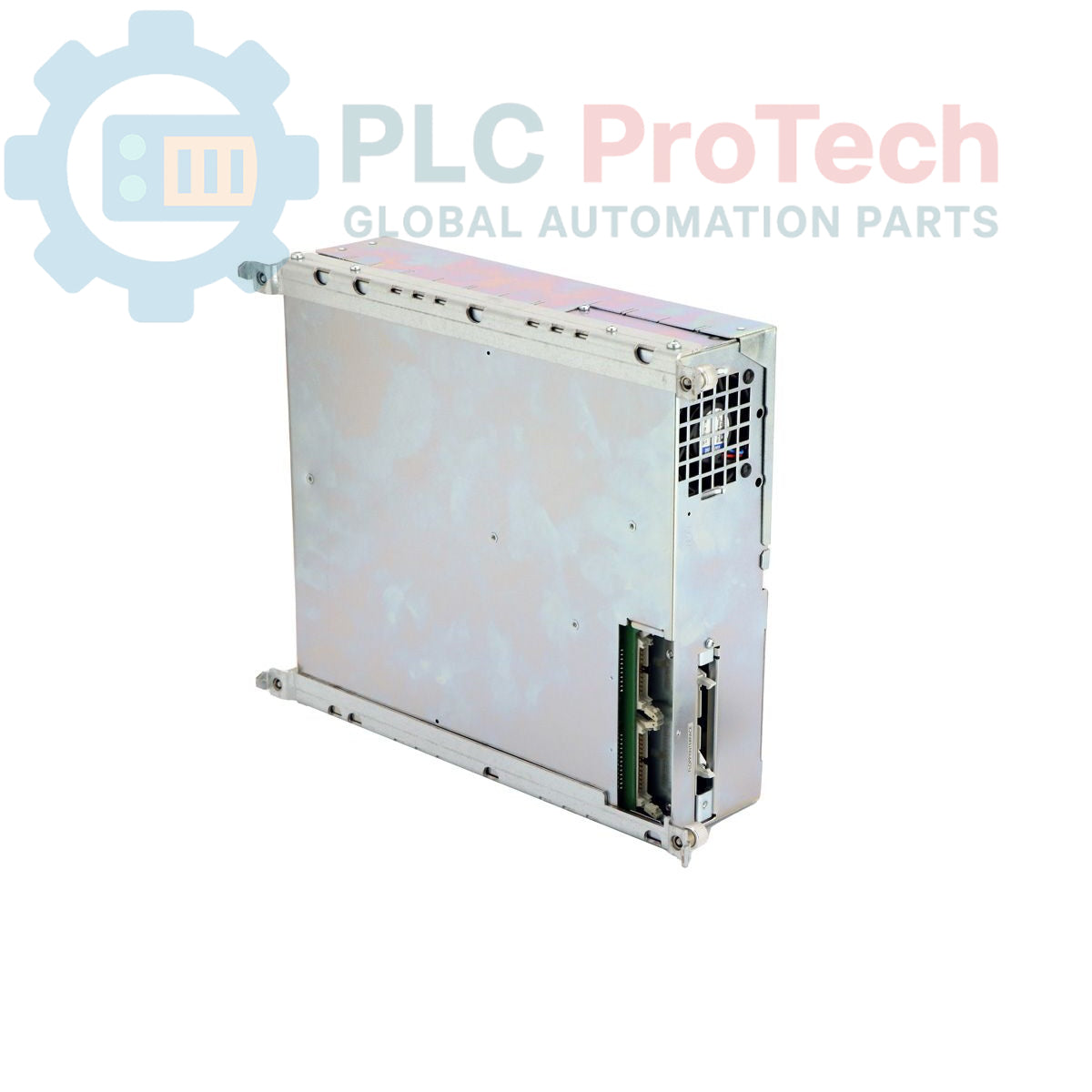

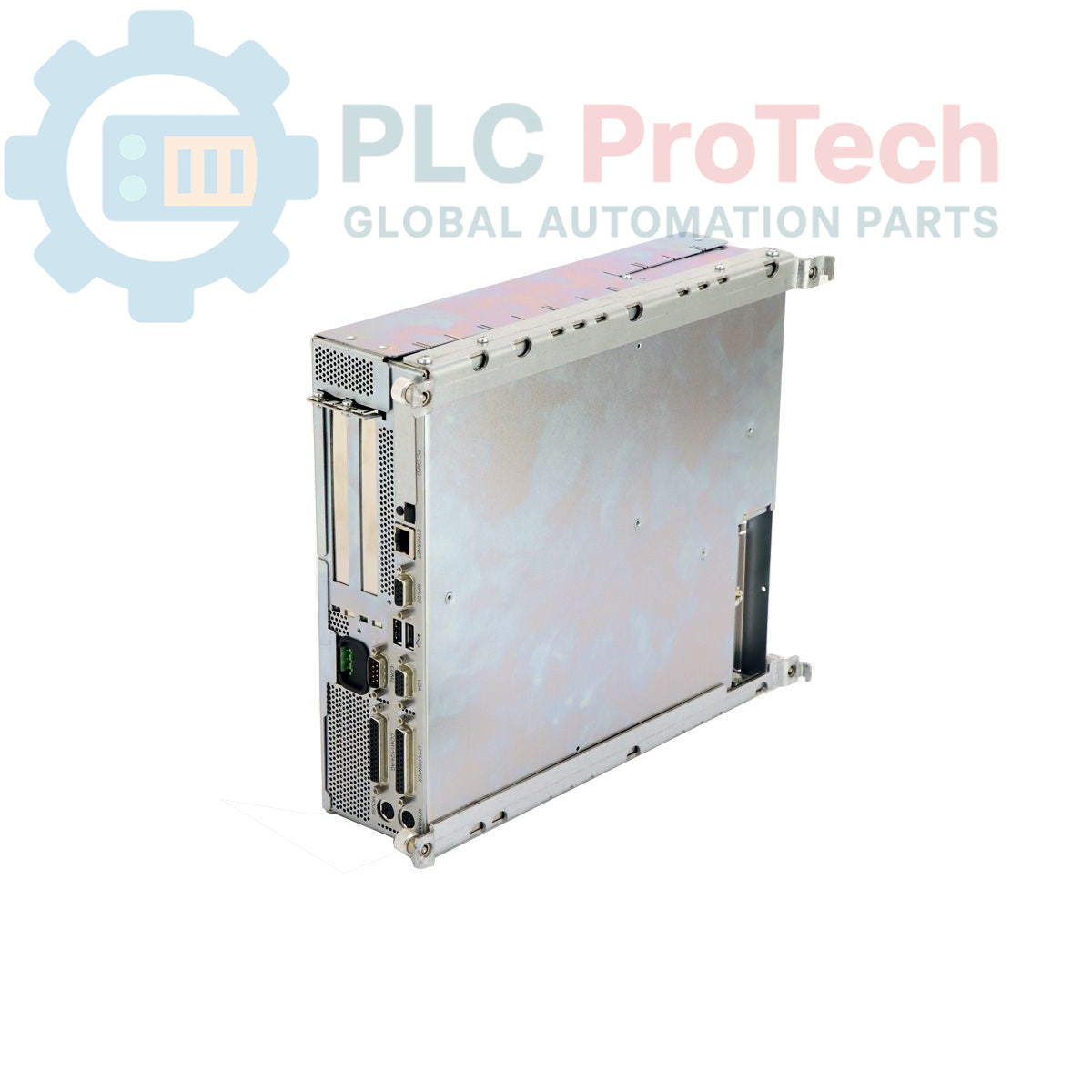

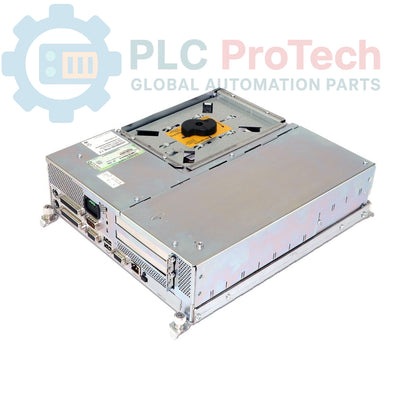

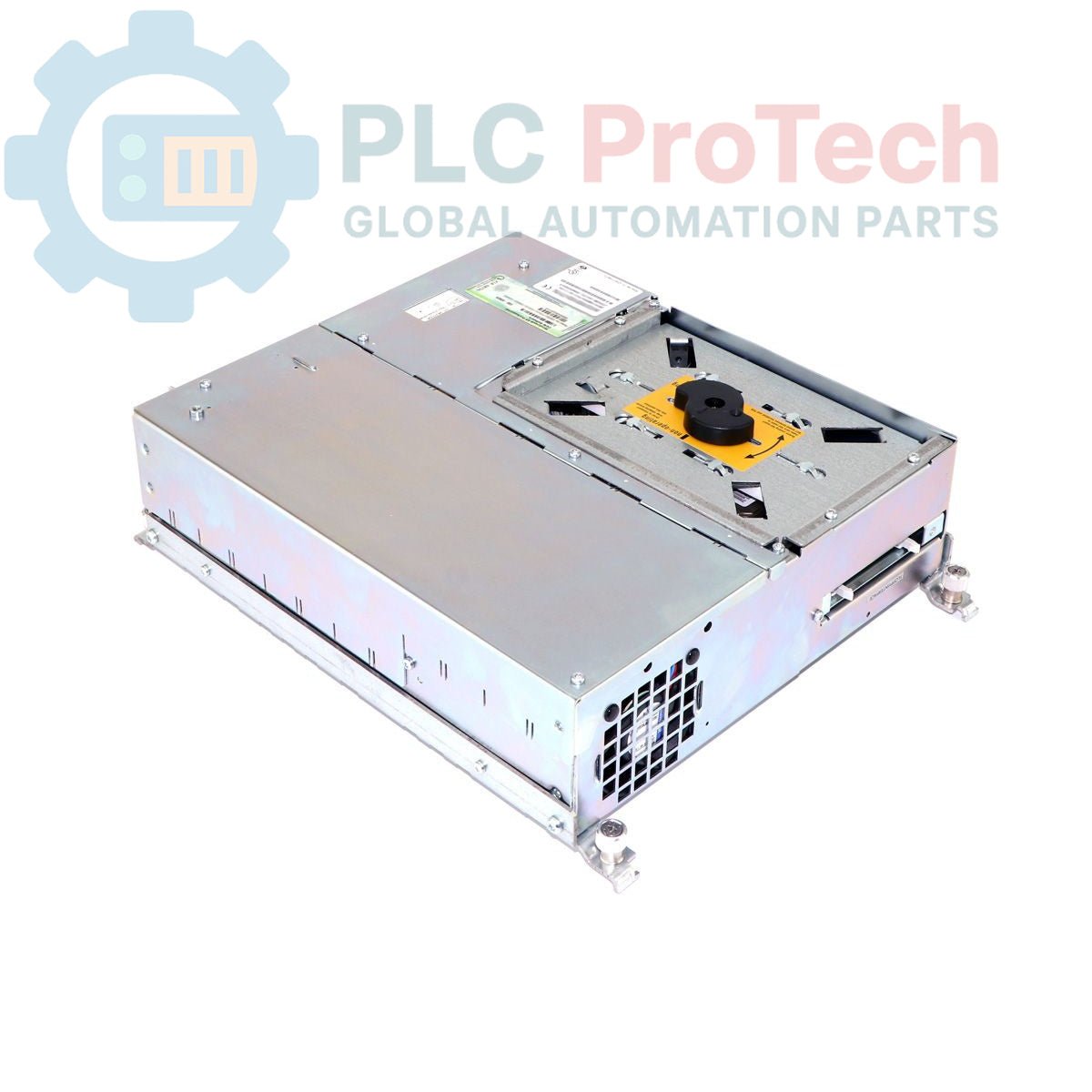

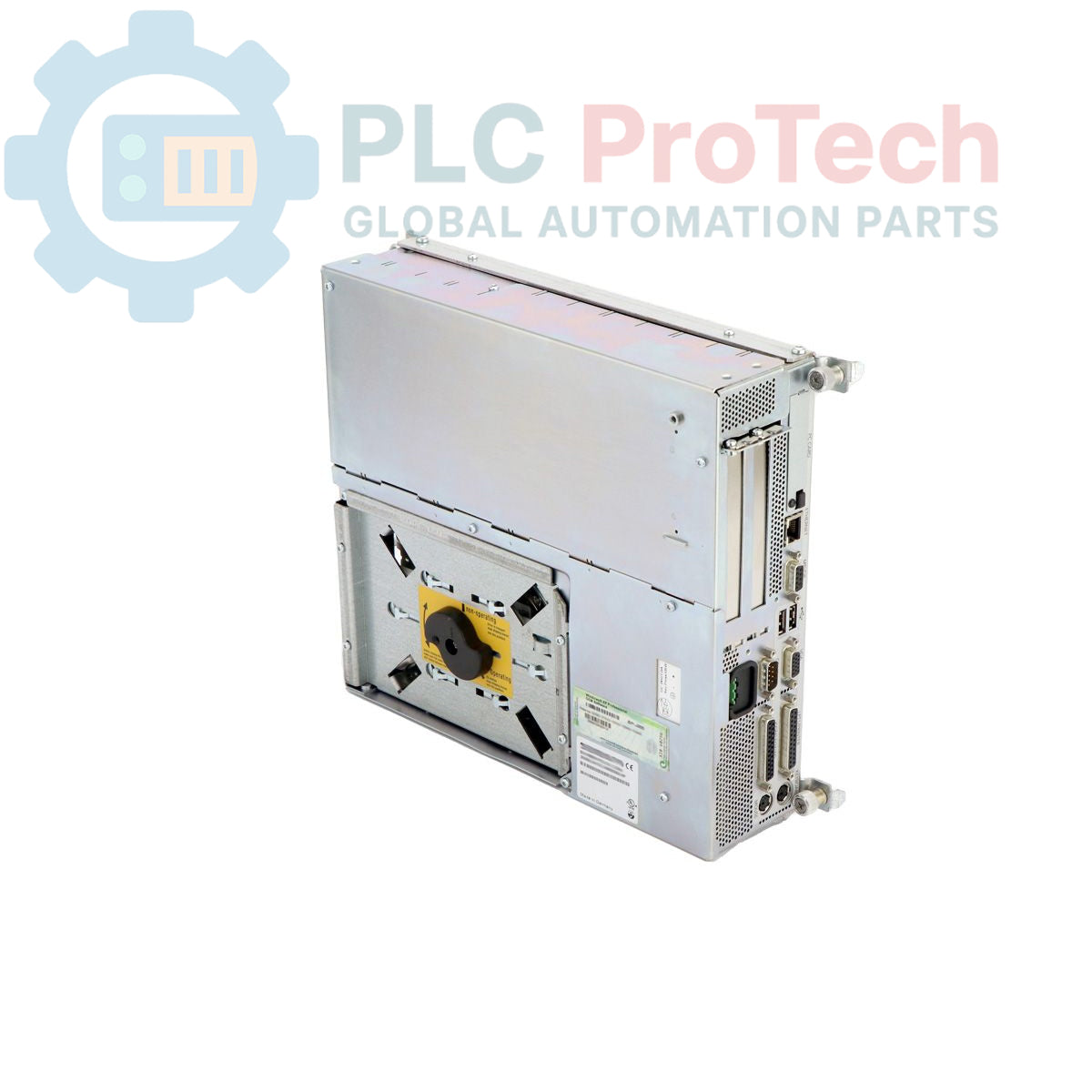

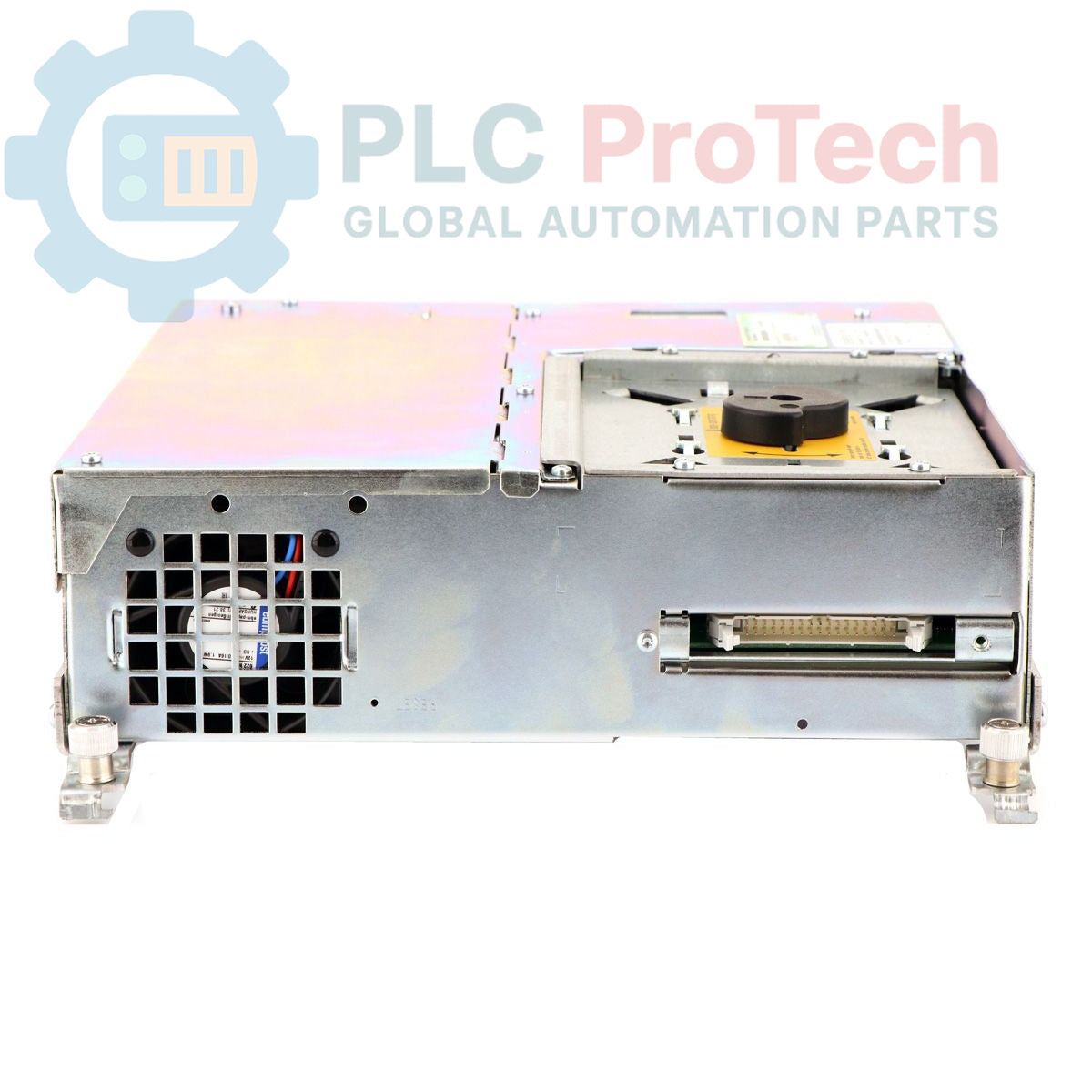

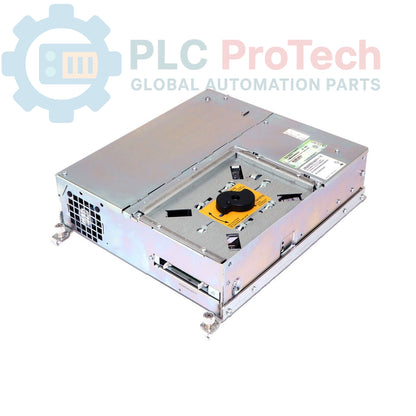

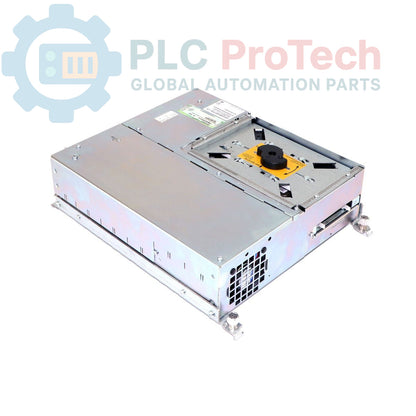

Siemens 6ES7647-5GF30-0XX0 SIMATIC BOX PC 620 Industrial PC

SKU 6ES7647-5GF30-0XX0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-5GF30-0XX0
Country of origin:Germany
Product Type: Industrial PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 7050g
Dimensions: 45.0 x 47.5 x 27.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6ES7647-5GF30-0XX0 is an industrial computer from the SIMATIC BOX PC 620 series, designed for robust performance in demanding automation environments. This unit is configured with a Pentium III 1.26 GHz processor, 512 MB of SRAM, and an 80 GB EIDE hard drive for data storage and application hosting. It provides versatile connectivity through integrated 10/100 Mbit/s Ethernet, PROFIBUS/MPI, and USB ports. The system includes onboard AGP graphics and features expansion capabilities with one PCI and one shared ISA/PCI slot, making it suitable for a range of control, visualization, and data acquisition tasks.

Features

Equipped with an Intel Pentium III 1.26 GHz processor
512 MB SRAM-133 system memory
Onboard AGP graphics with configurable memory (8, 16, or 32 MB)
Integrated 10/100 Mbit/s Ethernet (RJ45) interface
Built-in PROFIBUS/MPI and TTY serial interfaces
System monitoring via integrated watchdog timer and temperature sensors
Includes one PC Card (PCMCIA Type 3) slot
Expansion via one PCI and one shared ISA/PCI slot
Internal 110/230V industrial power supply with NAMUR compliance

Applications

Process visualization (HMI) and SCADA nodes
Data acquisition, logging, and archiving
PC-based control systems
Industrial gateway and communication server
Manufacturing Execution Systems (MES) interface

Technical Specifications

Category	Specification
General
Brand	Siemens
Model	6ES7647-5GF30-0XX0
Series	SIMATIC BOX PC 620
Product Type	Industrial PC
PLM Status	Obsolete
Processor
CPU	Pentium III
Clock Speed	1.26 GHz
Front Side Bus (FSB)	133 MHz
Cache	512 KB SLC
Memory & Storage
System Memory (RAM)	512 MB SRAM-133
Graphics	Onboard AGP, 8/16/32 MB configurable
Hard Drive	80 GB EIDE
Optical Drive	24x CD-ROM (ATAPI Interface)
Floppy Drive	3.5 inch, 1.44 MB
Interfaces & Expansion
Ethernet	1 x 10/100 Mbit/s (RJ45)
Fieldbus	1 x PROFIBUS/MPI
Serial	1 x TTY
USB	2 x USB ports
Expansion Slots	1 x PCI, 1 x ISA/PCI (shared)
PC Card	1 x PCMCIA Type 3
Power Supply
Input Voltage	110/230V AC
Type	Industrial Power Unit with NAMUR
Logistics
Manufacturer	Siemens
Country of Origin	Germany (Estimate)
Package Dimensions (Calculated)	45.0 x 47.5 x 27.0 cm
Shipping Weight	7.05 kg
Commodity Code	85371091
ECCN	4A994

Installation Guidelines

CRITICAL WARNING: RISK OF ELECTRIC SHOCK

Installation, wiring, and maintenance must be performed exclusively by qualified electrical personnel. Always de-energize the system and apply Lockout/Tagout (LOTO) procedures before accessing internal components. Failure to comply can result in severe injury or death.

1 Ensure the mounting location provides adequate ventilation for heat dissipation and is free from excessive vibration and contaminants.
2 Securely mount the Box PC chassis within the control cabinet or panel using appropriate mounting hardware.
3 Connect the chassis to a verified protective earth (PE) ground point using a low-impedance conductor to ensure electrical safety and noise immunity.
4 Connect the 110/230V AC power supply using the provided power cable. Verify that the source voltage matches the power supply rating before connection.
5 Terminate network (RJ45), PROFIBUS/MPI, and any other required I/O cables. Ensure proper shielding and grounding practices are followed for all communication cables.
6 If required, install PCI or ISA expansion cards into the appropriate slots, ensuring they are fully seated and secured.
7 After verifying all connections, re-energize the system and proceed with operating system installation and software configuration.

FAQ

What processor is installed in this Box PC?

It is equipped with an Intel Pentium III processor running at 1.26 GHz with a 133 MHz Front Side Bus (FSB) and 512 KB SLC.

What are the primary communication interfaces?

The unit includes a 10/100 Mbit/s Ethernet port (RJ45), a PROFIBUS/MPI interface, a TTY port, and two USB ports.

Does this unit come with an operating system?

No, this configuration is supplied without a pre-installed operating system. A recovery and restore CD is included.

What are the storage drive specifications?

This model includes an 80 GB EIDE hard drive, a 24x ATAPI CD-ROM drive, and a 3.5-inch 1.44 MB floppy drive.

What expansion slots are available?

The chassis provides one PCI slot and one shared ISA/PCI slot for adding expansion cards.
