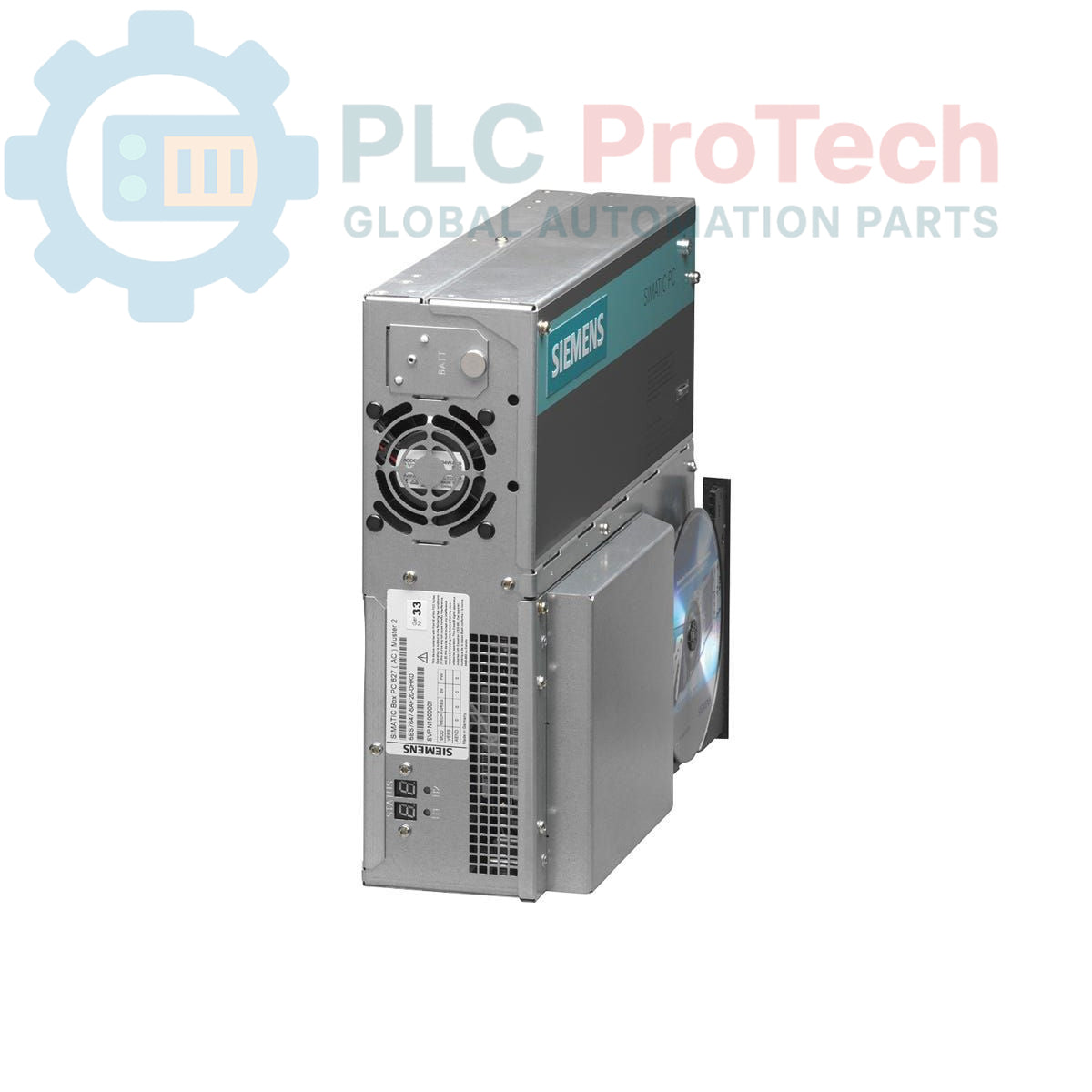

Siemens 6ES7647-6AC00-0BX0 SIMATIC Box PC 627 PC Box

SKU 6ES7647-6AC00-0BX0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-6AC00-0BX0
Country of origin:Germany
Product Type: PC Box
Barcode: 85371091
Payment: T/T, Western Union
Weight: 7150g
Dimensions: 45.00 x 47.50 x 27.00 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6ES7647-6AC00-0BX0 is a SIMATIC Box PC 627 designed for industrial applications, featuring onboard AGP graphics with 8-128 MB shared memory. This robust industrial computer is equipped with a Pentium M 730 1.6 GHz processor, 256 MByte DDR2 533 SODIMM RAM, and an 80 GByte SATA hard disk drive. It provides versatile connectivity with two 10/100 Mbit/s Ethernet RJ45 ports, four USB V2.0 (high current) ports, and a serial COM1 port, expandable with an additional COM2 and LPT1 via a PCI-interface card. The unit includes an onboard RAID controller, a slot for a Compact Flash drive, and integrated watchdog, temperature, and fan monitoring for reliable operation in demanding environments. It is powered by an AC 110/230V industrial power unit with NAMUR compatibility.

Features

AGP Graphics Onboard with 8-128 MB Shared Memory
Pentium M 730 1.6 GHz Processor, 533 MHz FSB, 2 MB SLC
256 MByte DDR2 533 SODIMM RAM
80 GByte SATA Hard Disk Drive (without operating system)
2 x 10/100 Mbit/s Ethernet RJ45 Ports
4 x USB V2.0 (High Current) Ports
1 x Serial (COM1) Port
Onboard RAID Controller
1 x Slot for Compact Flash Drive
Watchdog, Temperature, and Fan Monitoring
2 x Free PCI Slots
AC 110/230V Industrial Power Unit with NAMUR
PCI-Interface Card with COM2 and LPT1

Applications

The Siemens SIMATIC Box PC 627 is suitable for a range of industrial automation applications, including:

Machine control and visualization
Data acquisition and processing
Process monitoring and control systems
Industrial communication gateways
Embedded control systems requiring a compact and robust PC platform

Technical Specifications

Manufacturer	Siemens
Range	Simatic Box PC
Subrange	PC627
Type of Product	PC Box
PLM Product Phase	Obsolete
Graphics	AGP Graphics Onboard
Shared Memory	8-128 MB
Ethernet Ports	2 x 10/100 Mbit/s RJ45
USB Ports	4 x USB V2.0 (High Current)
Serial Ports	1 x Serial (COM1), 1 x Serial (COM2 via PCI-Interface Card)
Parallel Port	1 x LPT1 (via PCI-Interface Card)
RAID Controller	Onboard
Storage Slot	1 x Compact Flash Drive
Monitoring	Watchdog, Temperature, Fan Monitoring
Expansion Slots	2 x PCI Free
Processor	Pentium M 730 1.6 GHz, 533 MHz FSB, 2 MB SLC
RAM	256 MByte DDR2 533 SODIMM
Power Input	AC 110/230V Industrial Power Unit with NAMUR
Power Cable	Europe
Hard Drive	80 GByte HDD SATA
Operating System	Without Operating System
Software Expansions	Without Expansions (SW)
Package Dimensions (Calculated)	45.00 x 47.50 x 27.00 cm
Shipping Weight	7.15 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	N

Connections / Interfaces

Interface Type	Quantity	Description
Ethernet	2	10/100 Mbit/s RJ45
USB	4	V2.0 (High Current)
Serial	1 (onboard) + 1 (via PCI card)	COM1 (onboard), COM2 (via PCI-Interface Card)
Parallel	1 (via PCI card)	LPT1 (via PCI-Interface Card)
Compact Flash	1	Slot for Compact Flash Drive

Installation Guidelines

Power Supply: Connect the industrial PC to a stable AC 110/230V power source. Ensure proper grounding for safety and operational stability. The power unit is NAMUR compliant.
Mounting: Securely mount the PC box in an appropriate industrial enclosure or rack, ensuring adequate ventilation to support the integrated temperature and fan monitoring.
Connectivity: Connect Ethernet cables to the RJ45 ports for network communication. Utilize the USB ports for peripherals and the serial/parallel ports for legacy device integration as required.
Expansion: If additional functionality is needed, install compatible PCI expansion cards into the two free PCI slots.
Cooling: Ensure that the environment allows for proper airflow to prevent overheating, especially given the integrated fan monitoring.
Safety: Always de-energize the unit before performing any installation, maintenance, or wiring procedures.

FAQ

What type of processor is used in the SIMATIC Box PC 627?

The Siemens 6ES7647-6AC00-0BX0 utilizes a Pentium M 730 processor clocked at 1.6 GHz, with a 533 MHz FSB and 2 MB SLC.

What are the primary communication interfaces available?

It includes two 10/100 Mbit/s Ethernet RJ45 ports, four USB V2.0 (high current) ports, and one serial COM1 port. An additional PCI-interface card provides COM2 and LPT1.

Does this industrial PC come with an operating system pre-installed?

No, the 6ES7647-6AC00-0BX0 is supplied without an operating system and without software expansions.

What are the power supply requirements for this unit?

The PC is powered by an AC 110/230V industrial power unit that is NAMUR compliant.

Are there any expansion slots available for additional modules?

Yes, the unit features two free PCI slots for further expansion and customization.
