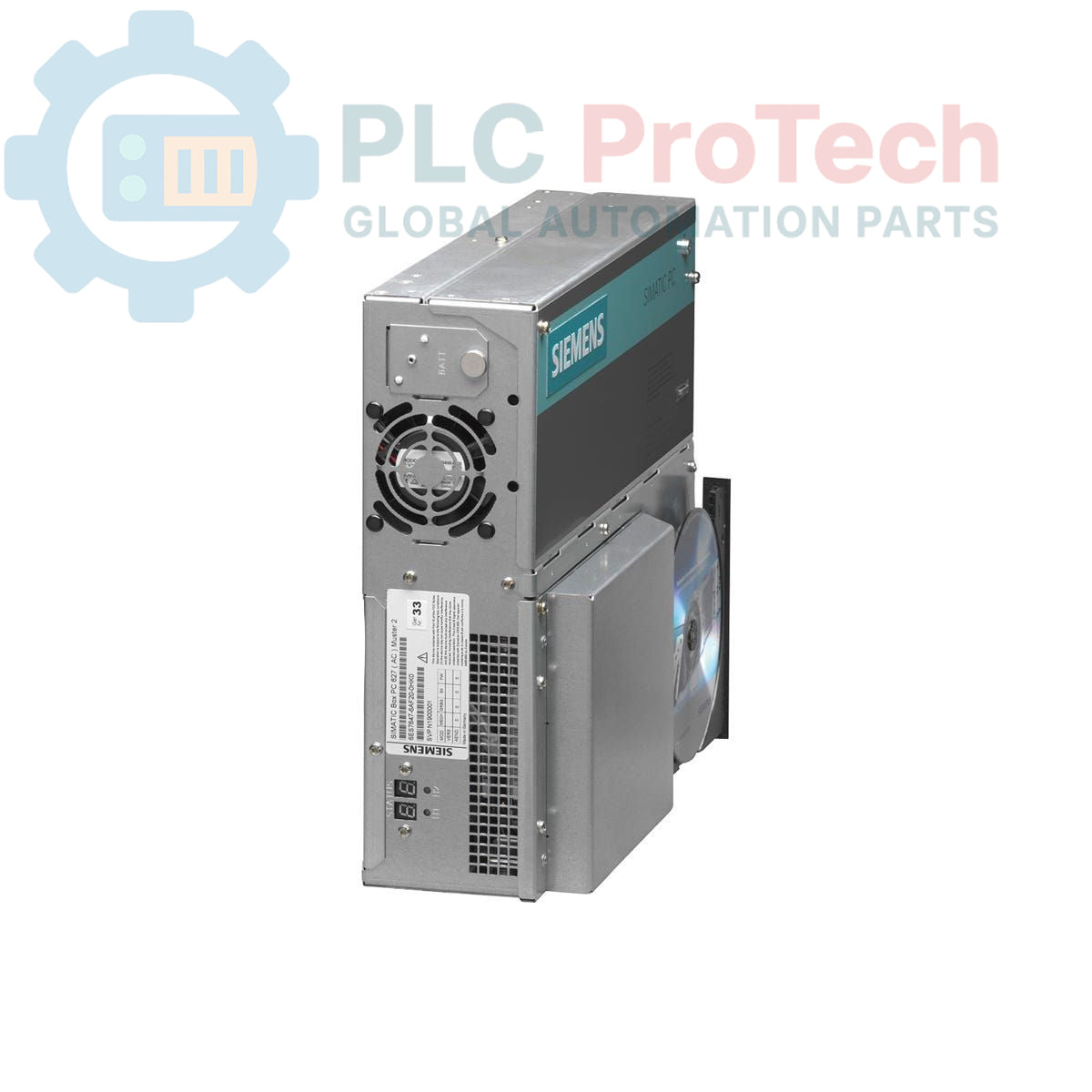

Siemens 6ES7647-6AC35-0HK0 SIMATIC BOX PC 627 Industrial PC

SKU 6ES7647-6AC35-0HK0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-6AC35-0HK0
Country of origin:Germany
Product Type: Industrial PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 7150g
Dimensions: 45.0 x 47.5 x 27.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

This Siemens 6ES7647-6AC35-0HK0 is a SIMATIC BOX PC 627 industrial computer designed for robust performance in demanding automation environments. It is equipped with a Pentium M 730 1.6 GHz processor, 256 MB of DDR2 RAM, and an 80 GB SATA hard drive. The unit features onboard AGP graphics with shared memory, dual 10/100 Mbit/s Ethernet ports for network connectivity, and a variety of standard interfaces including high-current USB 2.0 and serial ports. Integrated industrial-grade features include a watchdog timer, temperature and fan monitoring, and an onboard RAID controller. This model is powered by a 110/230V AC industrial power supply and includes two free PCI slots for expansion.

Features

Processor: Intel Pentium M 730 (1.6 GHz, 533 MHz FSB, 2 MB SLC)
Memory: 256 MB DDR2 533 SODIMM
Storage: 80 GB SATA Hard Disk Drive (HDD)
Graphics: Onboard AGP with 8-128 MB shared memory
Networking: Dual 10/100 Mbit/s Ethernet RJ45 ports
Expansion: 2 free PCI slots
I/O: 4x USB 2.0, 1x COM1, 1x COM2 (via PCI card), 1x LPT1 (via PCI card)
Monitoring: Integrated watchdog timer, temperature, and fan monitoring
Power Supply: 110/230V AC industrial power unit with NAMUR specifications

Applications

Human-Machine Interface (HMI) and SCADA visualization
Data acquisition and logging systems
Machine-level control and processing
Industrial gateways and communication servers
Manufacturing Execution Systems (MES) clients

Technical Specifications

Specification	Value
Manufacturer	Siemens
Series	SIMATIC BOX PC 627
Part Number	6ES7647-6AC35-0HK0
Processor	Pentium M 730, 1.6 GHz, 533 MHz FSB, 2 MB SLC
Memory (RAM)	256 MB DDR2 533 SODIMM
Storage	80 GBYTE HDD SATA
Graphics	Onboard AGP, 8-128 MB Shared Memory
Ethernet Ports	2 x 10/100 Mbit/s Ethernet RJ45
USB Ports	4 x USB V2.0 (High Current)
Serial Ports	1 x COM1 (onboard), 1 x COM2 (via PCI card)
Parallel Port	1 x LPT1 (via PCI card)
Expansion Slots	2 x PCI (free)
Removable Media	1 x Slot for Compact Flash Drive
Onboard Controller	RAID Controller
Monitoring Features	Watchdog, Temperature/Fan Monitoring
Power Supply	110/230V AC Industrial Power Unit with NAMUR
Included Cable	Power Cable (Europe)
Operating System	Not Included
Product Status	Obsolete
Country of Origin	Germany (Estimate)
Shipping Weight	7.15 kg
Package Dimensions (Calculated)	45.0 x 47.5 x 27.0 cm
Commodity Code	85371091
ECCN	N

Installation Guidelines

CRITICAL WARNING: Electrical Hazard. Disconnect all power sources and follow Lockout/Tagout (LOTO) procedures before installation or servicing. Installation must be performed by qualified personnel familiar with industrial control equipment standards and practices.

1 Mounting: Securely mount the PC in a control cabinet or on a panel with adequate ventilation. Ensure sufficient clearance around the unit for airflow to prevent overheating. Verify all mounting hardware is torqued to specification.
2 Grounding: Connect the chassis to the main protective earth (PE) ground of the cabinet using a low-impedance connection. Proper grounding is essential for operator safety and noise immunity.
3 Power Connection: Connect the 110/230V AC power supply using the provided power cable. Ensure the source voltage matches the power supply rating. Use a dedicated, filtered power source for best performance.
4 I/O Connections: Connect all peripheral devices, including Ethernet, USB, and serial cables. Use shielded cables for all data communication lines and ensure shields are properly terminated to ground at one end to minimize electrical noise.
5 System Startup: After verifying all connections, restore power to the unit. Proceed with operating system installation and application software configuration as required. Monitor system temperatures and fan operation during initial startup.
