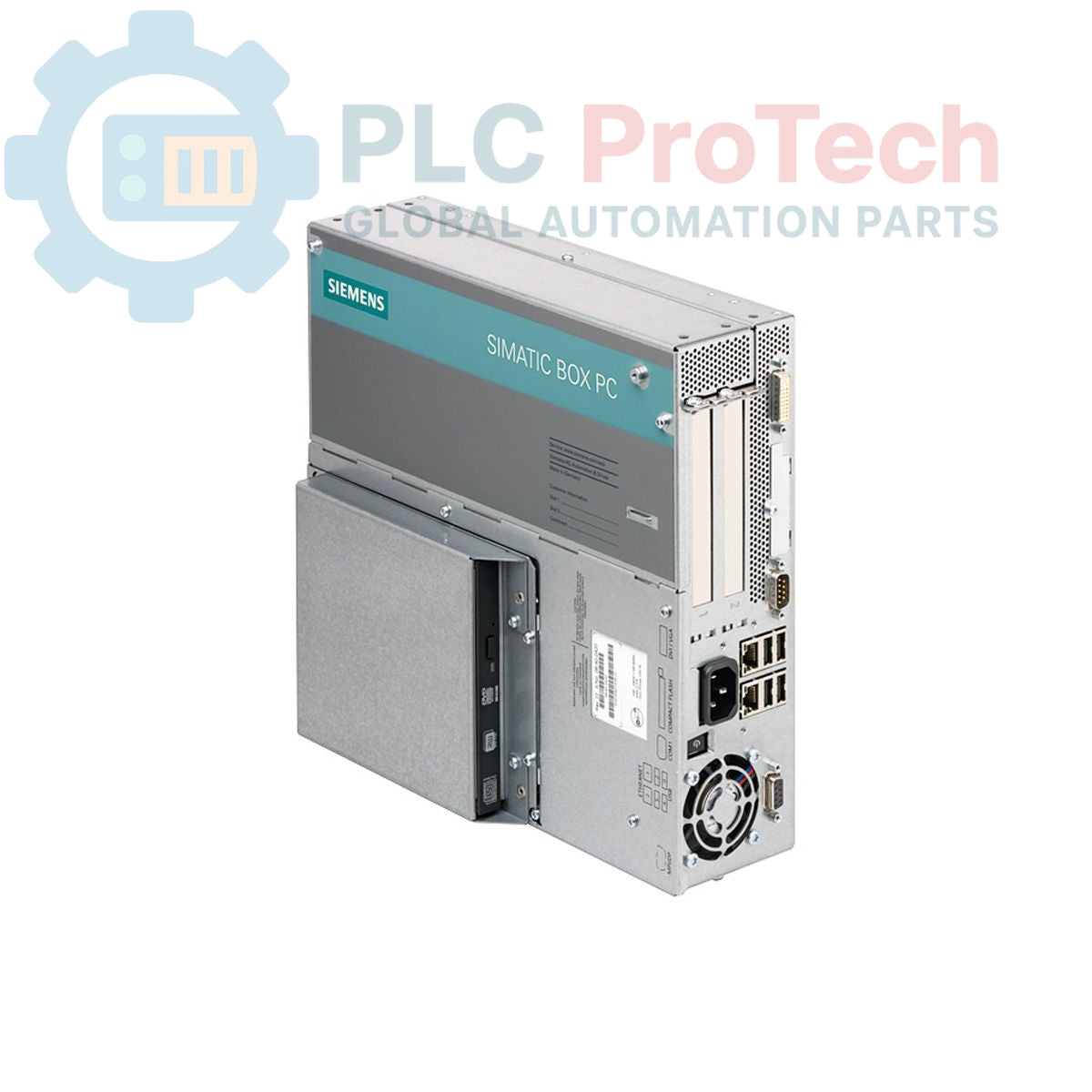

Siemens 6ES7647-6BB00-0AB0 SIMATIC BOX PC 627B Industrial PC

SKU 6ES7647-6BB00-0AB0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-6BB00-0AB0
Country of origin:Germany
Product Type: Industrial PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 7g
Dimensions: 120.5 x 50.5 x 10.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

This is a Siemens 6ES7647-6BB00-0AB0, a SIMATIC BOX PC 627B designed for industrial control and visualization applications. This unit is equipped with a Celeron M 440 1.86 GHz processor, 256 MB of DDR2 RAM, and a 160 GB SATA hard drive. It provides extensive connectivity through dual Gigabit Ethernet ports, four high-current USB 2.0 ports, and an integrated PROFIBUS/MPI interface. The system includes an onboard RAID controller for data redundancy and features built-in monitoring for temperature, fans, and system operation via a watchdog timer. This model is configured with a 110/230V AC industrial power supply and comes pre-installed with Windows XP Professional.

Features

Onboard graphics with 128 MB of shared memory.
Integrated RAID controller for enhanced data reliability.
Front-accessible CompactFlash drive slot for removable storage.
Built-in watchdog timer and hardware monitoring for temperature and fans.
Includes 2 MB of buffered SRAM for non-volatile data storage.
Industrial-grade AC power supply with NAMUR compliance.
Two available PCI slots for hardware expansion.

Applications

Human-Machine Interface (HMI) and SCADA systems
Process control and data acquisition
Machine vision and quality inspection systems
Industrial data logging and gateway applications
Automation cell control

Technical Specifications

Processor	Celeron M 440 (1.86 GHz, 1 MB L2 Cache, 533 MHz FSB)
Memory (RAM)	256 MB DDR2 667 SODIMM
Buffered Memory	2 MB Buffered SRAM
Storage	160 GB HDD SATA
Graphics	Onboard, 128 MB Shared Memory
Ethernet Interface	2 x 10/100/1000 Mbit/s RJ45
USB Interface	4 x USB V2.0 (High Current)
Serial Interface	1 x COM1
Fieldbus Interface	PROFIBUS/MPI
Expansion Slots	2 x PCI (Free)
Removable Media	1 x CompactFlash Drive Slot (Front-side)
Power Supply	110/230V AC Industrial Power Supply with NAMUR
Operating System	Windows XP Professional Multi-Language SP2 (DE, EN, FR, SP, IT)
System Monitoring	Watchdog, Temperature/Fan Monitoring
Product Status	Obsolete
Manufacturer	Siemens
Country of Origin	Germany (Estimate)
Package Dimensions (Calculated)	120.5 x 50.5 x 10.0 cm
Shipping Weight	7.00 kg

Installation Guidelines

CRITICAL WARNING: Hazardous voltages are present. Installation must be performed by qualified personnel only. Failure to de-energize equipment before installation can result in severe injury or death. Always use appropriate personal protective equipment (PPE) and follow site-specific lock-out/tag-out (LOTO) procedures.

1 De-energize the control cabinet and verify the absence of voltage before beginning work.
2 Select a mounting location that provides adequate clearance for ventilation and cable access as per the unit's specifications.
3 Securely mount the Box PC chassis to the panel or mounting plate using all designated mounting points.
4 Connect the chassis to the cabinet's protective earth (PE) busbar using a low-impedance conductor.
5 Connect the AC power supply cable to a properly rated and protected power source.
6 Connect all required peripherals, including Ethernet, USB, serial, and PROFIBUS/MPI cables. Ensure proper shielding and grounding for communication cables.
7 After verifying all connections, remove LOTO devices and re-energize the cabinet to commission the system.

FAQ

What processor is included in the 6ES7647-6BB00-0AB0?

This unit is equipped with an Intel Celeron M 440 processor running at 1.86 GHz with a 1 MB L2 cache and a 533 MHz Front Side Bus (FSB).

What operating system is pre-installed on this industrial PC?

It comes pre-installed with Windows XP Professional, Multi-Language Service Pack 2, including support for German, English, French, Spanish, and Italian.

What are the primary communication interfaces on this device?

The PC features two 10/100/1000 Mbit/s Ethernet ports, four high-current USB 2.0 ports, one serial (COM1) port, and an integrated PROFIBUS/MPI interface.

Does this SIMATIC Box PC support RAID configurations?

Yes, the 6ES7647-6BB00-0AB0 includes an onboard RAID controller for managing disk arrays to improve data redundancy or performance.

What are the power supply requirements for this unit?

This model is configured with a 110/230V AC industrial power supply that is compliant with NAMUR standards. A European power cable is included.
