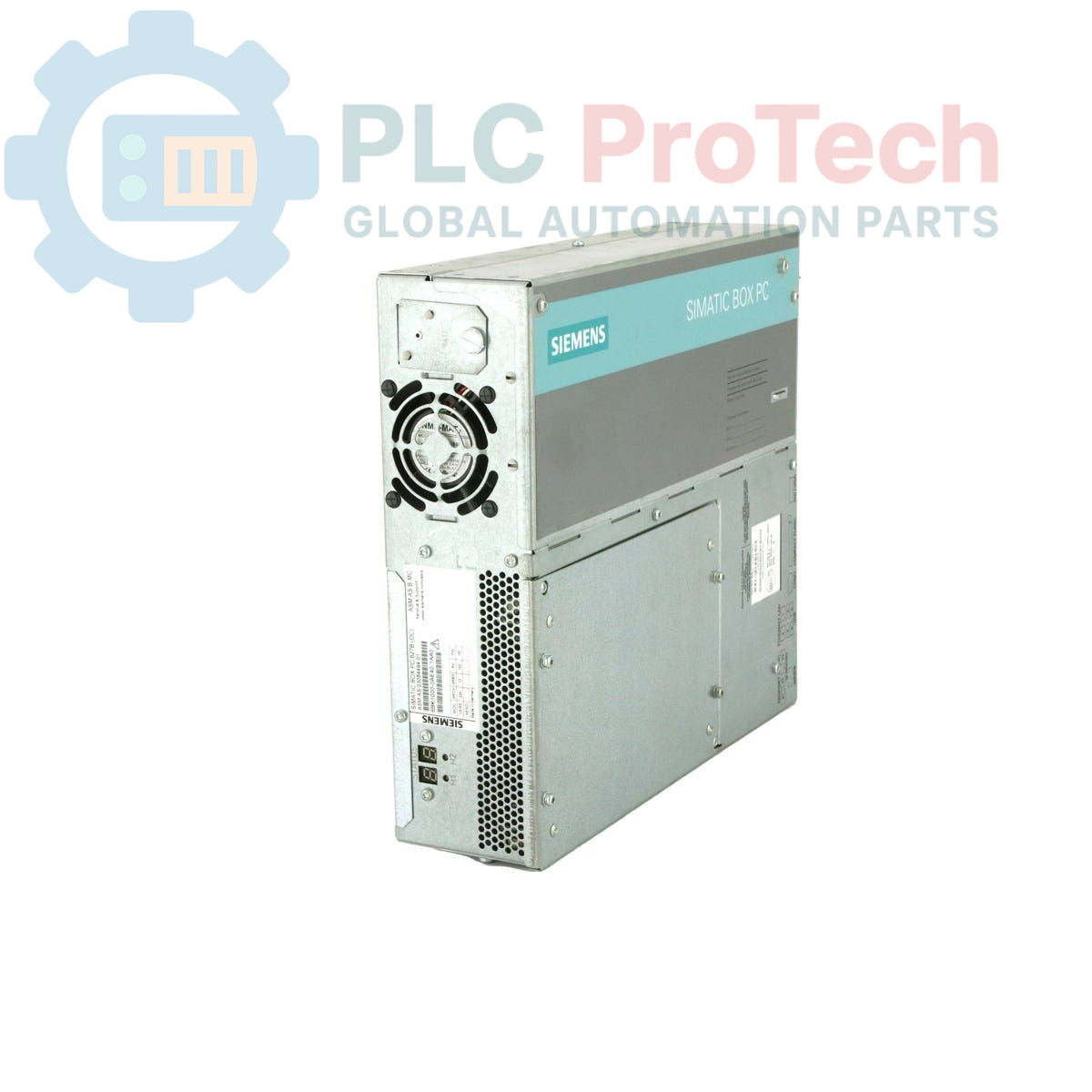

Siemens 6ES7647-6BE30-0BB0 SIMATIC Box PC 627B Industrial PC

SKU 6ES7647-6BE30-0BB0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-6BE30-0BB0
Country of origin:Germany
Product Type: Industrial PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 7g
Dimensions: 41.0 x 56.5 x 25.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

This is a Siemens 6ES7647-6BE30-0BB0, a SIMATIC Box PC 627B designed for industrial control and visualization tasks. This unit is equipped with an Intel Core 2 Duo T5500 processor, 2 GB of DDR2 RAM, and a 160 GB SATA hard drive. It provides extensive connectivity through dual Gigabit Ethernet ports, USB 2.0, and an integrated PROFIBUS/MPI interface. The system includes onboard monitoring features such as a watchdog timer and temperature/fan monitoring, ensuring reliable operation in demanding environments. This specific configuration is pre-installed with Windows XP Professional and features an AC 110/230V industrial power supply.

Features

Intel Core 2 Duo T5500 1.66 GHz processor
2 GB DDR2 667 SODIMM system memory
160 GB SATA Hard Disk Drive (HDD)
Integrated PROFIBUS/MPI communication interface
Dual 10/100/1000 Mbit/s Ethernet ports
Four high-current USB 2.0 ports
Two free PCI slots for expansion cards
Onboard RAID controller for data redundancy
Built-in watchdog, temperature, and fan monitoring
Front-accessible CompactFlash drive slot

Applications

Process control and visualization (HMI)
Data acquisition and logging systems
Machine control and automation platforms
Industrial gateways and communication servers
Factory floor information systems

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Series	SIMATIC Box PC 627B
Part Number	6ES7647-6BE30-0BB0
Processor	Intel Core 2 Duo T5500 (1.66 GHz, 2 MB L2 Cache, 667 MHz FSB)
System Memory (RAM)	2 GB DDR2 667 SODIMM
Buffered RAM	2 MB
Graphics	Onboard, 128 MB Shared Memory
Storage	160 GB HDD SATA
Optical Drive	DVD +/-RW
Ethernet Interface	2 x 10/100/1000 Mbit/s RJ45
USB Interface	4 x USB V2.0 (High Current)
Serial Interface	1 x COM1
Fieldbus Interface	PROFIBUS/MPI
Expansion Slots	2 x PCI (free)
Power Supply	AC 110/230V Industrial Power Supply with NAMUR
Operating System	Windows XP Professional SP2 (Multi-language)
Product Status	Obsolete
Country of Origin	Germany (Estimate)
Shipping Weight	7.00 kg
Package Dimensions (Calculated)	41.0 x 56.5 x 25.0 cm

Installation Guidelines

CRITICAL WARNING: Electrical hazard. Installation must be performed by qualified personnel only. Disconnect and lock out all power sources before accessing the control cabinet or installing the device. Failure to de-energize equipment can result in severe injury or death.

1 Ensure the mounting location provides adequate ventilation clearance around all sides of the PC chassis to prevent overheating. Do not block fan inlets or exhausts.
2 Securely mount the Box PC to a stable panel or surface using all provided mounting points to withstand operational vibration.
3 Connect the chassis grounding screw to the main protective earth (PE) busbar of the cabinet using a low-impedance conductor of appropriate gauge.
4 Connect all required peripherals, including Ethernet, PROFIBUS/MPI, USB devices, and serial connections. Ensure all cable shields are properly terminated.
5 Connect the AC power supply cable to a properly rated and protected industrial power source.
6 After verifying all connections, restore power to the cabinet and power on the PC. Confirm that the operating system boots correctly and all peripherals are recognized.

FAQ

What processor is installed in this SIMATIC Box PC?

This unit is equipped with an Intel Core 2 Duo T5500 processor, which operates at 1.66 GHz and has a 2 MB L2 cache.

What operating system is pre-installed on the 6ES7647-6BE30-0BB0?

The PC comes with Windows XP Professional Service Pack 2, with multi-language support including English, German, French, Spanish, and Italian.

What are the primary communication interfaces on this device?

It features two Gigabit Ethernet (10/100/1000 Mbit/s) ports, four USB 2.0 ports, one serial (COM1) port, and an integrated PROFIBUS/MPI interface for industrial networking.

Does this industrial PC have expansion slots?

Yes, this model provides two free PCI slots, allowing for the installation of additional expansion cards.

What is the power supply requirement for this unit?

This specific configuration requires an AC 110/230V industrial power supply. A power cable for Europe is included.
