Manufacturer: Siemens
Product No.: 6ES7647-6CG40-1GC0
Country of origin:Germany
Product Type: Box PC
Barcode: 85371099
Payment: T/T, Western Union
Weight: 7150g
Dimensions: Corrections Applied: none
Shipping port: Xiamen
Warranty: 12 months

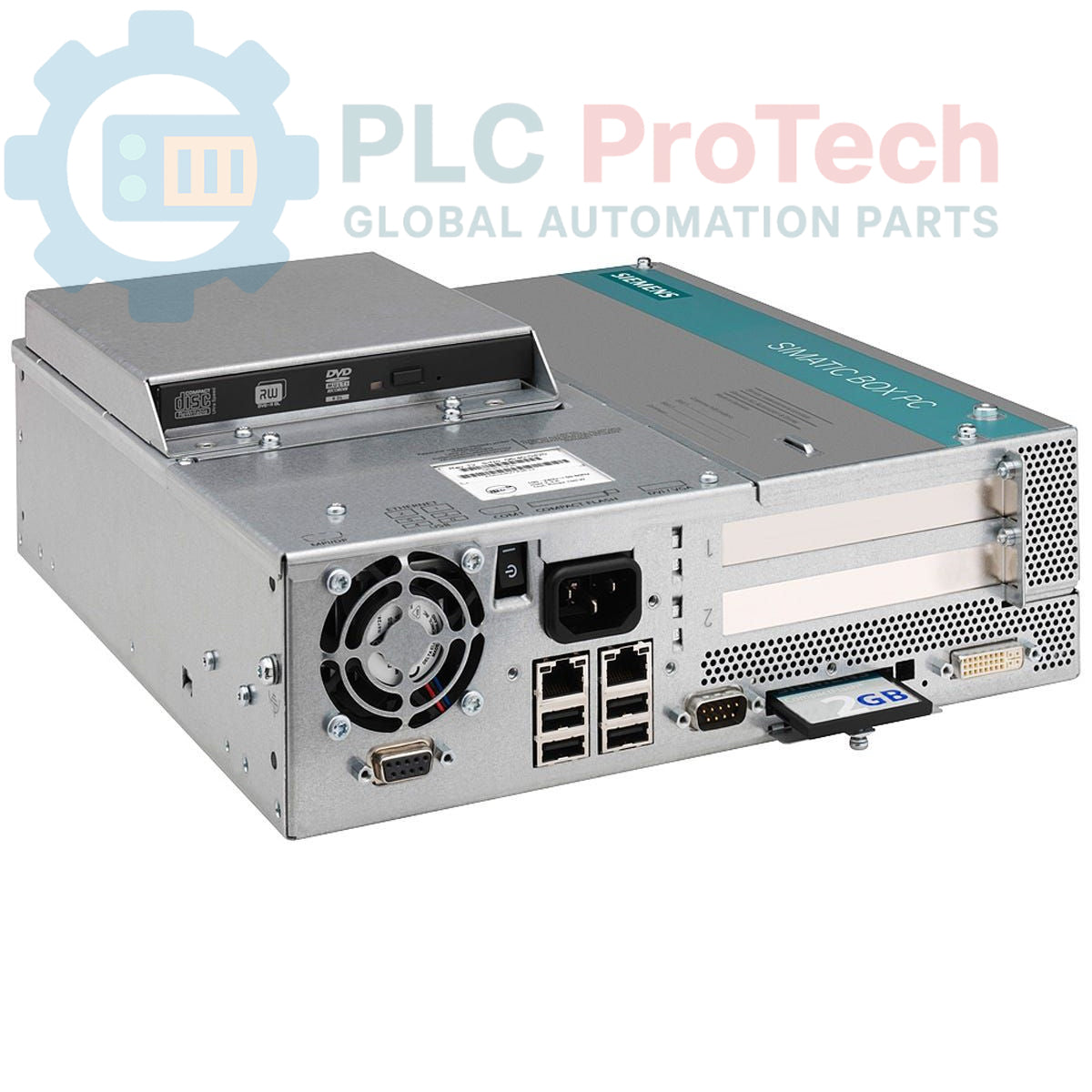

The Siemens 6ES7647-6CG40-1GC0 SIMATIC IPC627C Box PC is an industrial computing platform engineered for demanding applications requiring robust performance and reliability. This unit features an Intel Core i7-610E processor (2 cores, 4 threads, 2.53 GHz) with 8 GB DDR3 1066 DIMM RAM and onboard HD graphics. It includes an onboard RAID controller managing two 320 GB SATA (2.5") drives in a RAID1 configuration for enhanced data security. Connectivity options include dual Gigabit Ethernet ports, four USB V2.0 ports, and one serial (COM 1) interface. Expansion capabilities are provided by one PCI slot and one PCIe (x16) slot. The 6ES7647-6CG40-1GC0 also integrates a front-access CompactFlash Drive, watchdog timer, and temperature/fan monitoring. Its AC 110/230V industrial power supply unit complies with NAMUR standards, and the system comes pre-installed with Windows 7 Ultimate 64 bit SP1 (MUI).
The Siemens SIMATIC IPC627C Box PC is suitable for a wide range of industrial applications, including:
| Parameter | Value |
|---|---|
| Brand | Siemens |
| Manufacturer | Siemens |
| Model | 6ES7647-6CG40-1GC0 |
| Series | SIMATIC IPC627C |
| Product Type | Box PC |
| Processor | Intel Core i7-610E (2C/4T, 2.53GHz, TB, HT, VT, AMT, 4 MB cache) |
| RAM | 8 GB DDR3 1066 DIMM |
| Graphics | Onboard HD graphics |
| Ethernet Ports | 2x 10/100/1000 Mbit/s RJ45 |
| USB Ports | 4x USB V2.0 (high current) |
| Serial Ports | 1x COM 1 |
| Storage | 2x 320 GB SATA (2.5") |
| RAID Configuration | RAID1 (Free) |
| Expansion Slots | 1x PCI, 1x PCIe (X16) |
| Operating System | Windows 7 Ultimate 64 bit SP1, MUI (en,de,fr,it,es) |
| Power Supply | AC 110/230V industrial |
| Power Supply Compliance | NAMUR |
| Additional Features | Front-access CompactFlash Drive, Watchdog, Temp./Fan monitoring |
| Product Phase | Phase-Out |
| Shipping Weight | 7.15 kg |
| Commodity Code | 85371099 |
Proper installation ensures reliable operation and longevity of the industrial PC. Adhere to the following general guidelines:
The industrial power supply unit complies with NAMUR industrial standards, ensuring suitability for demanding process control environments.
