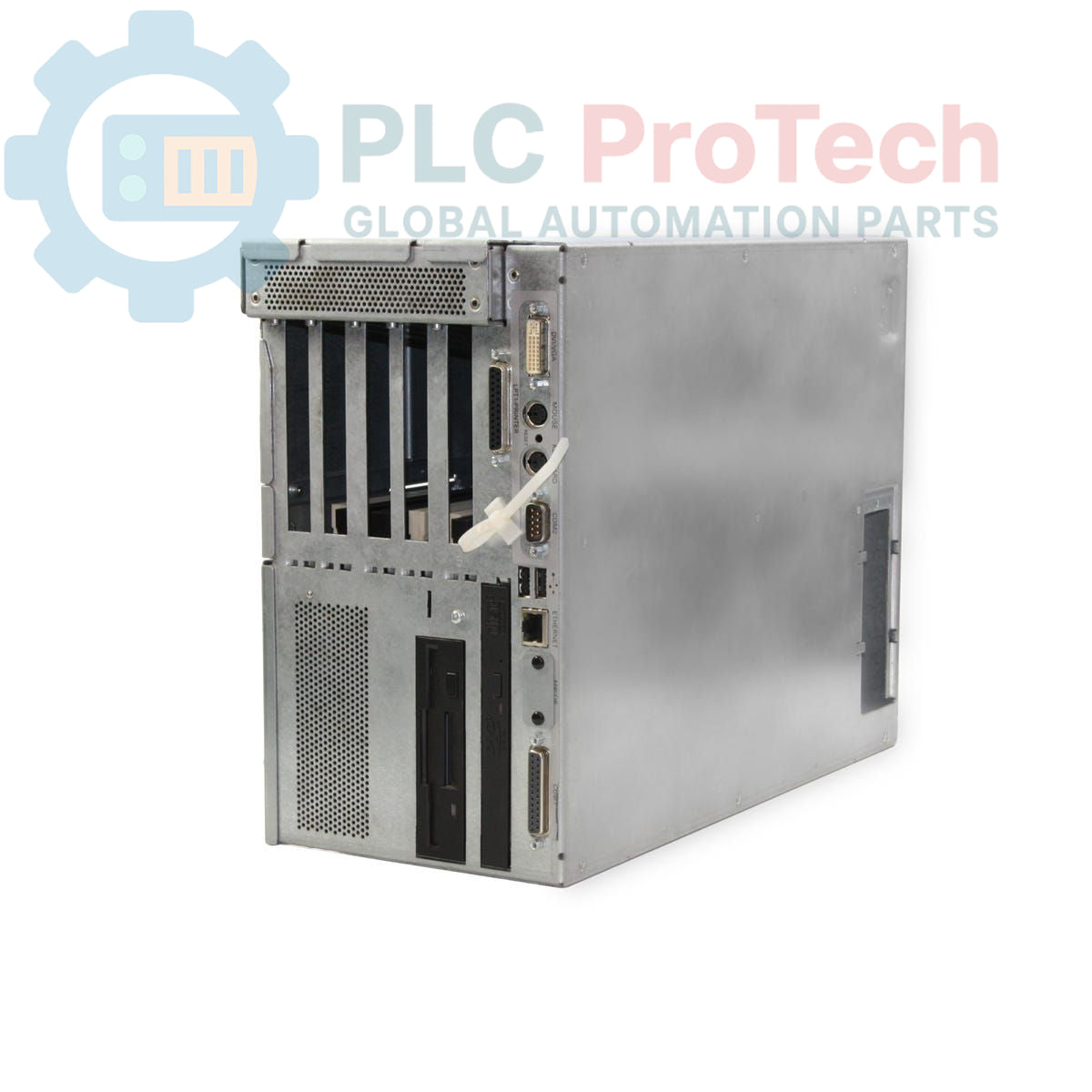

Siemens 6ES7647-6ME05-0WX0 SIMATIC Box PC 840 V2 Industrial PC

SKU 6ES7647-6ME05-0WX0

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Siemens
Product No.: 6ES7647-6ME05-0WX0
Country of origin:Germany
Product Type: Industrial PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 11500g
Dimensions: 51.00 x 62.50 x 23.00 cm
Shipping port: Xiamen
Warranty: 12 months

Description

This is a Siemens 6ES7647-6ME05-0WX0 SIMATIC Box PC 840 V2, a robust industrial computer designed for demanding automation environments. It is equipped with a Pentium 4 M 2.2 GHz processor, 128 MB DDR SDRAM, and a 24V DC industrial power supply. This specific configuration includes a floppy disk drive (FDD) but is supplied without a hard disk drive (HDD), DVD-ROM, or operating system. Integrated features include onboard AGP graphics with shared memory, 10/100 Mbit/s Ethernet, and two high-current USB ports. The system also incorporates a watchdog timer and temperature monitoring for enhanced reliability and operational stability.

Features

Processor: Pentium 4 M 2.2 GHz with 400 MHz FSB and 512 KB SLC
Memory: 128 MB DDR SDRAM
Graphics: Onboard AGP with 8/16/32 MB shared memory
Networking: Integrated 10/100 Mbit/s Ethernet RJ45 port
I/O Ports: 2x High-Current USB
Expansion Slots: 2x PCI, 2x ISA/PCI (shared), 1x ISA
Power Supply: 24V DC Industrial Power Supply
System Monitoring: Integrated watchdog timer and temperature monitoring
Storage: Includes Floppy Disk Drive (FDD); no HDD or DVD-ROM

Applications

Human-Machine Interface (HMI) visualization stations
Process control and data acquisition systems
Machine-level data logging and analysis
Industrial gateways and communication servers
Factory automation and assembly line control

Technical Specifications

Specification	Value
Brand	Siemens
Model	6ES7647-6ME05-0WX0
Series	SIMATIC Box PC 840 V2
Product Type	Industrial PC
Processor	Pentium 4 M 2.2 GHz
Front Side Bus (FSB)	400 MHz
Second Level Cache (SLC)	512 KB
RAM	128 MB DDR SDRAM
Graphics	Onboard AGP, 8/16/32 MB Shared Memory
Ethernet	1x RJ45, 10/100 Mbit/s
USB Ports	2x High Current USB
Expansion Slots	2 PCI, 2 ISA/PCI, 1 ISA
Input Voltage	24V DC
Product Lifecycle Status	Obsolete
Shipping Weight	11.50 kg
Package Dimensions (Calculated)	51.00 x 62.50 x 23.00 cm
Country of Origin	Germany (Estimated)
Manufacturer	Siemens

Installation Guidelines

CRITICAL WARNING: RISK OF ELECTRIC SHOCK

Installation must be performed by qualified personnel only. Disconnect all power sources and follow Lockout/Tagout (LOTO) procedures before accessing or installing this equipment. Failure to de-energize the system can result in severe injury or death.

1 Ensure the mounting location provides adequate ventilation and meets environmental specifications. Verify clearances for cabling and future maintenance access.
2 Securely mount the Box PC chassis to the panel or mounting surface using all provided mounting points. Ensure the unit is level and stable.
3 Connect a low-impedance protective earth (PE) conductor to the designated chassis grounding terminal. This is a critical safety connection.
4 Connect the 24V DC power supply to the correct input terminals, observing proper polarity. Use appropriately sized conductors for the load.
5 Connect all required peripherals, including Ethernet, USB devices, and video displays. Route cables to prevent strain and interference.
6 After verifying all connections, remove LOTO devices and re-apply power to the control panel. Proceed with operating system installation and software configuration.

FAQ

What processor is included in this SIMATIC Box PC?

This unit is equipped with a Pentium 4 M processor operating at 2.2 GHz, featuring a 400 MHz Front Side Bus (FSB) and 512 KB of Second Level Cache (SLC).

Does the 6ES7647-6ME05-0WX0 come with an operating system?

No, this specific configuration is supplied without a pre-installed operating system, allowing for custom software installation.

What are the available expansion slots for this model?

The chassis provides two standard PCI slots, two shared ISA/PCI slots, and one dedicated ISA slot for legacy hardware compatibility.

What is the required input power for this industrial PC?

The system requires a 24V DC industrial power supply for operation.

Are storage drives included with this Box PC?

This configuration includes an integrated Floppy Disk Drive (FDD). It does not include a Hard Disk Drive (HDD) or a DVD-ROM drive.
