Siemens 6ES7647-8BD21-6BA1 SIMATIC IPC227E Nanobox PC

Description

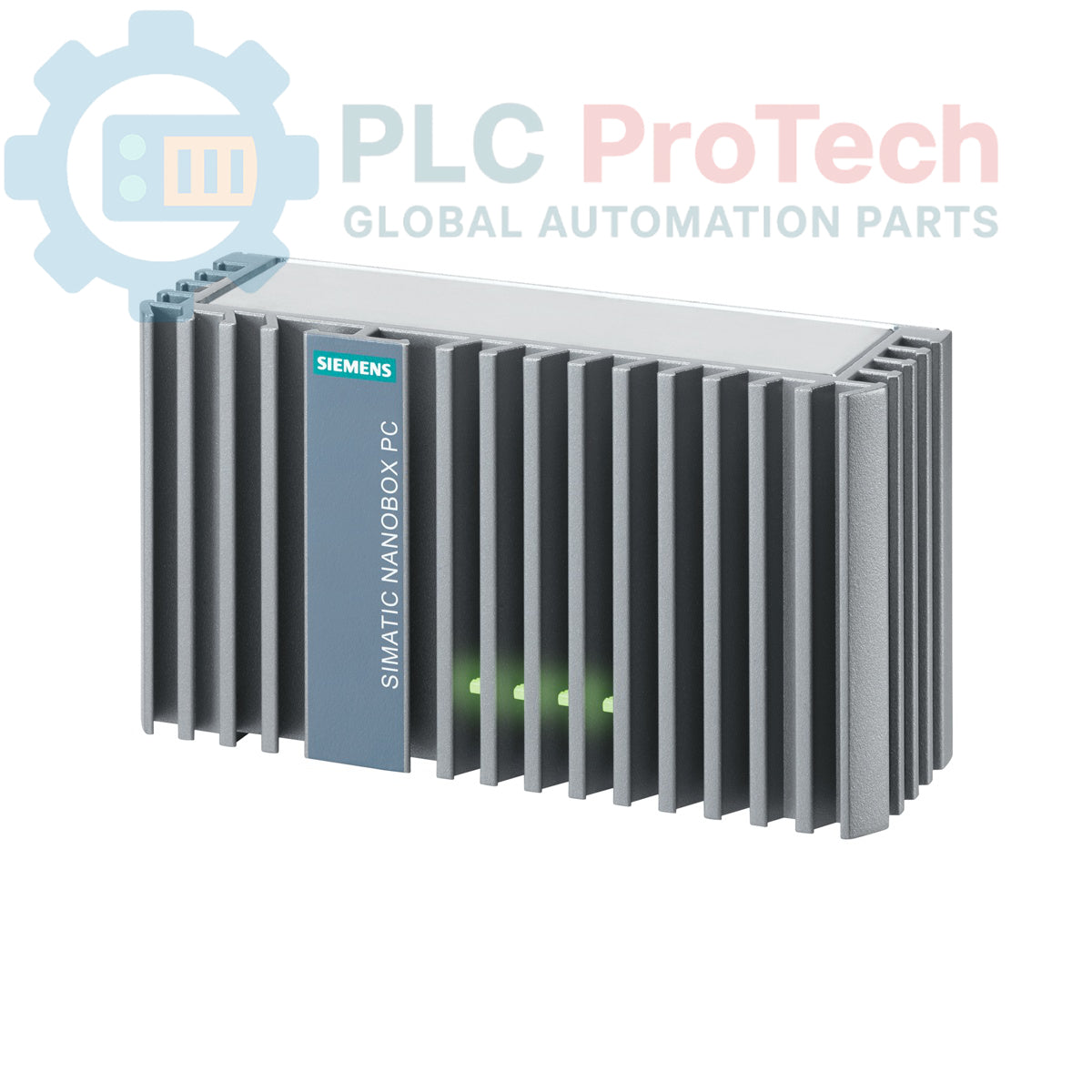

The Siemens 6ES7647-8BD21-6BA1 is a SIMATIC IPC227E Nanobox, a compact and rugged industrial PC designed for control, visualization, and data acquisition tasks in demanding environments. This model is equipped with an Intel Celeron N2930 quad-core processor, 4 GB of RAM, and an 80 GB Solid-State Drive (SSD) for reliable performance. It operates on a 24 V DC industrial power supply and features a pre-installed Windows 7 Ultimate (64-bit) operating system. The unit is designed for straightforward DIN rail mounting, simplifying integration into control cabinets.

Features

• Processor: Intel Celeron N2930 (4 Cores, 4 Threads)
• Memory: 4 GB RAM
• Storage: 80 GB Solid-State Drive (SSD)
• Operating System: Windows 7 Ultimate SP1, 64-bit Multi-Language User Interface (MUI)
• Connectivity: Dual 10/100/1000 Mbit/s Ethernet ports
• Peripherals: 1x USB 3.0 and 3x USB 2.0 ports
• Video Output: 1x DisplayPort
• Expansion: Integrated CFast card slot
• Security: Integrated Trusted Platform Module (TPM)
• Mounting: Standard DIN rail mounting

Applications

• Human-Machine Interface (HMI) and SCADA visualization
• Industrial data logging and gateway applications
• Machine control and automation tasks
• Process monitoring in manufacturing and assembly lines
• Edge computing and data pre-processing

Technical Specifications

Installation Guidelines

1. 1
   De-energize Equipment: Verify that the control cabinet and all related circuits are de-energized and locked out/tagged out (LOTO) according to site safety procedures before beginning work.
2. 2
   Mount the IPC: Securely clip the Nanobox PC onto a standard 35mm DIN rail inside the enclosure. Ensure there is adequate clearance for ventilation and cable routing.
3. 3
   Connect Protective Earth (PE): Connect the chassis grounding terminal to the main protective earth bus bar using a low-impedance conductor of appropriate gauge. This is critical for safety and noise immunity.
4. 4
   Connect Power Supply: Connect the 24 V DC power source to the IPC's power input terminals. Verify correct polarity (+/-) before energizing the circuit. Use properly sized and terminated wiring.
5. 5
   Connect Peripherals: Connect Ethernet, USB, and DisplayPort cables as required for the application. Ensure all cables are properly seated and secured.
6. 6
   Final Checks and Power-Up: After verifying all connections, remove LOTO devices and re-energize the cabinet. Observe the IPC for correct power-on sequence and operating system boot.
