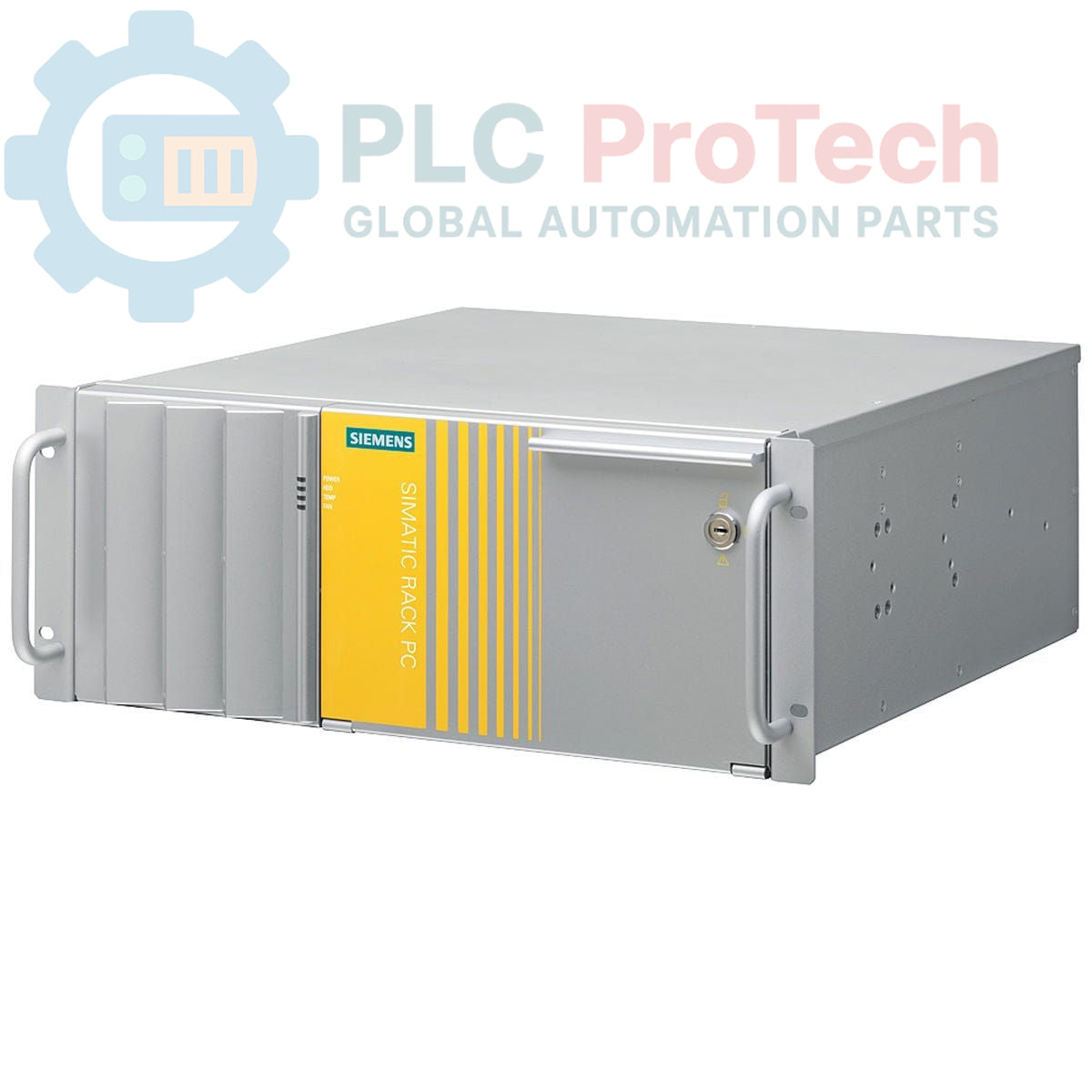

Siemens 6ES7660-0BC13-1AA0 SIMATIC PCS7 Industrial Workstation IPC547C

Description

The Siemens 6ES7660-0BC13-1AA0 is a SIMATIC PCS7 Industrial Workstation IPC547C designed for robust industrial automation applications. This rack-mounted PC features an Intel Core 2 Duo E8400 processor (3.0 GHz, 1333 MHz FSB, 6 MB L2 cache, EM64-T, VT) and is configured as an ES/OS Single Station with IE RAID1, comprising two 250 GB SATA HDDs. It includes 2.0 GB DDR2 SDRAM (2 x 1.0 GB), a DVD+/RW drive, and a floppy disk drive (FDD). The workstation comes with PCS7 V7.0 + SP3 pre-installed and runs on Windows XP Professional with a Multi-User Interface supporting English, German, French, Italian, Spanish, and Chinese. It is powered by a 110/230 V industrial power supply unit and includes a power supply cable suitable for Europe.

Features

• Intel Core 2 Duo E8400 processor (3.0 GHz, 1333 MHz FSB, 6 MB L2 cache)
• ES/OS Single Station configuration with IE RAID1
• 2 x 250 GB SATA Hard Disk Drives
• 2.0 GB DDR2 SDRAM (2 x 1.0 GB modules)
• Integrated DVD+/RW optical drive and Floppy Disk Drive (FDD)
• Pre-installed PCS7 V7.0 + SP3 software
• Pre-installed Windows XP Professional Operating System with MUI support
• 110/230 V industrial power supply unit

Applications

• Industrial control systems
• Operator stations (OS) for process visualization and control
• Engineering stations (ES) for system configuration and programming
• Process control environments leveraging SIMATIC PCS7
• Data acquisition and monitoring in industrial settings

Technical Specifications

Installation Guidelines

1. De-energize System: Ensure all power to the rack and connected equipment is disconnected before installation.
2. Rack Mounting: Securely mount the industrial workstation into a standard industrial rack using appropriate mounting hardware. Ensure proper alignment and stability.
3. Power Connection: Connect the provided power supply cable to the 110/230 V industrial power supply unit and to a suitable industrial power outlet. Verify correct voltage and grounding.
4. Peripheral Connections: Connect necessary peripherals such as monitors, keyboards, mice, and network cables to the appropriate ports on the workstation.
5. Ventilation: Ensure adequate airflow around the workstation for proper cooling. Do not obstruct ventilation openings.
6. System Startup: After all connections are secure, re-energize the system and power on the workstation. Verify proper boot-up and functionality of the pre-installed software.
