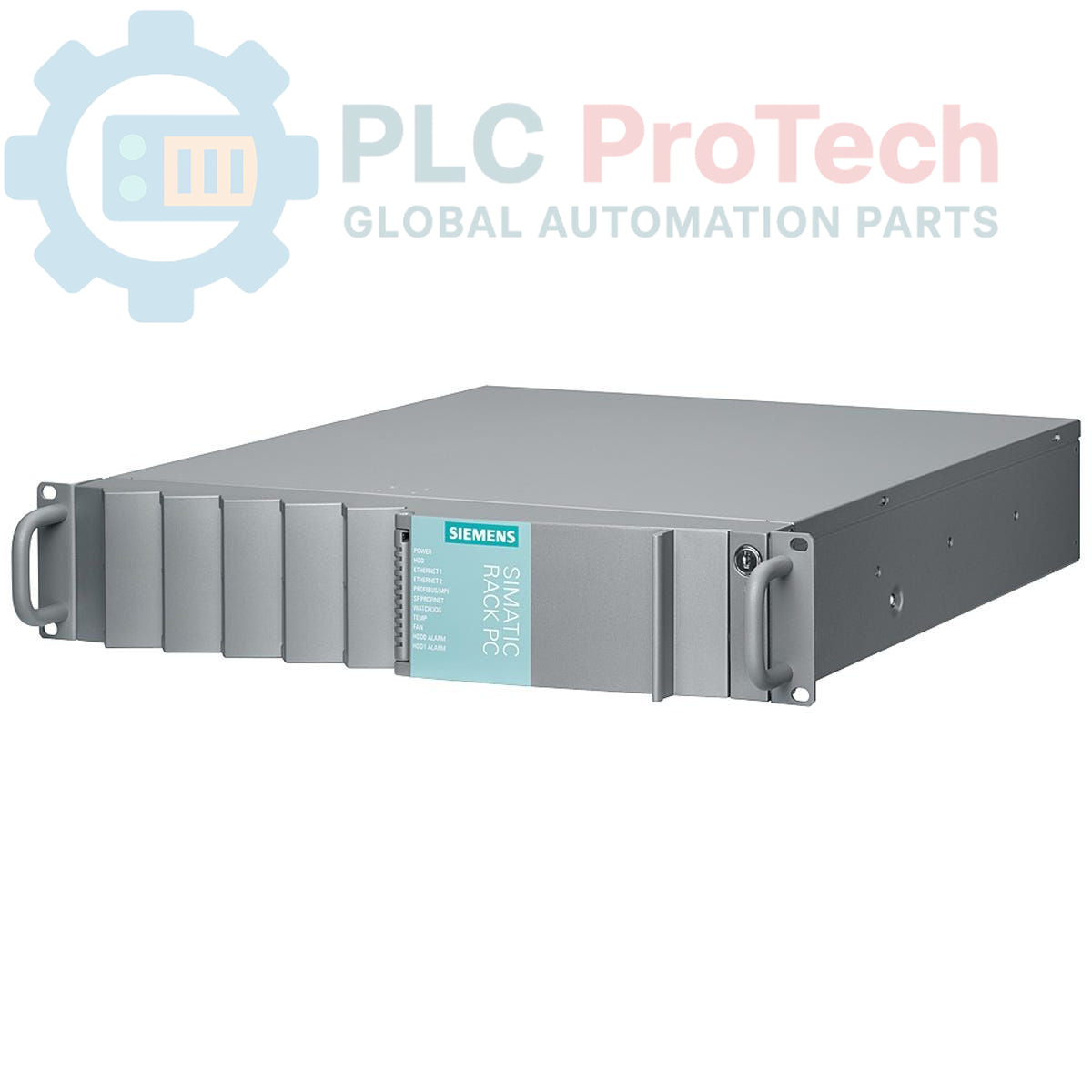

Siemens 6ES7660-5GV60-3BK3 SIMATIC Rack PC IPC647D Industrial Workstation

SKU 6ES7660-5GV60-3BK3

In stock
  • 12-month warranty
  • Free returns within 30 days

  • Manufacturer: Siemens

  • Product No.: 6ES7660-5GV60-3BK3

  • Country of origin:Germany

  • Product Type: Industrial Workstation

  • Barcode: 85371091

  • Payment: T/T, Western Union

  • Weight: 15g

  • Dimensions: 64.00 x 64.00 x 42.00 cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Description

The Siemens 6ES7660-5GV60-3BK3 is a SIMATIC PCS 7 Industrial Workstation IPC647D, designed as a 19-inch, 2HE rack PC. This industrial workstation is equipped with a Xeon E3-1268LV3 processor, 16 GB DDR3 SDRAM, and a RAID1 configuration of 2x 240 GB EMLC SATA SSDs in a hot-swappable, removable frame for data mirroring. It comes pre-installed with PCS 7 V9.0 SP2 and either Embedded Windows 10 Pro or Windows 11 Pro (64-bit, Multi-User Interface).

The IPC647D features a comprehensive set of interfaces including GBIT LAN, DVI-I, Display Port, COM, PS/2, Audio, and multiple USB 2.0 and USB 3.0 ports on the front, rear, and internally. It includes a bus module with four PCIe x16 slots (one 8-lane, three 4-lane) for expansion, an integrated slim DVD +/-RW drive, and a 100/240V industrial power supply unit with NAMUR compliance. Integrated temperature and fan monitoring, along with a watchdog and card retainer, ensure reliable operation in demanding industrial environments.

Features

  • SIMATIC PCS 7 Industrial Workstation IPC647D
  • Xeon E3-1268LV3 CPU (4C/8T, 2.3 GHz, 8 MB Cache, TB, VT-D, AMT)
  • 16 GB DDR3 SDRAM (2x 8 GB), ECC, Dual Channel
  • RAID1 storage with 2x 240 GB EMLC SATA SSDs (data mirroring)
  • Hot-swappable drives in a removable frame
  • Pre-installed PCS 7 V9.0 SP2 with Embedded Windows 10 Pro or Windows 11 Pro (64-bit, MUI)
  • Bus module with 4 slots: 1x PCIe x16 (8 lane), 3x PCIe x16 (4 lane)
  • Integrated DVD +/-RW (Slim) optical drive
  • 100/240V Industrial Power Supply Unit with NAMUR
  • Temperature and fan monitoring watchdog and card retainer

Applications

The Siemens 6ES7660-5GV60-3BK3 Industrial Workstation is suitable for a wide range of heavy-industry applications, including:

  • Process control systems (PCS 7)
  • Operator stations (ES/OS Single Station)
  • Supervisory control and data acquisition (SCADA) systems
  • Data processing and visualization in industrial environments
  • Manufacturing automation and control
  • Industrial data logging and archiving

Technical Specifications

Brand Siemens
Manufacturer Siemens
Range Simatic Rack PC
Subrange IPC
Product Type Digital Modules (Industrial Workstation)
Model 6ES7660-5GV60-3BK3
Form Factor 19" Rack PC, 2HE
CPU Xeon E3-1268LV3 (4C/8T, 2.3 GHz, 8 MB Cache, TB, VT-D, AMT)
Memory 16 GB DDR3 SDRAM (2x 8 GB), ECC, Dual Channel
Storage RAID1, 240 GB (2x 240 GB SSD, EMLC SATA, Data Mirroring), in removable frame, hot swap
Operating System PCS 7 V9.0 SP2 pre-installed with Embedded Windows 10 Pro or Windows 11 Pro, 64-bit, MUI (EN, DE, FR, IT, ES, CN)
Bus Module Slots 4 slots: 1x PCIe x16 (8 lane), 3x PCIe x16 (4 lane)
Optical Drive DVD +/-RW (Slim)
Power Supply 100/240V Industrial Power Supply Unit
Product Phase Phase-Out
Logistics Dimensions 64.00 x 64.00 x 42.00 cm
Shipping Weight 15.00 kg
Commodity Code 85371091
Export Control Regulations (ECCN) 5A992
Package Dimensions (Calculated) 64.00 x 64.00 x 42.00 cm

Connections / Interfaces

Interface Type Quantity / Details
Gigabit LAN 2x RJ45
Video Output 1x DVI-I, 2x Display Port
Serial Port 1x COM
PS/2 2x
Audio Yes
USB 3.0 (Rear) 2x
USB 2.0 (Rear) 2x
USB 3.0 (Front) 1x
USB 2.0 (Front) 1x
USB 3.0 (Internal) 1x

Installation Guidelines

  1. Ensure the rack PC is mounted securely in a standard 19-inch industrial rack, occupying 2HE of space.
  2. Connect the industrial power supply unit to a 100/240V AC source using the appropriate power supply cable (USA type indicated).
  3. Connect network cables to the GBIT LAN (RJ45) ports as required for system integration.
  4. Attach display monitors to the DVI-I or Display Port interfaces.
  5. Connect peripheral devices such as keyboard and mouse to the PS/2 ports, and other USB devices to the available USB 2.0 and USB 3.0 ports on the front or rear.
  6. Utilize the COM port for serial communication if needed.
  7. Ensure proper airflow around the unit for effective temperature and fan monitoring. The integrated watchdog will monitor system health.
  8. When installing or replacing expansion cards, use the provided card retainer to secure them within the PCIe slots.
  9. For hot-swapping SSDs, follow the system's procedure for safe removal and insertion of drives in the removable frame to prevent data loss.

Compliance and Certifications

  • Power Supply: NAMUR compliant

FAQ

What operating systems are pre-installed on the IPC647D?
The workstation comes with PCS 7 V9.0 SP2 pre-installed, along with either Embedded Windows 10 Pro or Windows 11 Pro, both 64-bit and with a Multi-User Interface (EN, DE, FR, IT, ES, CN).

What type of storage is included and does it support data redundancy?
It includes 2x 240 GB EMLC SATA SSDs configured in RAID1 for data mirroring, ensuring redundancy. These drives are housed in a hot-swappable, removable frame.

How many expansion slots are available for additional cards?
The bus module provides four PCIe x16 slots: one configured for 8 lanes and three for 4 lanes.

What are the power supply requirements for this industrial workstation?
The unit is equipped with a 100/240V industrial power supply unit that is NAMUR compliant.

Can I hot-swap the storage drives?
Yes, the workstation supports hot-swapping of the SSDs, which are installed in a removable frame.
