Siemens 6ES7660-7BF18-3GC1 SIMATIC Rack PC IPC547G Industrial Workstation

Description

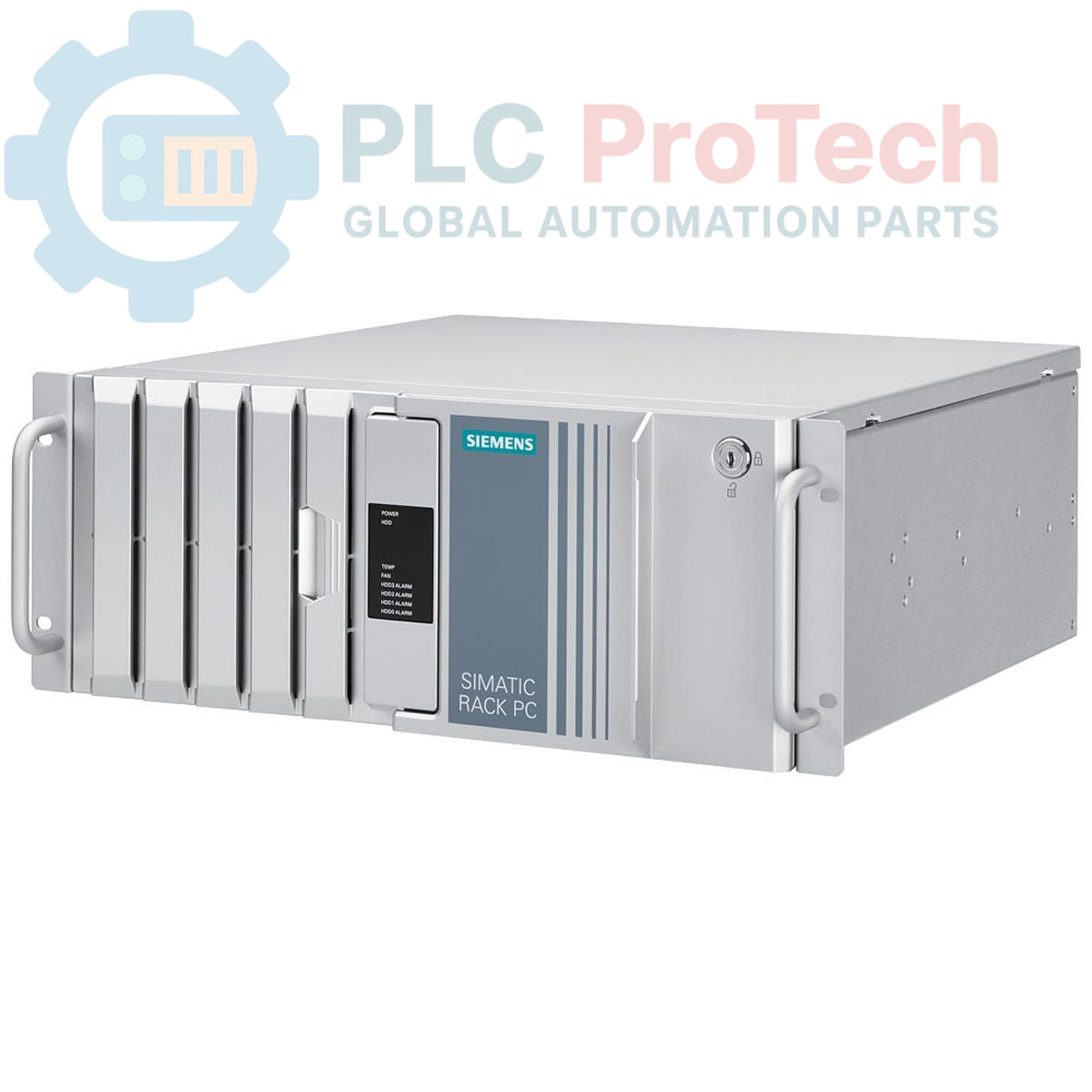

The Siemens 6ES7660-7BF18-3GC1 is a SIMATIC PCS 7 Industrial Workstation IPC547G, designed as a 19-inch, 4 U rack PC for robust industrial applications. This workstation features an Intel Core i5-6500 processor (4 cores/4 threads, 3.2 GHz base, 3.6 GHz turbo) with 6 MB cache, supported by a C236 chipset. It comes equipped with 8 GB DDR4 SDRAM (configured as 2 x 4 GB in dual channel) and a 1 TB Enterprise HDD in a removable frame accessible from the front. The system is pre-installed with PCS 7 V9.0 SP3 and Windows Server 2016 Standard Edition (including 16 cores, 5 clients, 64-bit, MUI support for en/de/fr/it/sp/ch). Connectivity options include multiple USB 3.0 and 2.0 ports, Gbit Ethernet, DVI-D, Display Port, COM, PS/2, and audio interfaces. Expansion is facilitated by seven available slots (5x PCI Express, 2x PCI). The unit also integrates temperature and fan monitoring, a watchdog function, and a card retainer for enhanced reliability in industrial environments. It is powered by a 100/240V AC industrial power supply unit and includes a DVD+-RW (slim) drive and a DP to DVI-D cable adapter.

Features

• SIMATIC PCS 7 Industrial Workstation IPC547G
• 19-inch, 4 U Rack PC form factor
• Intel Core i5-6500 Processor (4C/4T, 3.2(3.6) GHz, 6 MB cache)
• 8 GB DDR4 SDRAM (2 x 4 GB, Dual Channel)
• 1 TB Enterprise HDD in removable front frame
• Pre-installed with PCS 7 V9.0 SP3 and Windows Server 2016 Standard Edition
• Multiple Gbit Ethernet, USB 3.0, USB 2.0, DVI-D, Display Port, COM, PS/2, and audio interfaces
• 7 expansion slots (5x PCI Express, 2x PCI)
• Integrated temperature and fan monitoring, watchdog, and card retainer
• 100/240V AC Industrial Power Supply Unit
• Blue chromated enclosure with slim DVD+-RW drive

Applications

The Siemens 6ES7660-7BF18-3GC1 Industrial Workstation is suitable for a range of demanding industrial applications, including:

• Process control systems (PCS 7 environments)
• Data acquisition and logging
• Supervisory Control and Data Acquisition (SCADA) systems
• Human Machine Interface (HMI) workstations
• Industrial server applications requiring robust and reliable computing
• Manufacturing execution systems (MES)
• Plant-wide automation and monitoring

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. Safety First: Ensure all power to the rack and associated equipment is de-energized and locked out before beginning installation.
2. Rack Mounting: Mount the 19-inch, 4 U rack PC securely into a standard industrial equipment rack using appropriate mounting hardware. Ensure adequate space for airflow at the front and rear.
3. Power Connection: Connect the industrial power supply unit to a stable 100/240V AC power source using the provided power supply cable. Verify the power source meets the unit's requirements.
4. Peripheral Connections: Connect necessary peripherals such as keyboard, mouse (via PS/2 or USB), and display monitors (via DVI-D or Display Port). Utilize the included DP to DVI-D cable adapter if required.
5. Network Connectivity: Connect the Gbit Ethernet ports to the industrial network infrastructure using appropriate RJ45 cables.
6. USB Devices: Connect any required USB devices to the front or rear USB 3.0/2.0 ports.
7. Grounding: Ensure the rack and the IPC chassis are properly grounded to the facility's protective earth system to prevent electrical hazards and ensure signal integrity.
8. Cable Management: Route all cables neatly and securely to prevent strain, interference, and accidental disconnection. Separate power and signal cables where possible.
9. Environmental Considerations: Ensure the installation location provides adequate ventilation and maintains the operating temperature range specified for industrial PCs to prevent overheating.
10. Initial Power-Up: After all connections are verified, re-energize the power supply and observe the system's boot sequence.
