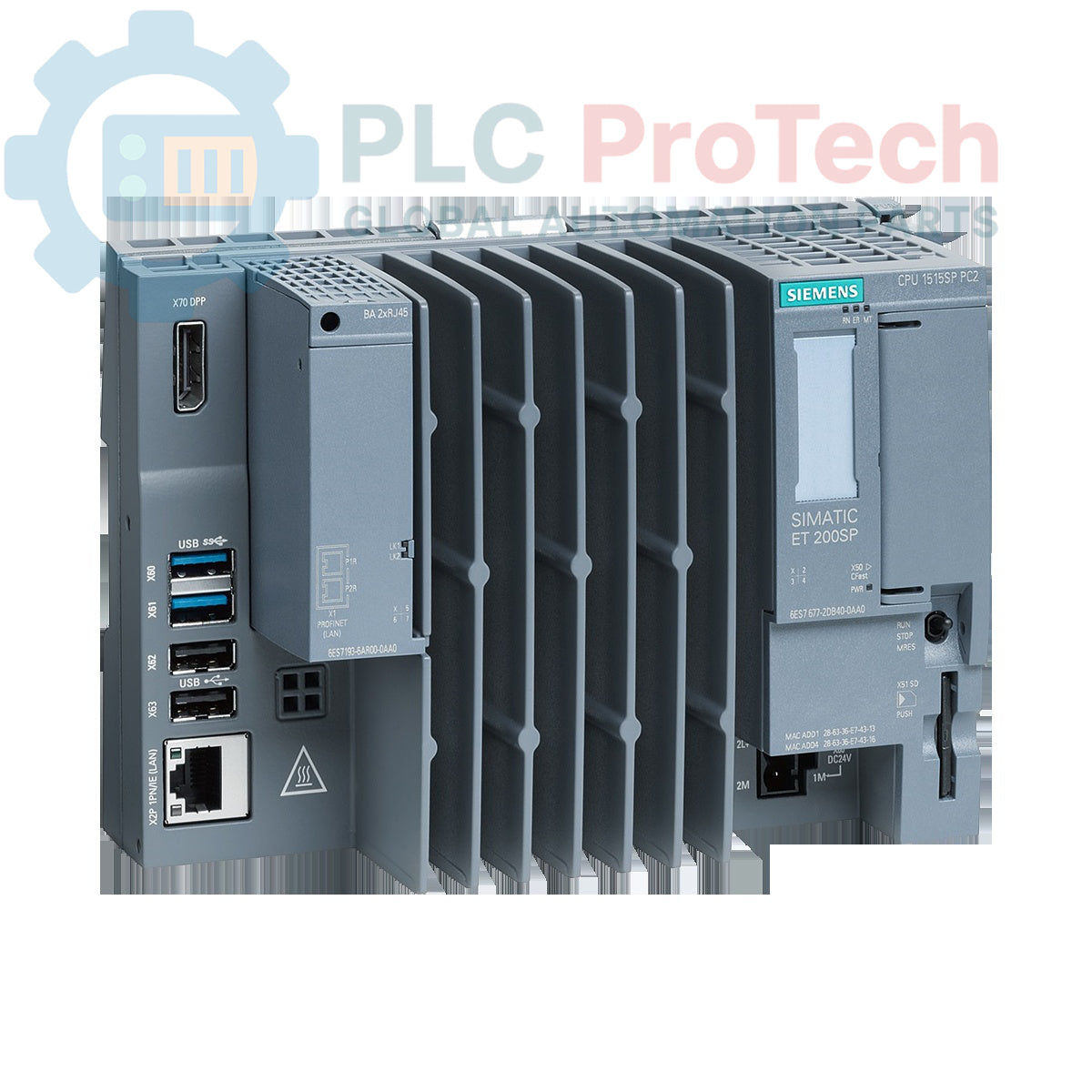

Siemens 6ES7677-2DB42-0GL0 SIMATIC ET 200SP OPEN CONTROLLER

Description

The Siemens 6ES7677-2DB42-0GL0 is a SIMATIC ET 200SP OPEN CONTROLLER, integrating a CPU 1515SP PC2 and an HMI 512PT. This industrial controller features 8 GB of RAM and 128 GB CFAST storage, pre-installed with either Embedded Windows 10 Pro or Windows 11 Pro. It includes the S7-1500 Software Controller CPU 1505SP and WinCC Runtime Advanced, complete with a 512 powertags license, making it suitable for distributed automation tasks requiring both PLC and HMI functionality within a single compact unit.

Features

• Integrated CPU 1515SP PC2 and HMI 512PT
• 8 GB RAM and 128 GB CFAST storage
• Pre-installed with Embedded Windows 10 Pro or Windows 11 Pro
• Includes S7-1500 Software Controller CPU 1505SP
• WinCC Runtime Advanced with 512 powertags license pre-installed
• Multiple integrated interfaces for connectivity and expansion
• Documentation and restore image available on CFAST

Applications

This SIMATIC ET 200SP OPEN CONTROLLER is designed for use in various industrial automation scenarios, including:

• Distributed control systems requiring integrated PLC and HMI capabilities
• Machine control and process automation
• Data acquisition and visualization in manufacturing environments
• Applications demanding a compact, robust, and versatile control solution

Technical Specifications

Connections / Interfaces

Installation Guidelines

1. De-energize System: Ensure all power to the control system and associated equipment is disconnected before installation or maintenance.
2. Mounting: Securely mount the controller in a suitable industrial enclosure or rack, ensuring adequate ventilation and clearance for cable routing.
3. Grounding: Establish a proper protective earth (PE) connection to the controller's designated grounding terminal to ensure electrical safety and minimize electromagnetic interference.
4. Power Connection: Connect the appropriate power supply to the controller, verifying correct voltage and polarity.
5. Network Connections: Connect PROFINET and Ethernet cables to their respective ports. Use shielded cables for industrial network communications to maintain signal integrity.
6. Peripheral Connections: Connect USB devices or a display to the available USB and Display Port interfaces as required.
7. Module Expansion: If expanding with ET 200SP modules, ensure the bus adapter connection is correctly seated and secured.
8. Environmental Considerations: Install the controller in an environment that complies with its specified operating temperature, humidity, and vibration ratings to ensure optimal performance and longevity.
