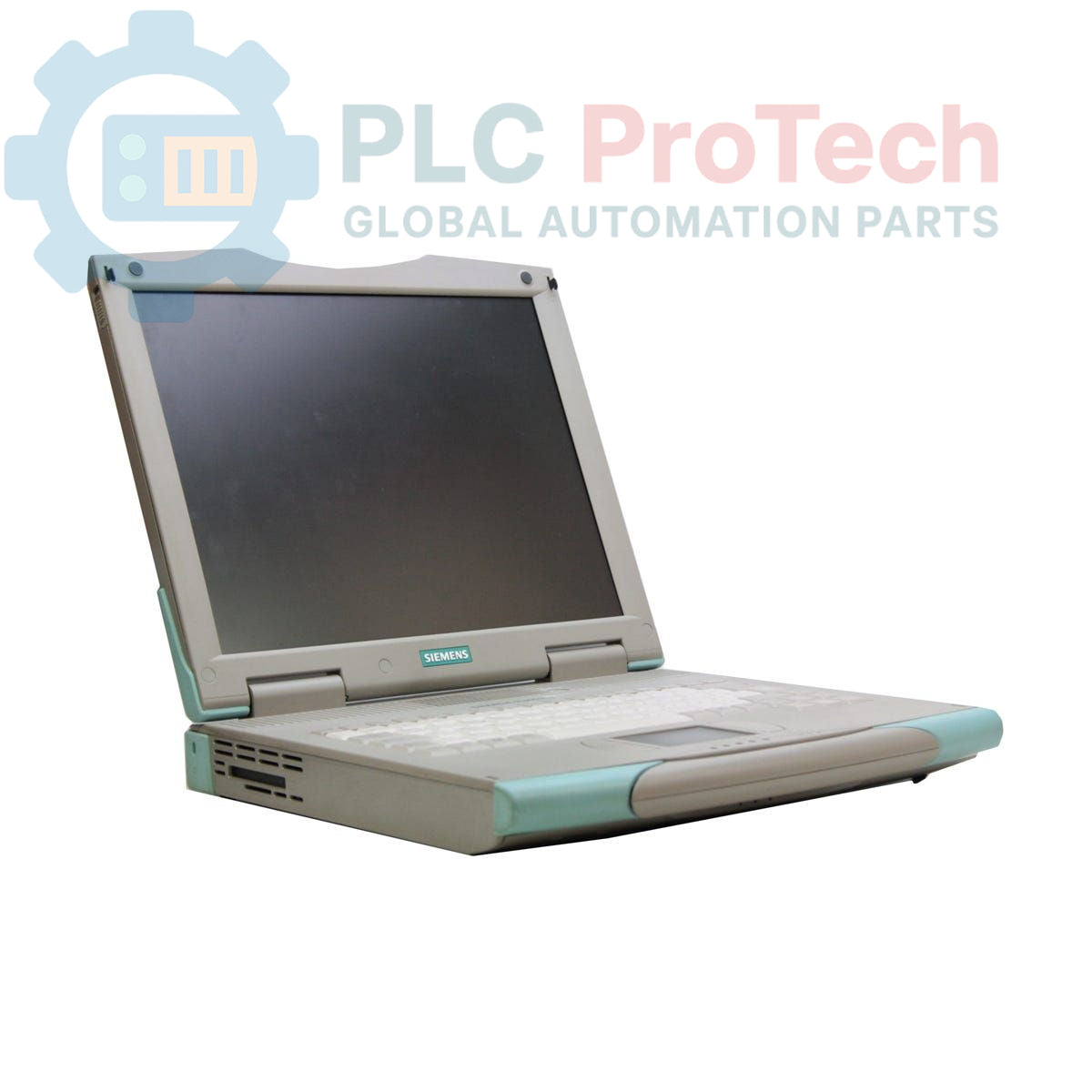

Siemens 6ES7710-5DA55-4FB4 SIMATIC Field PG

Description

The 6ES7710-5DA55-4FB4 is a SIMATIC Field PG from Siemens, a ruggedized portable computer designed for industrial automation engineering tasks. This unit is equipped with a 1 GHz Pentium III processor, 512 MB of SDRAM, and a 40 GB EIDE hard drive. It comes pre-loaded with a suite of Siemens engineering software, including STEP 7 Professional, STEP 5, and STEP 7 Micro/WIN, based on a December 2002 installation image. The integrated DVD-ROM/CD-RW and 1.44 MB floppy disk drives provide flexible options for data transfer and software installation in legacy environments.

Features

• Processor: Intel Pentium III operating at 1 GHz
• Memory: 512 MB SDRAM (configured as 2x256 MB modules)
• Storage: 40 GB EIDE Hard Disk Drive (HDD)
• Optical Drive: Combination DVD-ROM / CD-RW drive
• Legacy Media: Integrated 1.44 MB floppy disk drive
• Pre-installed Software: STEP 7 Professional, STEP 5, STEP 7 Micro/WIN
• Operating System: Windows 2000 MUI (Multi-User Interface)
• Included Accessories: Power cable for select European countries

Applications

• Commissioning and startup of PLC and HMI systems
• On-site diagnostics and troubleshooting of industrial controllers
• Programming and software maintenance for SIMATIC S5 and S7 systems
• Data archiving and project management in field environments
• Interfacing with legacy automation equipment requiring serial or parallel ports

Technical Specifications

Installation Guidelines

1. 1 Site Preparation: Operate the Field PG on a stable, level, and vibration-free surface. Ensure adequate ventilation around the unit's chassis to prevent overheating. Avoid environments with excessive dust, moisture, or corrosive agents.
2. 2 Power Connection: Use only the provided power cable or a certified equivalent compatible with the local mains voltage. Connect the power cable securely to the Field PG's power inlet and to a properly grounded AC outlet.
3. 3 Initial Startup & Backup: Before connecting to any industrial network or PLC, power on the unit and allow the operating system to load fully. Verify the functionality of the pre-installed software. Perform a complete system backup as recommended in the warning above.
4. 4 Interface Connection: Connect communication cables (e.g., MPI, PROFIBUS, Ethernet) to the appropriate ports. Ensure connectors are fully seated and secured. When connecting to live industrial equipment, follow all site-specific safety and lockout/tagout (LOTO) procedures.
