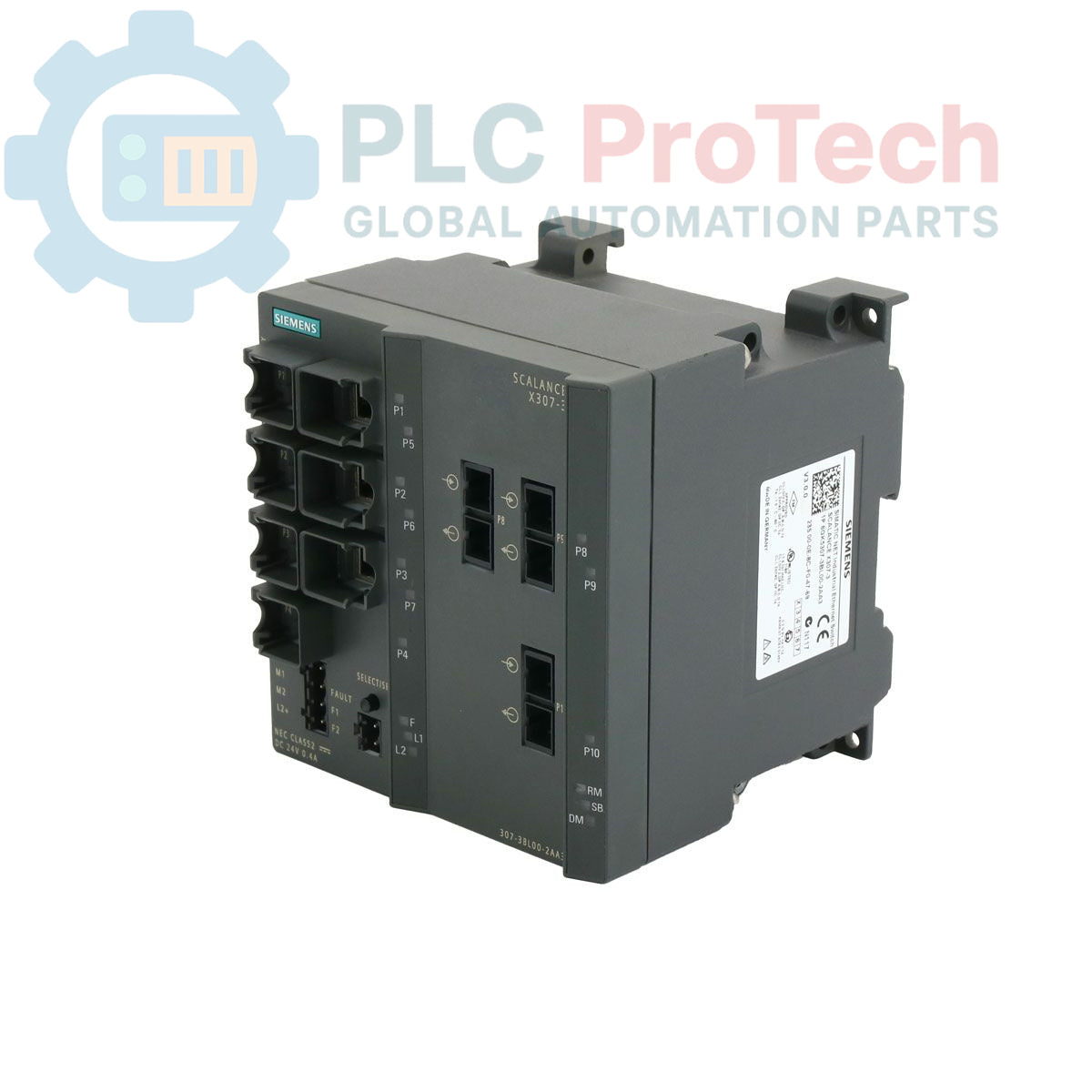

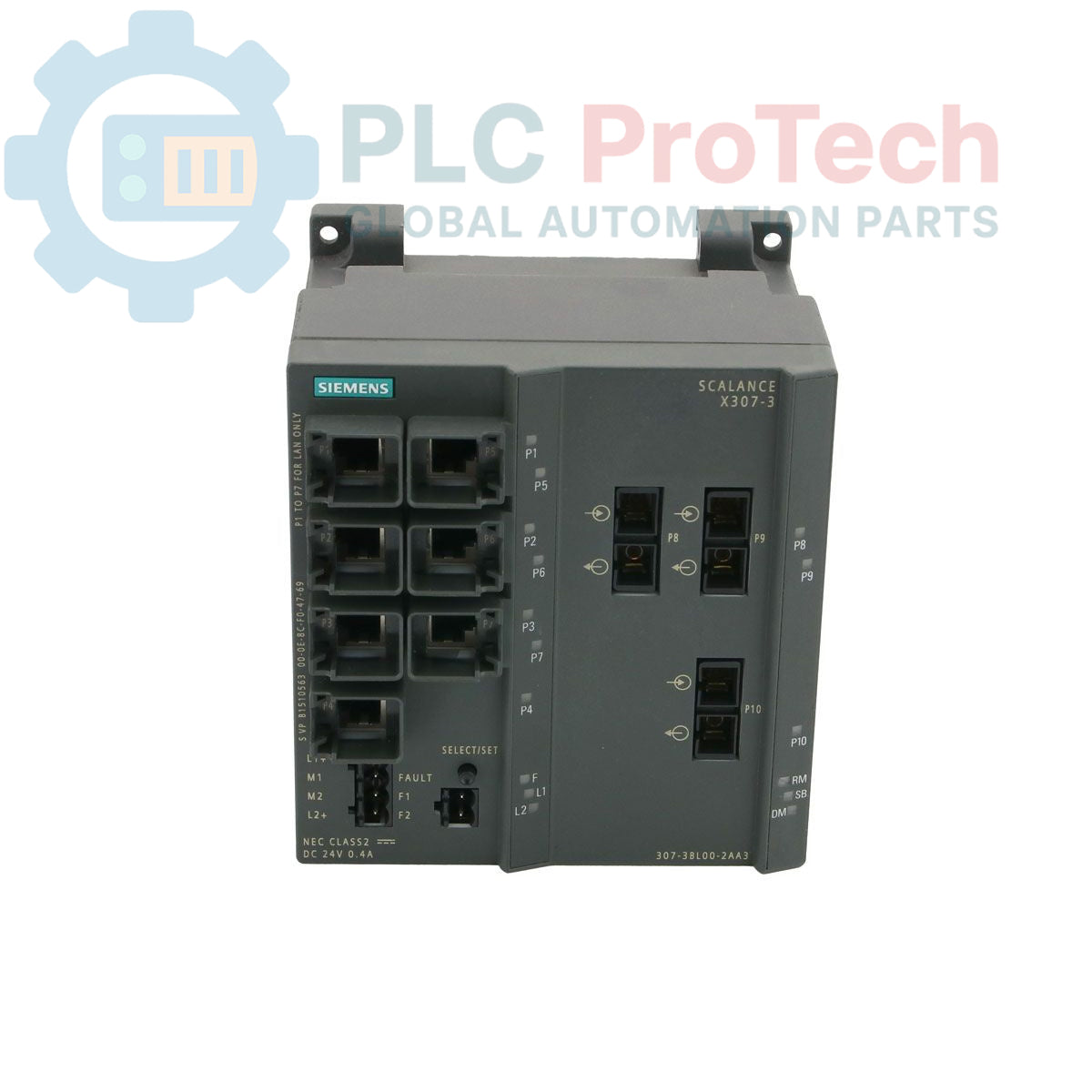

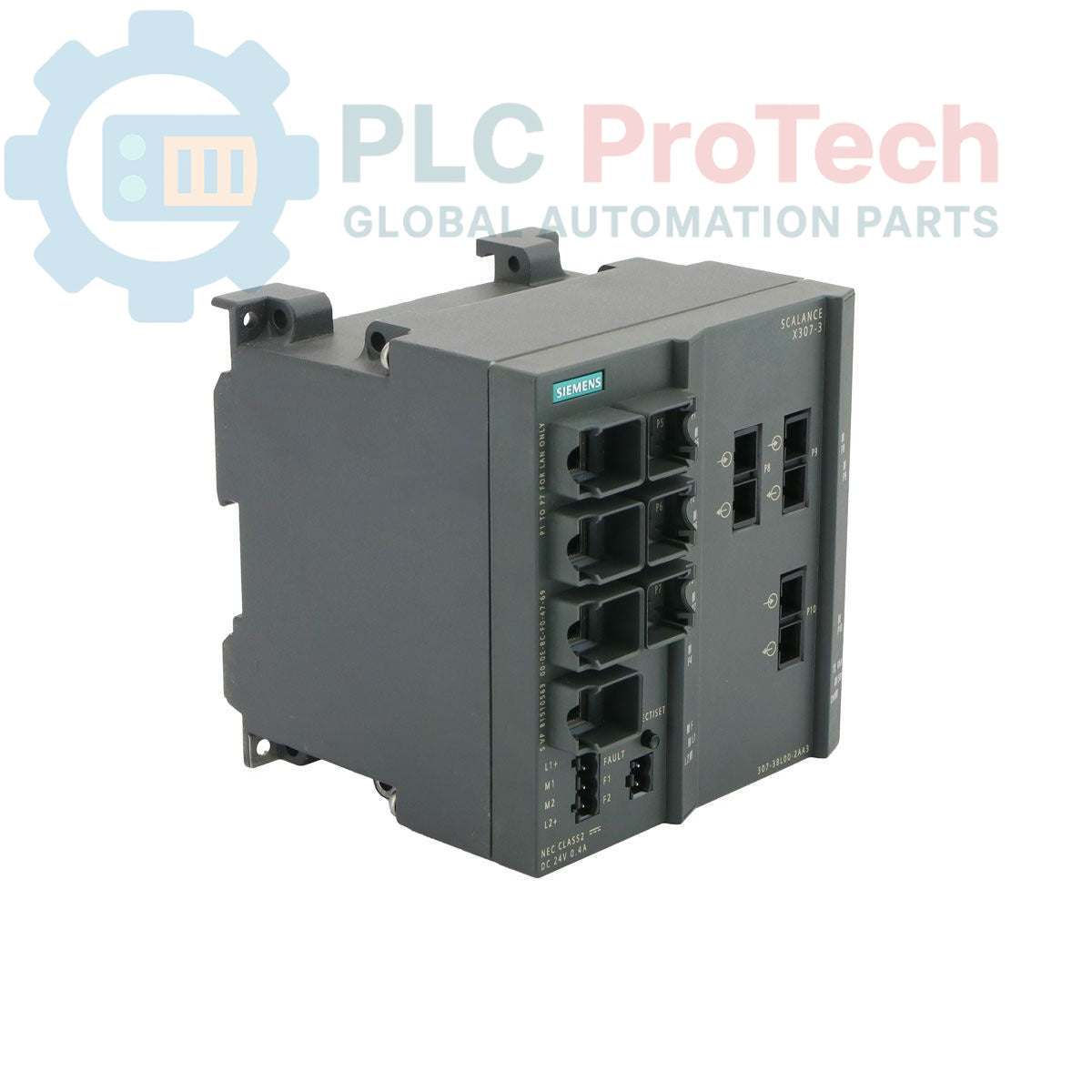

Siemens 6GK5307-3BL00-2AA3 SIMATIC SCALANCE X307-3 Managed Plus IE Switch

Description

The Siemens 6GK5307-3BL00-2AA3 is a SCALANCE X307-3, managed plus Industrial Ethernet (IE) switch designed for robust industrial communication networks. This module features a versatile port configuration, including 3x 1000 Mbit/s Multi-Mode (MM) SC ports and 7x 10/100 Mbit/s RJ45 ports, enabling flexible connectivity options. It incorporates LED diagnostics for status monitoring and an error signaling contact with a select/set pushbutton for fault management. The 6GK5307-3BL00-2AA3 functions as a PROFINET IO device and includes comprehensive network management capabilities, an integrated redundancy manager, and office features such as RSTP, VLAN, and IGMP to ensure reliable and efficient data flow. A C-plug is included in the scope of supply for convenient setup.

Features

• 3x 1000 Mbit/s Multi-Mode (MM) SC ports
• 7x 10/100 Mbit/s RJ45 ports
• LED diagnostics for operational status
• Error signaling contact with select/set pushbutton
• PROFINET IO device functionality
• Integrated network management
• Integrated redundancy manager for high availability
• Supports office features including RSTP, VLAN, and IGMP
• C-plug included in scope of supply

Applications

The Siemens 6GK5307-3BL00-2AA3 SCALANCE X307-3 Managed Plus IE Switch is suitable for a wide range of industrial applications requiring reliable and managed network communication, including:

• Industrial automation systems and control networks
• PROFINET-based architectures
• Plant-wide data communication
• Integration of office and industrial networks
• Applications requiring network redundancy and fault tolerance

Technical Specifications

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized before beginning any work.
2. Mounting: Mount the switch securely on a DIN rail or panel in a suitable industrial enclosure, ensuring adequate ventilation and clearance for cabling.
3. Power Connection: Connect the power supply according to the module's specifications. Ensure proper polarity and grounding to prevent electrical damage and ensure safe operation.
4. C-Plug Installation: Insert the provided C-plug into its designated slot on the switch.
5. Ethernet Cabling: Connect the 10/100 Mbit/s RJ45 ports using standard Ethernet cables. For the 1000 Mbit/s MM SC ports, use appropriate fiber optic cables. Ensure cables are properly routed and secured to prevent strain and interference.
6. Grounding: Establish a reliable protective earth (PE) connection for the device to minimize electromagnetic interference and ensure safety.
7. Configuration: Once powered, configure the switch parameters (e.g., VLANs, redundancy settings, PROFINET IO device settings) via the network management interface as required by the application.
8. Testing: Verify all connections and configurations by performing functional tests to ensure proper network operation and communication.
