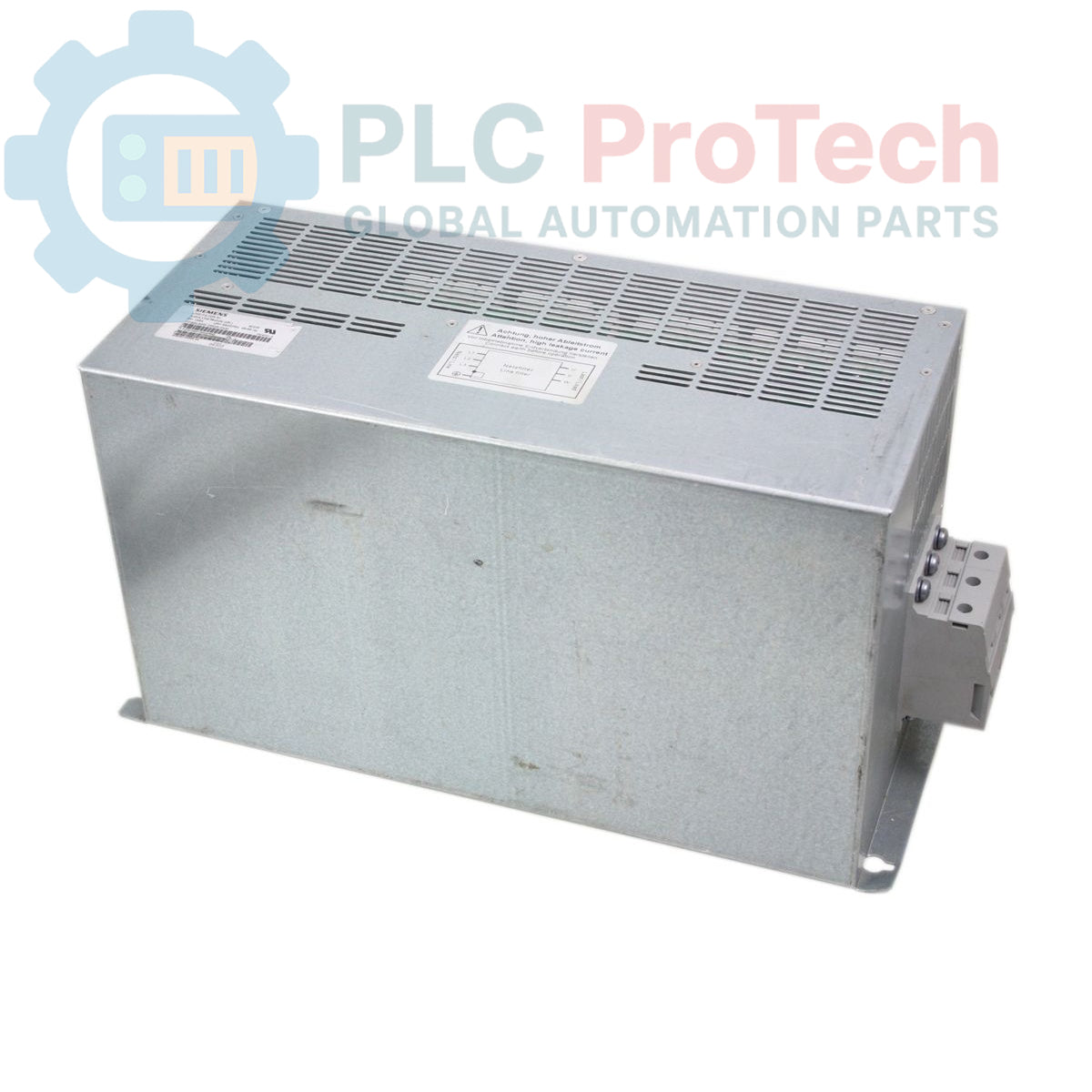

Siemens 6SL3000-0BE28-0AA0 | Siemens | SINAMICS / SIMODRIVE 611 Line Filter

The 6SL3000-0BE28-0AA0 is a high-performance Line Filter engineered to complement 80 kW Active Line Modules (ALM) within the SINAMICS and SIMODRIVE 611 drive families. This component is essential for maintaining electromagnetic compatibility (EMC) by suppressing high-frequency interference generated by the switching action of the drive's power electronics. By providing a clean power interface, this filter ensures the longevity and stable operation of connected automation hardware.

Features

• EMC Compliance: Specifically designed to suppress electromagnetic interference (EMI) and radio frequency interference (RFI) to meet industrial standards.
• Optimized for ALM: Rated for use with 80 kW Active Line Modules, ensuring efficient energy conversion and grid-friendly operation.
• Wide Voltage Range: Supports standard industrial supplies of 380-480 V (3AC) at 50/60 Hz.
• Robust Thermal & Electrical Specs: Built for the high power demands of large-scale industrial drives, managing an input of up to 80 kW reliably.

Applications

• Large-scale automation systems involving high-power motor drives.
• CNC machining and heavy-duty manufacturing production lines.
• Industrial setups where signal integrity is critical for PLC or sensor stability.
• Retrofitting or maintenance of SINAMICS and SIMODRIVE 611 multi-drive configurations.

Technical Specifications

Installation Guidelines

• Placement: The line filter should be installed as close as possible to the Active Line Module to minimize the length of unfiltered cable, which reduces the potential for radiated interference.
• Grounding: Proper bonding to the cabinet’s protective earth (PE) system is crucial. The filter housing must have a large-surface-area connection to the grounded mounting plate to effectively drain high-frequency noise.
• Wiring: Keep input cables (from the supply) separate from output cables (to the ALM) to prevent "crosstalk" where filtered signals could be re-contaminated by the noisy, unfiltered input cabling.
• Thermal Considerations: Given the unit's power capacity and weight, ensure the mounting backplane in the cabinet is rated for 25.40 kg and provides sufficient ventilation to prevent thermal accumulation.
