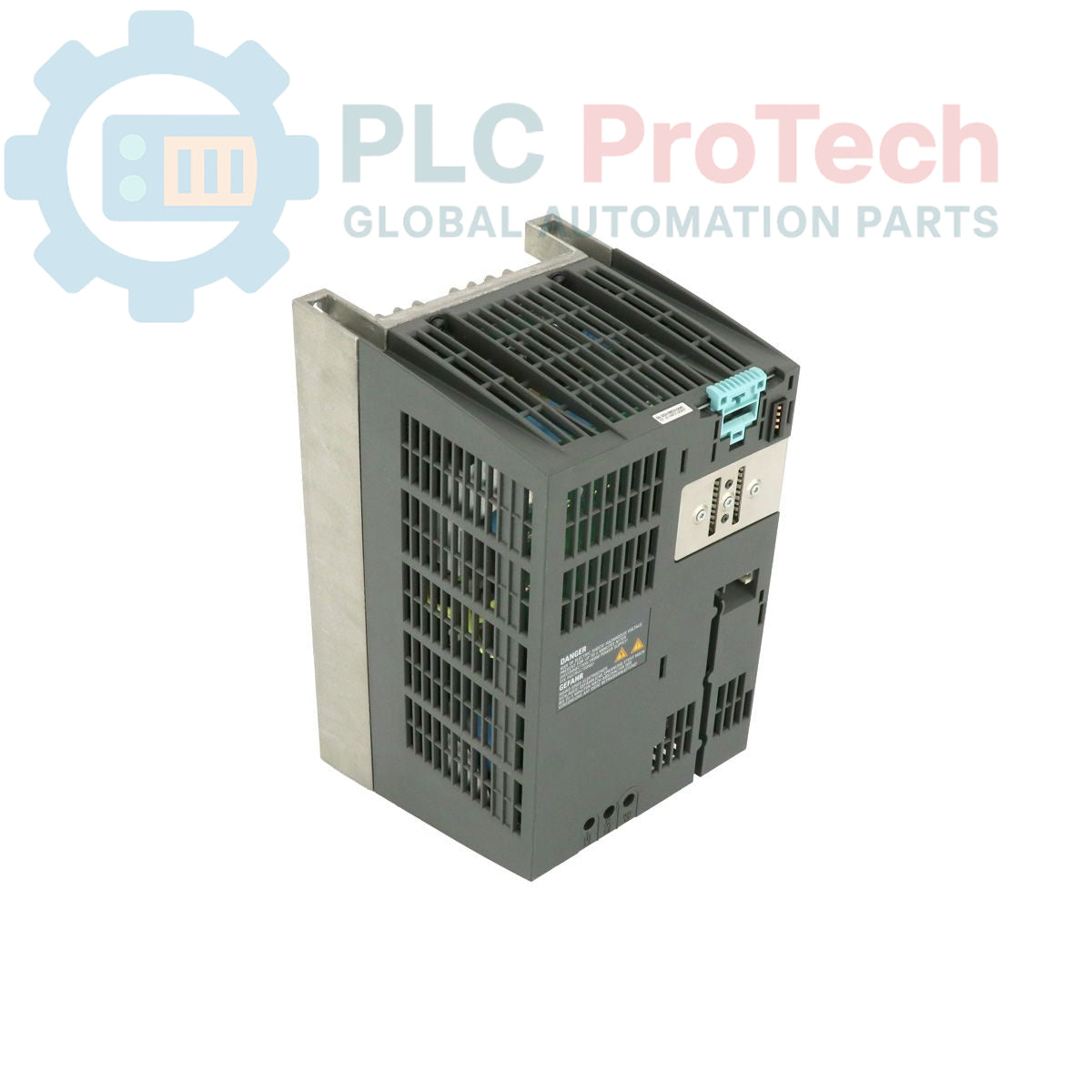

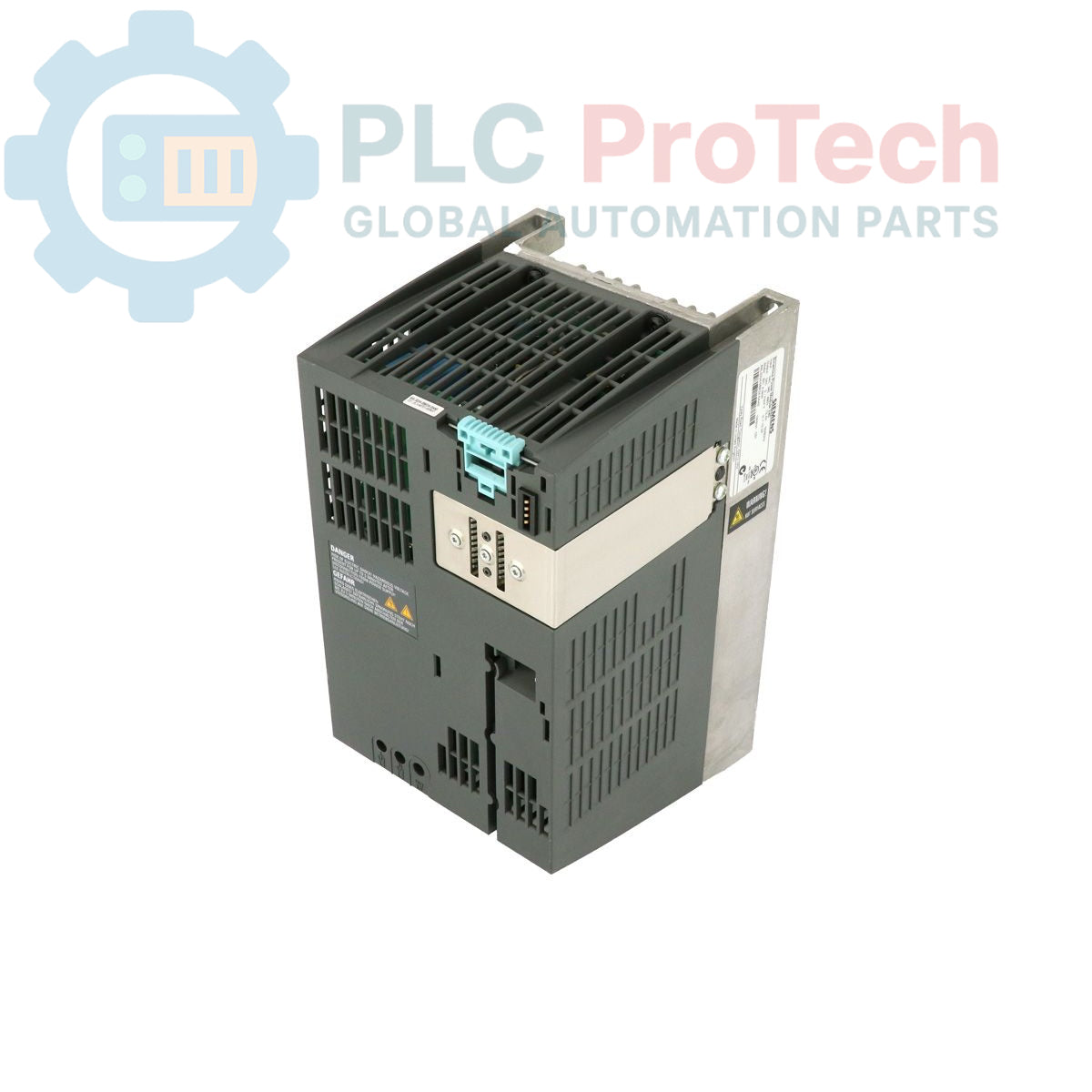

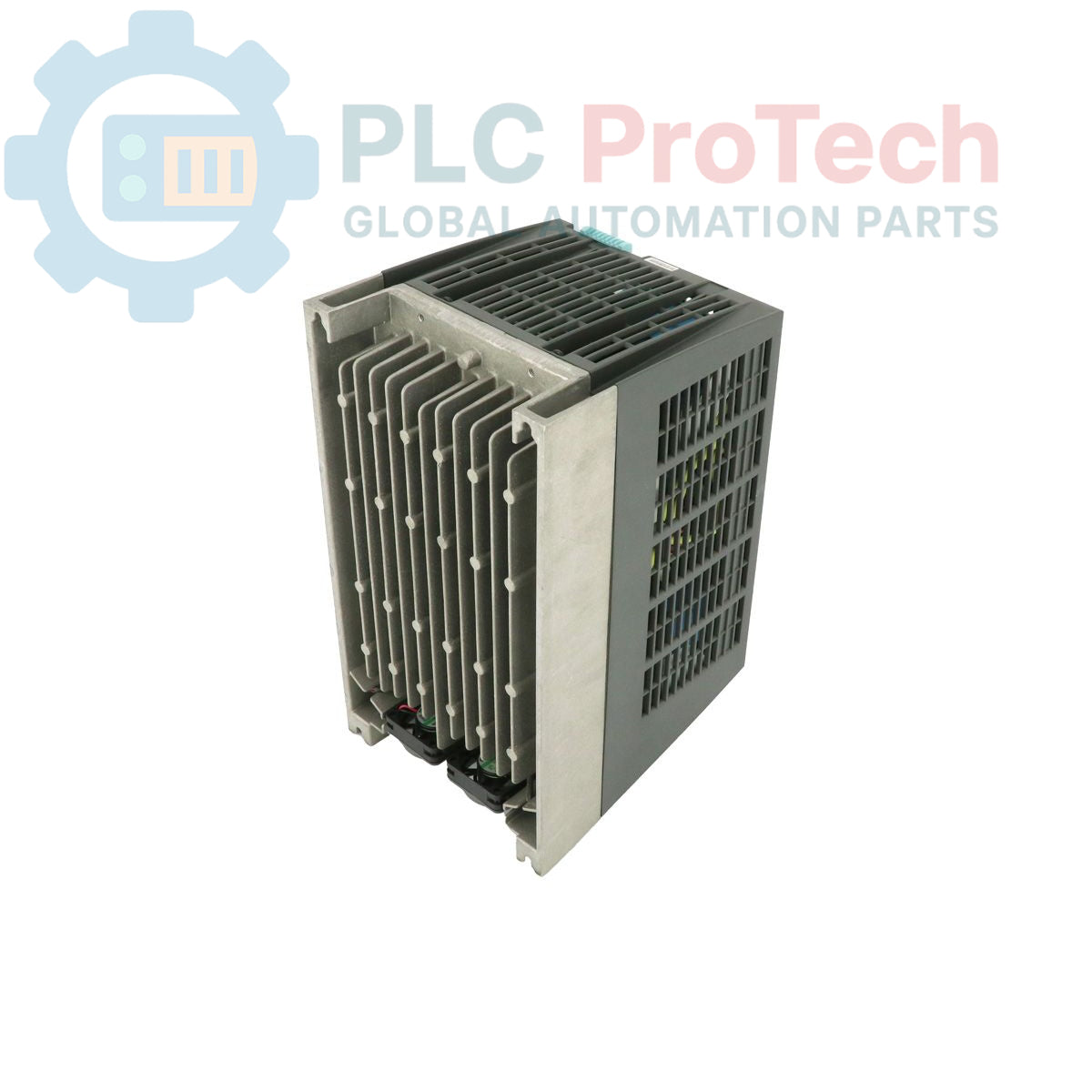

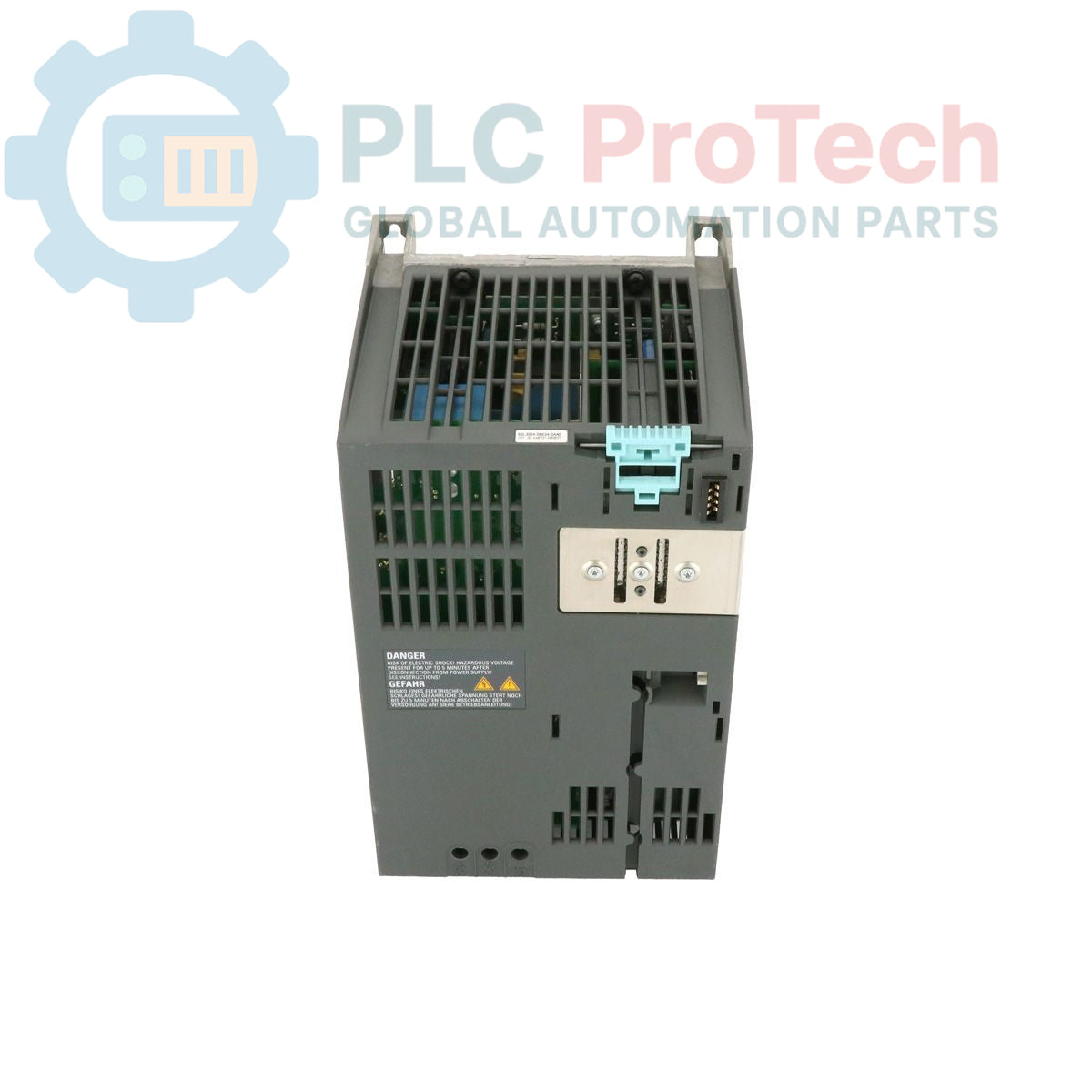

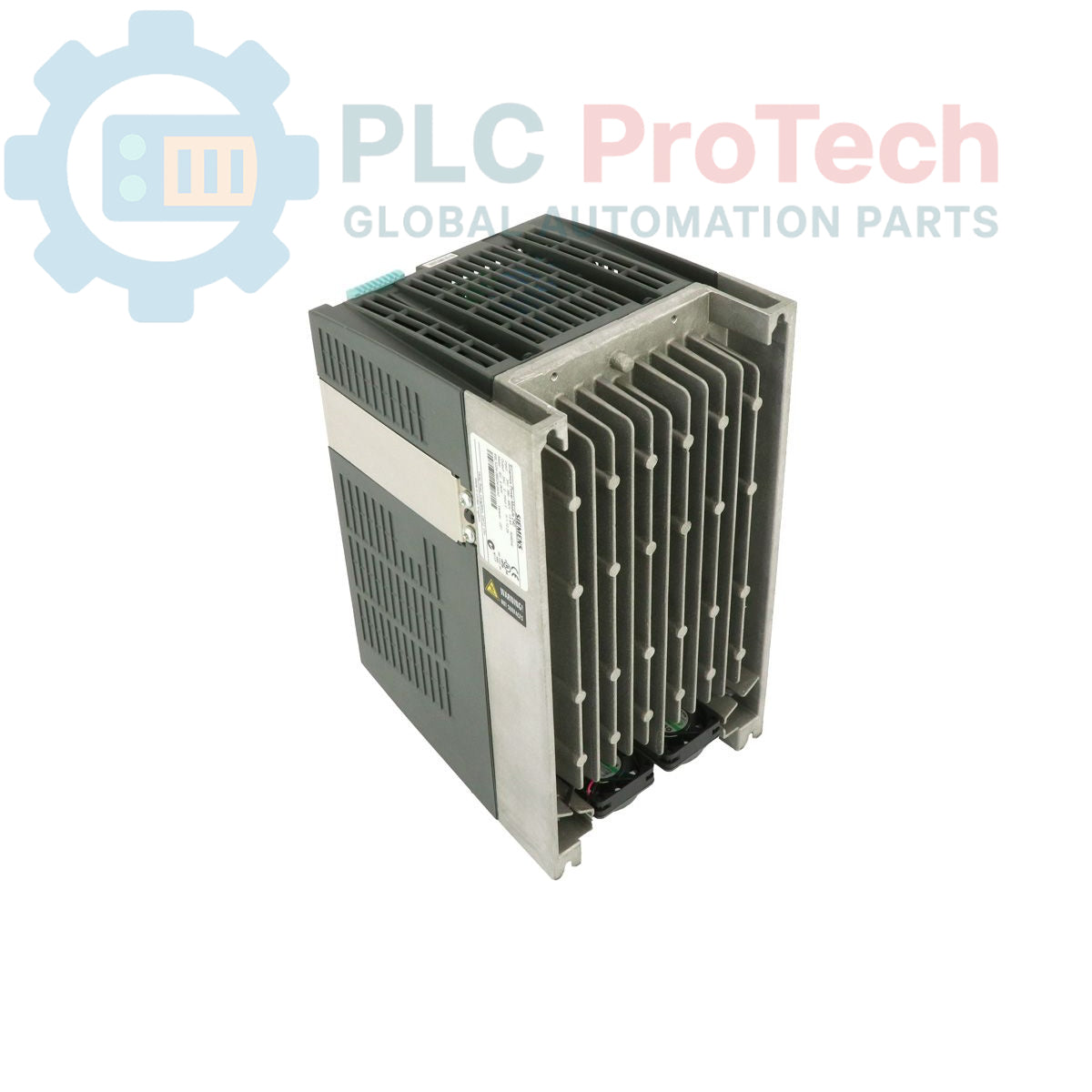

Siemens 6SL3224-0BE24-0AA0 | Siemens | SINAMICS G120 PM240 Power Module

Siemens 6SL3224-0BE24-0AA0 | Siemens | SINAMICS G120 PM240 Power Module

Only 7 item(s) left in stock

  • Manufacturer: Siemens

  • Product No.: 6SL3224-0BE24-0AA0

  • Country of origin:Germany

  • Product Type: Power Modules

  • Barcode: 85044095

  • Payment: T/T, Western Union

  • Weight: 4100g

  • Dimensions: 15.30cm x 16.50cm x 27.00cm

  • Shipping port: Xiamen

  • Warranty: 12 months

View full details
Product Description
FAQ
Shipping Returns
Additional details
Reviews

The 6SL3224-0BE24-0AA0 is a SINAMICS G120 PM240 Power Module designed for modular drive systems where high performance and flexible configuration are required. This power module features an integrated Class A filter to reduce electromagnetic interference and a built-in braking chopper, which allows for efficient handling of kinetic energy during motor deceleration. It is optimized for heavy-duty applications, offering robust overload capabilities for demanding industrial load cycles.

Features

  • Advanced Overload Capability: Rated for 4.0 kW, supporting 200% for 3s, 150% for 57s, and 100% for 240s to manage high-torque demands.
  • Integrated Components: Features a built-in braking chopper for rapid deceleration and a Class A filter for improved EMC compliance.
  • Versatile Power Input: Operates on 3-phase 380-480 V AC supplies with a frequency range of 47-63 Hz.
  • Compact Design: Dimensions of 270 x 153 x 165 mm (HxWxD), categorized as Frame Size B (FSB).
  • Flexible System Integration: Delivered as a standalone Power Module without a Control Unit or Basic Operator Panel (BOP), allowing users to select the optimal control interface for their application.

Applications

  • Material handling systems, conveyor belts, and automated logistics.
  • Pumps and fan applications in industrial processing.
  • General machinery requiring dynamic braking and reliable speed control.
  • Retrofitting and maintenance of existing SINAMICS G120 drive configurations.

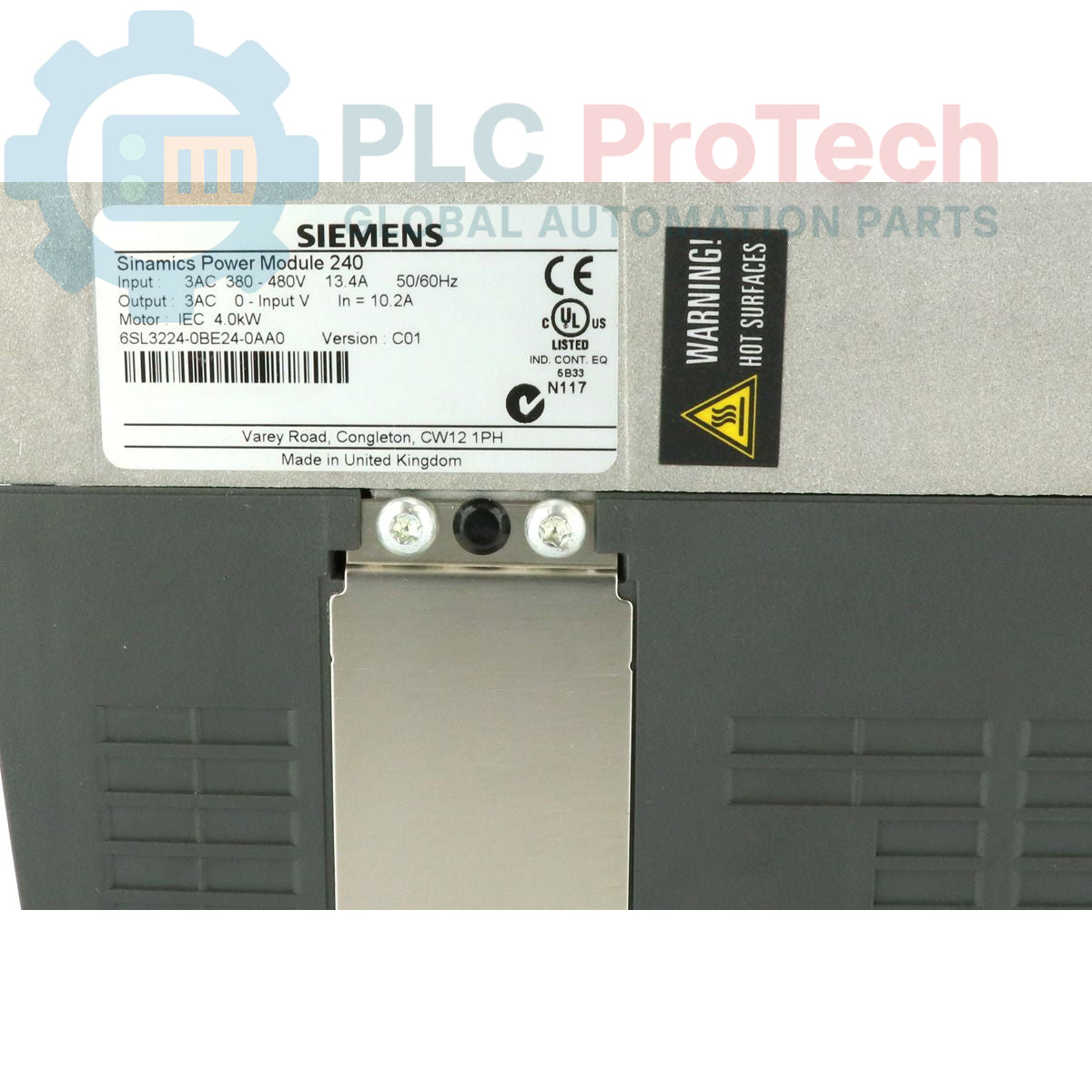

Technical Specifications

Parameter Specification
Manufacturer Siemens
Model 6SL3224-0BE24-0AA0
Range SINAMICS G120
Product Type Power Module (PM240)
Rated Power 4.0 kW
Input Voltage 3AC 380-480V (+10/-10%)
Nom. Output Current 10.2 A
Degree of Protection IP20
Dimensions (HxWxD) 270 mm x 153 mm x 165 mm
Weight 4.10 kg
Product Phase Phase-Out
Predecessor 6SE6420-2AD24-0BA1

Installation Guidelines

  • Control Unit Pairing: As this is a Power Module only, ensure you have a compatible SINAMICS G120 Control Unit (CU) available for configuration and operation.
  • Ventilation: The unit is rated for an ambient temperature range of -10 degC to +50 degC. Ensure sufficient clearance for airflow, especially above and below the module, to maintain thermal limits.
  • Mounting: Securely mount the FSB housing in a clean, dust-controlled environment (IP20 rating).
  • Grounding & Shielding: To ensure optimal performance of the integrated Class A filter, maintain proper grounding and use shielded motor cables, keeping them separate from control signals.
Key Features:
#Power Modules

What is the role of the integrated braking chopper?
The braking chopper enables the drive to dissipate energy generated during motor deceleration, which is essential for applications requiring controlled and rapid stopping.

Is this power module complete and ready to run?
No, this is a Power Module only. It requires a compatible SINAMICS G120 Control Unit and an Operator Panel (BOP) to function.

What is the overload rating for this PM240 module?
It supports high overload cycles: 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds.

What is the significance of the 'Phase-Out' status?
A 'Phase-Out' status indicates the product is near the end of its life cycle and is primarily intended for maintaining existing systems rather than new large-scale project installations.
