Siemens SCALANCE 6GK5324-0BA00-3AR3 Managed IE Switch

Description

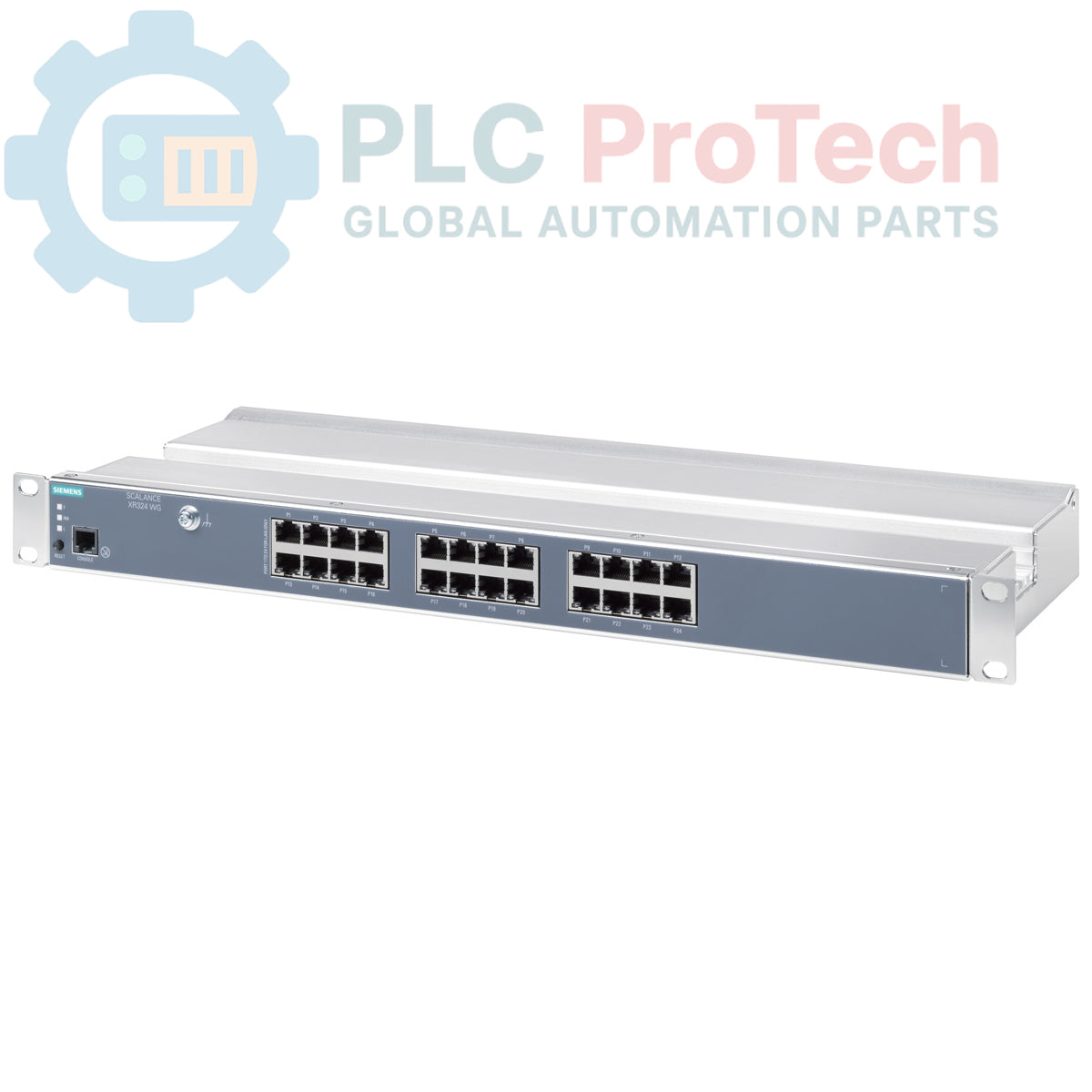

The 6GK5324-0BA00-3AR3 is a SCALANCE XR324WG managed industrial Ethernet switch designed for standard 19-inch rack mounting. This network device features 24 electrical ports supporting 10/100 Mbps communication, onboard LED diagnostics, a reset button, a console port, and built-in PROFINET device functionality. Equipped with IEC 62443-4-2 certified network management and an integrated redundancy manager, the 6GK5324-0BA00-3AR3 switch operates on a 240 V AC power supply ranging from 85 to 264 V.

Features

• 24 x 10/100 Mbps electrical Ethernet ports
• Managed industrial Ethernet switch in a 19-inch rack form factor
• Integrated redundancy manager for high network availability
• IEC 62443-4-2 certified network management functions
• Onboard LED diagnostics, reset button, and console port
• Wide-range 240 V AC power supply (85 to 264 V)

Applications

• Industrial control room network backbones
• Plant-wide PROFINET communication infrastructure
• High-availability redundant ring topologies
• Manufacturing cell network integration

Technical Specifications

Installation Guidelines

• Mount securely into a standard 19-inch rack using appropriate enclosure hardware.
• Ensure adequate ventilation and clearance around the rack unit to maintain proper operating temperatures.
• Connect the 240 V AC power supply within the specified 85 to 264 V range, verifying proper grounding.
• Route Ethernet and console cables securely to prevent mechanical strain or electromagnetic interference.
