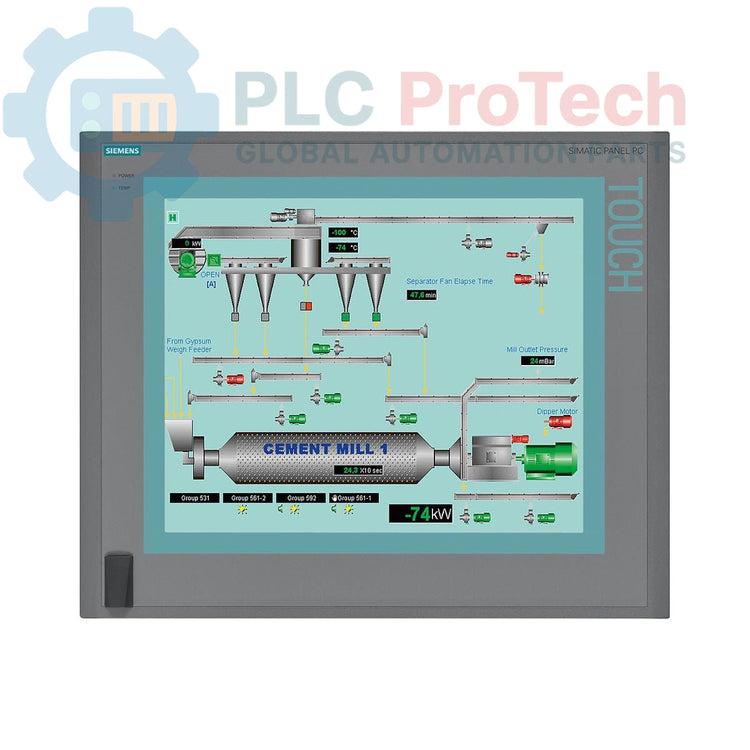

Siemens SIMATIC HMI IPC677C Panel PC 6AV7892-0ED30-0AC0

Description

The Siemens SIMATIC HMI IPC677C Panel PC 6AV7892-0ED30-0AC0 is an industrial computing and visualization solution designed for plant floor operations. This unit integrates a 15-inch touch display with a 1024x768 pixel resolution for clear Human-Machine Interface (HMI) interaction. It features an Intel Core I3-330E processor (2.13 GHz, 2 cores, 4 threads), supported by 4 GB DDR3 1066 DIMM system memory. Storage is provided by a 250 GB SATA Hard Disk Drive with an integrated onboard RAID controller for data redundancy. Connectivity includes two Gigabit Ethernet interfaces (10/100/1000 Mbit/s), four rear USB 2.0 ports, one front-side USB port, and a dedicated COM1 serial interface. The system incorporates industrial diagnostics for monitoring internal temperature, watchdog timers, and fan states. It operates on a 110/230 V AC power supply, conforming to NAMUR guidelines for voltage transient absorption, and comes pre-loaded with a 32-bit Windows 7 Ultimate operating system.

Features

• Industrial-grade 15-inch analog resistive touchscreen display with 1024x768 resolution.
• Intel Core I3-330E dual-core processor with hyper-threading technology, VT support, and 3 MB cache.
• Dual-channel 4 GB DDR3 DIMM system memory clocked at 1066 MHz.
• High-capacity 250 GB SATA internal hard disk drive, configured without an optical drive.
• Dual independent 10/100/1000 Mbit/s RJ45 Gigabit Ethernet ports.
• Onboard hardware RAID controller for data protection setups.
• Integrated system diagnostics for autonomous watchdog, thermal status, and cooling fan monitoring.
• NAMUR-compliant 110/230 V AC power module designed for high electromagnetic compatibility.
• Dual free PCI expansion slots for hosting supplementary communication or fieldbus interface cards.
• Rugged front-panel configuration providing IP65 dust and moisture ingress protection.

Applications

• SCADA and high-resolution process visualization layers in manufacturing operations.
• Direct machine-level control and HMI execution in automotive production cells.
• Distributed data acquisition, logging, and concentration in water treatment utilities.
• Embedded control hubs for specialized material handling and conveying systems.
• Real-time critical parameter monitoring within petrochemical processing environments.

Technical Specifications

Connections and Interfaces

Installation Guidelines

1. Safety First: Ensure all power to the installation area is de-energized and locked out before beginning any work. Verify absence of voltage using appropriate test equipment.
2. Mounting: The Panel PC is designed for panel mounting. Prepare the panel cutout according to the specified physical dimensions (67.00 x 55.00 x 28.00 cm). Secure the unit using the provided mounting hardware, ensuring a tight seal for the IP65 front panel protection.
3. Power Connection: Connect the 110/230 V AC power supply to the designated power input terminals. Ensure proper grounding of the unit to the plant's protective earth system to prevent electrical hazards and ensure EMC compliance. Use the specified Switzerland-specific power connection cable if applicable, or an equivalent industrial-grade cable.
4. Network Cabling: Connect industrial Ethernet cables (RJ45) to the two Gigabit Ethernet ports. Route cables to minimize electromagnetic interference and ensure proper strain relief. Consider network segregation or redundancy as required by the application.
5. Peripheral Connections: Connect USB devices (e.g., keyboard, mouse, barcode scanner) to the available USB 2.0 ports (four rear, one front). Utilize the COM1 serial interface for legacy or specialized serial communication devices.
6. Cooling and Ventilation: Ensure adequate clearance around the unit for proper airflow, especially for the rear cooling fan. Do not obstruct ventilation openings to maintain optimal operating temperature and extend component lifespan.
7. System Configuration: After physical installation and power-up, configure the pre-installed Windows 7 Ultimate 32-bit operating system and any required HMI/SCADA software. Verify system diagnostics (watchdog, temperature, fan status) are operational.
