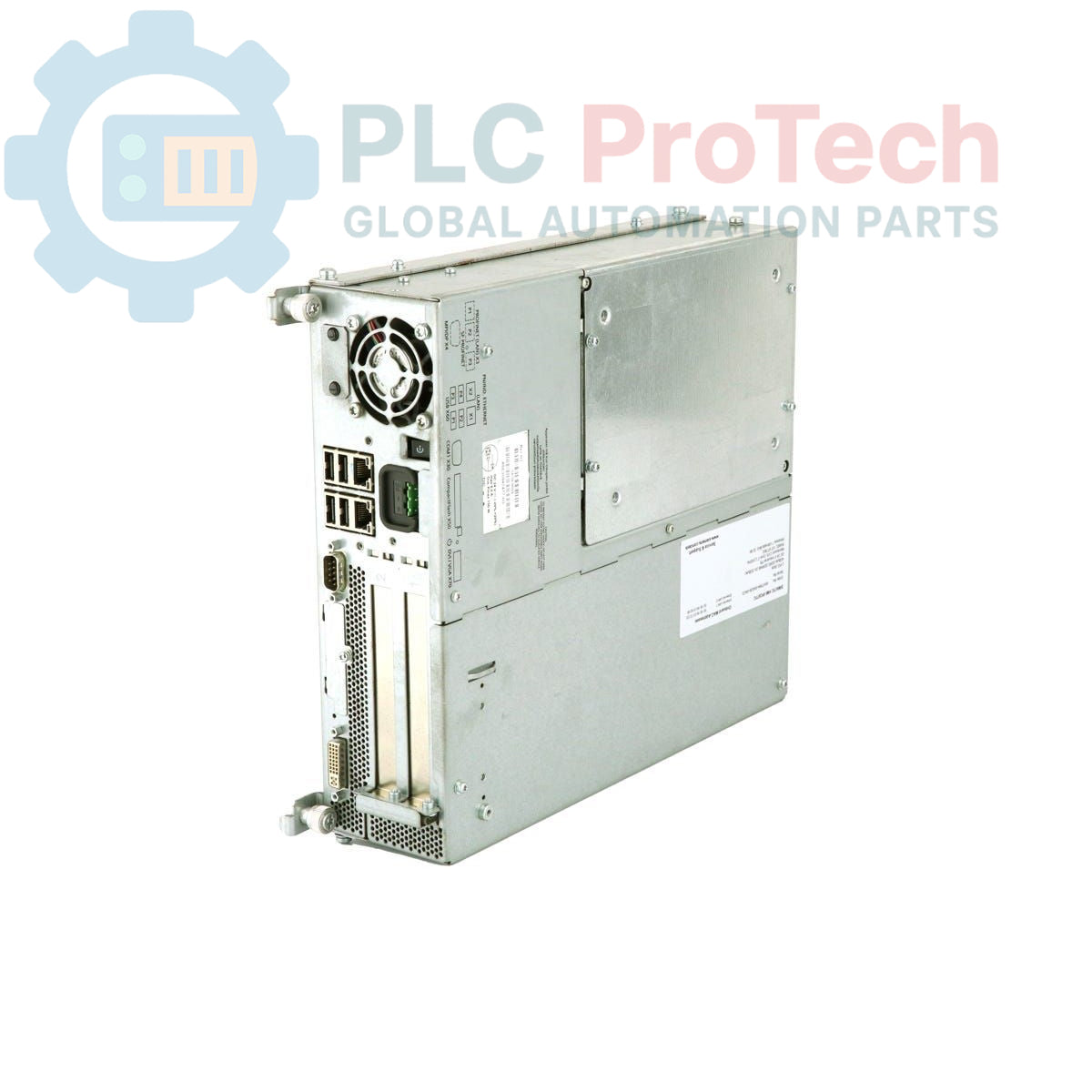

Siemens SIMATIC Panel PC IPC677C 6AV7423-2AA01-0LS0

Only 3 item(s) left in stock

Manufacturer: Siemens
Product No.: 6AV7423-2AA01-0LS0
Country of origin:Germany
Product Type: Industrial Panel PC
Barcode: 85371091
Payment: T/T, Western Union
Weight: 12g
Dimensions: 55.0 x 45.0 x 25.0 cm
Shipping port: Xiamen
Warranty: 12 months

Description

The Siemens 6AV7423-2AA01-0LS0 is a SIMATIC HMI IPC677C, an industrial panel PC designed for human-machine interface and control applications. This unit features a 15-inch display with a keypad interface and a native resolution of 1024 x 768 pixels. It is equipped with dual 10/100/1000 Mbit/s Ethernet ports, four rear USB 2.0 ports, and a front-side USB port for convenient access. System reliability is enhanced through an onboard RAID controller and integrated monitoring functions for watchdog, temperature, and fan status. The device operates on a wide-range 110/230V AC power supply with NAMUR specifications.

Features

15-inch display with integrated keypad
Screen resolution of 1024 x 768 pixels
Dual Gigabit Ethernet interfaces for robust network connectivity
Multiple USB 2.0 ports, including one on the front panel
Onboard RAID controller for data redundancy
Integrated system monitoring for watchdog, temperature, and fan
Serial communication via one COM1 port
Powered by a 110/230V AC supply

Applications

Process visualization and control stations
Machine-level data acquisition and logging
Factory automation and assembly line management
Industrial SCADA HMI nodes
Manufacturing Execution Systems (MES) terminals

Technical Specifications

Specification	Value
Manufacturer	Siemens
Model Number	6AV7423-2AA01-0LS0
Series	SIMATIC Panel PC IPC677C
Product Type	Industrial Panel PC
Display Size	15-inch
Display Interface	Keypad
Resolution	1024 x 768 pixels
Power Supply	110/230V AC with NAMUR
Ethernet Ports	2 x 10/100/1000 Mbit/s
USB Ports	4 x USB 2.0 (rear), 1 x USB (front)
Serial Port	1 x COM1
Storage Controller	Onboard RAID Controller
System Monitoring	Watchdog, Temperature Control, Fan Control
Product Lifecycle Status	Obsolete
Shipping Weight	12.00 kg
Country of Origin	Germany (Estimated)
Package Dimensions (Calculated)	55.0 x 45.0 x 25.0 cm

Installation Guidelines

CRITICAL WARNING: Risk of electric shock. Installation must be performed by qualified personnel only. Disconnect and lock out all power sources before accessing the control panel or making any connections. Failure to comply can result in severe injury or death.

1 Ensure the target enclosure is completely de-energized and locked out. Verify the absence of voltage before proceeding.
2 Verify the panel cutout dimensions match the IPC677C installation requirements. Ensure the mounting surface is clean, flat, and rigid.
3 Insert the Panel PC into the cutout from the front. Secure it from the rear using all provided mounting clamps, tightening them evenly to the manufacturer's specified torque to ensure a proper seal.
4 Connect a low-impedance protective earth (PE) conductor to the designated grounding terminal on the PC chassis. This is a critical safety connection.
5 Connect the 110/230V AC power supply lines (L, N, PE) to the power input connector. Ensure the source voltage matches the device rating.
6 Connect Ethernet, USB, and serial cables as required. Ensure proper cable strain relief and routing to prevent damage.
7 After closing the enclosure, re-apply power and verify the Panel PC boots correctly and establishes network communication.

Key Features:

#Industrial Panel PC #SIMATIC IPC677C

What is the screen size and resolution of the 6AV7423-2AA01-0LS0?

This SIMATIC Panel PC features a 15-inch display with a native resolution of 1024 x 768 pixels and a keypad interface.

What network interfaces are available on this unit?

The device is equipped with two 10/100/1000 Mbit/s Gigabit Ethernet ports for network communication.

What is the required input power voltage?

This Panel PC operates on a wide-range AC power supply of 110/230V AC, compliant with NAMUR standards.

Does this unit have onboard system monitoring features?

Yes, it includes integrated system monitoring for watchdog timer, internal temperature, and fan status to enhance operational reliability.

Is there a RAID controller on this industrial PC?

Yes, the 6AV7423-2AA01-0LS0 comes with an onboard RAID controller to support data redundancy configurations.
