Siemens SINUMERIK 6FC3986-3JR Measurement Circuit Module

SKU 6FC3986-3JR

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6FC3986-3JR
  • Origin Germany
  • Product Type: Controllers
  • Barcode: 85044095
  • Payment: T/T, Western Union
  • Weight: 0.8 kg
  • Dimensions: 12.00cm x 9.30cm x 8.50cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Controllers Measurement Modules
Quantity
Call sales Contact

Product Description

Description

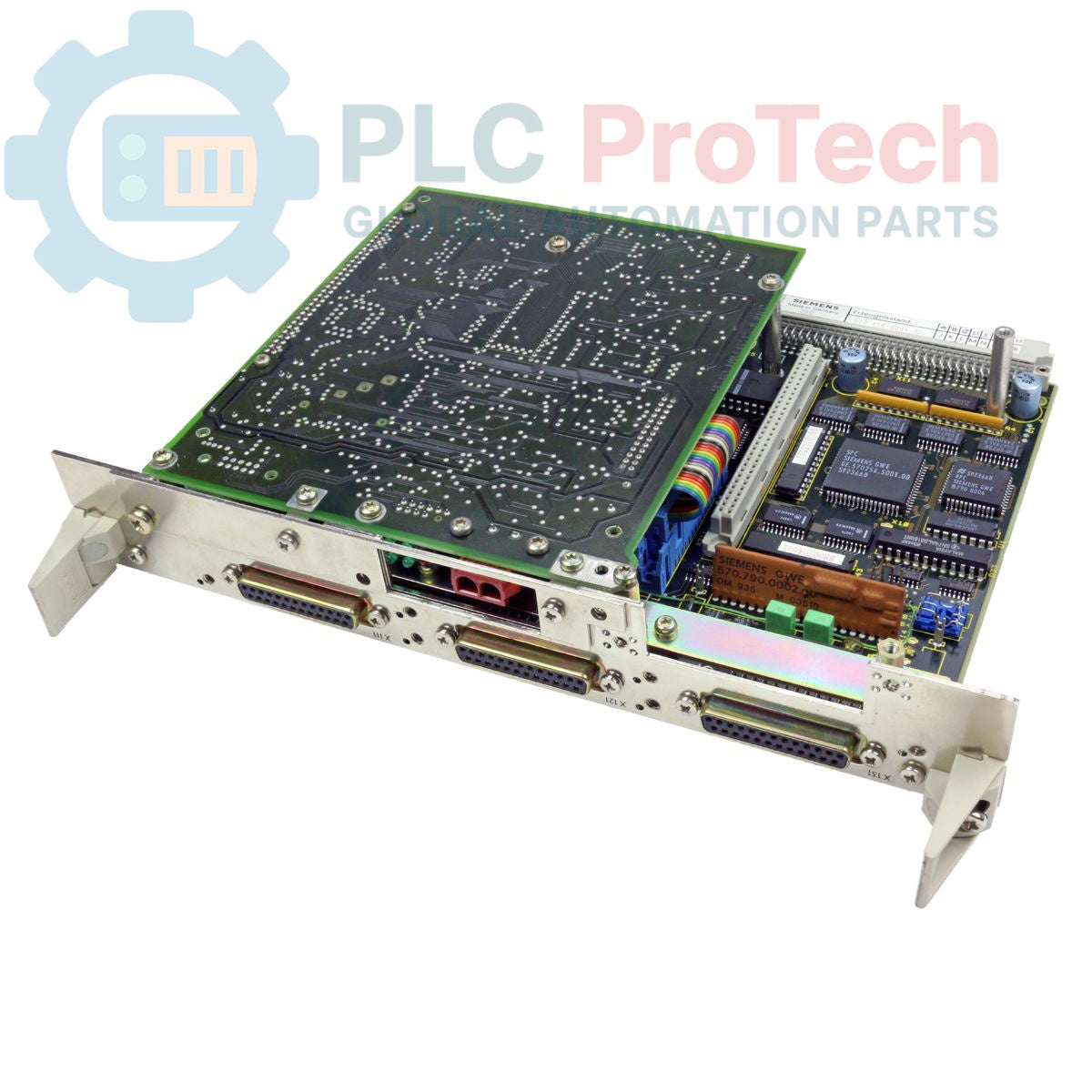

The 6FC3986-3JR is a Measurement Circuit Module (HMS) from the SINUMERIK controller range. Engineered by Siemens, this module is designed to process feedback data for CNC systems, specifically handling 3 actual values and 3 setpoints for absolute positioning applications. It acts as a critical interface between the machine's absolute encoders and the SINUMERIK control unit, ensuring accurate synchronization and precise motion control. Although now classified as Obsolete, this module is essential for the continued operation and maintenance of older SINUMERIK-based machine tool architectures.

Features

  • Precision Feedback: Manages 3 actual values and 3 setpoints for reliable motion tracking.
  • Absolute Positioning: Optimized for absolute encoder systems to ensure accurate machine coordinate referencing.
  • Controller Integration: Serves as a vital link in the SINUMERIK closed-loop control chain.
  • Compact Design: Optimized form factor for efficient installation within control cabinets.

Technical Specifications

Attribute Specification
Manufacturer Siemens
Brand Siemens
Product Range SINUMERIK
Model 6FC3986-3JR
Product Type Measurement Circuit Module (HMS)
Capability 3 Actual Values / 3 Setpoints
Weight 0.80kg
Dimensions 12.00 x 9.30 x 8.50 cm
Commodity Code 85044095
PLM Product Phase Obsolete

Installation Guidelines

  • Handling: As a sensitive measurement component, use anti-static protection during installation to prevent damage to the onboard circuitry.
  • Wiring: Ensure all encoder cables are shielded and correctly terminated to the module to prevent electromagnetic interference (EMI) from affecting measurement accuracy.
  • Integration: Double-check the hardware addressing and configuration settings in the SINUMERIK controller software to ensure the module is correctly recognized.
  • Environmental: Install in a clean, temperature-controlled cabinet; moisture and conductive dust can lead to signal noise or module failure.
  • Maintenance: Always verify power supply stability when working with measurement circuit modules, as voltage fluctuations can lead to intermittent position drift.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the 6FC3986-3JR?
This module acts as a measurement circuit interface for SINUMERIK controllers, handling 3 actual values and 3 setpoints for absolute positioning.
What type of positioning does this module support?
It is specifically optimized for absolute positioning applications.
Is this product still supported by Siemens?
No, it is currently classified as an obsolete product.
Why is proper shielding important for this module?
Since it handles precise measurement feedback, shielding prevents electromagnetic interference from causing signal errors or position drift.
