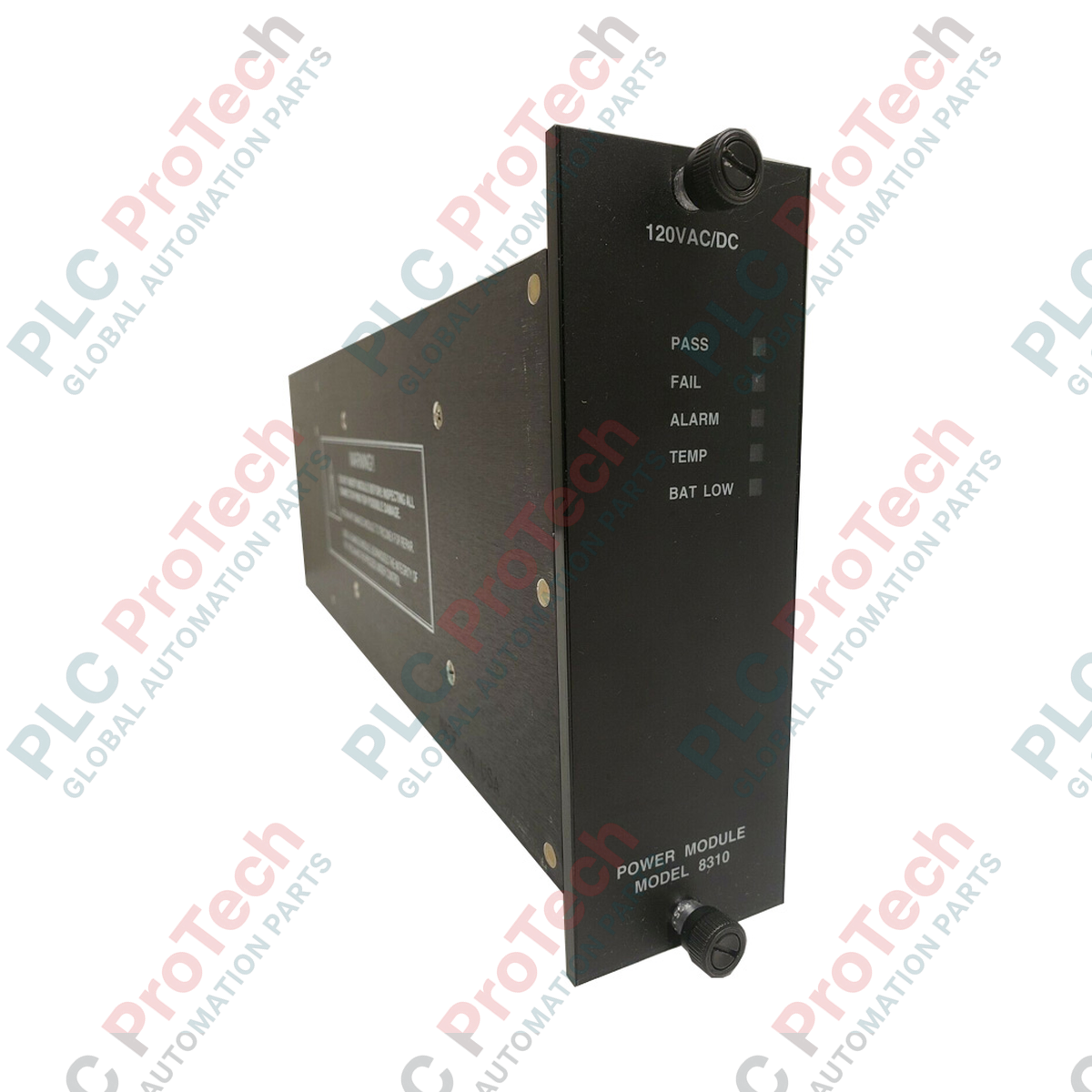

Triconex 8310 Power Module | 120 VAC/VDC 175W

Product Overview

The 8310 (8310) is a high-performance, 175-Watt Power Module engineered for the Triconex Triple Modular Redundant (TMR) safety system. Designed for high-availability environments, the Triconex 8310 provides regulated DC power to the internal backplane, supporting the Main Processors, Communication Modules, and I/O assemblies. This module is compatible with Main, Expansion, and Remote Expansion (RXM) chassis types. In critical industries such as oil and gas, chemical processing, and power generation, the 8310 plays a vital role in preventing system-wide power failures. By supporting dual-redundant power configurations within a single chassis, it ensures that even the total loss of one power source does not compromise the Safety Instrumented System (SIS) or result in costly process downtime.

Technical Configuration (Deep Dive)

The 8310 Power Module is built to handle versatile input requirements while maintaining strict output regulation for the sensitive TMR electronics.

• Dual-Source Compatibility: The module is rated for both 120 VAC and 120 VDC nominal inputs, allowing it to interface with standard utility grids or industrial battery backup systems.

• Wide Input Tolerance: It remains operational through significant voltage fluctuations, accepting 85–140 VAC (at 47-63 Hz) and 95–180 VDC, ensuring stable system performance during brownouts or surges.

• Internal Protection: Each module is equipped with a 5 amp time-delay fuse, protecting the internal chassis backplane from over-current conditions and preventing fault propagation between modules.

• Chassis Versatility: Whether installed in the Main Chassis or a Remote Expansion (RXM) rack, the 8310 provides a consistent 175-watt power envelope, sufficient to drive a fully populated rack of high-density I/O modules.

Technical Specifications

Technical FAQs

Does the 8310 support redundant operation within the same chassis?

Yes. For full redundancy, a Triconex chassis should be populated with two 8310 modules. Each module is capable of supporting the entire chassis load; if one fails or loses its input source, the other takes over the full load instantaneously without a system reset.

Can the 8310 handle both AC and DC inputs simultaneously?

While the module is rated for both, it typically receives one type of input per module. In a redundant configuration, it is common engineering practice to feed one 8310 from an AC UPS and the second 8310 from a 120 VDC station battery for maximum reliability.

How do I identify a power module failure?

The front panel features a "Pass" and "Fault" LED. A "Fault" LED or the activation of the chassis alarm relay typically indicates a blown internal fuse or a failure in the internal voltage regulation circuitry.

Engineering & Installation Guide

• Input Power Separation: For maximum safety integrity, route the power cables for the primary and redundant 8310 modules through separate conduits. This prevents a single physical cable fire or accidental disconnect from disabling both power supplies.

• Fuse Replacement: Only use official 5-amp time-delay fuses. Using a fast-acting fuse may result in nuisance blows during the initial inrush current when the chassis is first energized.

• Thermal Management: Given its 175-watt rating, the 8310 generates significant heat during full-load operation. Ensure the chassis fan assembly is functional and that there is at least 15 cm of clearance above the cabinet to allow for heat dissipation.

Engineering Advantages

• High Surge Immunity: The 8310 is designed to withstand the electrical noise and spikes common in heavy industrial power grids, protecting the logic modules from damage.

• Hot-Swappable Maintenance: The module can be replaced while the system is online. By keeping one power module active, the failed unit can be swapped without stopping the process or losing any diagnostic data.

• Global Compliance: Meeting the stringent requirements for SIL 3 safety systems, the 8310 is a globally recognized standard for power reliability in hazardous and mission-critical applications.
